ABB SINT4420C Energy-Saving Power Supply Board ACS800

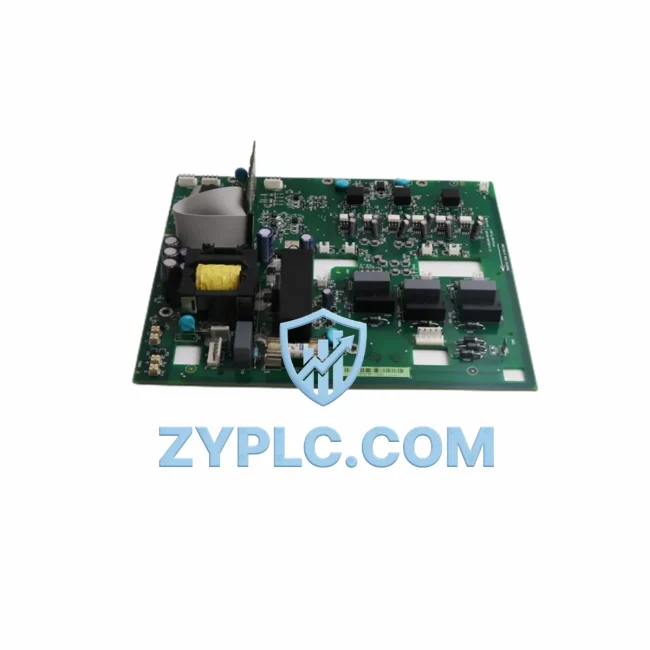

ABB SINT4420C Energy-Saving Power Supply Board ACS800: Precision Control for Optimized Drive Efficiency

The ABB SINT4420C is a high-efficiency power supply board engineered specifically for the ABB ACS800 series of industrial AC drives. In modern manufacturing environments where energy costs and equipment uptime directly impact profitability, the SINT4420C plays a critical role in maintaining stable, low-loss power delivery to the drive’s control and gate driver circuits. By ensuring clean, regulated internal power, this board directly supports the ACS800’s ability to execute precise motor control algorithms — reducing harmonic distortion, minimizing switching losses, and sustaining optimal inverter efficiency across variable load conditions.

Whether your facility operates continuous process lines, batch production cells, or multi-axis conveyor systems, the SINT4420C helps eliminate the hidden energy waste caused by unstable internal power rails. Voltage fluctuations within the drive’s power supply chain can force the ACS800’s control board to compensate dynamically, increasing processor load and reducing the accuracy of flux vector control. A properly functioning SINT4420C eliminates this instability at the source, allowing the drive to maintain its rated efficiency class throughout the production cycle.

Efficiency Performance Table

Energy-Aware Automation Architecture

The ABB SINT4420C does not operate in isolation — it is a foundational component within a tightly integrated drive architecture. The ACS800 platform is designed around a layered control hierarchy where the RMIO board (the main control board) depends on stable, isolated power rails to execute DTC (Direct Torque Control) algorithms with microsecond precision. When the SINT4420C delivers clean power to the RMIO, the drive can accurately calculate motor flux and torque in real time, enabling the ACS800 to run motors at exactly the speed and torque required — no more, no less — which is the foundation of energy-efficient motor control.

In larger ACS800 installations, the AINT board (inverter control interface) and AINP board (pulse encoder interface) also rely on the power supply board for their operational voltage. Instability in the SINT4420C’s output can cause erratic IGBT gate firing, leading to increased switching losses and potential overcurrent faults. Replacing a degraded SINT4420C restores the gate driver timing accuracy that the ACS800’s IGBT modules require for efficient power conversion.

For facilities using the ABB RDCU control unit in distributed drive configurations, the SINT4420C’s role extends to supporting fieldbus communication stability. The RDCU interfaces with plant-level SCADA and energy management systems via protocols such as PROFIBUS-DP or Modbus RTU — and communication dropouts caused by power supply noise can disrupt production scheduling and energy reporting. A healthy SINT4420C ensures the communication layer remains stable, preserving the data integrity needed for real-time energy monitoring.

In multi-drive panel configurations, the SINT4420C works alongside ABB NPBU-12C or NPBU-41C branching units that distribute the DDCS fiber optic control signals across multiple ACS800 drives. Power supply integrity at each drive node is essential for maintaining synchronization across the panel — particularly in coordinated multi-motor applications such as winder/unwinder systems or multi-pump pressure control, where energy efficiency depends on precise speed matching between drives.

When integrated with ABB Panel Bus or external energy metering systems such as the ABB B23 or B24 energy meter series, the ACS800 drive — powered reliably by the SINT4420C — can feed accurate kWh consumption data back to the plant energy management system. This closes the loop between drive-level efficiency and facility-level energy reporting, enabling engineers to identify inefficient operating points and schedule predictive maintenance before energy waste escalates into equipment failure.

Power Optimization in Real Production Lines

In pump and fan applications — which account for a significant share of industrial electricity consumption — the ACS800 drive’s ability to apply variable speed control is only as reliable as its internal power supply. A failing SINT4420C can cause the ACS800 to fall back to fixed-speed operation or trigger protective shutdowns, forcing the motor to run at full speed regardless of actual process demand. This single failure mode can increase pump energy consumption by 30–50% compared to optimized variable-speed operation. Replacing the SINT4420C promptly restores the drive’s ability to modulate motor speed in response to flow demand, recovering those energy savings immediately.

In conveyor and material handling lines, production throughput depends on consistent drive response. An unstable power supply board introduces latency into the ACS800’s torque response, causing micro-hesitations in belt speed that accumulate into measurable production rate losses over a shift. Maintenance teams that track OEE (Overall Equipment Effectiveness) metrics will recognize these symptoms as availability and performance losses — both of which are directly addressable by restoring the SINT4420C to specification.

For compressor applications in pneumatic or refrigeration systems, the ACS800’s energy savings come from its ability to maintain precise pressure setpoints through closed-loop speed control. The SINT4420C supports the control board’s ability to process analog feedback signals from pressure transducers and execute PID corrections in real time. A degraded power supply board introduces noise into the analog input circuits, causing the drive to hunt around the setpoint and consume more energy than a well-tuned system would require.

Every ABB SINT4420C unit supplied by ZYPLC undergoes full functional testing prior to shipment, including power-on verification, output voltage measurement across all rails, and load testing under simulated drive conditions. Units are shipped with protective packaging suitable for international freight, and all orders are supported by our 12-month warranty covering manufacturing defects and functional failures. Our inventory is maintained in-house, enabling fast dispatch and reliable lead times for urgent maintenance requirements.

Energy Optimization FAQ

Q1: How does replacing the SINT4420C improve energy efficiency in my ACS800 drive?
The SINT4420C supplies regulated DC power to the ACS800’s control and gate driver circuits. A degraded board causes voltage instability that impairs the drive’s DTC algorithm accuracy, leading to suboptimal motor flux control and increased energy consumption. Replacing it with a tested unit restores the drive’s ability to operate at its rated efficiency, reducing motor energy waste across the full speed range.

Q2: Which ACS800 drive frames and control board combinations are compatible with the SINT4420C?
The SINT4420C is designed for medium to high power ACS800 frames and is compatible with RMIO, AINT, AINP, and RDCU control board configurations. If you are unsure whether the SINT4420C matches your specific drive frame and firmware version, please contact our technical team with your drive nameplate data and we will confirm compatibility before shipment.

Q3: What is the recommended replacement procedure and are there any pre-installation tests?
Before installation, verify that the incoming AC supply to the drive is within specification and that no other fault conditions are present. The SINT4420C should be installed with the drive fully de-energized and capacitors discharged. After installation, perform a power-on test and verify that the ACS800 control panel displays no power supply fault codes. All ZYPLC-supplied units are pre-tested, but we recommend verifying output voltages with a calibrated multimeter before closing the drive cabinet.

Q4: What does the 12-month warranty cover and how is it processed?
Our 12-month warranty covers functional failures and manufacturing defects under normal operating conditions. If a unit fails within the warranty period, contact us at [email protected] or +86 19859288691 with your order reference and a description of the fault. We will arrange a replacement or repair with priority handling. The warranty does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling.
