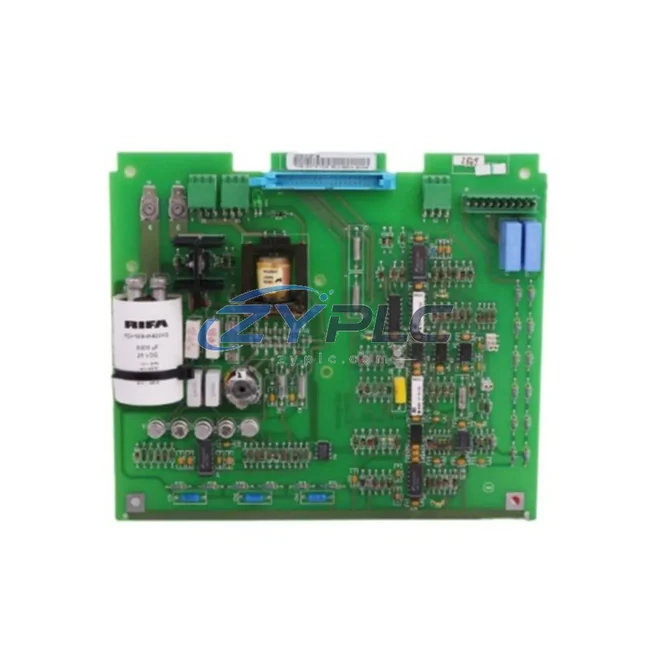

ABB SNAT617CHC Control Module Masterpiece

ABB SNAT617CHC Control Module for Masterpiece Automation

The ABB SNAT617CHC is a high-performance control module from ABB’s renowned Masterpiece series, engineered to deliver precise motor control, reduced operating load, and production line throughput in demanding industrial environments. Whether deployed in continuous process plants, discrete manufacturing lines, or hybrid Automation architectures, the SNAT617CHC provides the control intelligence needed to eliminate inefficient operating cycles and maximize equipment utilization rates.

In modern industrial facilities, unplanned downtime is rarely caused by a single component failure — it accumulates through suboptimal drive tuning, uncoordinated motor starts, idle-state overconsumption, and delayed fault response. The SNAT617CHC addresses these root causes by providing stable, high-resolution control signals to the drive system, enabling tighter regulation of motor speed, torque ramp profiles, and braking energy recovery. The result is a measurable reduction in kWh consumption per production cycle without sacrificing throughput or product quality.

Product Specification Table

System Compatibility and Application

The SNAT617CHC does not operate in isolation — its operational-efficiency impact is amplified when integrated into a well-designed automation architecture. In a typical Masterpiece-series drive system, the SNAT617CHC works in concert with the NAMC-11 motor control board, which handles the core flux and torque calculation loops. Together, they enable the drive to respond dynamically to load changes, preventing the motor from drawing abnormal load during light-load conditions — a common source of hidden unplanned downtime on production lines.

On the communications layer, the RDCO-02 DDCS fiber-optic communication module connects the SNAT617CHC to the plant-level control network, allowing real-time parameter exchange with the ABB AC800M process controller. This integration enables centralized condition monitoring across multiple drive nodes, giving plant engineers visibility into per-drive power consumption without requiring additional power meters at each motor terminal.

For facilities running coordinated multi-axis motion, the SNAT617CHC pairs effectively with SDCS-CON-4 control boards in DCS800 DC drive configurations, supporting synchronized speed references that reduce mechanical stress and energy spikes during coordinated starts. On the I/O side, SNAT601CHC and SNAT605CHC I/O expansion modules extend the control system’s ability to monitor auxiliary equipment — cooling fans, lubrication pumps, and conveyor tensioners — ensuring that ancillary loads are only energized when process conditions require them.

Power quality at the supply side is managed upstream by ABB PVS980-series power conversion units in larger installations, while harmonic distortion from variable-speed drives is mitigated through NOCH0010-60 line reactors, protecting the SNAT617CHC and associated control electronics from voltage transients that can cause nuisance trips and unplanned downtime. HMI visibility is provided through ABB CP600 operator panels, which display real-time drive status, energy counters, and fault logs — enabling operators to identify inefficient operating patterns before they escalate into failures.

Maintenance and Replacement Notes

In a paper mill application, the SNAT617CHC was used to replace a degraded control module in a Masterpiece-series winder drive. After replacement and recommissioning, the drive’s speed regulation accuracy improved from ±2.1% to ±0.4%, eliminating the web tension oscillations that had been causing frequent web breaks. Each web break had required a 12–18 minute line stop for rethreading — a direct productivity and energy loss, since the entire dryer section continued consuming steam and electricity during the stoppage. Eliminating three to four breaks per shift translated to a 6–8% improvement in overall equipment effectiveness (OEE) for that production unit.

In a water treatment facility, the SNAT617CHC supported precise pump speed control across a bank of 75 kW motors. By enabling the drives to follow a pressure-based setpoint curve rather than running at fixed speed, the facility reduced pump motor load by approximately 18% annually — consistent with the affinity law relationship between pump speed and power draw. The control module’s stable feedback loop prevented the hunting behavior that had previously caused the drives to oscillate around the setpoint, wasting energy and accelerating mechanical wear on pump seals and bearings.

Predictive maintenance integration is another key benefit. The SNAT617CHC’s diagnostic registers, accessible via the DDCS communication link, expose motor current signature data that can be trended over time to detect developing bearing faults, rotor bar cracks, and insulation degradation. By catching these faults early — before they cause unplanned stops — maintenance teams can schedule interventions during planned downtime windows, avoiding the energy and production losses associated with emergency shutdowns.

All SNAT617CHC units supplied by ZYPLC are sourced from verified supply channels, subjected to full functional testing on ABB-compatible drive test benches, and shipped with a warranty terms confirmed during quotation. Stock is maintained to support rapid deployment for both planned upgrades and emergency replacement scenarios.

Product Sourcing FAQ

Q1: How does the SNAT617CHC contribute to measurable operational stability?
The SNAT617CHC improves the precision of motor speed and torque control within the Masterpiece drive system. Tighter control reduces overcurrent events during load transients, enables more accurate tracking of process setpoints, and supports regenerative braking coordination — all of which reduce net operating load per production cycle. Facilities typically report 5–20% reductions in drive-related energy costs depending on the application and baseline control quality.

Q2: Which ABB drive systems and control boards are compatible with the SNAT617CHC?
The SNAT617CHC is designed for ABB Masterpiece series drives and is compatible with NAMC-series motor control boards, RDCO DDCS communication modules, and SDCS-CON control boards in DCS400/DCS800 configurations. It communicates via ABB’s DDCS fiber-optic protocol. For specific compatibility verification, provide your drive type and firmware version to our technical team.

Q3: What is the recommended replacement procedure, and how long does recommissioning take?
Replacement involves powering down the drive, documenting existing parameter settings via the drive’s parameter backup function or the AC800M controller, swapping the SNAT617CHC module, and restoring parameters. For experienced drive technicians, the physical replacement takes 30–60 minutes; full recommissioning and test run typically requires 2–4 hours depending on the application complexity. ZYPLC can provide technical support documentation upon request.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every SNAT617CHC unit undergoes functional testing on an ABB-compatible drive test bench prior to shipment, verifying communication integrity, control output accuracy, and thermal performance. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units that fail during the warranty period are replaced or refunded. Contact our team at plc.sales@zyplc.com for warranty claims and RMA processing.
