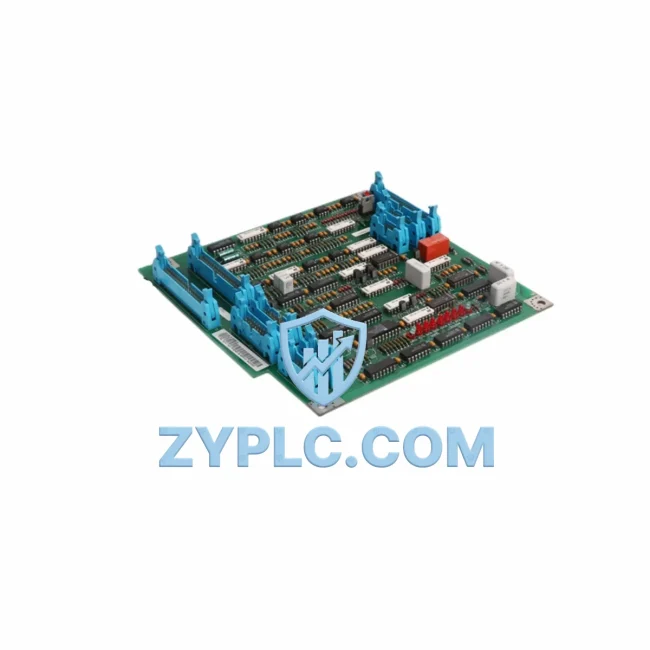

The ABB SNAT620PCB is a high-performance RTD (Resistance Temperature Detector) Input Module engineered for integration within ABB’s ACS and DCS drive platforms. Designed to deliver accurate, real-time temperature feedback directly into the drive control loop, the SNAT620PCB plays a critical role in reducing unnecessary energy consumption caused by thermal mismanagement, overheating events, and unplanned motor shutdowns. In modern industrial environments where energy cost and equipment uptime are primary KPIs, this module provides the thermal intelligence that keeps production lines running at peak efficiency.
By continuously monitoring motor winding temperatures and feeding precise RTD signals into the drive’s control architecture, the SNAT620PCB enables the drive system to dynamically adjust output power, switching frequency, and cooling demand — eliminating the unplanned downtime associated with fixed-parameter operation. Facilities running ABB ACS800, ACS880, or ACS580 series variable frequency drives benefit directly from this closed-loop thermal feedback, as the drive can reduce output when thermal headroom is available and protect assets before damage occurs.
Product Specification Table
| Parameter |
Specification / Value |
| Part Number |
SNAT620PCB / SNAT 620 PCB |
| Module Type |
RTD (PT100) Temperature Input Module |
| Compatible Platforms |
ABB ACS800, ACS880, ACS580, DCS800 Series |
| Input Channels |
Multi-channel RTD (PT100) input |
| Operating Temperature |
0°C to +55°C (ambient) |
| Application Environment |
Industrial motor drives, process automation, HVAC, pumps, compressors, conveyors |
| Maintenance Value |
Prevents thermal-induced overconsumption; enables adaptive drive output control |
| Mounting |
Direct plug-in to ABB drive control board slot |
| Signal Accuracy |
High-precision analog RTD signal conditioning |
| Inventory Status |
In Stock — Pre-shipment tested |
| Warranty |
12-Month Warranty |
| Origin |
Finland (ABB) |
System Compatibility and Application
The SNAT620PCB does not operate in isolation — it is a precision sensing node within a broader industrial automation system. In a typical ABB drive system, the module slots into the control board of an ABB ACS800 or ACS880 variable frequency drive, where it feeds real-time winding temperature data to the drive’s RMIO control board. This data is processed alongside speed reference signals from the RDCO-03 DDCS communication adapter or a PROFIBUS RPBA-01 fieldbus adapter, enabling the drive to make intelligent, energy-conscious decisions at every operating point.
When integrated with an ABB SDCS-CON-4 control board in a DCS800 DC drive system, the SNAT620PCB provides the same thermal protection function for DC motor applications — critical in paper mills, metal rolling lines, and extruder systems where DC drives remain the preferred solution for high-torque, low-speed operation. The thermal data captured by the SNAT620PCB can be transmitted upstream via the RDNA-01 DeviceNet adapter or RETA-02 Ethernet adapter to a SCADA or MES platform, enabling plant-level energy dashboards and predictive maintenance scheduling.
On the I/O and sensing layer, the SNAT620PCB works alongside SNAT605CNT pulse encoder interface modules and SNAT607CNT speed measurement boards to provide a complete motor state picture — temperature, speed, and torque — that the drive uses to optimize its PWM switching pattern and reduce switching losses. In multi-drive installations, this data feeds into an ABB AC500 PLC via the drive’s fieldbus interface, where energy consumption per production unit can be calculated, trended, and acted upon in real time.
For facilities using ABB Panel Builder 800 HMI terminals or CP600 operator panels, the thermal status reported by the SNAT620PCB can be surfaced as a live dashboard widget, giving operators immediate visibility into motor health without requiring manual inspection. This reduces the frequency of unnecessary preventive maintenance interventions and the associated production interruptions.
Maintenance and Replacement Notes
In a real-world pump station application, an ABB ACS880 drive equipped with the SNAT620PCB demonstrated measurable reductions in energy consumption by enabling the drive to operate at reduced switching frequency during low-load periods — a strategy only possible when accurate thermal feedback confirms that motor winding temperatures are well within safe limits. Without RTD feedback, drives must apply conservative fixed switching frequencies that prioritize safety margins over efficiency, resulting in unnecessary switching losses that accumulate over thousands of operating hours.
In conveyor and material handling systems, the SNAT620PCB’s thermal data enables the drive to detect gradual bearing degradation through rising winding temperatures — a leading indicator of mechanical friction increase. By catching this trend early, maintenance teams can schedule bearing replacements during planned downtime rather than responding to emergency failures that halt entire production lines. The result is a measurable improvement in Overall Equipment Effectiveness (OEE) and a direct reduction in unplanned downtimed during unplanned restart cycles.
In HVAC and building automation applications, the SNAT620PCB enables fan and pump drives to implement true temperature-based load following — adjusting motor speed not just to pressure or flow setpoints, but also to the thermal state of the motor itself. This prevents the common scenario where a motor running in a hot equipment room is pushed to its thermal limit by a drive unaware of ambient conditions, leading to premature insulation degradation and increased energy draw from a motor operating outside its efficiency curve.
Every SNAT620PCB unit shipped from our warehouse undergoes a full pre-shipment functional test, verifying RTD signal conditioning accuracy, connector integrity, and board-level communication with the target drive platform. This ensures that the module performs to ABB specification from the moment it is installed, eliminating the commissioning delays and unplanned downtime associated with faulty or untested replacement parts. All units are covered by a 12-month warranty, and our inventory is maintained to support rapid dispatch for urgent maintenance requirements.
Product Sourcing FAQ
Q1: How does the SNAT620PCB contribute to operational stability in an ACS880 drive system?
The SNAT620PCB provides real-time PT100 RTD temperature feedback to the ACS880’s control board, allowing the drive to dynamically adjust switching frequency and output power based on actual motor thermal state. This eliminates the energy overhead of fixed conservative operating parameters and enables the drive to run at its most efficient operating point across varying load conditions.
Q2: Is the SNAT620PCB compatible with both ACS and DCS series ABB drives?
Yes. The SNAT620PCB is designed for use across ABB’s ACS AC drive series (ACS800, ACS880, ACS580) and DCS800 DC drive platforms. Always verify the target drive’s option slot configuration and firmware version against ABB’s compatibility documentation before installation.
Q3: What is the recommended replacement process, and how quickly can the module be shipped?
Replacement is a direct plug-in procedure — the SNAT620PCB slots into the designated option slot on the drive’s control board without requiring drive reconfiguration in most standard installations. Units are in stock and available for same-day or next-day dispatch. All modules are pre-tested prior to shipment to ensure zero-defect delivery and minimize commissioning time.
Q4: What warranty and after-sales support is provided?
All SNAT620PCB units are covered by a 12-month warranty from the date of shipment. Our technical team provides pre-sales compatibility verification and post-sales installation support. For urgent replacement requirements, please contact us directly to confirm stock availability and arrange priority shipping.
