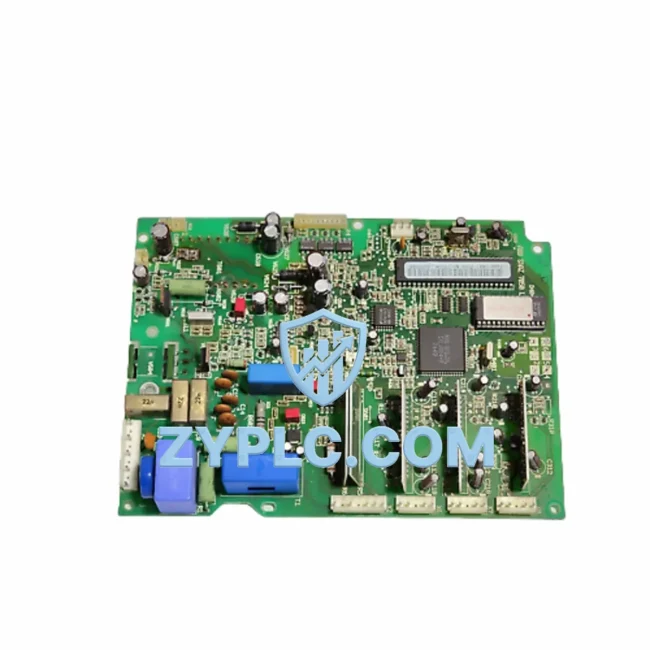

In modern industrial facilities where energy costs represent a significant share of operational expenditure, the ability to precisely regulate motor drive behavior at the board level is no longer optional — it is a competitive necessity. The ABB SNAZ7050L is a high-efficiency drive board module engineered for integration within ABB’s ACS series variable frequency drive platforms, delivering granular control over power conversion, switching frequency, and thermal management. By operating at the core of the drive’s power electronics, the SNAZ7050L directly influences how efficiently electrical energy is converted into mechanical output, reducing harmonic distortion, minimizing switching losses, and enabling the drive system to sustain peak efficiency across variable load conditions.

Unlike generic replacement boards, the SNAZ7050L is designed to the exact electrical and thermal tolerances of ABB’s ACS drive architecture. This means that when installed in an ACS580 or ACS880 variable frequency drive, the board maintains the drive’s original IGBT gate timing, current sensing accuracy, and fault detection thresholds — all of which are critical to sustaining IE3 and IE4 motor efficiency ratings in continuous production environments. Facilities running multi-axis conveyor systems, pump stations, compressor banks, or HVAC-integrated motor arrays will find that a degraded or mismatched drive board is often the hidden source of unexplained energy overconsumption and erratic torque response.

Efficiency Performance Table

Energy-Aware Automation Architecture

The SNAZ7050L does not operate in isolation. Its energy optimization value is fully realized when it functions as part of a coordinated automation architecture. In a typical high-efficiency motor control center, the ACS880 industrial drive — equipped with a properly functioning SNAZ7050L board — interfaces with an ABB AC500 PLC such as the PM583-ETH to receive speed reference signals via PROFIBUS or PROFINET. The PM583-ETH processes real-time production data and adjusts drive output accordingly, ensuring that motors are never running at full speed when partial load is sufficient. This alone can reduce motor energy consumption by 20–40% in variable-torque applications such as centrifugal pumps and fans.

On the I/O side, ABB AI830A analog input modules feed process variables — flow rate, pressure differential, temperature — into the control loop, allowing the PLC to make dynamic adjustments to the drive’s frequency setpoint. The TU830V1 terminal unit provides the physical connection layer between field instruments and the I/O modules, ensuring signal integrity even in electrically noisy industrial environments. When the SNAZ7050L is functioning correctly, these analog signals translate cleanly into precise motor speed commands without the signal distortion that a failing drive board would introduce.

For facilities that have deployed ABB’s energy monitoring infrastructure, the SNAZ7050L-equipped drive can be integrated with ABB’s power monitoring units to provide real-time kWh consumption data at the individual drive level. This granular visibility allows energy managers to identify which production lines or motor circuits are consuming disproportionate power relative to their output — a capability that is impossible without a properly calibrated drive board maintaining accurate current measurement. The FENA-21 Ethernet adapter module further extends this capability by enabling the ACS drive to communicate energy data over EtherNet/IP or Modbus TCP to SCADA systems or MES platforms.

At the operator interface level, ABB CP620 HMI panels can display real-time drive status, energy consumption trends, and fault history, giving line operators immediate visibility into drive health without requiring access to the drive cabinet. When the SNAZ7050L is replaced as part of a planned maintenance cycle rather than an emergency repair, this HMI data provides the baseline against which post-replacement efficiency improvements can be measured and documented.

Power Optimization in Real Production Lines

Consider a bottling plant running six conveyor lines, each driven by a 15 kW motor controlled by an ACS355 variable frequency drive. If two of those drives have degraded SNAZ7050L boards causing inefficient IGBT switching, the resulting increase in switching losses and harmonic current injection can add 8–12% to the facility’s total motor energy bill — an invisible cost that standard energy audits rarely attribute to drive board degradation. Replacing the affected boards restores the drives to their rated efficiency curves and eliminates the harmonic distortion that was also causing premature bearing wear in the motors themselves.

In pump and compressor applications, the SNAZ7050L’s role in maintaining accurate current limiting is equally important. An ACS880 drive controlling a 75 kW water supply pump relies on the drive board to enforce current limits that prevent motor overloading during system pressure transients. A board that has drifted out of calibration may allow brief overcurrent events that, over time, degrade motor insulation and increase the probability of unplanned downtime. By maintaining the board in OEM condition, facilities can extend motor service intervals, reduce bearing replacement frequency, and defer capital expenditure on motor rewinding or replacement.

From a production rhythm perspective, drives equipped with properly functioning SNAZ7050L boards respond to speed ramp commands with the precision that synchronized multi-axis production lines require. In automotive assembly or electronics manufacturing environments where conveyor speed must be coordinated across multiple drive zones, a single drive board that introduces latency or instability into the speed response chain can disrupt the entire line’s throughput. Restoring board integrity eliminates this variability and allows the line to operate at its designed cycle time.

Energy Optimization FAQ

Q: How does replacing the SNAZ7050L board improve energy efficiency?
A: The SNAZ7050L governs IGBT gate timing and current sensing within the ACS drive. A degraded board introduces switching inefficiencies and measurement errors that cause the drive to consume more power than necessary for a given load. Replacing it with a verified OEM-specification board restores the drive’s rated efficiency and eliminates hidden energy waste.

Q: Is the SNAZ7050L compatible with all ACS series drives?
A: The SNAZ7050L is designed for specific frame sizes and power ratings within the ACS series, including models in the ACS355, ACS580, and ACS880 families. Please verify your drive’s frame size and firmware version before ordering. Our technical team can confirm compatibility based on your drive’s nameplate data.

Q: What is the recommended replacement process and testing procedure?
A: All SNAZ7050L units supplied by ZYPLC are tested under load conditions prior to shipment to verify switching performance, current sensing accuracy, and thermal behavior. Upon installation, we recommend running the drive through a full speed ramp cycle and monitoring output current waveform quality before returning the system to production. Drives should be powered down and capacitors discharged before board replacement.

Q: What warranty coverage is provided?
A: Every SNAZ7050L module carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch typically within 48 hours of fault confirmation.
