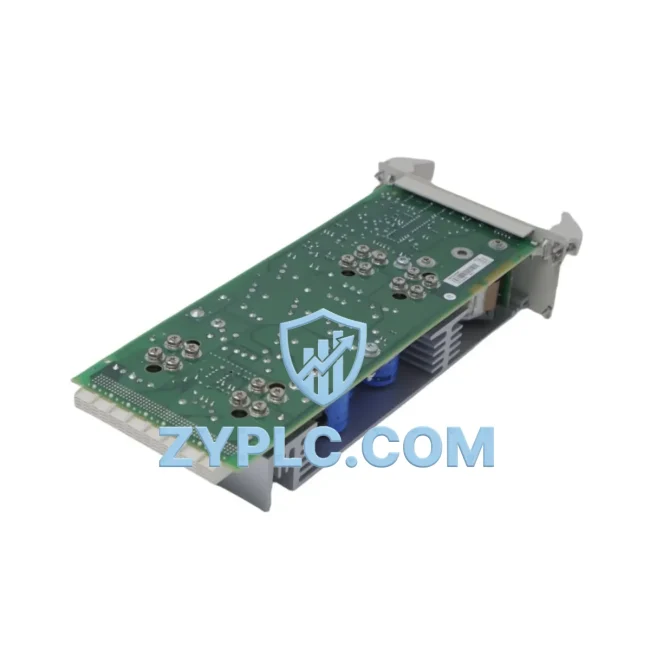

ABB SR511 3BSE000863R0001 System-Ready DCS Controller for Advant Architecture

ABB SR511 3BSE000863R0001 System-Ready DCS Controller for Advant Architecture

The ABB SR511 (3BSE000863R0001) is a high-performance DCS controller module engineered for deployment within the ABB Advant AC450 distributed control system architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, metallurgy, and continuous manufacturing — the integrity of the control layer depends not only on individual module performance but on how each component integrates within the broader system hierarchy. The SR511 is purpose-built to fulfill this role, serving as a reliable processing core that coordinates signal acquisition, logic execution, and inter-module communication across the full control architecture.

Unlike standalone controllers, the SR511 is designed to operate within a structured, layered automation framework. Its value is realized through its interaction with upstream engineering workstations, downstream I/O modules, peer communication processors, and field-level instrumentation. When deployed alongside complementary Advant components, the SR511 enables engineers to build scalable, redundant, and maintainable control systems that meet the demands of long-cycle industrial operations.

Architecture Specification Table

Coordinated Control System Design

The SR511 3BSE000863R0001 does not operate in isolation. Its full capability is expressed when integrated within a complete Advant AC450 control node, where it coordinates with a range of system-level components. At the processing layer, the SR511 works in conjunction with the PM511 processor module and the MB510 MasterBus communication interface, forming the computational backbone of the control station. The MB510 handles inter-node communication across the MasterBus 300 network, ensuring that the SR511’s control outputs are synchronized with peer controllers across the plant.

At the I/O layer, the SR511 interfaces with S800 I/O modules — including AI810 analog input, AO810 analog output, DI810 digital input, and DO810 digital output modules — through the CI810 fieldbus communication interface. This architecture allows engineers to distribute I/O across the process area while maintaining deterministic scan cycles managed by the SR511. For applications requiring PROFIBUS DP connectivity, the CI840 PROFIBUS DP interface module extends the SR511’s reach to third-party field devices, variable frequency drives, and intelligent motor control centers.

Power integrity is maintained through the SD821 or SD822 power supply modules, which provide regulated 24 VDC to the backplane and connected I/O. In redundant configurations, dual power supplies are deployed to eliminate single points of failure at the power layer. The SR511 itself supports hot-standby redundancy when paired with a secondary controller module, enabling bumpless transfer during fault conditions — a critical requirement in continuous process industries such as refining, chemical production, and power distribution.

At the human-machine interface layer, operator stations running ABB Operate IT or legacy Advant Station 500 workstations communicate with the SR511 via the MasterBus 300 network, providing real-time process visualization, alarm management, and historical trending. Engineering workstations running ABB Master software are used for control application development, function block programming, and online diagnostics — all of which interact directly with the SR511’s execution environment.

This multi-layer integration — from field instrumentation through I/O, controller, network, and HMI — defines the Contextual Integration approach that makes the SR511 a system-ready component rather than a simple replacement part.

Application in Layered Automation Systems

The SR511 3BSE000863R0001 is deployed across a wide range of heavy industrial and process control environments where system continuity, long service life, and architectural consistency are paramount.

In power generation and grid management facilities, the SR511 serves as the primary controller for turbine sequencing, boiler control, and auxiliary system management. Its deterministic scan cycle and redundancy support make it suitable for applications where unplanned downtime carries significant operational and financial consequences.

In petrochemical and refinery operations, the SR511 manages continuous process loops — flow, pressure, temperature, and level — across distillation columns, heat exchangers, and reactor systems. Its compatibility with PROFIBUS DP and Advant Fieldbus 100 allows seamless integration with smart transmitters and positioners from multiple vendors.

In water and wastewater treatment plants, the SR511 coordinates pump sequencing, chemical dosing, and filtration control across geographically distributed process areas. Its distributed I/O architecture, enabled through CI810 and S800 I/O modules, reduces wiring complexity while maintaining centralized supervisory control.

In metallurgical and mining operations, the SR511 is used in conveyor control, crusher management, and flotation circuit automation. The module’s robust operating temperature range and industrial-grade construction ensure reliable performance in environments with elevated dust, vibration, and thermal variation.

In packaging and discrete manufacturing lines, the SR511 provides the control backbone for multi-axis coordination, recipe management, and production line sequencing — integrating with HMI systems and MES platforms through standard communication protocols.

Across all these applications, the SR511’s role is consistent: to serve as the reliable, scalable, and maintainable processing core of a layered automation architecture — one that supports long-term operation, simplified maintenance, and confident system expansion.

Architecture Engineering FAQ

Q1: Is the ABB SR511 3BSE000863R0001 compatible with both redundant and non-redundant Advant AC450 configurations?
Yes. The SR511 supports both simplex and hot-standby redundant controller configurations within the Advant AC450 platform. In redundant deployments, a secondary SR511 module is installed in the same or adjacent rack, with automatic bumpless switchover managed by the system firmware. No application code changes are required to enable redundancy — the configuration is handled at the hardware and system parameter level during commissioning.

Q2: What communication protocols does the SR511 support, and how does it integrate with third-party field devices?
The SR511 natively supports MasterBus 300 for inter-controller and HMI communication, and interfaces with PROFIBUS DP and Advant Fieldbus 100 through dedicated communication interface modules such as the CI840 and CI810. This allows the SR511 to integrate with a broad range of third-party instrumentation, drives, and intelligent field devices without requiring protocol converters or additional gateways in most standard configurations.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
All SR511 3BSE000863R0001 modules supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty includes technical support for installation, commissioning, and compatibility verification. For long-term maintenance planning, ZYPLC maintains stock of SR511 and related Advant AC450 components — including PM511, MB510, CI810, CI840, and S800 I/O modules — to support ongoing spare parts programs and emergency replacement requirements. Contact our engineering team for system-level procurement consultation.
