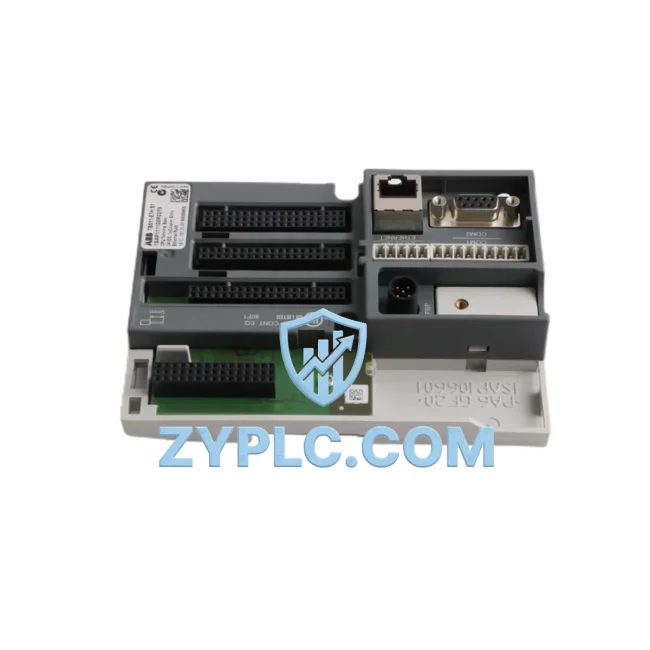

The ABB TB511-ETH 1SAP111100R0270 is a dedicated Ethernet terminal base module engineered for seamless integration within the ABB AC500 PLC control system architecture. Designed to serve as the physical and electrical foundation for AC500 I/O expansion modules, this terminal base provides a structured, reliable connection point that supports Ethernet-based communication across distributed control layers. Whether deployed in a centralized control cabinet or a remote I/O station, the TB511-ETH ensures that every module in the system architecture communicates with precision, stability, and full compatibility across the AC500 platform.

In modern industrial automation, system architecture is not defined by individual components but by how those components interact across control layers. The TB511-ETH 1SAP111100R0270 occupies a critical position in this hierarchy — bridging the I/O layer with the network layer, enabling the AC500 CPU modules such as the PM573-ETH or PM591-ETH to communicate directly with field-level devices through a structured Ethernet backbone. This contextual integration capability ensures that signal flow from sensors and actuators reaches the control layer with minimal latency and maximum data integrity.

Architecture Specification Table

Coordinated Control System Design

The TB511-ETH 1SAP111100R0270 does not operate in isolation — it is a structural element within a coordinated AC500 control system. At the control layer, ABB AC500 CPU modules such as the PM573-ETH and PM591-ETH serve as the processing core, executing control logic and managing communication with all connected I/O nodes. The TB511-ETH provides the physical docking interface for digital and analog I/O modules — including the DC532 digital input module and DA501 analog output module — allowing them to be mounted, powered, and networked through a single unified base.

At the power layer, the PS501 power supply module delivers regulated 24 VDC to the AC500 rack, ensuring stable operation of all connected terminal bases and I/O modules under varying load conditions. For applications requiring redundant power or extended I/O capacity, the TB511-ETH can be deployed alongside additional terminal bases in a distributed I/O configuration, all managed through the same Ethernet segment.

At the network layer, the TB511-ETH connects to the plant Ethernet backbone, enabling the AC500 system to interface with SCADA platforms, MES systems, and HMI terminals such as the ABB CP600 HMI series. This network-level integration allows operators to monitor real-time process data, configure alarm thresholds, and execute remote diagnostics without interrupting production. Communication gateways such as the ABB CI590-CS31-HA can further extend the system’s reach to legacy fieldbus networks including CS31, Modbus RTU, and PROFIBUS DP, ensuring backward compatibility with existing plant infrastructure.

For applications involving motion control or variable-speed drives, the TB511-ETH-equipped AC500 system can coordinate with ABB ACS880 variable frequency drives via Ethernet/IP or PROFINET, enabling closed-loop speed and torque control directly from the PLC. This level of system integration — from terminal base to drive — reflects the AC500 platform’s strength as a unified automation architecture capable of spanning process, discrete, and hybrid manufacturing environments.

Application in Layered Automation Systems

The TB511-ETH 1SAP111100R0270 is well-suited for deployment across a wide range of industrial sectors where layered automation architecture is essential. In power generation and distribution facilities, the module supports the AC500 system’s role in substation automation, where reliable Ethernet communication between protection relays, RTUs, and SCADA systems is non-negotiable. The terminal base’s robust operating temperature range and IP20 protection rating make it suitable for installation in climate-controlled control rooms and switchgear panels alike.

In water and wastewater treatment plants, the TB511-ETH enables distributed I/O configurations across pump stations, filtration units, and chemical dosing systems. Each remote I/O node — built around the TB511-ETH and its associated AC500 I/O modules — communicates with the central AC500 CPU over Ethernet, providing operators with a unified view of the entire treatment process through connected HMI and SCADA systems.

In petrochemical and oil & gas applications, the module supports the AC500 system’s integration into process control loops involving pressure transmitters, flow meters, and control valves. The Ethernet-based architecture simplifies engineering and commissioning, as I/O modules can be addressed and configured remotely using ABB’s Automation Builder engineering software, reducing on-site setup time and minimizing the risk of wiring errors.

For packaging and discrete manufacturing production lines, the TB511-ETH provides the I/O expansion capacity needed to connect proximity sensors, photoelectric sensors, servo drives, and pneumatic valve islands to the AC500 control system. Its DIN rail mounting and compact form factor allow it to be installed in space-constrained control cabinets without compromising system expandability or maintenance access.

Architecture Engineering FAQ

Q1: Is the TB511-ETH 1SAP111100R0270 compatible with all AC500 I/O modules?
The TB511-ETH is designed for use with the ABB AC500 standard I/O module series. It provides the Ethernet communication interface and mechanical mounting for compatible digital and analog I/O modules. Always verify module compatibility using ABB’s AC500 system configurator or the product datasheet before finalizing your system design.

Q2: Can the TB511-ETH be used in a redundant control architecture?
Yes. The AC500 platform supports redundant CPU configurations, and the TB511-ETH can be deployed within distributed I/O stations that are managed by redundant AC500 CPU pairs. This architecture ensures continuous process control even in the event of a primary CPU failure, making it suitable for high-availability applications in power, water, and process industries.

Q3: What warranty and supply assurance does ZYPLC provide for the TB511-ETH 1SAP111100R0270?
ZYPLC provides a 12-Month Warranty on all ABB AC500 modules including the TB511-ETH 1SAP111100R0270. Each unit undergoes pre-shipment functional verification before dispatch. We maintain in-stock inventory to support urgent project timelines, with global shipping via DHL and FedEx. For volume orders or long-term supply agreements, contact our team at plc.sales@zyplc.com or +86 19859288691.
