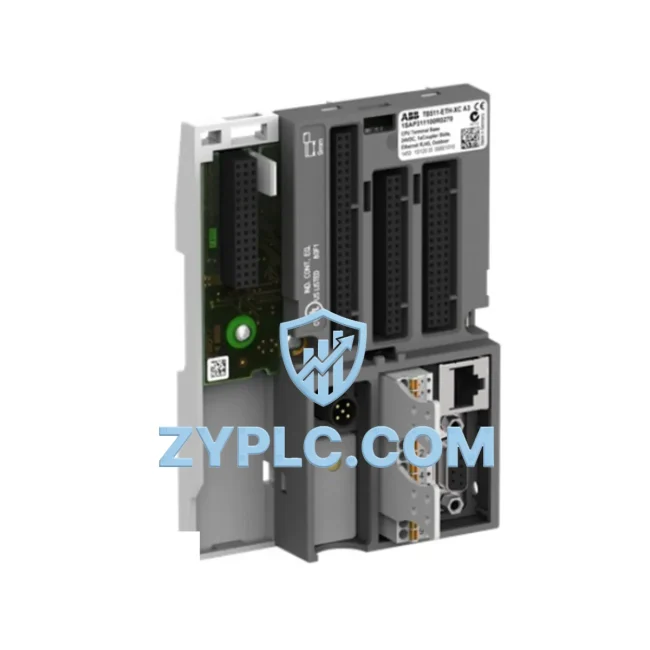

ABB TB511-ETH-XC 1SAP311100R0270 System-Ready Ethernet Module for AC500 Architecture

ABB TB511-ETH-XC 1SAP311100R0270 System-Ready Ethernet Module for AC500 Architecture

The ABB TB511-ETH-XC (order reference 1SAP311100R0270) is a dedicated Ethernet TCP/IP communication interface engineered for seamless integration within the ABB AC500 programmable logic controller platform. Designed to serve as the network backbone of a distributed control architecture, this module enables high-speed, deterministic data exchange between the AC500 CPU layer and supervisory systems, SCADA platforms, historian servers, and peer controllers. Rather than functioning as a standalone peripheral, the TB511-ETH-XC is conceived as a structural element of a layered automation system — one that bridges the control layer with the network layer and ensures that every upstream and downstream component operates with synchronized, reliable communication.

In modern industrial environments — spanning power generation, petrochemical processing, water treatment, mining operations, metallurgical plants, and high-throughput packaging lines — the integrity of the communication network is as critical as the logic executing within the CPU. The TB511-ETH-XC addresses this requirement by providing a robust, extended-temperature-rated Ethernet interface that maintains connectivity under the thermal, vibration, and electromagnetic stress conditions typical of heavy industrial installations. Its XC (eXtreme Conditions) rating ensures continued operation across a wide ambient temperature range, making it suitable for outdoor substations, foundry control panels, and offshore automation enclosures where standard-grade modules would fail.

Architecture Specification Table

Coordinated Control System Design

The TB511-ETH-XC achieves its full value only when considered within the context of a complete AC500 control system architecture. At the CPU layer, it interfaces directly with processors such as the PM564-ETH, PM566-ETH, or PM591-ETH, extending their native Ethernet capability or providing a dedicated communication channel isolated from the primary CPU port. This separation of communication paths is a fundamental principle of redundant network design — ensuring that a fault on the SCADA polling network does not interrupt the real-time I/O scan cycle managed by the CPU.

At the I/O layer, the AC500 system relies on distributed I/O modules such as the DC532 digital input module, DC522 digital output module, and AI531 analog input module, all of which communicate with the CPU via the internal S500 I/O bus. The TB511-ETH-XC does not interfere with this bus — it operates in parallel, handling Ethernet-based supervisory traffic while the CPU continues its deterministic scan of field signals. This architectural separation is essential in process industries where a communication timeout must never trigger an unplanned shutdown.

For network-layer integration, the TB511-ETH-XC supports Modbus TCP, enabling direct communication with third-party devices such as variable frequency drives, smart meters, and remote I/O gateways from other vendors. In systems where the CM579-PNIO PROFINET I/O master module is also installed, the TB511-ETH-XC can serve as the Ethernet management port, handling non-real-time traffic such as FTP file transfers, SNTP time synchronization, and remote diagnostics — tasks that would otherwise compete with PROFINET cycle time if routed through the same interface.

At the power layer, the AC500 system is typically supported by the TA521 or TA526 power supply modules, which provide regulated 24 VDC to the CPU and communication modules via the backplane. The TB511-ETH-XC draws its operating power from this backplane bus, eliminating the need for a separate power feed and simplifying cabinet wiring. In redundant power architectures, dual power supplies with diode ORing ensure that a single PSU failure does not interrupt communication.

At the human-machine interface layer, the TB511-ETH-XC enables direct Ethernet connectivity between the AC500 CPU and ABB CP600 series HMI panels or third-party SCADA systems running on standard Ethernet infrastructure. This allows operators to monitor process variables, acknowledge alarms, and adjust setpoints without requiring a dedicated serial communication cable — a significant advantage in large installations where cable routing is constrained.

For redundancy-critical applications, the TB511-ETH-XC can be deployed alongside the CM589-PNIO or CM578-CN communication modules to create a multi-network architecture where the AC500 CPU simultaneously manages PROFINET I/O, ControlNet, and Ethernet TCP/IP traffic on independent physical interfaces. This multi-protocol capability is particularly valuable in hybrid automation environments where legacy fieldbus devices must coexist with modern Ethernet-based instrumentation.

Application in Layered Automation Systems

In power generation and electrical substation automation, the TB511-ETH-XC enables the AC500 PLC to communicate with energy management systems (EMS) and SCADA platforms via IEC 61850-compatible gateways over Ethernet TCP/IP. The XC temperature rating ensures reliable operation in outdoor switchgear rooms and transformer substations where ambient temperatures fluctuate significantly between seasons.

In petrochemical and refinery process control, the module supports continuous Modbus TCP polling of field transmitters and control valves, providing the DCS integration layer with real-time process data. Its ability to handle simultaneous FTP and SNTP sessions ensures that control programs can be updated remotely and that all controllers in the plant remain time-synchronized for accurate event logging and sequence-of-events (SOE) analysis.

In water and wastewater treatment facilities, the TB511-ETH-XC connects distributed AC500 PLCs across multiple pump stations and treatment stages into a unified SCADA network. The module’s support for standard Ethernet infrastructure eliminates the need for proprietary communication hardware, reducing both capital expenditure and long-term maintenance costs.

In mining and mineral processing, where control panels are often located in harsh environments subject to dust, vibration, and wide temperature swings, the XC-rated TB511-ETH-XC provides the communication reliability required for continuous operation of conveyor systems, crushers, and flotation cell controllers. Its compatibility with the AC500 redundant CPU architecture ensures that a single module failure does not result in a production stoppage.

In metallurgical and steel mill automation, the module enables high-speed data exchange between AC500 PLCs controlling rolling mills, furnace temperature zones, and cooling bed sequences. The ability to transmit real-time production data to MES and ERP systems via Ethernet TCP/IP supports the digital transformation initiatives increasingly required by modern steel producers.

Architecture Engineering FAQ

Q1: Is the TB511-ETH-XC compatible with all AC500 CPU variants, and can it be used alongside other communication modules in the same rack?
The TB511-ETH-XC is designed for use with AC500 CPU terminal bases that support plug-in communication modules, including the TB521, TB541, and TB561 terminal base variants. It can coexist in the same AC500 rack with other communication modules such as the CM578-CN (ControlNet) or CM579-PNIO (PROFINET), provided that the CPU’s communication slot allocation supports multiple modules. Always verify the specific CPU model’s datasheet for the maximum number of supported communication modules and slot assignments before finalizing the system architecture.

Q2: How does the TB511-ETH-XC support long-term maintenance and remote diagnostics in distributed automation systems?
The module supports FTP-based program upload and download, SNTP time synchronization, and standard Ethernet diagnostic tools such as ping and SNMP queries. This allows maintenance engineers to perform remote firmware updates, retrieve diagnostic logs, and verify network connectivity without requiring physical access to the control panel. Combined with the AC500’s built-in web server functionality (available on ETH-variant CPUs), the TB511-ETH-XC enables browser-based monitoring of CPU status, I/O diagnostics, and communication statistics — significantly reducing the time and cost associated with on-site maintenance visits.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on the TB511-ETH-XC?
The 12-Month Warranty covers manufacturing defects, component failures, and functional malfunctions that occur under normal operating conditions within the specified environmental and electrical parameters. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the rated temperature range. To initiate a warranty claim, contact ZYPLC at [email protected] or +86 19859288691 with the module’s serial number, purchase documentation, and a description of the observed fault. Replacement or repair will be arranged based on technical assessment, with the goal of minimizing system downtime.
