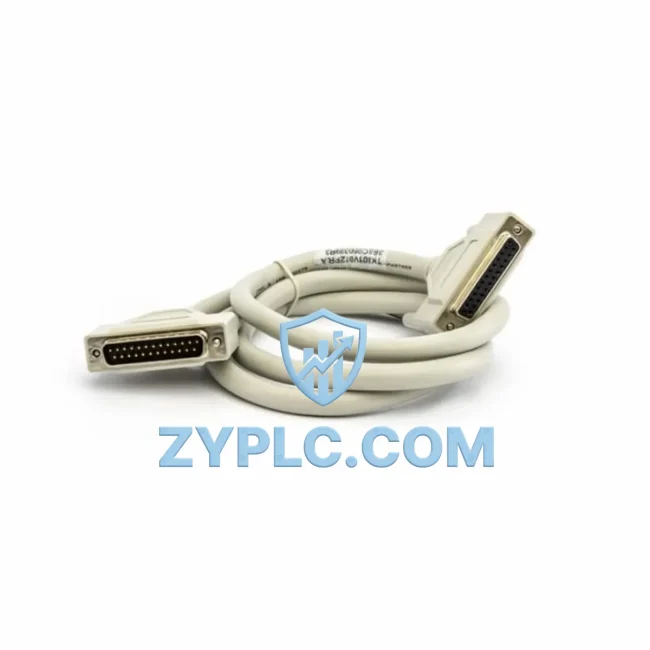

ABB TK801V003 System-Ready ModuleBus Extension Cable for AC800M Architecture

ABB TK801V003 System-Ready ModuleBus Extension Cable: Control System Architecture and Contextual Integration

The ABB TK801V003 (3BSC950089R1) ModuleBus Extension Cable is a purpose-engineered interconnect component designed to serve as the physical communication backbone within ABB’s AC800M distributed control architecture. Rather than functioning as a standalone accessory, the TK801V003 occupies a critical position in the signal flow hierarchy — bridging the processor module layer with remote I/O clusters, communication gateways, and expansion backplanes across multi-cabinet and multi-rack installations. In complex industrial automation environments where system consistency, deterministic communication, and long-term maintainability are non-negotiable, the TK801V003 delivers the electrical and mechanical reliability that sustains continuous process operation.

Engineered to ABB’s AC800M platform specifications, this ModuleBus extension cable enables engineers to extend the internal ModuleBus beyond the primary rack, connecting additional S800 I/O stations, TB820V2 ModuleBus optical transceivers, and TP830 power distribution modules without introducing signal degradation or timing jitter. Its shielded construction and impedance-matched termination ensure that high-frequency ModuleBus signals maintain integrity across extended cable runs, a requirement that becomes especially critical in electrically noisy environments such as motor control centers, variable frequency drive panels, and high-voltage switchgear rooms.

Within a fully realized AC800M control system, the TK801V003 works in close coordination with the PM866 or PM891 processor modules, which serve as the central intelligence layer managing all I/O polling, program execution, and communication scheduling. The cable’s role is to extend the reach of these processors to remote S800 I/O clusters — including AI810 analog input modules, DI810 digital input modules, AO810V2 analog output modules, and DO810 digital output modules — without requiring additional fieldbus infrastructure. This direct ModuleBus extension approach reduces latency compared to PROFIBUS or FOUNDATION Fieldbus alternatives, making it the preferred architecture for time-sensitive control loops in power generation, chemical processing, and continuous manufacturing lines.

System architects integrating the TK801V003 into redundant control configurations will find it compatible with the AC800M’s hardware redundancy framework. When paired with redundant PM891 processor pairs and TB840A redundancy modules, the ModuleBus extension cable supports seamless bumpless transfer between primary and standby controllers, ensuring that a single hardware failure does not interrupt process control. This redundancy capability is particularly valued in oil and gas upstream facilities, water treatment SCADA systems, and pharmaceutical batch processing plants where unplanned downtime carries significant regulatory and financial consequences.

From a cabinet engineering perspective, the TK801V003 is designed to route cleanly within standard 19-inch rack enclosures and DIN-rail-mounted marshalling cabinets. Its connector geometry is compatible with the S800 I/O station’s ModuleBus port, and its flexible yet robust jacket material accommodates the tight bend radii common in densely populated control panels. Engineers performing FAT (Factory Acceptance Testing) and SAT (Site Acceptance Testing) will appreciate the cable’s labeled connectors and consistent color coding, which simplify point-to-point verification during commissioning and reduce the risk of miswiring in multi-drop ModuleBus topologies.

Long-term maintenance teams benefit from the TK801V003’s standardized form factor, which allows hot-swap replacement without powering down the entire I/O station in systems configured for online maintenance. Spare cable management is straightforward, and the component’s compatibility across multiple generations of the AC800M platform — including systems running 800xA DCS software — means that a single cable variant can serve as a universal spare across diverse installed base configurations. ZYPLC maintains verified stock of the TK801V003 with full 12-Month Warranty coverage, supporting both immediate project requirements and long-term maintenance contracts.

Architecture Specification Table

Coordinated Control System Design

The TK801V003 achieves its full value when considered within the complete AC800M control system architecture. At the processor layer, the PM891 redundant controller or PM866 standard controller manages all program execution and I/O coordination. The TK801V003 extends the ModuleBus from these processors to remote S800 I/O stations, which house modules such as the AI810 8-channel analog input, DI810 24VDC digital input, AO810V2 analog output, and DO810 digital output modules. Power to the I/O stations is distributed via the TP830 power supply module, while optical ModuleBus segments — required for longer distances or high-EMI zones — are bridged using the TB820V2 optical transceiver. For systems requiring hardware redundancy, the TB840A redundancy module works in conjunction with dual PM891 processors and the TK801V003 cable infrastructure to deliver bumpless controller switchover. At the human-machine interface layer, ABB 800xA DCS operator stations provide supervisory visualization, while CI854B PROFIBUS DP communication interface modules extend connectivity to third-party field devices where required. Together, these components form a cohesive, scalable, and maintainable control architecture in which the TK801V003 serves as the essential physical link between intelligence and field instrumentation.

Application in Layered Automation Systems

In power generation and utilities, the TK801V003 is deployed in turbine control panels and boiler management systems where the AC800M platform manages critical process loops. The cable’s reliable ModuleBus extension capability ensures that remote I/O racks — often located meters away from the main controller cabinet — maintain deterministic communication with the PM891 processor, supporting fast loop execution times required for combustion control and steam pressure regulation.

In oil and gas upstream and midstream facilities, the TK801V003 supports wellhead control panels and pipeline SCADA systems where SIL-rated control architectures demand hardware redundancy and proven component reliability. Its compatibility with the AC800M’s redundancy framework makes it a standard specification item in EPC contractor bill-of-materials for offshore platform and onshore processing plant projects.

In chemical and petrochemical process plants, the cable enables distributed I/O architectures that minimize home-run cabling costs while maintaining the signal integrity required for precise flow, temperature, and pressure control. Process engineers specify the TK801V003 as part of marshalling cabinet designs that consolidate field signals before routing them to the AC800M controller via the ModuleBus backbone.

In water and wastewater treatment facilities, the TK801V003 supports multi-rack AC800M installations managing pump stations, filtration systems, and chemical dosing processes. Its robust construction withstands the humid and chemically aggressive environments common in water treatment plant electrical rooms, and its standardized form factor simplifies spare parts management for municipal utility maintenance teams.

In mining and metals processing, the cable is integrated into conveyor control systems, crusher automation panels, and smelter process control architectures where the AC800M platform coordinates high-power drive systems and safety interlocks. The TK801V003’s shielded design provides immunity to the high levels of electromagnetic interference generated by large variable frequency drives and DC motor controllers common in these environments.

Architecture Engineering FAQ

Q1: Is the TK801V003 compatible with all AC800M processor variants, and can it be used in both simplex and redundant controller configurations?
The TK801V003 is compatible with the full range of AC800M processors, including the PM864A, PM866, and PM891 variants. It functions identically in both simplex and redundant controller configurations. In redundant systems using dual PM891 processors and TB840A redundancy modules, the ModuleBus extension cable infrastructure is shared between the primary and standby controllers, and the hardware redundancy switchover is transparent to the I/O modules connected via the TK801V003. No special cable configuration or additional hardware is required to enable redundant operation.

Q2: What is the maximum ModuleBus extension distance achievable with the TK801V003, and how does this affect system architecture planning?
The TK801V003 supports direct copper ModuleBus extension for short to medium rack-to-rack distances within the same cabinet or adjacent cabinets. For longer distances — typically exceeding the copper ModuleBus limit — system architects should incorporate TB820V2 optical ModuleBus transceivers, which convert the electrical ModuleBus signal to fiber optic for runs up to several hundred meters. In practice, most AC800M installations use the TK801V003 for intra-cabinet and inter-cabinet connections within the same electrical room, while optical transceivers handle connections to remote I/O stations in field junction boxes or satellite equipment rooms.

Q3: What warranty and supply continuity support does ZYPLC provide for the TK801V003, and how does this benefit long-term maintenance planning?
ZYPLC provides a 12-Month Warranty on all TK801V003 units, covering manufacturing defects and ensuring that replacement units are available if a cable fails within the warranty period. For long-term maintenance planning, ZYPLC maintains verified stock of the TK801V003 to support both emergency replacement requirements and planned maintenance shutdowns. Procurement teams managing AC800M installed base assets can contact ZYPLC to establish framework supply agreements that guarantee cable availability across multi-year maintenance contracts, reducing the risk of extended downtime caused by obsolete or hard-to-source spare parts.
