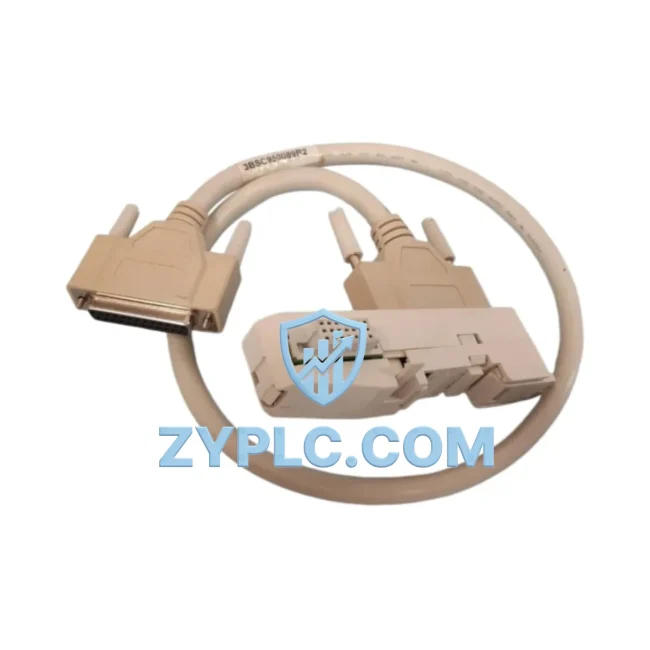

ABB TK801V006 3BSC950089R2 System-Ready ModuleBus Cable for AC800M Architecture

ABB TK801V006 3BSC950089R2 System-Ready ModuleBus Cable for AC800M Architecture: Control System Architecture and Upstream-Downstream Coordination

In modern distributed control system (DCS) and PLC-based automation architectures, the physical and logical integrity of the communication backbone is as critical as the controller itself. The ABB TK801V006 (3BSC950089R2) ModuleBus Extension Cable is a precision-engineered interconnect component designed to extend and stabilize the ModuleBus communication layer within ABB’s AC800M control platform. Rather than functioning as a standalone accessory, this cable serves as a structural element that binds the control layer, I/O layer, and field device layer into a coherent, high-availability automation system.

The AC800M controller family — including the PM861A, PM864A, and PM866A processor modules — relies on the ModuleBus as its primary local I/O communication interface. The TK801V006 extension cable enables engineers to position S800 I/O clusters at optimal distances from the controller baseplate, supporting flexible panel layouts without compromising signal integrity or scan cycle performance. This is particularly valuable in large control cabinets where spatial constraints demand precise cable routing between the CPU baseplate and remote I/O stations.

Within a layered automation architecture, the TK801V006 operates at the intersection of the control layer and the I/O layer. Above it, the AC800M processor module executes control logic and communicates upstream via PROFIBUS DP, Modbus TCP, or IEC 61850 to SCADA systems and engineering workstations. Below it, the ModuleBus carries deterministic, time-critical signals to S800 I/O modules such as the AI810 analog input module, DO810 digital output module, and DI810 digital input module. The cable’s shielded construction ensures that high-frequency noise from adjacent power supplies — such as the SD821 or SD822 24VDC power supply modules — does not corrupt the low-voltage differential signals traversing the ModuleBus.

System architects designing for redundancy will find the TK801V006 indispensable when configuring dual-redundant AC800M controller pairs. In redundant topologies, two PM8xx processor modules share a common I/O cluster through a TB840A or TB842A ModuleBus Terminator and associated extension cables. The TK801V006 provides the physical link that allows both the primary and standby controllers to maintain synchronized access to field I/O, enabling bumpless transfer during controller switchover events. This architecture is widely adopted in power generation, oil and gas, and water treatment facilities where process continuity is non-negotiable.

From a network layer perspective, the AC800M system communicates with plant-wide DCS networks via the CI854A PROFIBUS DP communication interface or the CI857 PROFINET I/O interface module. These communication modules are housed on the same baseplate as the CPU, and the ModuleBus extension cable ensures that I/O data collected from remote S800 clusters is aggregated at the controller before being forwarded upstream. This hierarchical data flow — from field sensor through I/O module, across the ModuleBus cable, into the CPU, and out via industrial Ethernet — represents the fundamental signal path that the TK801V006 supports and protects.

Installation and commissioning of the TK801V006 follows ABB’s standard ModuleBus topology guidelines. The cable is keyed and polarized to prevent incorrect insertion, and its connector housing is rated for the vibration and thermal cycling conditions typical of industrial control panels. Engineers performing system expansions or I/O reconfigurations can replace or extend ModuleBus segments without powering down the entire control system, provided that hot-swap procedures defined in the AC800M Hardware Configuration manual are followed. This maintainability characteristic significantly reduces planned maintenance windows and supports the long-term operational efficiency of the automation system.

For spare parts management and lifecycle planning, stocking the TK801V006 alongside critical modules such as the PM864A processor, TB820V2 ModuleBus Modem, and key S800 I/O cards ensures that maintenance teams can respond to unplanned failures without extended lead times. ABB’s AC800M platform has a well-established installed base across global industries, and the availability of genuine extension cables is a prerequisite for maintaining system certification and warranty compliance. All TK801V006 units supplied by ZYPLC are covered by a 12-Month Warranty and are sourced to meet the quality standards expected in safety-instrumented and process-critical environments.

Architecture Specification Table

Coordinated Control System Design

The TK801V006 achieves its full value when evaluated within the context of a complete AC800M control node. A typical system node begins with the PM864A processor module mounted on a TB807 or TB810 baseplate, which provides the physical slots for CPU, power, and communication modules. The SD821 24VDC power supply feeds the controller baseplate, while a separate SD822 unit may power the S800 I/O cluster to achieve power domain isolation — a best practice in high-availability designs.

The TK801V006 cable connects the controller baseplate’s ModuleBus port to the first S800 I/O station, which typically begins with a TB820V2 ModuleBus Modem that converts the electrical ModuleBus signal for transmission over longer distances or optical fiber. Subsequent I/O modules — including AI810 for 4–20mA analog inputs, DO810 for 24VDC digital outputs, and AO810V2 for analog output signals — are mounted on S800 I/O baseplates and communicate via the extended ModuleBus segment established by the TK801V006.

At the network layer, the CI854A PROFIBUS DP master module or CI857 PROFINET interface connects the AC800M to field devices such as variable frequency drives, intelligent motor control centers, and remote I/O panels. The TB840A ModuleBus Terminator ensures proper bus impedance matching at the end of each ModuleBus segment, preventing signal reflections that could cause communication errors. Together, these components — CPU, power supply, extension cable, I/O modules, communication interface, and terminator — form a validated, interoperable control node that can be replicated across multiple process units within a plant.

Application in Layered Automation Systems

The TK801V006 ModuleBus Extension Cable finds application across a broad spectrum of industrial sectors where the AC800M platform is the controller of choice. In power generation facilities — including thermal, hydro, and combined-cycle plants — AC800M systems manage turbine control, boiler management, and balance-of-plant automation. The ModuleBus extension cable enables I/O clusters to be distributed across large turbine control panels while maintaining the deterministic communication required for fast-acting protection and control loops.

In oil and gas upstream and midstream applications, AC800M controllers are deployed in wellhead control panels, compressor stations, and pipeline SCADA nodes. The TK801V006 supports the physical expansion of I/O capacity within explosion-proof or pressurized enclosures, where cable routing must comply with hazardous area installation standards. The cable’s shielded construction also meets the EMC requirements of offshore and onshore environments where high-power electrical equipment operates in close proximity to control systems.

Water and wastewater treatment plants rely on AC800M systems for pump station automation, chemical dosing control, and effluent monitoring. In these applications, the ModuleBus extension cable allows engineers to consolidate I/O from multiple process areas into a single controller node, reducing hardware costs and simplifying network architecture. Similarly, in mining and metallurgical operations, AC800M controllers manage conveyor systems, crusher controls, and flotation cell automation, where the TK801V006 provides the reliable I/O connectivity needed to sustain continuous production cycles.

In pharmaceutical and food processing environments, where GMP compliance and audit traceability are mandatory, the AC800M platform’s validated software environment is complemented by the physical reliability of genuine ABB interconnect components. Using the correct TK801V006 cable — rather than a non-standard substitute — ensures that the system’s hardware configuration remains consistent with the validated baseline, avoiding costly revalidation exercises.

Architecture Engineering FAQ

Q1: Is the TK801V006 compatible with all AC800M controller variants, and can it be used in redundant controller configurations?
The TK801V006 is compatible with all AC800M processor modules that use the ModuleBus local I/O interface, including the PM861A, PM864A, PM866A, and PM891. In redundant controller configurations, the cable is used to connect both the primary and standby controller baseplates to the shared S800 I/O cluster via a TB840A or TB842A ModuleBus Terminator. The redundant topology requires careful attention to cable length and routing to ensure that both controllers maintain equal ModuleBus signal quality. ZYPLC recommends consulting ABB’s AC800M Hardware Configuration manual (3BSE041434) for validated redundant wiring diagrams before installation.

Q2: What are the installation and commissioning requirements for the TK801V006, and are there any restrictions on cable length or topology?
The TK801V006 must be installed in accordance with ABB’s ModuleBus topology specifications, which define maximum cable lengths, the number of I/O stations per segment, and the requirement for TB840A terminators at each end of the ModuleBus chain. The cable connectors are keyed to prevent incorrect insertion, and the shield must be properly grounded at the controller baseplate end to ensure EMC compliance. During commissioning, the AC800M’s built-in ModuleBus diagnostics — accessible via ABB’s Control Builder M engineering tool — can be used to verify communication integrity across all connected I/O stations. Hot-swap replacement of the cable is possible in some configurations, subject to the procedures defined in the system’s maintenance documentation.

Q3: What warranty and long-term supply assurance does ZYPLC provide for the TK801V006, and how does this support lifecycle management for installed AC800M systems?
All TK801V006 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures. ZYPLC maintains stock of TK801V006 cables alongside complementary AC800M components — including PM864A processors, TB820V2 ModuleBus Modems, and S800 I/O modules — to support both planned maintenance and emergency replacement scenarios. For customers managing large installed bases of AC800M systems, ZYPLC can provide framework supply agreements that guarantee availability and pricing stability over multi-year maintenance cycles. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to discuss your specific lifecycle management requirements.
