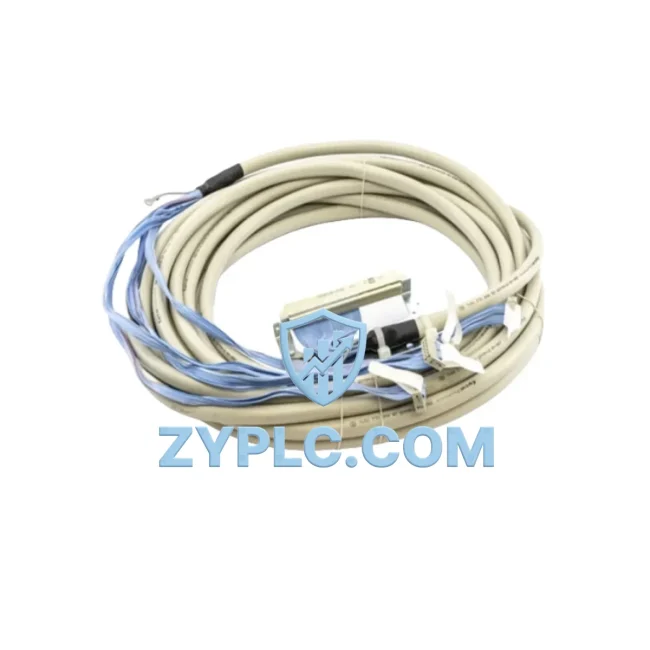

ABB TK801V006 System-Ready Termination Unit for AC800M Architecture

ABB TK801V006 System-Ready Termination Unit for AC800M Architecture

The ABB TK801V006 (part number 3BSE037714R1) is a precision-engineered termination unit designed to serve as a critical field-wiring interface within the ABB AC800M distributed control system architecture. Rather than functioning as a standalone component, the TK801V006 is conceived as an integral node in a layered automation hierarchy — bridging the physical signal world of field instruments and actuators with the structured digital environment of the AC800M controller platform. Its role spans the I/O layer and the field termination layer, ensuring that signal integrity, wiring consistency, and system expandability are maintained across the full lifecycle of an industrial installation.

In a complete AC800M control architecture, the TK801V006 termination unit connects directly to S800 I/O modules such as the AI810, AO810, DI810, and DO810 series, providing a reliable and standardized terminal block interface for field cables. This design eliminates the need for intermediate marshalling panels in many configurations, reducing wiring complexity and the risk of connection errors during commissioning. The termination unit is mounted on standard DIN rails within the control cabinet and interfaces with the S800 I/O modules via a dedicated cable assembly, maintaining a clean separation between the field wiring zone and the controller zone — a fundamental principle of safe and maintainable industrial system design.

At the control layer, the AC800M CPU modules — such as the PM861A or PM864A — manage all process logic and communicate with the S800 I/O subsystem through the ModuleBus backplane. The TK801V006 supports this architecture by providing a stable, low-impedance termination point that preserves signal quality across analog and digital channels. In high-density installations where dozens of field loops must be terminated in a compact cabinet footprint, the TK801V006 enables systematic cable management and simplifies future modifications or expansions without disrupting existing wiring.

From a redundancy design perspective, the TK801V006 is compatible with redundant I/O configurations supported by the AC800M platform. When paired with redundant S800 I/O modules and the TB820V2 ModuleBus Modem, the termination unit remains the single, stable field-wiring anchor point — meaning that I/O module replacement or switchover during redundancy events does not require any field cable reconnection. This characteristic is particularly valuable in continuous process industries such as petrochemical refining, power generation, and water treatment, where unplanned downtime carries significant operational and safety consequences.

The network and communication layer of the AC800M system relies on PROFIBUS DP, FOUNDATION Fieldbus, and Ethernet-based protocols depending on the application. The TK801V006 supports these architectures indirectly by ensuring that the physical termination quality at the I/O layer does not introduce noise, ground loops, or impedance mismatches that could degrade communication reliability upstream. In installations where CI854A or CI858 communication interface modules are used to connect field devices over PROFIBUS or FF-H1 segments, the integrity of the termination layer directly influences the stability of the entire fieldbus segment.

For human-machine interface integration, the AC800M platform typically connects to ABB’s Panel 800 series operator panels or third-party SCADA systems via OPC DA/UA servers. The TK801V006 contributes to HMI data quality by ensuring that the analog signals feeding the AI810 input modules are terminated with consistent impedance and shielding, reducing the likelihood of spurious readings or noise-induced alarms that would otherwise degrade operator confidence in the displayed process values.

In the execution layer, the TK801V006 termination unit supports connections to a wide range of field devices including 4–20 mA transmitters, RTDs, thermocouples, solenoid valves, and motor control relays. Its terminal block design accommodates standard field cable cross-sections and provides clear labeling positions for cable identification — a feature that significantly reduces troubleshooting time during maintenance activities and supports the long-term documentation standards required in regulated industries such as pharmaceuticals and nuclear power.

From an engineering and commissioning perspective, the TK801V006 simplifies the loop-check process by providing accessible test points at the field termination level. Technicians can verify signal continuity and measure loop current without disconnecting field cables or disturbing the I/O module connections, reducing the risk of introducing wiring errors during the commissioning phase. This accessibility also supports periodic calibration and preventive maintenance activities throughout the operational life of the system.

All TK801V006 units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring that every termination unit meets ABB’s original manufacturing specifications for contact resistance, insulation integrity, and mechanical durability. Our inventory is sourced from verified supply channels, and each unit undergoes inspection prior to dispatch to confirm part number accuracy and physical condition. Fast global shipping is available to support urgent project timelines and unplanned maintenance requirements.

Architecture Specification Table

Coordinated Control System Design

The TK801V006 operates at the intersection of the field layer and the I/O layer in a fully coordinated AC800M control system. At the controller level, the PM861A or PM864A CPU modules execute the process control strategy and communicate with the S800 I/O subsystem via the TB820V2 ModuleBus Modem, which extends the ModuleBus to remote I/O clusters. Within each I/O cluster, modules such as the AI810 (8-channel analog input), AO810 (8-channel analog output), DI810 (24 VDC digital input), and DO810 (digital output) connect to the TK801V006 termination unit via standardized cable assemblies.

For installations requiring fieldbus connectivity, the CI854A PROFIBUS DP interface module or the CI858 FOUNDATION Fieldbus interface integrates seamlessly within the same AC800M rack, allowing the system to combine traditional hardwired I/O — terminated through the TK801V006 — with intelligent field devices on digital fieldbus segments. Power distribution within the control cabinet is managed by dedicated 24 VDC power supply units, ensuring that the S800 I/O modules and the TK801V006 termination units receive stable, regulated power independent of field load variations. This coordinated multi-layer architecture ensures that the TK801V006 is never an isolated component but always a functional element within a coherent, scalable, and maintainable control system design.

Application in Layered Automation Systems

The TK801V006 termination unit finds application across a broad spectrum of process and discrete manufacturing industries. In petrochemical and refining plants, it provides the field termination backbone for temperature, pressure, and flow measurement loops connected to AC800M controllers managing distillation columns, heat exchangers, and compressor trains. In power generation facilities — including thermal, hydro, and combined-cycle plants — the TK801V006 supports the termination of protection relay outputs, generator excitation signals, and turbine control feedback loops within the plant DCS architecture.

In water and wastewater treatment systems, the termination unit simplifies the wiring of level transmitters, pump control signals, and dosing system feedback in compact control panels where space efficiency is critical. For mining and metallurgical applications, the TK801V006 supports the harsh-environment termination requirements of conveyor control systems, crusher monitoring, and smelter process control, where reliable field connections must be maintained under vibration and thermal cycling conditions. In pharmaceutical manufacturing and food and beverage processing lines, the unit’s clean terminal block design supports the documentation and validation requirements of regulated production environments, where every field connection must be traceable and verifiable.

Architecture Engineering FAQ

Q1: Is the TK801V006 compatible with all S800 I/O module variants in the AC800M system?
The TK801V006 is designed for use with the standard S800 I/O module range, including AI810, AO810, DI810, and DO810 modules. Compatibility with specific module variants should be confirmed against the ABB S800 I/O system documentation, as certain high-density or special-function modules may require alternative termination units. ZYPLC’s technical team can assist with compatibility verification for your specific system configuration.

Q2: Can the TK801V006 be used in redundant I/O configurations without field cable rewiring?
Yes. One of the key architectural advantages of the TK801V006 is that it serves as the stable field-wiring anchor in redundant S800 I/O configurations. When an I/O module is replaced or a redundancy switchover occurs, the field cables remain connected to the TK801V006 termination unit, eliminating the need for field cable disconnection and reducing the risk of wiring errors during maintenance. This characteristic is essential for high-availability systems in continuous process industries.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance requirements?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects, contact resistance failures, and mechanical integrity issues identified under normal operating conditions. ZYPLC maintains verified stock of TK801V006 units to support both planned maintenance schedules and emergency replacement requirements. Our global shipping capability ensures that replacement units can be dispatched rapidly to minimize system downtime, and our technical team is available to support installation verification and commissioning assistance.

—
