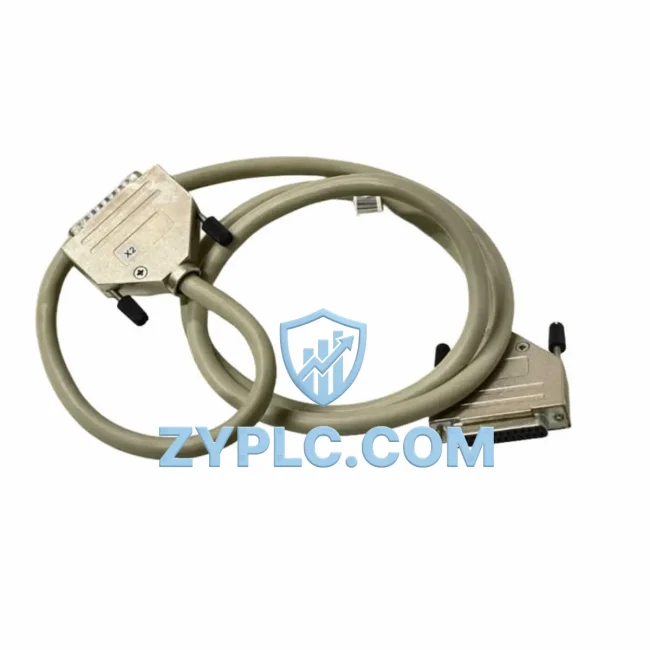

ABB TK801V012 3BSC950089R3 Energy-Saving AC500 Cable

ABB TK801V012 3BSC950089R3 Energy-Saving AC500 Extension Cable for Optimized Automation

The ABB TK801V012 (3BSC950089R3) is a high-integrity extension cable engineered for the ABB AC500 PLC platform, purpose-built to support energy-efficient industrial automation architectures. In modern manufacturing environments where every watt of consumed power and every millisecond of cycle time matters, the quality and reliability of inter-module communication infrastructure directly impacts overall system energy performance. The TK801V012 provides a low-resistance, shielded signal path that minimizes communication retries, reduces CPU polling overhead, and ensures deterministic data exchange between AC500 CPU modules and their expansion I/O — all of which contribute measurably to a leaner energy footprint across the control system.

Sourced from verified inventory, each TK801V012 unit undergoes outgoing shipment testing prior to dispatch, covering signal continuity, shielding integrity, and connector seating force. All units are backed by a 12-month warranty, ensuring your production line investment is protected from day one of installation.

Efficiency Performance Table

Energy-Aware Automation Architecture

The TK801V012 operates at the heart of an energy-aware AC500 control architecture. When paired with an ABB PM554-T-ETH or PM564-T-ETH CPU module, the extension cable enables seamless expansion of the I/O subsystem without introducing communication latency that would force the CPU into extended scan cycles — a common hidden source of excess energy consumption in poorly integrated PLC systems. The AC500’s modular design allows engineers to attach ABB S500 digital and analog I/O modules (such as the DC532 digital input module or the AX522 analog I/O module) directly through this cable, keeping the control loop tight and the energy budget predictable.

In drive-intensive applications, the TK801V012 supports control architectures where the AC500 CPU communicates with ABB ACS580 or ACS880 variable frequency drives via PROFIBUS-DP or Modbus RTU fieldbus networks. Reliable I/O extension through the TK801V012 ensures that speed reference signals, torque feedback, and energy consumption data from the drives are captured without packet loss — enabling the drive’s built-in energy optimizer to function at full effectiveness. A single communication dropout between the CPU and an I/O module can cause a VFD to revert to fixed-speed operation, instantly negating the energy savings the drive was installed to deliver.

For power monitoring integration, the AC500 system extended via TK801V012 can interface with ABB M2M Ethernet gateways and ABB B23 or B24 series energy meters to pull real-time kWh consumption data into the PLC logic. This allows the controller to implement demand-response strategies — automatically shedding non-critical loads during peak tariff windows — a capability that depends entirely on the integrity of the I/O communication chain that the TK801V012 anchors. Complementary components such as the ABB CI504-PNIO PROFINET adapter or CI502-PNIO communication interface modules further extend the system’s ability to integrate with plant-level SCADA and MES platforms for centralized energy reporting.

In safety-critical or high-availability lines, the TK801V012 is often deployed alongside ABB PS501 Control Builder Plus programming environments where structured energy management function blocks are used to monitor motor run-hours, calculate specific energy consumption per production unit, and trigger predictive maintenance alerts before a failing actuator begins drawing excess current. The cable’s role in this ecosystem is foundational: without a stable physical layer, none of the higher-level energy intelligence can operate reliably.

Power Optimization in Real Production Lines

Consider a bottling plant running three AC500-controlled filling stations, each with four ABB ACS355 micro-drives managing conveyor and pump motors. Each station’s CPU uses a TK801V012 to extend its I/O rack, connecting flow sensors, pressure transmitters, and valve actuators. When the extension cable maintains sub-millisecond communication integrity, the PLC can execute proportional flow control algorithms that keep pump motors operating at their highest efficiency point on the pump curve — typically 15–25% below full-load speed — rather than running at fixed speed with throttling valves absorbing the excess energy as heat and pressure drop.

In automotive body welding lines, AC500 systems extended via TK801V012 cables coordinate servo press controllers and resistance welding timers. Precise I/O timing — enabled by the cable’s low-jitter signal path — allows the PLC to implement weld-energy monitoring, comparing actual weld energy delivered against the programmed setpoint. Deviations trigger automatic parameter correction, preventing both under-welds (which cause rework energy waste) and over-welds (which waste electrode energy and shorten tip life, increasing maintenance downtime).

Downtime itself is one of the largest hidden energy costs in manufacturing: an idle line still consumes 30–60% of its running power through HVAC, lighting, compressed air leakage, and standby drives. By ensuring the AC500 I/O extension remains fault-free, the TK801V012 directly reduces unplanned stops. Predictive maintenance routines running in the AC500 CPU — monitoring vibration analog inputs, motor current signatures via analog I/O modules, and temperature sensors — can only function if the I/O data arrives at the CPU without error. A degraded or intermittent extension cable is frequently the root cause of sporadic I/O faults that mask themselves as sensor failures, leading to unnecessary component replacements and extended troubleshooting downtime.

Each TK801V012 shipped from ZYPLC inventory is tested for connector contact resistance, cable continuity across all conductors, and shield-to-drain wire continuity before packaging. This pre-shipment verification process ensures that the cable performs to ABB specification from the first power-on, eliminating the commissioning delays and energy waste associated with installing a defective cable into a live production system.

Energy Optimization FAQ

Q1: How does the TK801V012 contribute to energy savings compared to a standard extension cable?
The TK801V012 is an ABB OEM component designed specifically for the AC500 platform’s electrical and timing specifications. Generic cables with higher contact resistance or inadequate shielding introduce communication errors that force the CPU to increase its error-recovery polling rate, consuming additional processing cycles and extending scan times. Longer scan times mean slower response to process disturbances, which in turn causes drives and actuators to overshoot setpoints and consume more energy correcting the deviation. The TK801V012 eliminates this failure mode by maintaining the signal integrity the AC500 architecture was designed around.

Q2: Is the TK801V012 compatible with all AC500 CPU generations?
The TK801V012 (3BSC950089R3) is compatible with the AC500 V2 and V3 CPU families, including PM5xx and PM5xx-ETH series modules. It supports the standard S500 I/O expansion bus used across the AC500 platform. For specific compatibility with older V1 hardware or specialized safety CPUs (such as the PM5650-2ETH), we recommend confirming the hardware revision of your CPU module before ordering. Our technical team can assist with compatibility verification prior to purchase.

Q3: What is the recommended replacement interval, and how does proactive replacement reduce energy waste?
ABB does not publish a fixed replacement interval for the TK801V012 under normal operating conditions, as the cable is designed for the service life of the control panel. However, in high-vibration environments (press lines, compressor rooms, mobile equipment), annual inspection of connector seating and cable jacket integrity is recommended. A cable showing intermittent faults should be replaced immediately — operating with a degraded extension cable forces the CPU into fault-recovery mode, which increases scan cycle time and can cause drives to lose their optimized speed references, reverting to energy-inefficient fixed-speed operation until the fault clears.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All TK801V012 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit is tested for full conductor continuity, connector contact integrity, and EMI shield continuity. Units that fail any test parameter are quarantined and not shipped. This process ensures that every cable delivered to your facility is ready for immediate installation without the risk of introducing a defective component into your production environment.
