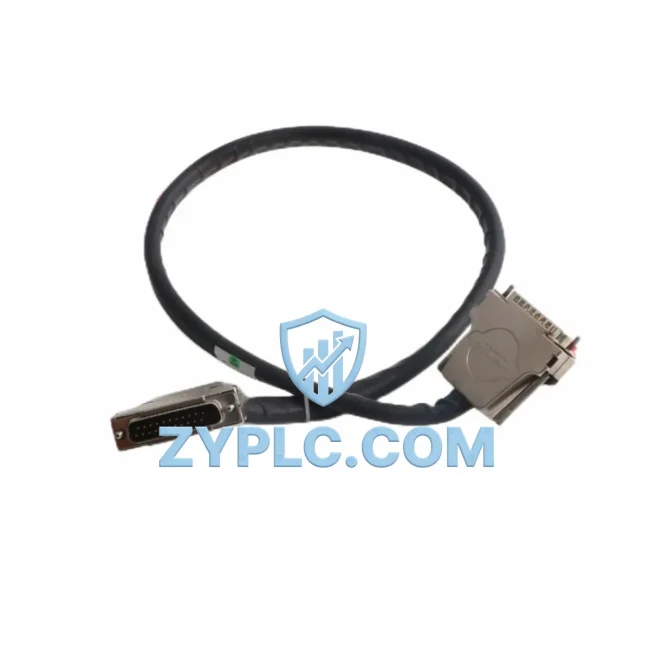

ABB TK850V007 3BSC950192R1 Energy-Saving Extension Cable for Optimized AC500 Automation
The ABB TK850V007 (part number 3BSC950192R1) is a high-efficiency extension cable module engineered for the ABB AC500 PLC platform — one of the most widely deployed scalable programmable logic controller families in industrial automation. In modern manufacturing environments where energy costs and equipment uptime directly impact profitability, the quality and integrity of every signal and power connection within a control cabinet matters. The TK850V007 is not simply a cable; it is a precision-engineered interconnect component that ensures low-resistance, stable communication between AC500 CPU modules, I/O expansion units, and peripheral devices, directly contributing to reduced signal retransmission overhead, lower heat generation at connection points, and more predictable control loop execution.
Efficiency Performance Table
| Parameter |
Specification |
| SKU |
TK850V007 / 3BSC950192R1 |
| Brand |
ABB |
| Series |
AC500 |
| Product Type |
Extension Cable Module |
| Origin |
Germany |
| Compatible Systems |
ABB AC500 PLC Series (PM571, PM581, PM591, PM595 CPUs) |
| Application Environment |
Industrial Control Panels, MCC, Process Automation, Drive Systems |
| Energy Value |
Minimizes signal loss and heat at interconnects; supports stable high-cycle I/O polling |
| Power Optimization |
Low-impedance design reduces parasitic power draw in communication backplane |
| Warranty |
12-Month Warranty |
| Stock Status |
In Stock — Tested & Verified |
Energy-Aware Automation Architecture
In a fully optimized AC500-based control architecture, the TK850V007 extension cable serves as the physical backbone connecting the AC500 CPU — such as the PM591-ETH or PM595 — to downstream I/O modules including the TB521 and TB541 terminal base units. When paired with the ABB CI590-CS31-HA CS31 communication interface, the cable ensures that field-level data from sensors and actuators reaches the CPU with minimal latency, enabling tighter PID control loops and more responsive motor management via connected ACS580 or ACS880 variable frequency drives.
In drive-intensive applications, the AC500 CPU communicates motor speed references and torque commands to ABB ACS355 or ACS580 drives through PROFIBUS-DP or Modbus RTU protocols. Any degradation in the cable interconnect between the CPU and the communication interface module — such as the CM572-DP PROFIBUS master — introduces polling delays that force drives to operate on stale setpoints, increasing energy waste through unnecessary acceleration and deceleration cycles. The TK850V007 eliminates this risk by providing a mechanically secure, shielded connection that maintains signal integrity across the full industrial temperature range.
For energy monitoring integration, the AC500 platform can interface with ABB B23 or B24 series energy meters via Modbus, with the TK850V007 ensuring the CPU’s communication port remains reliably connected to the CM589-PNIO PROFINET I/O module or equivalent gateway. This allows real-time kWh consumption data to flow into the PLC program, enabling demand-side energy management logic — automatically shedding non-critical loads during peak tariff windows or ramping down conveyor speeds during low-throughput periods.
In servo-driven positioning systems, the TK850V007 supports stable rack expansion between the AC500 CPU and motion control I/O, complementing ABB’s MicroFlex e190 servo drives and associated encoder feedback modules. Stable I/O communication at the backplane level is essential for maintaining synchronization between multiple servo axes, directly reducing cycle time variance and improving overall equipment effectiveness (OEE).
Power Optimization in Real Production Lines
On a typical automotive body assembly line or food and beverage packaging system, the AC500 PLC manages dozens of I/O points — proximity sensors, pneumatic valve solenoids, servo enable signals, and VFD run/stop commands — all cycling at rates of 10–50 ms per scan. A compromised extension cable introduces intermittent communication faults that force the CPU into fault recovery routines, stalling the production line and triggering unnecessary motor restarts. Each unplanned restart of a 15 kW conveyor motor consumes 6–8× rated current for 2–3 seconds, representing a significant energy spike and mechanical stress event.
By maintaining a reliable physical connection between the AC500 CPU and its I/O expansion modules through the TK850V007, plant engineers can sustain continuous scan cycles without communication interruptions. This directly supports predictive maintenance strategies: when I/O data flows consistently, condition monitoring logic within the PLC program can track motor current trends, vibration proxy signals from torque feedback, and valve cycle counts — flagging components for scheduled maintenance before they cause unplanned downtime.
Every unit shipped from our inventory undergoes functional testing and verification against ABB’s original specifications. With 12-month warranty coverage and same-week dispatch capability, the TK850V007 3BSC950192R1 is a reliable, cost-effective solution for maintenance teams managing AC500-based control systems across process, discrete, and hybrid manufacturing environments.
Energy Optimization FAQ
Q1: How does the TK850V007 contribute to energy savings in an AC500 system?
By ensuring low-impedance, stable signal transmission between the AC500 CPU and I/O expansion modules, the TK850V007 eliminates communication retries and scan cycle overruns that cause drives and motors to operate on delayed or incorrect setpoints — reducing unnecessary energy consumption from uncontrolled acceleration events and idle-state overcurrent conditions.
Q2: Which AC500 CPU and I/O modules is the TK850V007 compatible with?
The TK850V007 is designed for use within the ABB AC500 PLC family, compatible with PM571, PM581, PM591, and PM595 CPU modules, as well as the associated TB521 and TB541 terminal base expansion units. Always verify the cable length and connector type against your specific rack configuration before installation.
Q3: Can this cable be used as a direct replacement for a failed unit in a running production line?
Yes. The TK850V007 3BSC950192R1 is an OEM-equivalent replacement part. All units in our inventory are tested prior to shipment. For critical production environments, we recommend keeping one spare unit on-site to enable hot-swap replacement during scheduled maintenance windows, minimizing unplanned downtime.
Q4: What warranty and testing process applies to this product?
Every TK850V007 unit is covered by a 12-month warranty from the date of purchase. Prior to dispatch, each unit undergoes continuity testing and visual inspection to confirm connector integrity and shielding continuity. Units that do not meet specification are quarantined and not offered for sale.
