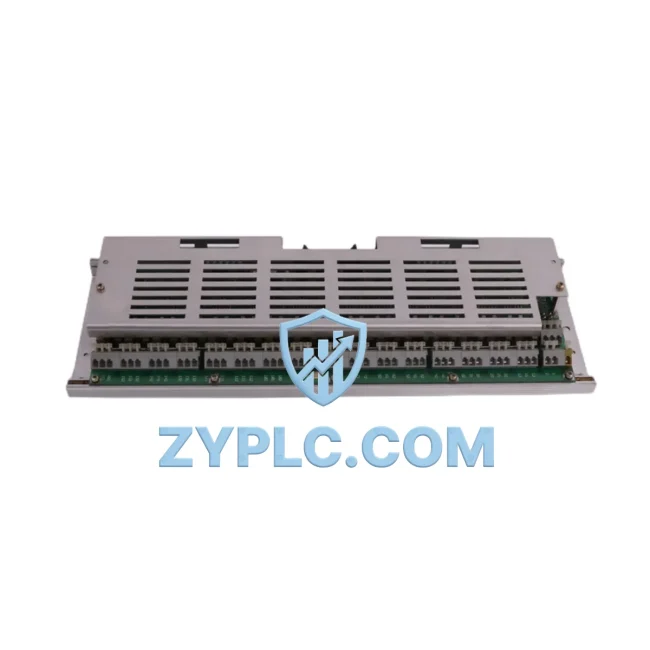

ABB UFC092BE01 HIEE300910R0001 Binary Input for AC 450

ABB UFC092BE01 HIEE300910R0001 Binary Input for AC 450

The ABB UFC092BE01 (HIEE300910R0001) is a dedicated binary input module engineered for seamless integration within the ABB AC 450 Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, this module is designed to operate as a precision node within a layered automation hierarchy — collecting discrete field signals and delivering them reliably to the central processing layer. In complex industrial environments where signal integrity, system redundancy, and long-term maintainability are non-negotiable, the UFC092BE01 provides the structural consistency that modern control engineers demand.

Within the AC 450 platform, the binary input module occupies a critical position in the I/O layer, bridging the gap between field instrumentation and the controller’s decision-making core. Its role extends beyond simple signal acquisition: it ensures that binary status data — from limit switches, valve position feedback, motor run signals, and protective relay outputs — is accurately timestamped, filtered, and transmitted to the CPU module without latency or data corruption. This level of signal fidelity is essential in process industries where a single missed input can trigger unplanned shutdowns or safety system activations.

The UFC092BE01 is fully compatible with the AC 450 rack and backplane infrastructure, allowing it to be installed alongside other I/O modules such as analog input cards, analog output cards, and binary output modules within the same chassis. This modular co-location reduces wiring complexity, simplifies cabinet layout, and enables engineers to expand or reconfigure the I/O layer without disrupting adjacent modules or requiring controller downtime. The module’s design supports hot-swap capability within supported rack configurations, a feature that significantly reduces maintenance windows in continuous-process facilities.

From a system architecture perspective, the UFC092BE01 contributes directly to the redundancy and fault-tolerance strategy of the AC 450 platform. When paired with redundant CPU modules and dual-channel power supply units, the binary input layer can be configured to maintain uninterrupted signal acquisition even during partial hardware failures. This architecture is particularly valuable in applications where process continuity is mandated by safety regulations or production economics — such as power generation, petrochemical refining, and water treatment infrastructure.

Communication between the UFC092BE01 and the AC 450 controller is handled through the internal backplane bus, ensuring deterministic data transfer rates and eliminating the latency variability associated with external fieldbus connections. For systems that also incorporate PROFIBUS DP gateways, Modbus RTU communication modules, or Ethernet-based supervisory interfaces, the binary input data collected by the UFC092BE01 can be made available across multiple network layers — supporting SCADA integration, historian logging, and remote diagnostic access without additional hardware overhead.

Engineering teams working with the AC 450 platform will find that the UFC092BE01 integrates directly into the ABB Master software environment, where I/O channel configuration, signal scaling, and diagnostic monitoring are managed through a unified engineering interface. This reduces commissioning time and ensures that channel-level diagnostics — including open-circuit detection, signal range violations, and module health status — are visible at the operator station without requiring physical inspection of the cabinet.

For long-term asset management, the UFC092BE01 is supported under ZYPLC’s 12-Month Warranty program, covering hardware defects and operational failures under normal industrial service conditions. Replacement units are maintained in stock to support rapid deployment in emergency maintenance scenarios, minimizing the risk of extended process downtime due to module unavailability. All units are tested prior to shipment and supplied with documentation supporting traceability and quality assurance requirements.

Product Specification Table

System Compatibility Notes

The UFC092BE01 achieves its full operational value when deployed as part of a coordinated AC 450 control system. In a typical architecture, the binary input module works in concert with the AC 450 CPU module (such as the DSPC110 or DSPC172 processor boards) which handles all logic execution and inter-module communication. Power distribution to the I/O rack is managed by dedicated AC 450 power supply modules, which provide regulated, filtered DC power to all installed cards including the UFC092BE01.

On the output side, binary output modules within the same rack receive processed commands from the CPU and drive field actuators — contactors, solenoid valves, and motor starters — based on the input states collected by the UFC092BE01. Analog input modules installed in adjacent slots handle continuous process variables such as temperature, pressure, and flow, while analog output modules provide 4–20 mA control signals to variable-speed drives and control valves. Together, these I/O modules form a complete signal acquisition and control execution layer beneath the CPU.

For systems requiring communication with higher-level SCADA or MES platforms, PROFIBUS DP communication modules or Modbus gateway cards can be integrated into the AC 450 rack, enabling the binary input data from the UFC092BE01 to be published to supervisory systems in real time. HMI terminals connected via the AC 450 network layer provide operators with live visualization of binary input states, alarm management, and trend logging — all sourced from the same I/O layer where the UFC092BE01 operates.

Terminal modules and marshalling panels connected to the UFC092BE01’s field wiring interface provide the physical connection point between the module and field instrumentation, ensuring organized, labeled, and maintainable wiring layouts within the control cabinet. In redundant system configurations, dual-redundant backplane assemblies allow the binary input layer to maintain continuous operation even during single-point hardware failures, supporting the high-availability requirements of critical process applications.

Industrial Application Notes

The UFC092BE01 is deployed across a broad range of industrial sectors where the AC 450 DCS platform is the established control infrastructure. In power generation facilities — including thermal, hydro, and combined-cycle plants — the module collects binary status signals from circuit breakers, isolation switches, and protective relay contacts, providing the control system with real-time visibility of electrical switchgear states. This data is essential for automatic generation control, load dispatch, and fault isolation sequences.

In petrochemical and refinery applications, the UFC092BE01 monitors binary inputs from emergency shutdown valves, high-level switches, and flame detection systems, feeding the AC 450 safety logic with the discrete signal data required for process protection and regulatory compliance. Water treatment and wastewater facilities use the module to track pump run/stop status, valve open/close feedback, and level switch activations across distributed pump stations and treatment stages.

Mining and metallurgical operations rely on the UFC092BE01 to integrate binary signals from conveyor belt interlocks, crusher protection systems, and hoisting equipment safety circuits into the central DCS, enabling coordinated production control and rapid fault response. In packaging and discrete manufacturing lines, the module supports high-speed binary input acquisition from photoelectric sensors, proximity switches, and machine safety guards, contributing to the precise sequencing and synchronization required for automated production.

Product Compatibility FAQ

Q1: Is the UFC092BE01 compatible with all AC 450 rack configurations, and can it be mixed with other I/O module types in the same chassis?
Yes. The UFC092BE01 is designed for standard AC 450 rack installation and is fully compatible with mixed I/O configurations. It can be installed in the same chassis alongside analog input modules, analog output modules, binary output modules, and communication cards without hardware or software conflicts. Channel assignment and module addressing are managed through the ABB Master engineering software, which automatically recognizes the module type and configures the I/O map accordingly.

Q2: What redundancy options are available for the binary input layer when using the UFC092BE01 in a high-availability AC 450 system?
The AC 450 architecture supports redundant CPU configurations and dual-channel power supply arrangements that protect the control system against single-point failures. For the binary input layer, critical signals can be wired to dual input channels across separate modules, with the CPU logic configured to perform voting or changeover based on input agreement. This approach is commonly used in safety-instrumented applications where input signal availability must be maintained even during module replacement or maintenance activities.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support emergency replacement requirements?
The 12-Month Warranty provided by ZYPLC covers hardware defects and operational failures of the UFC092BE01 under normal industrial service conditions, including failures attributable to manufacturing defects or component degradation within the warranty period. For emergency replacement scenarios, ZYPLC maintains stock of the UFC092BE01 and equivalent AC 450 I/O modules to support rapid dispatch. Customers requiring urgent replacements can contact the ZYPLC technical team directly to arrange priority shipment and commissioning support.
