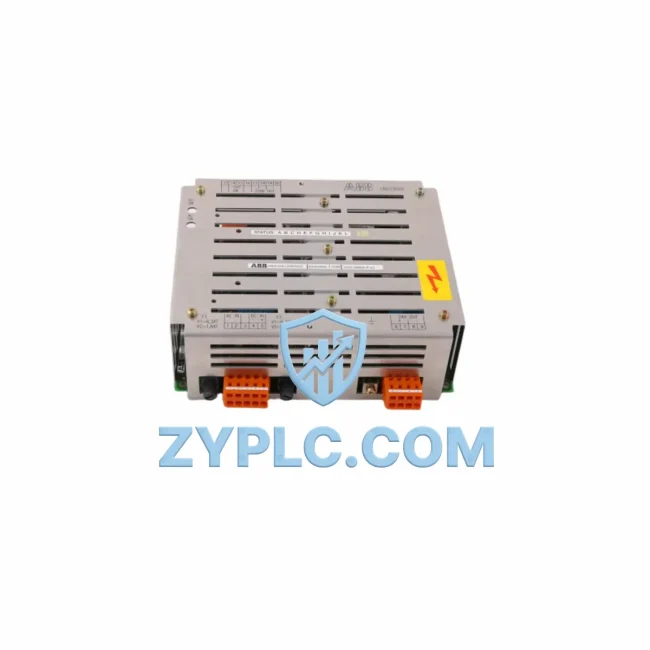

The ABB UNS0868A-P V2 (part number HIEE305120R0002) is a high-efficiency power supply module engineered for ABB’s UNITROL excitation control systems. Designed to deliver stable, regulated DC power to excitation regulators and field controllers in synchronous generator applications, this module plays a critical role in reducing unnecessary energy draw, stabilizing voltage output, and ensuring that the broader automation architecture operates at peak efficiency. Whether deployed in hydroelectric plants, thermal power stations, or large industrial generator sets, the UNS0868A-P V2 directly contributes to lower operational energy costs and improved equipment uptime.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a modern energy-optimized plant, the UNS0868A-P V2 does not operate in isolation. It is the power backbone that enables the UNITROL excitation regulator — such as the UNITROL 1020 automatic voltage regulator (AVR) — to maintain precise generator field current control. When the AVR receives feedback from voltage transducers and current measurement modules like the AI830A analog input board, it adjusts excitation in real time. The UNS0868A-P V2 ensures that this control loop receives clean, uninterrupted power, preventing voltage fluctuations that would otherwise force the system into inefficient compensation cycles.

The module integrates seamlessly within the UNITROL 5000 and UNITROL 6080 platforms, where it works alongside the PPD113 B10 power supply board and the HIEE300936R0101 interface module to distribute regulated power across the excitation cubicle. In installations where the generator is coupled with an ABB ACS880 variable speed drive for auxiliary motor control — such as cooling fans or feedwater pumps — the UNS0868A-P V2 helps maintain system-wide power quality by isolating the sensitive excitation electronics from drive-induced harmonics.

For facilities running ABB’s System 800xA distributed control system, the UNS0868A-P V2 supports the broader energy monitoring architecture. Controllers such as the PM891 processor module and communication interfaces like the CI873K01 PROFIBUS DP module rely on stable auxiliary power to maintain real-time data exchange between the excitation system and the plant DCS. This integration allows operators to monitor excitation power consumption, reactive power output, and generator efficiency from a centralized HMI — such as the PP C322 BE01 operator panel — without interruption.

On the I/O side, digital output modules like the DO810 and analog input cards such as the TU847 termination unit work in conjunction with the excitation controller to capture field current data and feed it back into the energy optimization loop. When the UNS0868A-P V2 maintains a stable supply rail, these I/O modules report accurate, low-noise signals — a prerequisite for any predictive maintenance or energy benchmarking initiative. Inaccurate I/O readings caused by power supply instability are a hidden source of energy waste, as they trigger unnecessary corrective actions in the control logic.

Power Optimization in Real Production Lines

In thermal power plants, the excitation system is active continuously during generator operation. A degraded or inefficient power supply module forces the excitation regulator to compensate for voltage droop, increasing field current beyond the optimal setpoint and generating excess heat in the rotor windings. Over time, this accelerates insulation aging and increases maintenance frequency. The UNS0868A-P V2, with its regulated output and low ripple characteristics, keeps the excitation current at the minimum necessary level for stable voltage regulation — directly reducing rotor copper losses and extending winding service life.

In hydroelectric applications, where generator loading fluctuates with water flow and grid demand, the UNS0868A-P V2 enables the UNITROL AVR to respond rapidly to load changes without overshooting the excitation setpoint. This fast, stable response reduces reactive power oscillations on the grid connection, which in turn lowers transmission losses and improves the plant’s power factor — a measurable energy efficiency gain that directly impacts operating costs.

From a maintenance perspective, the UNS0868A-P V2 is designed for straightforward replacement without requiring recalibration of the excitation system. Each unit shipped by ZYPLC undergoes full functional testing under load conditions before dispatch, verifying output voltage accuracy, ripple suppression, and thermal performance. This pre-shipment QA process, combined with a 12-month warranty, ensures that replacement modules perform identically to OEM specifications from day one — eliminating the commissioning delays and energy inefficiencies associated with improperly tested spare parts.

Facilities that maintain a strategic inventory of UNS0868A-P V2 modules as critical spares report significantly shorter mean time to repair (MTTR) for excitation system faults. Reducing MTTR from hours to minutes means the generator returns to optimal, energy-efficient operation faster — avoiding the fuel waste and grid instability associated with prolonged partial-load or open-circuit operation during fault recovery.

Energy Optimization FAQ

Q1: How does the UNS0868A-P V2 contribute to measurable energy savings in a generator excitation system?
By providing a stable, low-ripple DC supply to the excitation regulator, the UNS0868A-P V2 prevents the AVR from over-exciting the generator field to compensate for power supply instability. This keeps field current at the optimal setpoint, reducing rotor copper losses and improving the generator’s overall efficiency. In plants with continuous operation, even a 1–2% reduction in excitation losses translates to significant annual energy savings.

Q2: Is the UNS0868A-P V2 (HIEE305120R0002) compatible with both UNITROL 5000 and UNITROL 6080 excitation platforms?
Yes. The UNS0868A-P V2 is designed for use within the ABB UNITROL excitation system family, including the UNITROL 1020, UNITROL 5000, and UNITROL 6080 platforms. It is recommended to verify the cubicle configuration and firmware version of the excitation controller before installation. ZYPLC’s technical team can assist with compatibility confirmation prior to purchase.

Q3: What is the recommended replacement procedure, and will it disrupt generator operation?
Replacement of the UNS0868A-P V2 is typically performed during a planned maintenance window with the excitation system de-energized. The module is a plug-in card format, allowing hot-swap in some UNITROL configurations depending on the cubicle design. No recalibration of the AVR is required after replacement, as the module’s output characteristics are factory-set to OEM specifications. ZYPLC recommends testing the replacement module under no-load conditions before returning the generator to service.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every UNS0868A-P V2 supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each module undergoes a full QA test cycle including output voltage verification, load regulation testing, ripple measurement, and thermal inspection. A test report is available upon request. Warranty claims are processed directly through ZYPLC’s technical support team at [email protected].
