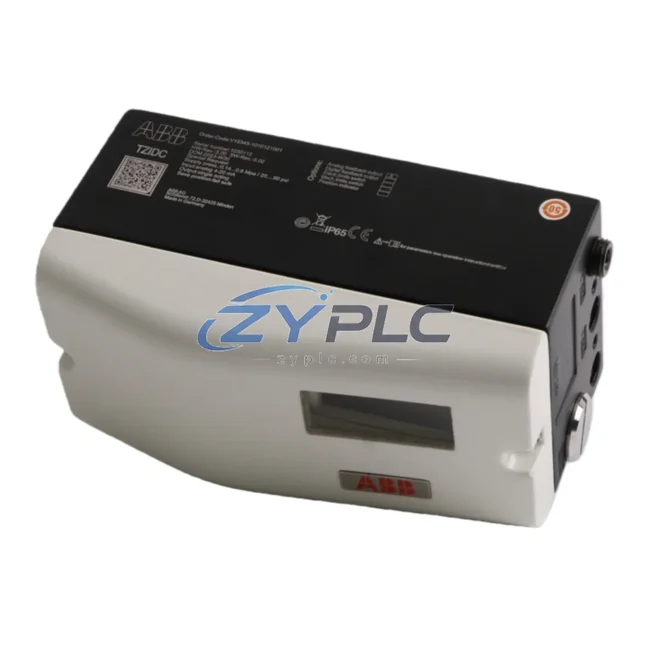

ABB V18345-1010421001 Electro-Pneumatic Positioner for TZIDC Systems

ABB V18345-1010421001 Industrial Network Interface for TZIDC Systems: Precision Data Link for Smart Factory Connectivity

The ABB V18345-1010421001 is a high-performance electro-pneumatic positioner from ABB’s renowned TZIDC series, engineered to serve as a critical industrial network interface between field-level control valves and upper-level automation systems. In modern smart factory environments, where every millisecond of process data matters, this positioner delivers precise valve positioning while simultaneously transmitting real-time diagnostic and process data across HART-enabled industrial networks — bridging the gap between physical actuation and digital intelligence.

At the heart of its connectivity architecture, the V18345-1010421001 leverages the HART (Highway Addressable Remote Transducer) communication protocol, enabling bidirectional digital communication superimposed on the standard 4–20 mA analog signal. This dual-channel capability allows plant engineers to read live valve position feedback, actuator health status, and process deviation alerts without interrupting the primary control loop — a fundamental requirement for continuous process industries such as oil and gas, chemical processing, power generation, and water treatment.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory data flow, the ABB V18345-1010421001 TZIDC positioner operates as the intelligent endpoint of the field device layer. The data journey begins at the control valve actuator, where the positioner reads the physical stem position via its internal feedback sensor and compares it against the setpoint signal issued by the upstream ABB AC500 PLC or a Siemens S7-300/S7-400 controller. Any deviation triggers an immediate corrective pneumatic output, while the HART channel simultaneously reports the deviation magnitude and response time back to the control room.

This HART data stream is typically aggregated by a HART multiplexer or a WirelessHART gateway — such as the ABB TPWL-01 wireless adapter or compatible Emerson 1420 wireless gateway — which consolidates field device data from dozens of positioners, pressure transmitters, and flow meters into a single Ethernet backbone. From there, the data flows into the plant’s DCS or SCADA platform, such as ABB System 800xA or Wonderware InTouch, where operators can monitor valve health, travel deviation, and cycle count in real time.

Within the same network segment, the V18345-1010421001 coexists with other TZIDC series devices, including the ABB TZIDC-110 and TZIDC-200 variants, sharing the same HART asset management infrastructure. Plant maintenance teams using ABB Asset Vision or FieldCare asset management software can remotely configure, calibrate, and diagnose the positioner without physical access — dramatically reducing maintenance downtime in hazardous or hard-to-reach installations.

Further upstream, the aggregated positioner data integrates with remote I/O modules such as the ABB S900 remote I/O or Pepperl+Fuchs KFD series HART barriers, which provide galvanic isolation and signal conditioning before the data reaches the PLC or DCS input cards. HMI panels — including ABB CP600 series or Siemens TP1200 Comfort — display live valve position trends and alarm states, giving line operators immediate visual feedback on process conditions. In multi-loop control architectures, the positioner’s HART data also feeds into advanced process control (APC) algorithms running on the SCADA server, enabling predictive valve maintenance scheduling based on accumulated travel and torque signature analysis.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is data isolation — where field devices operate in analog-only mode, invisible to the digital control and monitoring infrastructure. The ABB V18345-1010421001 directly addresses this problem by transforming a conventional pneumatic valve actuator into a HART-communicating smart device, instantly making it visible to any HART-capable asset management or control system.

In plants where multiple communication protocols coexist — such as PROFIBUS PA, Foundation Fieldbus, and HART — the V18345-1010421001’s HART interface can be bridged to higher-level protocols through protocol gateways such as the Softing FG-100 HART gateway or the Moxa MGate series, enabling seamless data exchange between previously isolated device islands. This protocol convergence is essential for achieving full production line transparency, where every actuator, sensor, and drive contributes to a unified data model accessible from the SCADA or MES layer.

Remote monitoring is another critical capability enabled by the V18345-1010421001. In geographically distributed installations — such as pipeline stations, offshore platforms, or multi-site chemical plants — HART-over-IP solutions allow the positioner’s diagnostic data to be transmitted over standard TCP/IP networks to centralized monitoring centers. Alarm conditions such as valve stiction, air supply failure, or position feedback loss are immediately flagged in the SCADA alarm management system, enabling remote engineers to assess the situation and dispatch maintenance personnel with full diagnostic context before they arrive on site.

For greenfield smart factory projects, the V18345-1010421001 supports phased system expansion. As production capacity grows, additional TZIDC positioners can be added to the HART network without requiring changes to the existing wiring infrastructure, since HART multidrop configurations allow multiple devices to share a single cable pair. This scalability makes the ABB TZIDC series a preferred choice for system integrators designing future-proof automation architectures.

Every unit shipped undergoes comprehensive factory acceptance testing (FAT), including full-stroke calibration, HART communication verification, and pneumatic leak testing, ensuring that the positioner arrives ready for immediate installation and commissioning. Combined with a warranty terms confirmed during quotation and guaranteed inventory availability, the V18345-1010421001 offers procurement teams the supply chain reliability required for both planned maintenance replacements and emergency spare parts programs.

Industrial Connectivity FAQ

Q1: What is the communication latency of the HART protocol used in the ABB V18345-1010421001?
HART protocol operates at 1200 baud, with a typical command-response cycle of 250–500 ms for standard point-to-point configurations. This latency is well within the requirements for valve diagnostics and asset management applications, which do not require the millisecond-level response times of real-time control loops. The primary 4–20 mA control signal remains unaffected and continues to operate at full analog bandwidth.

Q2: Is the ABB V18345-1010421001 compatible with third-party SCADA and DCS platforms?
Yes. The HART protocol is an open, internationally recognized standard (IEC 62591), and the V18345-1010421001 is compatible with any HART-capable DCS, SCADA, or asset management system, including ABB System 800xA, Emerson DeltaV, Honeywell Experion, Yokogawa CENTUM VP, and Wonderware System Platform. HART Device Description (DD) files for the TZIDC series are available from ABB and can be imported into most asset management tools.

Q3: Can the network be expanded by adding more TZIDC positioners without rewiring?
Yes. HART supports multidrop wiring configurations where up to 15 devices can share a single cable pair, making network expansion straightforward and cost-effective. Additional ABB TZIDC positioners — including the TZIDC-110 and TZIDC-200 — can be added to an existing HART segment without modifying the cable infrastructure, provided the total loop resistance and power budget remain within specification.

Q4: What does the warranty terms confirmed during quotation cover, and how is the unit tested before shipment?
The warranty terms confirmed during quotation covers manufacturing defects in materials and workmanship under normal operating conditions. Prior to shipment, every ABB V18345-1010421001 unit undergoes factory acceptance testing including full-stroke mechanical calibration, HART communication protocol verification, pneumatic supply and output pressure testing, and position feedback accuracy validation. Test records are available upon request for quality-critical installations.
