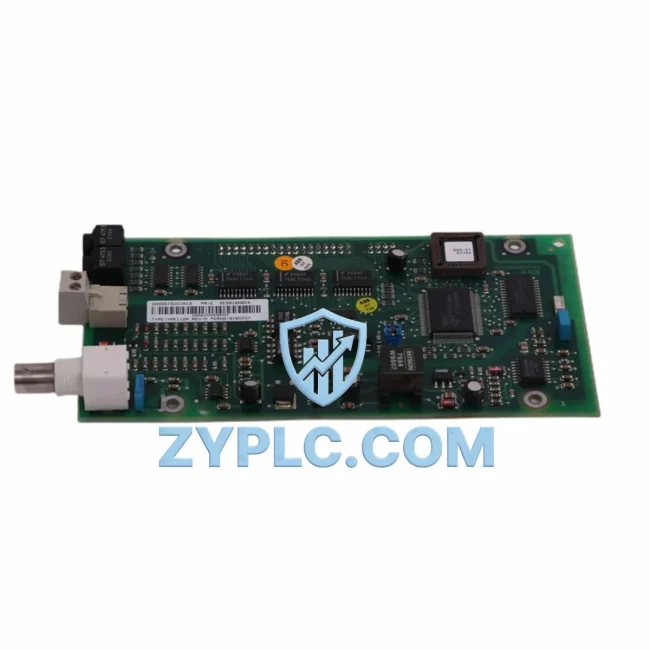

ABB YPK112A 3ASD5730011A13 System-Ready Communication Module for AC500 Architecture

ABB YPK112A 3ASD5730011A13 System-Ready Communication Module for AC500 Architecture

The ABB YPK112A (part number 3ASD5730011A13) is a dedicated communication module engineered for seamless integration within the ABB AC500 programmable logic controller platform. Rather than functioning as a standalone device, the YPK112A is designed to operate as a critical node within a layered industrial control architecture — bridging the control layer, I/O layer, network layer, and supervisory systems into a coherent, high-availability automation solution. For system integrators, OEM machine builders, and plant engineers working across manufacturing, power distribution, petrochemical processing, water treatment, mining, metallurgy, and packaging lines, the YPK112A delivers the communication consistency and contextual integration that modern process control demands.

In a complete AC500-based control system, the YPK112A slots into the CPU rack alongside processors such as the PM573, PM583, or PM595, sharing the internal backplane bus and extending the communication reach of the controller without burdening the CPU’s primary processing cycles. This architectural separation of communication and computation is fundamental to achieving deterministic scan times and reliable signal flow — particularly in applications where millisecond-level response is required across distributed I/O nodes or remote field devices.

The module supports Contextual Integration across the AC500 ecosystem, meaning it is not merely a passive data conduit but an active participant in the system’s diagnostic and configuration framework. Engineers can commission, monitor, and troubleshoot the YPK112A directly through ABB Automation Builder, the unified engineering environment that governs the entire AC500 platform. This reduces engineering overhead during initial deployment and dramatically simplifies long-term maintenance — a critical advantage in facilities where minimizing unplanned downtime translates directly to production yield and operational cost.

From a system architecture perspective, the YPK112A contributes to redundancy design by enabling communication path diversity. In high-availability configurations, where the AC500 CPU modules such as the PM595 operate in hot-standby redundancy mode, the communication layer must maintain session continuity across failover events. The YPK112A is engineered to support this requirement, ensuring that upstream SCADA systems, historian servers, and HMI panels — including ABB CP600 or CP635 operator panels — receive uninterrupted data streams regardless of controller state transitions.

At the I/O layer, the YPK112A works in coordination with distributed I/O modules mounted on TB511, TB521, or TB541 terminal base units, collecting field signals from analog input modules (AI523, AI531), digital output modules (DO523, DO531), and specialty function modules. These signals are aggregated, timestamped, and transmitted upstream through the communication module to the control and supervisory layers, maintaining signal integrity across the full data path from field sensor to enterprise historian.

In network-intensive architectures, the YPK112A complements other communication-capable components such as the CM589-PNIO PROFINET adapter, CM578-CN CANopen module, or CM572-DP PROFIBUS DP interface, allowing the AC500 platform to simultaneously participate in multiple industrial network segments. This multi-protocol capability is essential in brownfield integration projects where legacy fieldbus infrastructure must coexist with modern Ethernet-based communication layers. The YPK112A’s role in this context is to maintain protocol translation consistency and ensure that data latency across network boundaries remains within the tolerances defined by the process control specification.

For power system architects, the YPK112A operates within the standard DC power envelope supplied by the AC500 power supply modules — PS501, PS502, or PS560 — mounted on the same rack. Proper power budgeting across the backplane is essential when populating a rack with multiple communication and I/O modules, and the YPK112A’s low power consumption profile makes it compatible with high-density rack configurations without requiring supplemental power injection. This simplifies cabinet design and reduces the overall footprint of the control panel, a meaningful advantage in space-constrained installations.

From a long-term maintenance and lifecycle management perspective, the YPK112A’s compatibility with the AC500 platform’s modular replacement philosophy means that field engineers can swap the module without requiring full system shutdown in many configurations. Spare parts availability, firmware version management, and hardware revision tracking are all supported through ABB’s standard service infrastructure. ZYPLC maintains verified stock of the YPK112A 3ASD5730011A13 with full traceability, supporting both immediate replacement needs and planned maintenance schedules. Every unit supplied by ZYPLC is covered by a 12-Month Warranty, providing procurement teams and plant managers with the assurance needed for long-term operational planning.

Architecture Specification Table

Coordinated Control System Design

The YPK112A 3ASD5730011A13 achieves its full value when deployed as part of a coordinated AC500 control system rather than as an isolated component. In a typical system architecture, the module occupies a slot in the AC500 CPU rack alongside a PM583 or PM595 central processing unit, sharing the backplane with power supply modules such as the PS501 or PS560. The rack may also host analog I/O modules including the AI523 for 4–20 mA process signal acquisition and the AO523 for analog output to control valves or variable frequency drives.

At the network layer, the YPK112A works in parallel with the CM589-PNIO PROFINET I/O adapter, enabling the AC500 controller to communicate simultaneously with PROFINET-based distributed I/O stations and higher-level SCADA or DCS systems. In installations where legacy PROFIBUS DP infrastructure remains in service, the CM572-DP module provides the fieldbus interface, while the YPK112A handles the upper-layer communication responsibilities. This layered communication architecture ensures that the control system can evolve incrementally without requiring wholesale replacement of field wiring or instrumentation.

At the human-machine interface layer, the YPK112A supports data exchange with ABB CP600 series operator panels or third-party HMI systems connected via Ethernet. Operators can monitor real-time process values, acknowledge alarms, and adjust setpoints through the HMI, with the YPK112A ensuring that data consistency between the controller and the display layer is maintained across all operating conditions. In redundant CPU configurations using the PM595, the communication module maintains HMI session continuity during controller switchover, preventing operator disorientation during failover events.

Terminal modules such as the TU515 or TU516 universal terminal units, combined with digital input modules like the DI524 or DI572, complete the I/O layer of the architecture. Field signals from proximity sensors, pressure transmitters, flow meters, and temperature elements are wired to these terminal bases and processed by the AC500 CPU, with the YPK112A responsible for transmitting consolidated process data to upstream systems. This end-to-end signal flow — from field device through I/O module, across the backplane, through the communication module, and into the supervisory network — defines the core value proposition of the YPK112A in a fully integrated AC500 architecture.

Application in Layered Automation Systems

The ABB YPK112A 3ASD5730011A13 finds application across a broad range of industrial sectors where the AC500 platform is the controller of choice. In discrete manufacturing environments — automotive assembly, electronics production, and precision machining — the module enables real-time communication between the AC500 controller and MES (Manufacturing Execution System) platforms, supporting production tracking, quality data collection, and OEE (Overall Equipment Effectiveness) monitoring without introducing communication latency that could affect cycle time.

In power distribution and substation automation applications, the YPK112A supports the AC500’s role as a bay controller or protection relay interface, communicating with SCADA systems over standard industrial protocols. The module’s ability to maintain communication stability under the electrical noise conditions typical of high-voltage switchgear environments makes it well-suited for this demanding application context.

In petrochemical and refinery process control, where continuous operation and functional safety are paramount, the YPK112A contributes to the communication layer of safety-instrumented systems by ensuring that process data reaches the supervisory layer with the integrity and timeliness required by the process safety management framework. Water treatment and wastewater management facilities benefit from the module’s reliable communication performance in environments characterized by high humidity, chemical exposure, and geographically distributed I/O stations connected over long-distance fieldbus segments.

Mining and metallurgical applications — including ore processing, smelting, and materials handling — place extreme demands on control system communication infrastructure due to the combination of heavy electrical interference, vibration, and the consequences of communication failure on process continuity. The YPK112A’s integration within the robust AC500 platform addresses these challenges, providing the communication reliability that keeps conveyor systems, crushers, and process reactors operating within defined parameters. Packaging line and food and beverage applications similarly benefit from the module’s support for high-speed data exchange between the AC500 controller and servo drives, vision systems, and track-and-trace infrastructure.

Architecture Engineering FAQ

Q1: Is the ABB YPK112A 3ASD5730011A13 compatible with all AC500 CPU variants, and can it be used in a redundant CPU configuration?
The YPK112A is designed for the ABB AC500 platform and is compatible with the standard AC500 CPU rack architecture, including configurations using PM573, PM583, PM591, and PM595 processors. For redundant CPU configurations using the PM595 in hot-standby mode, the communication module supports session continuity during controller switchover. It is recommended to verify firmware compatibility between the YPK112A hardware revision and the AC500 CPU firmware version using ABB Automation Builder prior to deployment in a new or upgraded system.

Q2: What are the installation and commissioning requirements for the YPK112A in an existing AC500 system, and how does it affect system scan time?
The YPK112A is installed directly into an available slot in the AC500 CPU rack and is recognized automatically by the Automation Builder engineering environment upon project download. Configuration is performed within the Automation Builder communication tree, where the module’s parameters — including protocol settings, node addressing, and diagnostic reporting — are defined. The module’s communication processing is handled independently of the CPU scan cycle, meaning that adding the YPK112A to an existing rack does not directly increase the controller’s task cycle time. However, the volume of data exchanged through the module should be sized appropriately to avoid communication buffer saturation in high-throughput applications.

Q3: What does the 12-Month Warranty cover for the YPK112A 3ASD5730011A13 supplied by ZYPLC, and what is the process for warranty claims?
Every ABB YPK112A 3ASD5730011A13 supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions as defined by ABB’s product specifications. In the event of a warranty claim, customers should contact ZYPLC at [email protected] or +86 19859288691 with the order reference, unit serial number, and a description of the observed fault. ZYPLC will coordinate return logistics and provide a replacement or repaired unit within the agreed service timeline, minimizing the impact on plant operations.
