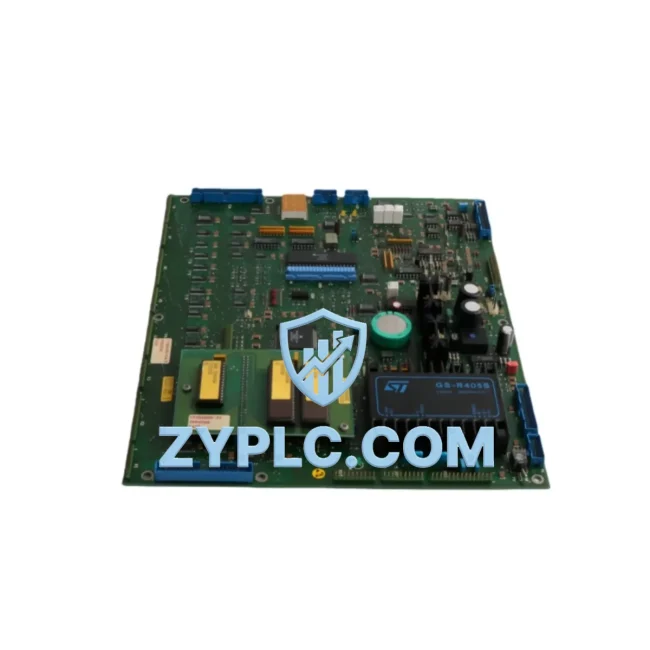

ABB YPQ201A YT204001-KA System-Ready CPU Module for AC800M Architecture

ABB YPQ201A YT204001-KA System-Ready CPU Module for AC800M Control Architecture

The ABB YPQ201A (assembly reference YT204001-KA) is a high-performance CPU module purpose-built for deployment within the ABB AC800M Distributed Control System platform. Rather than functioning as a standalone component, this module is engineered to serve as the computational core of a layered automation architecture — coordinating signal acquisition, logic execution, inter-module communication, and supervisory data exchange across the full control hierarchy. Understanding its role within the broader system is essential for engineers designing, commissioning, or maintaining process automation infrastructure in demanding industrial environments.

Architecture Specification Table

Coordinated Control System Design

The YPQ201A CPU module does not operate in isolation. Its value is realized through tight integration with the surrounding hardware ecosystem of the AC800M platform. In a typical process control cabinet, this CPU module is mounted on an AC800M rack baseplate (such as the TB820V2 or equivalent), which provides the physical and electrical backbone for all connected modules. Power is supplied through a dedicated SD802F or SD821 power supply module, ensuring stable 24 VDC delivery with sufficient headroom for full I/O loading.

On the I/O layer, the YPQ201A communicates with S800 I/O modules — including AI810 analog input, AO810V2 analog output, DI810 digital input, and DO810 digital output modules — via the CEX-Bus or through remote I/O stations connected over PROFIBUS DP. This architecture allows engineers to distribute I/O across large plant areas while maintaining deterministic scan cycle performance at the CPU level.

For network integration, the YPQ201A supports connection to the ABB 800xA System via Ethernet, enabling OPC-UA data exchange, historian integration, and supervisory control from operator workstations running AC800M Connect or full 800xA HMI environments. In redundant configurations, a secondary YPQ201A or compatible CPU module can be paired with a CI858 DNALink communication interface to achieve hot-standby redundancy, ensuring zero-interruption failover in critical process applications.

Communication gateways such as the CI854B PROFIBUS DP master module extend the reach of the AC800M controller to third-party field devices, variable frequency drives, and intelligent motor control centers. Terminal modules and marshalling panels — including TB825 and TK850 series — provide the physical wiring interface between field cables and the I/O modules, completing the signal chain from sensor to CPU.

This coordinated architecture ensures that the YPQ201A operates as the authoritative logic engine across all layers: receiving conditioned signals from the I/O layer, executing control algorithms, managing inter-controller communication, and delivering setpoints to actuators and drives — all within a single, coherent system framework.

Application in Layered Automation Systems

The ABB YPQ201A YT204001-KA CPU module is deployed across a wide range of industrial sectors where process reliability, system scalability, and long-term maintainability are non-negotiable requirements.

In power generation and utilities, this CPU module serves as the primary controller for turbine auxiliary systems, boiler feedwater control, and grid-tie protection logic. Its deterministic execution cycle and robust communication stack make it suitable for applications where millisecond-level response is required alongside continuous supervisory monitoring.

In oil, gas, and petrochemical processing, the YPQ201A is integrated into emergency shutdown systems (ESD), compressor control panels, and pipeline SCADA architectures. Its compatibility with PROFIBUS DP and Modbus RTU allows seamless interfacing with field transmitters, positioners, and safety instrumented system (SIS) components.

For water and wastewater treatment facilities, the module manages pump sequencing, chemical dosing control, and telemetry data aggregation across distributed pump stations. Its low power consumption and wide operating temperature range make it suitable for remote unmanned installations.

In mining and metallurgical processing, the YPQ201A handles conveyor sequencing, crusher control, and flotation cell automation. The module’s ability to manage large I/O counts through distributed S800 stations reduces panel footprint while maintaining full system visibility.

Across packaging and discrete manufacturing lines, the CPU module coordinates motion sequencing, recipe management, and production data logging — integrating with HMI panels and MES systems through the 800xA platform’s open connectivity layer.

In all these applications, the 12-Month Warranty provided by ZYPLC ensures that procurement teams and maintenance engineers can plan spare parts strategies with confidence, knowing that every unit has been functionally tested and verified before shipment.

Architecture Engineering FAQ

Q1: Is the YPQ201A YT204001-KA compatible with existing AC800M racks and S800 I/O modules already installed in my plant?
Yes. The YPQ201A is designed for direct installation into standard AC800M rack baseplates and communicates natively with the full S800 I/O module family via the CEX-Bus interface. No additional adapters or firmware bridges are required for integration into existing AC800M architectures. Engineers should verify firmware revision compatibility with the site’s 800xA system version prior to commissioning.

Q2: Can this CPU module be used in a redundant controller configuration, and what additional components are required?
The AC800M platform supports CPU redundancy through hot-standby pairing. A redundant configuration requires a second compatible CPU module, a redundancy link cable, and appropriate configuration within the AC800M Connect engineering tool. The CI858 DNALink module may also be required depending on the communication topology. ZYPLC can advise on complete redundancy bill-of-materials based on your system architecture drawings.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance planning?
The 12-Month Warranty covers functional defects identified under normal operating conditions from the date of dispatch. All units undergo pre-shipment functional testing. ZYPLC maintains stock of AC800M platform components to support planned maintenance shutdowns, emergency replacements, and lifecycle extension programs. For long-term supply agreements or technical consultation, contact our engineering team directly.
