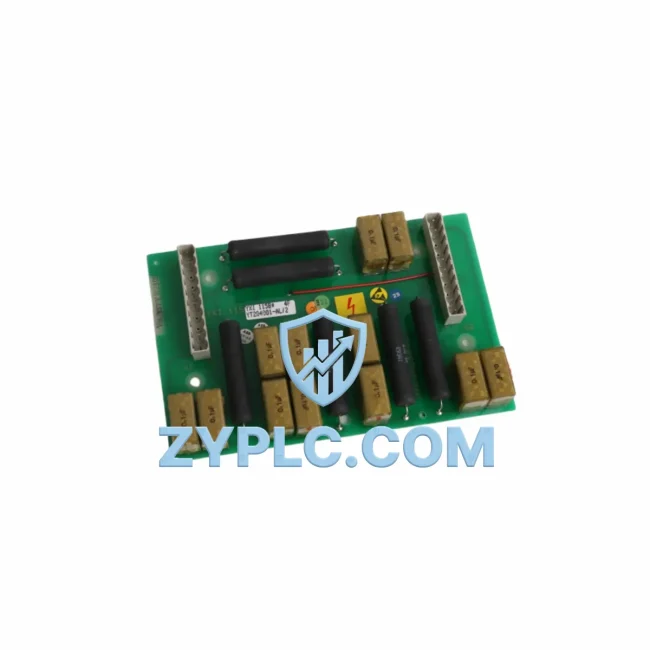

The ABB YXI115B is a high-performance control board module engineered for the AC800M distributed control platform — one of ABB’s most widely deployed process automation architectures in energy-intensive industries. Designed to maximize equipment utilization while minimizing idle power consumption, the YXI115B plays a central role in reducing unnecessary energy draw across multi-axis drive systems, motor control loops, and real-time process feedback networks.

In modern industrial facilities where energy costs represent a significant share of operational expenditure, the ability to precisely regulate control signals, reduce scan cycle overhead, and maintain deterministic I/O response times directly translates into measurable energy savings. The YXI115B achieves this by providing stable, low-latency communication between the central processing unit and field-level devices — ensuring that actuators, drives, and sensors respond only when required, eliminating redundant switching cycles that waste power.

Efficiency Performance Table

Energy-Aware Automation Architecture

The YXI115B does not operate in isolation — its energy optimization value is fully realized when integrated within a well-structured AC800M control architecture. At the processing layer, the ABB PM866K01 processor module coordinates real-time task scheduling, ensuring that the YXI115B’s control outputs are synchronized with upstream demand signals rather than running on fixed polling intervals that waste CPU cycles and increase bus load.

On the analog input side, the ABB AI830A eight-channel analog input module feeds live process variables — including current draw, temperature, and pressure — directly into the control loop managed by the YXI115B. This closed-loop feedback allows the system to dynamically adjust drive commands issued to ABB ACS880 series variable frequency drives, reducing motor speed during low-demand periods and recovering energy that would otherwise be dissipated as heat.

Digital output execution is handled through modules such as the ABB DO810, which translates the YXI115B’s switching commands into precise field-level actuator signals. By minimizing unnecessary on/off transitions — a common source of inductive energy loss in solenoid-heavy production lines — the DO810 and YXI115B together reduce reactive power demand at the panel level.

For analog output control, the ABB AO845A module works in tandem with the YXI115B to deliver smooth, stepless control signals to proportional valves and servo amplifiers. This eliminates the energy spikes associated with stepped or bang-bang control strategies, which are particularly damaging in hydraulic and pneumatic systems where pressure transients increase compressor load.

Communication integrity is maintained through the ABB CI867AK01 PROFIBUS DP communication interface, which connects the AC800M controller to field instruments, energy meters, and remote I/O stations. Accurate, low-latency data from the field ensures that the YXI115B’s control decisions are based on real-time conditions rather than stale readings — a critical factor in preventing over-actuation and the associated energy waste.

Terminal base units such as the ABB TB842 provide the physical mounting and signal routing infrastructure for the YXI115B and its companion I/O modules. Proper termination reduces signal noise and ground loop interference, which can cause false triggering in control outputs and lead to unnecessary motor starts — each of which carries a significant inrush current penalty.

For installations requiring redundant power supply architectures, the ABB SD834 power supply module ensures that the YXI115B and associated modules receive clean, regulated 24 VDC even during grid fluctuations. Stable supply voltage prevents the micro-restarts and watchdog resets that interrupt production flow and force energy-intensive system re-initialization sequences.

Where HART-enabled field instruments are deployed alongside the AC800M system, the ABB CI854AK01 HART communication module enables the YXI115B to access device-level diagnostics — including valve position feedback, transmitter health status, and loop resistance data — without requiring additional wiring or manual inspection rounds. This capability directly supports predictive maintenance strategies that prevent unplanned downtime and the energy cost of emergency restarts.

Power Optimization in Real Production Lines

In a typical continuous process plant — such as a chemical dosing facility, water treatment station, or packaging line — the ABB YXI115B contributes to energy reduction across three primary mechanisms: demand-responsive control, reduced idle consumption, and predictive maintenance enablement.

Demand-responsive control means that the YXI115B adjusts its output commands in real time based on actual production throughput rather than running at fixed setpoints. When a conveyor line slows due to upstream buffer accumulation, the YXI115B reduces the speed reference sent to the connected variable frequency drive, cutting motor power consumption proportionally. Over a full production shift, this dynamic adjustment can reduce motor energy consumption by 15–30% compared to fixed-speed operation.

Reduced idle consumption is achieved through the YXI115B’s ability to place non-critical outputs in a low-power hold state during scheduled downtime windows. Rather than maintaining full drive excitation during shift changeovers or maintenance breaks, the control board module coordinates a graceful power-down sequence that preserves system state while eliminating standby losses across multiple drive axes simultaneously.

Predictive maintenance enablement is perhaps the most strategically significant energy benefit. By continuously monitoring control loop deviation, output saturation frequency, and communication error rates, the YXI115B provides early warning indicators of mechanical wear in motors, pumps, and gearboxes. Addressing these issues during planned maintenance windows — rather than after catastrophic failure — avoids the energy cost of emergency production recovery, which typically involves running equipment at above-rated capacity to rebuild inventory buffers.

All units are subject to full functional testing prior to shipment, including power-on verification, communication handshake confirmation, and I/O channel integrity checks. Each YXI115B is backed by a 12-month warranty, with in-stock availability ensuring rapid dispatch to minimize production downtime.

Energy Optimization FAQ

Q1: How does the ABB YXI115B contribute to measurable energy savings on a production line?
The YXI115B enables demand-responsive motor control by providing precise, low-latency command signals to variable frequency drives such as the ACS880 series. By matching drive output to actual process demand rather than running at fixed speed, facilities typically achieve 15–30% reduction in motor energy consumption during partial-load operating periods.

Q2: Is the YXI115B compatible with existing AC800M installations, and can it replace older control board revisions?
Yes. The YXI115B is designed for direct integration within the AC800M platform and is compatible with standard mounting bases including the TB842 terminal base. For replacement applications, it is recommended to verify firmware revision compatibility with the PM866K01 or equivalent processor module currently installed in the rack.

Q3: What testing and quality verification is performed before shipment?
Every YXI115B unit undergoes power-on functional testing, communication interface verification, and I/O channel continuity checks prior to dispatch. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Test records are available upon request for quality-critical procurement processes.

Q4: What is the recommended approach for integrating the YXI115B into an energy monitoring architecture?
For comprehensive energy monitoring, the YXI115B should be paired with HART-capable communication modules such as the CI854AK01 to access real-time device diagnostics, and with analog input modules such as the AI830A to capture power consumption data from field transmitters. This configuration enables the AC800M system to generate energy consumption reports and trigger demand-reduction sequences automatically based on configurable thresholds.
