ABB ZCU-12 Energy-Saving Control Card for ACS800

ABB ZCU-12 Energy-Saving Control Card for ACS800: Precision Motor Control for Optimized Production Lines

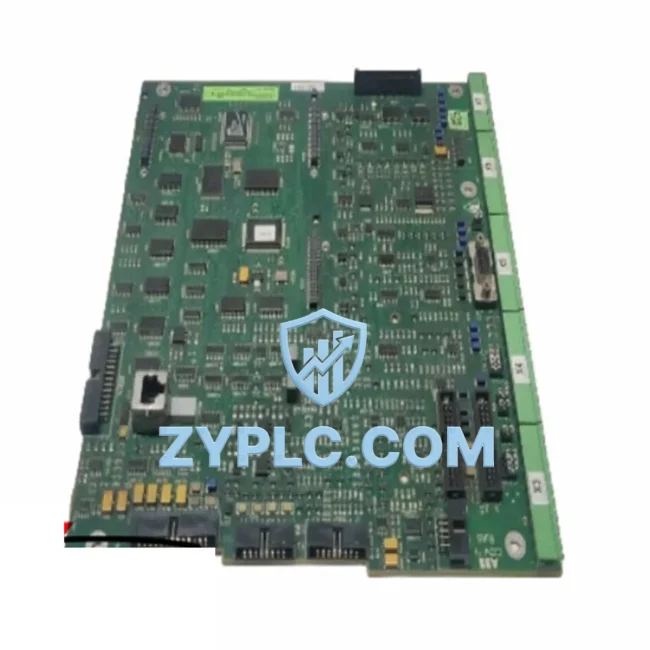

The ABB ZCU-12 is a high-performance control card engineered for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families. Designed to serve as the central intelligence of the ACS800 drive unit, the ZCU-12 governs motor speed, torque output, switching frequency, and energy feedback loops with exceptional precision. In modern manufacturing environments where energy costs and equipment uptime directly impact profitability, the ZCU-12 delivers measurable improvements across motor control efficiency, production line throughput, and predictive maintenance readiness.

Unlike generic replacement boards, the ZCU-12 is a factory-specification control module that interfaces natively with the ACS800’s internal firmware, I/O architecture, and fieldbus communication stack. This ensures seamless integration without recalibration overhead, reducing commissioning time and minimizing the risk of drive parameter mismatch — a common source of energy waste in retrofitted systems.

Efficiency Performance Table

Energy-Aware Automation Architecture

The ZCU-12 does not operate in isolation — it functions as the command center within a broader energy-aware automation architecture. In a typical ACS800-based drive system, the ZCU-12 receives speed and torque references from an upstream controller such as an ABB AC500 PLC or a Siemens S7-300/S7-1500 series controller via PROFIBUS-DP or Modbus RTU. These references are processed through the ZCU-12’s Direct Torque Control (DTC) algorithm, which adjusts the IGBT switching pattern in real time to match actual load demand — eliminating the energy penalty of fixed-speed operation.

On the I/O side, the ZCU-12 interfaces with the ACS800’s AINT board and optional RDIO digital I/O extension modules, enabling precise feedback from motor encoders, temperature sensors, and process transmitters. This closed-loop architecture allows the drive to respond dynamically to load changes — for example, reducing fan speed during low-demand periods in HVAC or dust extraction systems, cutting energy consumption proportionally to the cube of speed reduction.

For energy monitoring and power quality analysis, the ZCU-12 integrates naturally with ABB B23 or B24 series energy meters and ABB Ability™ Power Monitor solutions via the plant’s SCADA or DCS layer. Real-time kWh data captured at the drive level can be fed into an ABB Ability™ Energy Manager or third-party MES platform, enabling granular energy cost allocation per production cell.

In servo-intensive lines, the ZCU-12-equipped ACS800 often works alongside ABB MicroFlex e190 servo drives or ABB ACSM1 motion control drives, with the ACS800 handling high-power spindle or conveyor duties while the servo drives manage precision positioning axes. Coordinating these drive types through a unified DDCS fiber optic master-follower link — supported natively by the ZCU-12 — eliminates inter-drive communication latency and synchronizes torque profiles across the production line.

HMI visibility is typically provided by an ABB CP600 operator panel or a Siemens TP700 Comfort HMI, both of which can display ZCU-12 drive parameters, fault codes, and energy KPIs in real time. This operator-level transparency reduces the mean time to diagnose (MTTD) drive faults, shortening unplanned downtime windows that would otherwise result in wasted energy from partial-load restarts and thermal cycling.

Power Optimization in Real Production Lines

In real-world industrial deployments, the ABB ZCU-12 delivers energy savings through three primary mechanisms: speed-proportional power reduction, reactive power compensation, and regenerative braking energy recovery.

Speed-Proportional Power Reduction: Because the ACS800 with ZCU-12 uses DTC to match motor speed precisely to process demand, facilities running pump or fan loads at 80% of rated speed can achieve up to 51% reduction in energy consumption (following the affinity laws: power ∝ speed³). In a cement plant running multiple 75 kW cooling fans, this translates to hundreds of thousands of kWh saved annually per drive.

Reactive Power Compensation: The ZCU-12’s control firmware actively manages the drive’s power factor, maintaining it close to unity across the operating range. This reduces reactive current draw on the facility’s distribution network, lowering transformer losses and potentially reducing utility demand charges — a benefit that compounds across multi-drive installations.

Regenerative Braking: In hoist, crane, and winding applications, the ZCU-12 enables the ACS800 to recover kinetic energy during deceleration and feed it back to the DC bus or, with an appropriate regenerative supply unit, back to the AC grid. This is particularly valuable in high-cycle applications where braking events are frequent.

Beyond energy savings, the ZCU-12 contributes to predictive maintenance by continuously logging motor current signatures, thermal load indices, and run-hour counters. Maintenance teams can extract this data via the drive’s fieldbus interface and feed it into condition monitoring platforms, enabling bearing wear detection and winding insulation trend analysis before failures occur — avoiding the energy and production cost of unplanned stops.

All ZCU-12 units supplied by ZYPLC undergo a comprehensive pre-shipment functional test that includes power-on verification, parameter upload/download cycle, I/O channel check, and communication port validation. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Inventory is maintained in-house for immediate dispatch, with global logistics support to minimize lead times for urgent MRO requirements.

Energy Optimization FAQ

Q1: How much energy can I realistically save by replacing a failed ZCU-12 with a new one from ZYPLC?
A: A faulty ZCU-12 often causes the ACS800 to fall back to scalar (V/Hz) control mode or trip repeatedly, forcing operators to run the motor at fixed speed via bypass — eliminating all VFD energy savings. Restoring the ZCU-12 to full DTC operation typically recovers 20–40% energy savings on variable-torque loads (pumps, fans, compressors) compared to direct-on-line operation. The payback period on the replacement part cost is usually measured in weeks, not months.

Q2: Is the ZCU-12 compatible with all ACS800 variants, and will it work with my existing fieldbus setup?
A: The ZCU-12 is designed for the ACS800 single drive and multidrives platform. It supports DDCS fiber optic communication natively and accommodates optional fieldbus adapter modules (RPBA-01 for PROFIBUS, RMBA-01 for Modbus, RDNA-01 for DeviceNet) in the dedicated adapter slot. Before ordering, confirm your ACS800 firmware version and hardware revision to ensure full compatibility — our technical team can assist with cross-referencing.

Q3: Can the ZCU-12 be used as a direct drop-in replacement, or does it require parameter re-entry?
A: The ZCU-12 is a direct hardware replacement for the original control board. However, drive parameters are stored on the control board’s memory, so after replacement you will need to restore parameters from a backup (via DriveWindow or DriveStudio software) or re-enter them manually. ZYPLC recommends maintaining a parameter backup file for all ACS800 drives as part of standard MRO practice — this reduces recommissioning time to under 30 minutes.

Q4: What does the 12-month warranty from ZYPLC cover, and what is the testing process before shipment?
A: Every ZCU-12 unit is tested prior to shipment using a dedicated ACS800 test bench. The test protocol covers power supply integrity, DTC control loop response, all digital and analog I/O channels, DDCS communication, and fault code memory. The 12-month warranty covers functional failure under normal industrial operating conditions. It does not cover physical damage caused by incorrect installation, overvoltage events, or environmental contamination beyond the module’s rated IP class. Warranty claims are processed with a target replacement dispatch of 5 business days.
