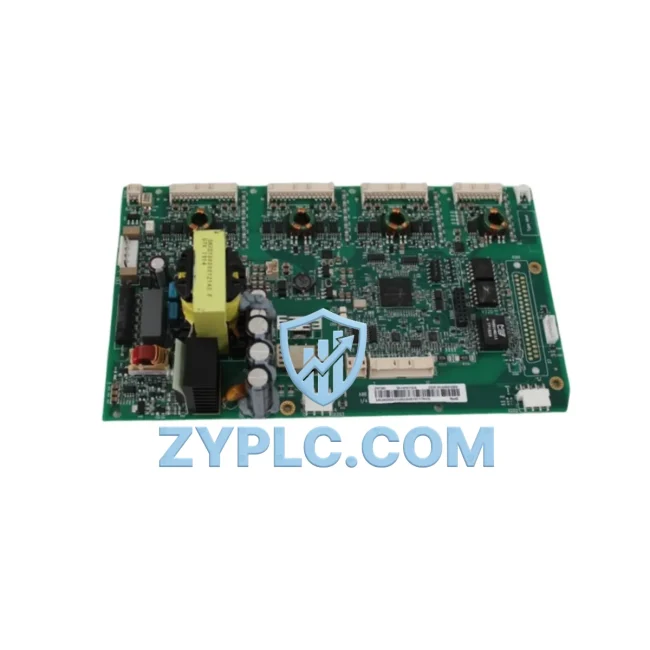

ABB ZINT-592 3AUA0000103603 System-Ready Inverter Power Board for ACS880 Architecture

ABB ZINT-592 3AUA0000103603 System-Ready Inverter Power Board for ACS880 Architecture

The ABB ZINT-592 (part number 3AUA0000103603) is a factory-engineered inverter power board designed as a core switching and power conversion component within the ACS880 industrial drive platform. Rather than functioning as a standalone replacement part, the ZINT-592 occupies a critical position in the layered control architecture of ABB’s ACS880 series — a platform widely deployed across heavy manufacturing, process automation, power generation, and utility-scale motor control applications. Understanding the ZINT-592 in its full system context is essential for engineers responsible for drive commissioning, predictive maintenance, and long-term architecture continuity.

In a complete ACS880 drive system, the control hierarchy spans from the supervisory PLC or DCS layer down through the drive control unit, power electronics, and ultimately to the motor and mechanical load. The ZINT-592 sits within the power electronics layer, managing the IGBT gate drive signals and DC bus switching that convert rectified DC power into the variable-frequency AC output delivered to the motor. Its correct operation is foundational to the performance of every layer above and below it — from the RDCU-02C drive control unit issuing torque and speed references, to the motor encoder feedback processed by the RTAC-01 pulse encoder interface module.

System architects integrating the ZINT-592 into an ACS880 cabinet must consider its interaction with adjacent components across multiple functional layers. On the power supply side, the ZINT-592 interfaces directly with the DC bus capacitor bank and the rectifier bridge assembly, both of which must be verified for voltage rating compatibility. On the control side, gate drive signals are coordinated through the AINT-02C inverter control board, which translates high-level torque commands from the RDCU-02C into precise switching sequences. Any mismatch in firmware revision between the AINT-02C and the drive control unit can result in gate timing errors that manifest as overcurrent faults or IGBT protection trips — making version-controlled spare parts management a critical operational discipline.

From a network and communications perspective, the ACS880 platform supports PROFIBUS-DP, PROFINET, EtherNet/IP, and Modbus TCP through optional fieldbus adapter modules such as the FPBA-01 PROFIBUS adapter and the FENA-21 Ethernet adapter. While the ZINT-592 itself does not participate directly in fieldbus communication, its operational status is continuously monitored by the drive control unit and reported upstream to the SCADA or DCS system via these communication channels. Fault codes generated by IGBT overcurrent, short-circuit detection, or thermal overload on the ZINT-592 are transmitted in real time to the control room, enabling rapid fault isolation without physical inspection of the drive cabinet.

Redundancy and high-availability design considerations are particularly relevant in applications where motor downtime carries significant production or safety consequences. In multi-drive ACS880 cabinet configurations, engineers often maintain a hot-standby drive unit with a pre-installed ZINT-592 to enable rapid switchover. This approach, combined with the ACS880’s built-in safe torque off (STO) function — implemented through the FSIO-21 safety I/O module — ensures that the drive system can be safely de-energized and the power board replaced without exposing maintenance personnel to live DC bus voltage. Proper lockout/tagout procedures, combined with the ACS880’s integrated DC bus discharge resistor circuit, are mandatory before any ZINT-592 replacement operation.

In layered automation systems, the ZINT-592 also interacts with the human-machine interface layer. Operators monitoring drive performance through an ABB CP600 panel or a third-party HMI connected via OPC-UA will observe real-time parameters including output current, DC bus voltage, IGBT junction temperature, and switching frequency — all of which are directly influenced by the condition of the ZINT-592. Degradation in gate drive signal integrity, often caused by capacitor aging or thermal cycling fatigue on the power board, typically manifests as increased harmonic distortion in the motor current waveform before a hard fault occurs. Proactive replacement of the ZINT-592 based on condition monitoring data, rather than reactive replacement after failure, is the recommended maintenance strategy for high-utilization ACS880 installations.

For applications in the oil and gas, petrochemical, water treatment, and mining sectors, where ACS880 drives are frequently installed in hazardous area enclosures or remote unmanned substations, the availability of verified spare ZINT-592 boards with documented provenance and test certification is a procurement priority. Each ZINT-592 3AUA0000103603 supplied by ZYPLC is sourced from authorized distribution channels, functionally tested prior to dispatch, and covered by a 12-Month Warranty against manufacturing defects and premature failure under normal operating conditions.

Architecture Specification Table

Coordinated Control System Design

The ZINT-592 does not operate in isolation — its performance is inseparable from the coordinated function of the surrounding ACS880 system architecture. At the control layer, the RDCU-02C drive control unit serves as the central intelligence of the ACS880, processing speed and torque references from the PLC or DCS and translating them into switching commands delivered to the ZINT-592 via the AINT-02C inverter control board. The AINT-02C acts as the intermediary between digital control logic and the high-voltage gate drive circuits on the ZINT-592, making firmware compatibility between these two boards a non-negotiable commissioning requirement.

On the I/O and feedback layer, the RTAC-01 pulse encoder interface module provides closed-loop speed feedback from the motor shaft encoder to the RDCU-02C, enabling precise torque control that depends on accurate and stable switching from the ZINT-592. Any instability in the power board’s gate drive output will introduce speed ripple that is immediately visible in the encoder feedback loop. For applications requiring functional safety, the FSIO-21 safety I/O module implements the STO (Safe Torque Off) function, which disables the ZINT-592 gate drive signals in response to a safety demand without requiring the main contactor to open — a critical feature for machinery safety compliance under IEC 62061 and ISO 13849.

At the network layer, fieldbus connectivity is provided by the FPBA-01 PROFIBUS-DP adapter or the FENA-21 EtherNet/IP and PROFINET adapter, both of which mount in the ACS880 option slot and relay drive status — including ZINT-592 fault conditions — to the plant SCADA system. For multi-drive installations, the ACS880 common DC bus system allows multiple inverter units sharing a single rectifier to each carry their own ZINT-592, enabling independent fault isolation and replacement without shutting down the entire drive group. The ABB CP600 HMI panel provides local operator visibility into drive parameters, completing the system architecture from power board to human interface.

Application in Layered Automation Systems

The ABB ZINT-592 3AUA0000103603 finds application across a broad range of industrial sectors where the ACS880 drive platform is the standard for variable-speed motor control. In steel and metals processing, ACS880 drives equipped with ZINT-592 power boards control rolling mill main drives, coiler tension drives, and cooling table conveyors, where precise torque response and high switching reliability are essential for product quality. In oil and gas upstream and midstream applications, ACS880 drives power ESP (electric submersible pump) systems, compressor trains, and pipeline booster pumps, where unplanned drive downtime translates directly into production loss measured in thousands of dollars per hour.

In water and wastewater treatment facilities, ACS880 drives with ZINT-592 boards control high-power centrifugal pumps and blower motors in continuous 24/7 operation, making the 12-Month Warranty and verified spare parts availability a key procurement criterion for plant maintenance managers. In mining and mineral processing, the ACS880 platform drives conveyor systems, ball mills, and flotation cell agitators in environments characterized by high ambient temperature, dust, and vibration — conditions that accelerate thermal cycling fatigue on power electronics components and make proactive ZINT-592 spare stocking a standard maintenance practice. In packaging and material handling automation, ACS880 drives provide the dynamic speed control required for servo-like positioning on high-speed lines, where the switching precision of the ZINT-592 directly influences positioning repeatability and throughput.

Architecture Engineering FAQ

Q1: Is the ZINT-592 3AUA0000103603 compatible with all ACS880 frame sizes, and what should I verify before installation?
The ZINT-592 3AUA0000103603 is designed for specific ACS880 frame sizes and DC bus voltage ratings. Before installation, engineers must verify the target drive’s frame size designation, DC bus voltage class, and the firmware revision of the AINT-02C inverter control board. Mismatched firmware between the AINT-02C and the RDCU-02C control unit is the most common cause of commissioning faults following a power board replacement. Always cross-reference the drive’s type designation plate and the ABB ACS880 hardware manual for your specific frame size before ordering.

Q2: How does the 12-Month Warranty apply, and what does it cover for system integrators and maintenance contractors?
The 12-Month Warranty provided by ZYPLC covers the ZINT-592 3AUA0000103603 against manufacturing defects and premature component failure under normal operating conditions as defined by ABB’s ACS880 installation and environmental specifications. The warranty applies from the date of dispatch and covers functional replacement or refund. It does not cover damage resulting from incorrect installation, operation outside rated parameters, or failure to follow ABB’s recommended commissioning procedures. System integrators and maintenance contractors are encouraged to contact ZYPLC at [email protected] prior to installation to confirm compatibility and register the warranty.

Q3: What is the recommended approach for long-term spare parts management of the ZINT-592 in a multi-drive ACS880 installation?
For installations with three or more ACS880 drives sharing the same ZINT-592 variant, the recommended practice is to maintain at least one verified spare board on-site, stored in anti-static packaging in a climate-controlled environment within the rated storage temperature range. Spare boards should be sourced from a supplier with documented traceability and functional test records — not from unverified secondary market channels — to ensure that the replacement board will perform identically to the original. ZYPLC maintains stock of the ZINT-592 3AUA0000103603 with full test documentation and can support scheduled maintenance programs with advance procurement agreements. Contact +86 19859288691 or [email protected] to discuss volume pricing and reserved stock arrangements.
