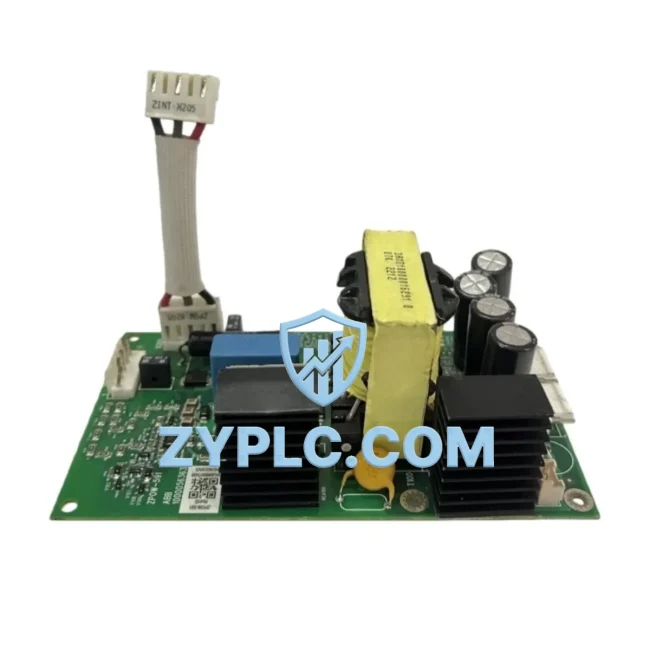

The ABB ZPOW-591 is a dedicated power supply board engineered for deployment within the ACS800 series variable frequency drive platform — one of ABB’s most widely adopted industrial drive architectures across global manufacturing, energy, and process automation sectors. Rather than functioning as a standalone component, the ZPOW-591 occupies a foundational role within the ACS800 control hierarchy, providing regulated DC power to the drive’s internal control electronics, gate driver circuits, and communication interface modules. Its correct operation is a prerequisite for the stability of every upstream and downstream function within the drive system.

In a fully integrated ACS800 control architecture, the power supply board interfaces directly with the main control board (such as the RMIO-11C or RMIO-02C), the gate driver board (RINT series), and the I/O extension modules (RAIO, RDIO) that handle analog and digital signal conditioning. The ZPOW-591 ensures that each of these subsystems receives clean, stable power within the voltage tolerances required for reliable signal processing and switching accuracy. Any degradation in the power supply layer propagates immediately into control instability, false fault trips, and communication errors — making the ZPOW-591 a critical node in the system’s reliability chain.

From a system architecture perspective, the ACS800 platform is structured across multiple functional layers: the power conversion layer (rectifier, DC bus, inverter), the control layer (RMIO main board, ZPOW power supply), the I/O layer (RAIO analog I/O, RDIO digital I/O, RTAC pulse encoder interface), the communication layer (RCAN DeviceNet adapter, RDNA PROFIBUS-DP adapter, RETA-01 Ethernet adapter), and the human-machine interface layer (CDP312R control panel or remote panel extensions). The ZPOW-591 underpins the control and I/O layers simultaneously, making it a cross-layer dependency component whose health directly determines the operational readiness of the entire drive unit.

When engineering teams plan ACS800 system expansions or redundancy upgrades, maintaining a verified spare ZPOW-591 in inventory is standard practice. Drive systems operating in continuous-process environments — such as petrochemical pump stations, municipal water treatment facilities, mining conveyor systems, or steel mill rolling lines — cannot tolerate unplanned downtime caused by power supply board failures. The ZPOW-591’s role in these environments is not merely functional but strategic: its availability in the maintenance inventory directly determines the mean time to repair (MTTR) for the entire drive unit.

Architecture Specification Table

Coordinated Control System Design

The ZPOW-591 does not operate in isolation — its value is realized only within the context of a fully coordinated ACS800 drive system. In a typical ACS800 cabinet configuration, the ZPOW-591 works in concert with the RMIO-11C main control board, which handles speed reference processing, PID control loops, and fieldbus communication arbitration. The RINT-5311C gate driver board relies on the ZPOW-591’s output to maintain precise IGBT switching timing, directly affecting motor torque linearity and harmonic distortion levels.

On the I/O layer, the RAIO-01 analog I/O extension module and RDIO-01 digital I/O extension module draw their operating power through the control bus, making the ZPOW-591’s output stability a direct determinant of signal accuracy across 4–20 mA analog loops and 24 VDC digital input channels. In applications where the ACS800 is integrated with a RTAC-01 pulse encoder interface for closed-loop speed control, any ripple or dropout in the power supply layer introduces encoder signal jitter that manifests as speed regulation errors at the motor shaft.

For systems using RDNA-01 PROFIBUS-DP communication adapters or RETA-01 Ethernet/IP adapters, the ZPOW-591 provides the stable operating voltage required for continuous fieldbus communication with upstream PLCs, DCS controllers, or SCADA systems. In multi-drive architectures where several ACS800 units are networked via PROFIBUS or Modbus RTU, a power supply failure in a single drive can cascade into communication bus errors affecting the entire drive network — underscoring the importance of maintaining verified ZPOW-591 spares across the installation.

The CDP312R control panel and its remote mounting extensions also depend on the ZPOW-591’s output for panel power and parameter display functions. In commissioning scenarios, engineers rely on the CDP312R for drive parameterization, fault history review, and real-time monitoring — all of which become unavailable if the power supply board is compromised. Maintaining a ZPOW-591 spare ensures that commissioning and troubleshooting workflows are never blocked by a component-level failure.

Application in Layered Automation Systems

The ZPOW-591 finds application across a broad spectrum of industrial automation environments where the ACS800 platform is the preferred drive solution. In manufacturing and packaging lines, ACS800 drives control conveyor motors, winding machines, and servo-coordinated axes — environments where power supply board reliability directly determines production throughput and product quality consistency.

In power generation and electrical utility applications, ACS800 drives are deployed for fan and pump control in thermal power plants, hydroelectric auxiliary systems, and substation cooling infrastructure. These installations operate continuously, often without scheduled maintenance windows, making the availability of verified ZPOW-591 spares essential for rapid fault recovery.

In petrochemical and oil & gas facilities, ACS800 drives manage compressor motors, pipeline pump stations, and process agitators in hazardous area installations. The ZPOW-591’s role in maintaining control board stability is critical in these environments, where drive faults can trigger process shutdowns with significant safety and economic consequences.

In water and wastewater treatment plants, ACS800 drives control submersible pump motors, aeration blowers, and sludge handling equipment. Municipal operators increasingly maintain drive-level spare parts inventories — including ZPOW-591 boards — to meet regulatory uptime requirements and avoid service disruptions to public water supply systems.

In mining and metallurgical applications, ACS800 drives power belt conveyor systems, ball mill drives, and hoisting equipment. The harsh operating environments — characterized by dust, vibration, and wide temperature swings — place elevated stress on internal drive components, making proactive ZPOW-591 inventory management a standard element of mine maintenance planning.

Architecture Engineering FAQ

Q1: Is the ZPOW-591 compatible with all ACS800 frame sizes and variants?
The ZPOW-591 is designed for use within the ACS800 series drive platform. Compatibility depends on the specific ACS800 frame size and hardware revision. Before installation, engineers should verify the drive’s hardware revision code and cross-reference with ABB’s ACS800 spare parts documentation to confirm ZPOW-591 compatibility with the target unit. Our technical team can assist with compatibility verification prior to order confirmation.

Q2: What installation and commissioning steps are required when replacing the ZPOW-591 in an operational ACS800 system?
Replacement of the ZPOW-591 requires full de-energization of the ACS800 drive and discharge of the DC bus capacitors before any internal access. Following installation, the drive should be powered up in a controlled sequence with all I/O connections verified before resuming motor control. Parameter settings stored in the RMIO control board are retained during power supply board replacement, but a full functional test — including analog I/O calibration, digital input verification, and fieldbus communication confirmation — is recommended before returning the drive to production service.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. For maintenance engineers managing multi-drive ACS800 installations, this warranty provides a defined coverage window that can be aligned with annual maintenance cycles and spare parts budget planning. Warranty claims are processed through our technical support team, with replacement units dispatched to minimize system downtime. The warranty applies to the ZPOW-591 as supplied and does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s specified environmental parameters.
