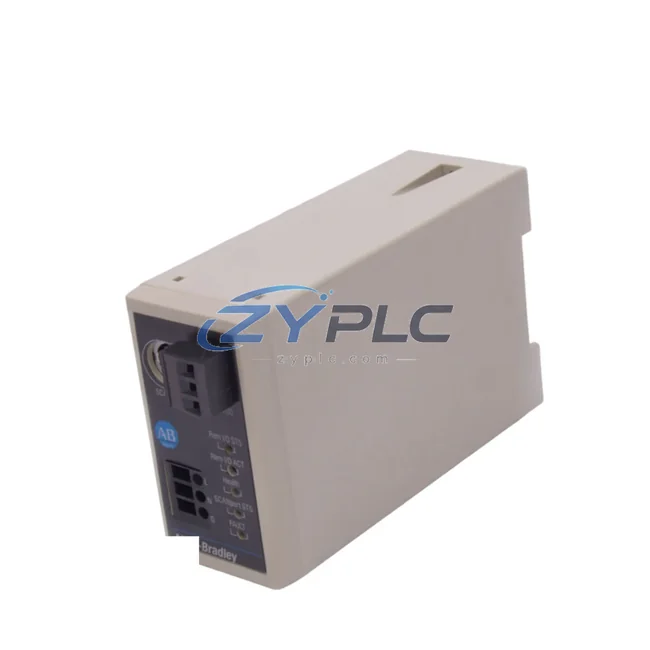

Allen-Bradley 1203-GU6 Industrial Network Interface for SCANport Systems

Allen-Bradley 1203-GU6 Industrial Network Interface: Bridging DeviceNet and SCANport for Smart Factory Data Links

The Allen-Bradley 1203-GU6 is a purpose-built DeviceNet-to-SCANport communication adapter designed to integrate variable frequency drives, soft starters, and SCANport-enabled devices into DeviceNet industrial networks. In modern smart factory environments where real-time data visibility, protocol interoperability, and network stability are non-negotiable, the 1203-GU6 serves as a critical bridge between field-level devices and upper-level control and monitoring systems.

As industrial sites evolve toward fully connected automation architectures, the ability to pass drive parameters, fault diagnostics, speed references, and status feedback across a unified DeviceNet backbone becomes essential. The 1203-GU6 enables exactly this — connecting PowerFlex and 1336 series drives directly into the DeviceNet segment managed by a ControlLogix or CompactLogix PLC, allowing the controller to read and write drive parameters in real time without additional wiring or proprietary communication cards.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 1203-GU6 sits at the intersection of the drive layer and the DeviceNet control network. Consider a production line where a PowerFlex 700 variable frequency drive controls a conveyor motor. Without a network adapter, the drive operates in isolation — speed references are set manually, and fault data is only visible locally. With the 1203-GU6 installed in the drive’s SCANport slot, the drive becomes a fully addressable DeviceNet node.

The 1756-DNB DeviceNet Scanner module, seated in a ControlLogix chassis, polls the 1203-GU6 at configurable intervals — typically every 10 ms — exchanging I/O data that includes output frequency, output current, drive status word, and fault codes. This data flows upstream through the ControlLogix backplane to the 1756-L73 Logix5573 processor, where ladder logic or function block programs act on real-time drive conditions.

Simultaneously, a PanelView Plus 7 HMI terminal connected via EtherNet/IP to the same ControlLogix system displays live drive parameters — speed, torque, fault history — giving operators immediate visibility without leaving the control room. When a drive fault occurs, the 1203-GU6 propagates the fault code across the DeviceNet segment within milliseconds, triggering alarm routines in the PLC and pushing notifications to the FactoryTalk View SE SCADA server.

For multi-drive applications, the 1203-GU6 can be deployed across multiple 1336 PLUS II drives on the same DeviceNet trunk, each assigned a unique node address. A 1769-SDN CompactLogix DeviceNet Scanner manages the network scan list, ensuring deterministic data exchange across all nodes. Remote I/O modules such as the 1734 POINT I/O can share the same DeviceNet segment, consolidating field device data — from proximity sensors, pressure transmitters, and temperature inputs — into a single network managed by the controller.

At the edge, an industrial edge gateway running FactoryTalk Edge or a third-party OPC-UA server can subscribe to drive tags published by the ControlLogix system, forwarding production KPIs — throughput, energy consumption, fault frequency — to cloud-based MES or ERP platforms. This end-to-end data chain, anchored by the 1203-GU6 at the drive level, transforms isolated equipment into transparent, remotely manageable production assets.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation. Drives, soft starters, and motor control centers often use proprietary interfaces — SCANport, DPI, or RS-485 — that cannot communicate natively with modern fieldbus or Ethernet-based control networks. The result is data isolation: critical drive parameters remain trapped at the device level, invisible to SCADA systems, maintenance teams, and production managers.

The Allen-Bradley 1203-GU6 directly resolves this by translating SCANport device data into standard DeviceNet messaging, making drive information available to any DeviceNet-capable controller or scanner on the network. This eliminates the need for manual parameter readout, reduces unplanned downtime caused by undetected drive faults, and enables predictive maintenance strategies based on real-time current and frequency trending.

For sites undergoing digital transformation, the 1203-GU6 provides a cost-effective path to network integration without replacing existing drive hardware. A 1336 FORCE drive installed a decade ago can be brought into a modern DeviceNet architecture simply by adding the 1203-GU6 adapter — preserving capital investment while gaining full network visibility.

Production line transparency improves significantly when drive data is accessible in real time. Operators can monitor load conditions, identify energy inefficiencies, and respond to fault conditions before they escalate into production stoppages. Remote diagnostics become possible: maintenance engineers can interrogate drive parameters from a central SCADA workstation or even a mobile HMI, reducing the need for physical site visits and accelerating fault resolution.

System expansion is equally straightforward. As production capacity grows, additional DeviceNet nodes — whether drives, I/O modules, or smart sensors — can be added to the network without architectural changes. The 1203-GU6’s support for multiple I/O connection types (polled, COS, cyclic) ensures that new devices integrate cleanly into the existing scan list without disrupting established communication cycles.

Every 1203-GU6 unit shipped from our inventory undergoes functional testing prior to dispatch. We maintain ready stock to support urgent project timelines, with export shipping options available and a warranty terms confirmed during quotation covering all units. Our technical team is available to assist with node addressing, scanner configuration, and RSNetWorx for DeviceNet setup.

Industrial Connectivity FAQ

Q1: What is the typical communication latency of the 1203-GU6 on a DeviceNet network?
The 1203-GU6 supports polled I/O with configurable Requested Packet Intervals (RPI). At 500 kbps network speed, polled I/O cycles can be configured as low as 5–10 ms, providing near-real-time drive data exchange suitable for closed-loop control and fast fault detection in SCADA and PLC environments.

Q2: Is the 1203-GU6 compatible with all SCANport-enabled Allen-Bradley drives?
Yes. The 1203-GU6 is compatible with all Allen-Bradley drives featuring a SCANport interface, including the 1336 PLUS, 1336 PLUS II, 1336 IMPACT, 1336 FORCE, 1336 REGEN, PowerFlex 70, and PowerFlex 700 series. It occupies one SCANport adapter slot and does not require external power, drawing supply directly from the drive’s SCANport connector.

Q3: Can the 1203-GU6 coexist with other DeviceNet devices on the same network segment?
Absolutely. The 1203-GU6 is a standard DeviceNet slave device and can share a DeviceNet trunk with other nodes including 1734 POINT I/O, 1769-SDN scanners, photoelectric sensors, smart actuators, and other communication adapters. Network stability is maintained through proper termination resistors at both ends of the trunk and correct node address assignment via the onboard rotary switches.

Q4: What warranty and testing standards apply to units shipped from your inventory?
All 1203-GU6 units are tested for communication functionality and SCANport interface integrity before shipment. Each unit carries a warranty terms confirmed during quotation from the date of purchase. In the event of a warranty claim, our team provides rapid replacement or repair support to minimize production impact. Units are shipped with appropriate ESD protection and packaging to ensure safe transit.
