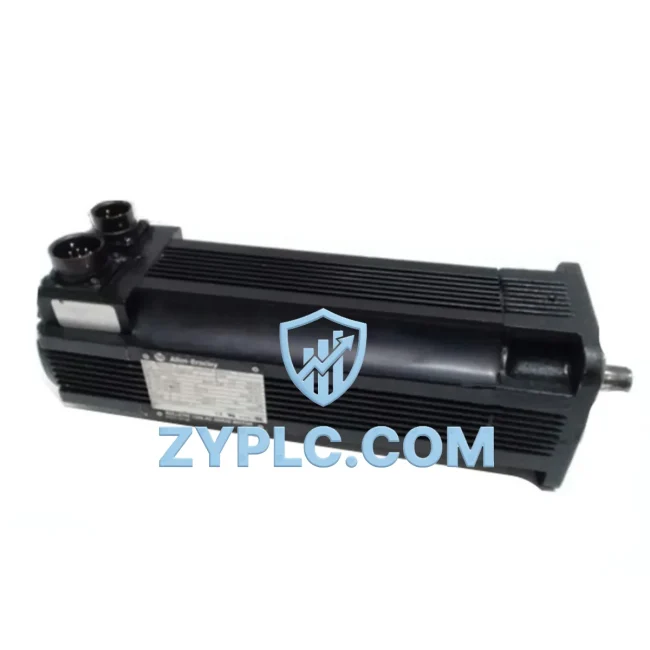

Allen-Bradley 1326AB-B430E-21 System-Ready Servo Motor for 1326AB Architecture

Allen-Bradley 1326AB-B430E-21 System-Ready Servo Motor: Control System Architecture and Coordinated Drive Integration

The Allen-Bradley 1326AB-B430E-21 is a high-performance AC servo motor engineered for seamless integration within Rockwell Automation’s layered industrial control architectures. Rather than functioning as a standalone component, this motor is designed to operate as a precision execution element within a coordinated system that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and the execution layer itself. Its role in maintaining system consistency, expanding motion control capability, supporting redundant design strategies, and reducing long-term maintenance overhead makes it a critical asset in demanding automation environments.

Within a complete control system, the 1326AB-B430E-21 connects directly to compatible Kinetix servo drives — such as the Kinetix 6000 or Kinetix 6500 — which serve as the power and feedback interface between the motion controller and the motor shaft. The drive receives velocity and torque commands from a motion controller such as the 1756-M02AE or 1756-M08SE SERCOS interface module, which itself resides in a 1756 ControlLogix chassis. This architecture ensures deterministic motion execution with closed-loop feedback, enabling precise positioning, speed regulation, and torque control across multi-axis systems.

Signal integrity and system synchronization are maintained through the SERCOS fiber-optic ring or Ethernet/IP network, depending on the drive generation selected. The 1326AB-B430E-21 supports high-resolution encoder feedback, which is routed back through the drive to the motion module, allowing the ControlLogix CPU — such as the 1756-L71 or 1756-L83E — to monitor real-time axis status, fault conditions, and position data. This closed-loop architecture eliminates positional drift and supports coordinated multi-axis cam and gearing profiles essential in packaging, printing, and assembly lines.

From a power layer perspective, the 1326AB-B430E-21 relies on a properly sized DC bus supplied by the Kinetix drive’s power rail. In multi-axis configurations, a shared DC bus architecture using a Kinetix 6000 IAM (Integrated Axis Module) and AM (Axis Module) combination allows regenerative energy sharing between axes, reducing overall energy consumption and heat generation within the control cabinet. Proper cabinet design, including 1492 terminal blocks for signal wiring and 1606 power supplies for 24VDC logic circuits, ensures electrical isolation and signal cleanliness throughout the system.

At the human-machine interface layer, operators interact with the motion system through PanelView Plus terminals connected via Ethernet/IP to the ControlLogix backplane. Alarm management, axis diagnostics, and production counters are displayed in real time, enabling rapid fault identification and minimizing unplanned downtime. The 1326AB-B430E-21’s integration into this HMI-visible architecture means that motor faults, encoder errors, and thermal warnings are surfaced immediately to the operator, supporting proactive maintenance strategies.

For system architects concerned with long-term maintainability, the 1326AB-B430E-21 is part of a well-documented 1326AB motor series with consistent mechanical and electrical interfaces. This standardization allows engineering teams to maintain a lean spare parts inventory while covering multiple machine variants. Combined with our 12-Month Warranty and Contextual Integration support, procurement teams can confidently source this motor knowing that system compatibility, documentation, and after-sales technical assistance are fully covered.

Architecture Specification Table

Coordinated Control System Design

The 1326AB-B430E-21 achieves its full performance potential when deployed within a coordinated Rockwell Automation control architecture. In a typical multi-axis machine, the system begins at the controller level with a 1756-L71 ControlLogix CPU managing program execution and motion coordination. The CPU communicates with a 1756-M08SE SERCOS Interface Module over the local backplane, which in turn drives up to eight servo axes over a fiber-optic SERCOS ring.

Each axis on the ring connects to a Kinetix 6000 Axis Module (AM), which receives the 1326AB-B430E-21 motor’s power and feedback cables. The shared DC bus is energized by a Kinetix 6000 Integrated Axis Module (IAM), which also handles regenerative braking energy. For applications requiring safety-rated motion, a 1756-L73S GuardLogix Safety Controller can be integrated into the same chassis, providing SIL 2 / PLd safe torque-off functionality without additional external safety relays.

At the I/O layer, 1756-IB16 digital input modules and 1756-OB16E digital output modules handle proximity sensors, limit switches, and actuator signals that coordinate with the servo motion profile. Analog feedback from process sensors is handled by 1756-IF8 analog input modules, enabling closed-loop process control that integrates motion and process variables within a single ControlLogix program.

Cabinet wiring is organized through 1492-CABLE series pre-wired cables and 1492 terminal blocks, reducing wiring errors and simplifying commissioning. Logic power is supplied by a 1606-XLP power supply, ensuring stable 24VDC across all I/O and communication modules. This complete architecture — from CPU to terminal block — ensures that the 1326AB-B430E-21 operates within a fully validated, well-documented system environment.

Application in Layered Automation Systems

The 1326AB-B430E-21 servo motor is deployed across a wide range of industrial sectors where precise motion control, system reliability, and long-term maintainability are non-negotiable requirements.

Manufacturing and Assembly Lines: In automotive body assembly and electronics manufacturing, the motor drives precision pick-and-place axes, rotary indexing tables, and servo-controlled press units. Its high torque density and encoder resolution support sub-millimeter repeatability across thousands of daily cycles.

Packaging and Printing: In form-fill-seal machines and rotary printing presses, the 1326AB-B430E-21 is used in registration control, web tension management, and cut-to-length applications. Coordinated multi-axis cam profiles executed by the ControlLogix motion controller ensure product registration accuracy at high throughput speeds.

Power Generation and Utilities: In power plant auxiliary systems and water treatment facilities, servo-controlled valve actuators and pump drives benefit from the motor’s robust construction and compatibility with safety-rated control architectures. The 12-Month Warranty provides procurement assurance for critical infrastructure projects.

Mining and Metallurgy: In ore processing conveyors, rolling mill drives, and smelting equipment, the motor’s industrial-grade insulation and sealed bearing design support operation in high-vibration, high-temperature, and particulate-laden environments.

Petrochemical and Process Control: In blending, batching, and reactor control systems, the 1326AB-B430E-21 provides the precise rotational control required for metering pumps, agitator drives, and control valve actuators, integrated within a DCS-compatible ControlLogix architecture via EtherNet/IP.

Architecture Engineering FAQ

Q1: Is the 1326AB-B430E-21 compatible with current-generation Kinetix 5700 drives?
The 1326AB-B430E-21 is natively designed for the Kinetix 6000 and Kinetix 6500 drive families, which use the 1326AB motor series’ standard feedback and power connectors. Compatibility with Kinetix 5700 requires verification of the feedback interface and connector pinout, as the 5700 platform uses a different motor feedback specification. Our technical team can assist with cross-reference validation prior to system commissioning to ensure full Contextual Integration within your target architecture.

Q2: How does the 12-Month Warranty apply in a multi-vendor control cabinet?
The 12-Month Warranty covers the 1326AB-B430E-21 motor unit against manufacturing defects and premature failure under normal operating conditions, regardless of the surrounding system components. Warranty claims are processed based on the motor’s individual serial number and purchase date. For system-level integration issues arising from drive configuration, parameter mismatch, or wiring errors, our engineering support team provides pre-sales and post-sales technical consultation to minimize commissioning risk.

Q3: What is the recommended maintenance interval for the 1326AB-B430E-21 in continuous-duty applications?
For continuous-duty applications running two or three shifts, Rockwell Automation recommends periodic inspection of motor bearings, encoder connectors, and power cable terminations at 6-month intervals. Bearing replacement intervals depend on load profile, ambient temperature, and lubrication type. The motor’s integration with the ControlLogix diagnostics layer allows predictive maintenance triggers — such as motor thermal warnings and encoder fault counters — to be surfaced through the HMI or sent via EtherNet/IP to a SCADA or MES system, enabling condition-based maintenance scheduling rather than fixed-interval replacement.
