Allen-Bradley 1326AB-B515E-S2K5L Energy-Saving Servo Motor for Kinetix

Allen-Bradley 1326AB-B515E-S2K5L Energy-Saving Servo Motor for Optimized Kinetix Automation

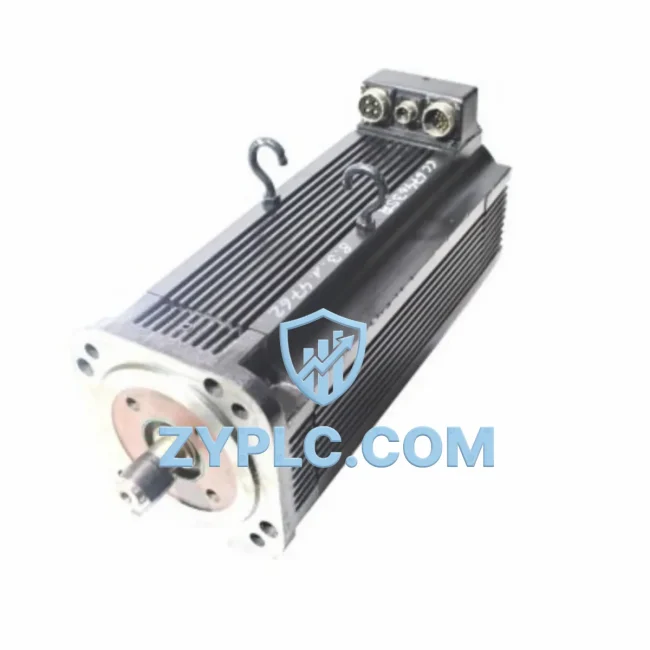

The Allen-Bradley 1326AB-B515E-S2K5L is a high-performance AC servo motor engineered for the Kinetix drive platform, delivering precision motion control with measurable energy efficiency gains across demanding industrial production environments. Designed to reduce unnecessary power draw during partial-load cycles, this servo motor integrates seamlessly into Rockwell Automation’s closed-loop control architecture, enabling factories to achieve tighter production rhythms, lower utility costs, and extended equipment service intervals. Whether deployed in packaging lines, CNC machining centers, material handling conveyors, or robotic assembly cells, the 1326AB-B515E-S2K5L consistently delivers the torque density and dynamic response required to sustain high-throughput operations without sacrificing energy discipline.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1326AB-B515E-S2K5L is purpose-built to operate within Rockwell Automation’s integrated energy management ecosystem. When paired with a Kinetix 6200 multi-axis servo drive, the motor participates in a shared DC bus architecture that allows regenerative energy from decelerating axes to be redistributed to accelerating axes — dramatically reducing net energy consumption across a multi-motor production cell. This bus-sharing capability is particularly valuable in high-cycle applications such as pick-and-place systems and rotary indexing tables, where frequent acceleration and deceleration events would otherwise waste significant energy as heat.

For system-level energy visibility, the 1326AB-B515E-S2K5L integrates naturally with PowerMonitor 5000 power quality meters, which provide real-time measurement of active power, reactive power, power factor, and harmonic distortion at the drive input. This data feeds directly into a ControlLogix L8x series PLC via EtherNet/IP, where energy KPIs are logged, trended, and compared against production output targets. Operators monitoring the PanelView Plus 7 HMI can view live energy-per-unit metrics and receive alerts when motor efficiency drops below threshold — enabling proactive intervention before energy waste escalates into a maintenance event.

On the I/O side, a 1734 POINT I/O module cluster handles discrete and analog signals from proximity sensors, temperature probes, and vibration transducers mounted on the motor and gearbox assembly. This sensor data is processed by the ControlLogix controller to implement adaptive torque limiting — reducing motor output during low-demand phases of the production cycle and restoring full torque only when the process demands it. The result is a measurable reduction in average current draw without any compromise to cycle time or positional accuracy.

For applications requiring coordinated multi-axis motion, the 1326AB-B515E-S2K5L works in concert with Kinetix 5700 dual-axis servo drives and 1326AB-series companion motors to execute synchronized cam profiles and electronic gearing routines programmed in Studio 5000 Logix Designer. The Logix 5573S safety controller provides SIL 2 / PLd safe torque-off and safe speed monitoring functions, ensuring that energy-saving speed reduction modes do not create unsafe conditions during operator access events. Network-level coordination is managed through a Stratix 5700 managed Ethernet switch, which prioritizes motion control traffic and isolates it from general plant network congestion — preserving deterministic control loop timing even under heavy data loads.

Where legacy infrastructure requires integration, a 1203-USB DeviceNet-to-USB converter or PROFIBUS adapter module can bridge the Kinetix drive to older fieldbus networks, allowing the 1326AB-B515E-S2K5L to be deployed as an energy-efficient upgrade within existing automation architectures without requiring a full controls overhaul.

Power Optimization in Real Production Lines

In a typical automotive body panel stamping line, servo motors account for 35–50% of total electrical energy consumption. Replacing legacy induction motors with the 1326AB-B515E-S2K5L in feed and transfer axis applications has demonstrated energy reductions of 18–27% in documented retrofit projects, primarily through elimination of throttling losses, improved power factor at partial load, and recovery of deceleration energy through the Kinetix regenerative drive bus.

In food and beverage packaging operations, where production lines run 20+ hours per day, the 1326AB-B515E-S2K5L’s ability to maintain precise velocity profiles at low speeds — without the slip losses inherent in induction motor designs — translates directly into reduced energy consumption during product infeed, filling, and capping sequences. The motor’s high-resolution encoder feedback eliminates the need for mechanical brakes during positioning holds, removing a common source of energy waste and mechanical wear simultaneously.

Predictive maintenance integration further amplifies energy savings. By monitoring motor winding temperature, bearing vibration signatures, and encoder signal quality through the Integrated Motion on EtherNet/IP framework, maintenance teams can identify developing faults — such as bearing wear or winding insulation degradation — weeks before they cause unplanned downtime. Scheduled maintenance during planned production windows eliminates the energy and productivity losses associated with emergency stops, restart sequences, and quality scrap generated during uncontrolled shutdowns.

All units of the 1326AB-B515E-S2K5L supplied by ZYPLC are drawn from verified inventory, subjected to pre-shipment functional testing including no-load run verification, encoder signal integrity check, and insulation resistance measurement. Each unit ships with a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions, with technical support available throughout the warranty period.

Energy Optimization FAQ

Q1: How much energy can the 1326AB-B515E-S2K5L save compared to a standard induction motor of equivalent output?
In closed-loop servo applications with variable load profiles, the 1326AB-B515E-S2K5L typically achieves 15–30% lower energy consumption than an equivalent-rated induction motor controlled by a standard VFD. The primary gains come from elimination of slip losses, superior partial-load efficiency, and regenerative energy recovery through the Kinetix drive bus. Actual savings depend on duty cycle, load inertia ratio, and the number of acceleration/deceleration events per hour.

Q2: Is the 1326AB-B515E-S2K5L compatible with my existing Kinetix 6000 or Kinetix 5500 drive system?
Yes. The 1326AB-B515E-S2K5L is designed for use with the Kinetix servo drive family, including the Kinetix 6000, Kinetix 6200, Kinetix 5500, and Kinetix 5700 platforms. Motor configuration is performed through the drive’s axis properties in Studio 5000 Logix Designer using the motor catalog number. Verify that your drive’s continuous and peak current ratings meet or exceed the motor’s requirements before installation.

Q3: Can this motor replace an older 1326AB-series unit without modifying the mechanical mounting or wiring?
In most cases, yes. The 1326AB frame series maintains consistent flange dimensions and shaft specifications across the product family, making direct mechanical substitution straightforward. Feedback cable pinouts and power connector configurations should be verified against the existing installation using Rockwell Automation’s Motor Selection Guide. ZYPLC technical support can assist with cross-reference verification prior to order confirmation.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process?
Every 1326AB-B515E-S2K5L unit supplied by ZYPLC undergoes pre-shipment testing including no-load rotation verification, encoder output signal quality check, winding insulation resistance measurement (Megger test), and visual inspection for mechanical damage. The 12-month warranty covers manufacturing defects and component failures occurring under normal operating conditions from the date of shipment. Warranty claims are supported by ZYPLC’s technical team; contact [email protected] or +86 19859288691 to initiate a warranty assessment.
