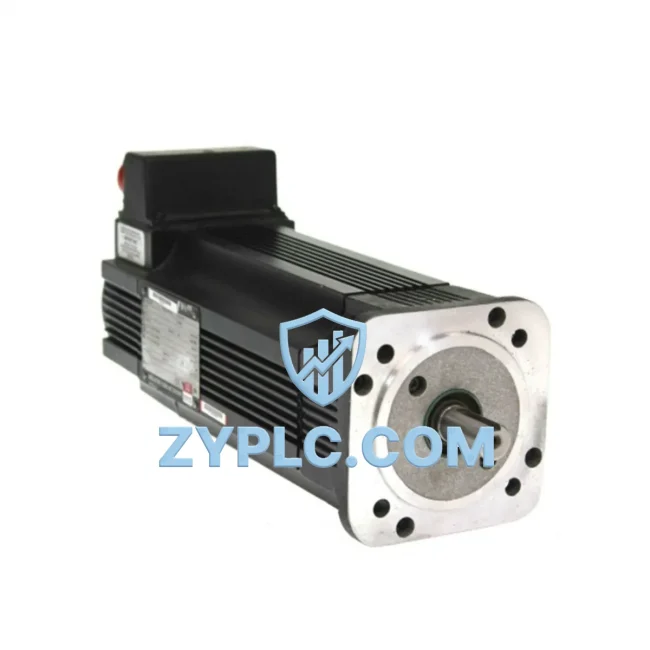

Allen-Bradley 1326AB-B720E-S2L System-Ready Servo Motor for 1326AB Architecture

Allen-Bradley 1326AB-B720E-S2L System-Ready Servo Motor for 1326AB Architecture: Control System Architecture and Upstream-Downstream Coordination

The Allen-Bradley 1326AB-B720E-S2L is a precision AC servo motor engineered for seamless integration within the Rockwell Automation 1326AB series motion control architecture. Rather than functioning as a standalone drive component, this servo motor is designed to operate as a coordinated element within a layered automation system — interfacing directly with servo drives, motion controllers, I/O modules, communication gateways, and human-machine interfaces to deliver consistent, high-performance motion across demanding industrial environments.

In modern industrial control architectures, the servo motor occupies a critical position at the execution layer. The 1326AB-B720E-S2L receives velocity and torque commands from upstream motion controllers such as the Allen-Bradley 1756-M02AE or 1756-M08SE ControlLogix motion modules, which coordinate axis profiles and interpolation sequences. These motion modules reside on the ControlLogix backplane alongside 1756-L7x or 1756-L8x series Logix 5000 CPUs, which manage the overall program logic, sequencing, and safety interlocks. The servo motor’s feedback signals — encoder position, velocity, and fault status — are returned upstream through the servo drive to the motion controller, closing the control loop and enabling real-time trajectory correction.

At the drive layer, the 1326AB-B720E-S2L is paired with compatible Allen-Bradley 1391-DES or 1394 GMC servo drive systems, which condition power delivery, manage current regulation, and translate digital motion commands into precise analog or PWM outputs to the motor windings. The drive system also handles regenerative braking energy, protecting both the motor and the upstream power supply infrastructure. Proper coordination between the servo drive and the 1326AB-B720E-S2L ensures smooth acceleration and deceleration profiles, minimizing mechanical stress on connected gearboxes, couplings, and load mechanisms.

At the network and communication layer, EtherNet/IP or ControlNet protocols link the motion controller to the broader automation network, enabling synchronized multi-axis coordination and real-time data exchange with supervisory SCADA systems. The 1756-EN2T or 1756-CN2 communication modules installed in the ControlLogix chassis facilitate this connectivity, ensuring that the 1326AB-B720E-S2L’s operational status, fault codes, and performance metrics are visible at the HMI and historian levels. This transparency supports predictive maintenance strategies and reduces unplanned downtime.

The power layer supplying the 1326AB-B720E-S2L system typically includes Allen-Bradley 1606-XLP or 1606-XLS series power supplies for control circuit voltage, alongside dedicated servo bus power conditioning equipment. Proper power architecture — including line reactors, EMI filters, and surge protection — is essential to maintaining motor winding insulation integrity and encoder signal quality over extended operational cycles.

At the human-machine interface layer, PanelView Plus 7 or PanelView 800 terminals connected via EtherNet/IP provide operators with real-time axis position feedback, drive fault diagnostics, and motion program status. These HMI panels display the 1326AB-B720E-S2L’s operational parameters — including torque utilization, thermal status, and encoder health — enabling operators to make informed decisions during commissioning, production, and maintenance activities.

The 1326AB-B720E-S2L is particularly well-suited for applications requiring high dynamic response, precise positioning repeatability, and sustained torque output under variable load conditions. Its robust construction supports continuous duty cycles in environments characterized by vibration, thermal cycling, and exposure to industrial contaminants, making it a reliable choice for long-term deployment in critical automation infrastructure.

Architecture Specification Table

Coordinated Control System Design

Deploying the 1326AB-B720E-S2L within a complete Rockwell Automation control architecture requires careful selection and coordination of upstream and downstream components. At the controller level, a 1756-L73 or 1756-L83E ControlLogix CPU manages the Logix 5000 motion program, executing coordinated motion instructions (MCLM, MCCM, MAM) that govern the servo axis associated with this motor. The CPU communicates with the 1756-M08SE motion module over the ControlLogix backplane, which in turn interfaces with the 1391-DES servo drive via a dedicated drive interface cable.

For I/O coordination, 1756-IB16 digital input modules and 1756-OB16 digital output modules handle discrete signals such as home switch inputs, overtravel limit switches, and brake control outputs. Analog I/O modules such as the 1756-IF8 may be used for torque reference or external feedback signals in applications requiring analog command interfaces. Terminal blocks and 1492-CABLE series wiring systems provide organized, maintainable signal routing between the servo drive, motor feedback connector, and the I/O chassis.

For multi-axis systems, the 1394 GMC (General Motion Controller) platform provides a shared DC bus architecture that allows multiple 1326AB series servo motors — including the 1326AB-B720E-S2L — to share regenerative energy, reducing overall power consumption and improving system efficiency. This shared bus topology also simplifies cabinet wiring and reduces the number of individual power supply units required.

Network infrastructure for the system typically includes a 1783-US8T Stratix unmanaged switch or a 1783-MS10T managed switch for EtherNet/IP device-level connectivity, linking the ControlLogix controller, HMI, servo drives, and remote I/O nodes into a unified control network. This architecture supports real-time motion synchronization and remote diagnostics without compromising deterministic communication performance.

Application in Layered Automation Systems

The 1326AB-B720E-S2L servo motor finds application across a broad range of industrial sectors where precise motion control, system reliability, and long-term maintainability are paramount.

In manufacturing and assembly automation, this motor drives pick-and-place mechanisms, rotary indexing tables, and linear positioning stages where sub-millimeter repeatability is required. Its high dynamic response enables rapid acceleration and deceleration cycles without sacrificing positional accuracy, supporting high-throughput production lines in automotive, electronics, and consumer goods manufacturing.

In packaging and material handling applications, the 1326AB-B720E-S2L powers servo-driven conveyors, filling heads, labeling stations, and form-fill-seal machines. Its compatibility with the 1394 GMC multi-axis platform allows synchronized motion profiles across multiple axes, ensuring precise product registration and consistent package quality.

In power generation and utilities, servo motors of this class are used in valve actuator systems, turbine governor controls, and generator excitation positioning mechanisms where precise angular control and fault-tolerant operation are critical. The motor’s robust insulation system and IP65 protection rating support deployment in environments with elevated humidity and airborne particulates.

In petrochemical and process industries, the 1326AB-B720E-S2L supports reactor agitator drives, pump speed control systems, and compressor inlet guide vane actuators. Integration with the ControlLogix safety platform — including 1756-L7xS safety CPUs and 1791DS safety I/O modules — enables SIL 2 compliant motion control architectures for hazardous area applications.

In mining and metallurgy, heavy-duty servo applications such as ore crusher feed control, rolling mill positioning, and continuous caster mold oscillation benefit from the motor’s sustained torque capability and thermal resilience. Redundant encoder feedback configurations and drive-level fault detection ensure operational continuity in remote or harsh environments where maintenance access is limited.

Architecture Engineering FAQ

Q1: Is the 1326AB-B720E-S2L compatible with current ControlLogix motion platforms, and what drive interface is required?
The 1326AB-B720E-S2L is designed for use with Allen-Bradley 1391-DES and 1394 GMC series servo drives, which interface with ControlLogix motion modules (1756-M02AE, 1756-M08SE) via the backplane. While this motor predates the Kinetix 5700 and Kinetix 6500 platforms, it remains fully functional within legacy 1394 GMC architectures. For integration into newer ControlLogix systems, consult Rockwell Automation’s migration guide or contact ZYPLC for contextual integration support. Our engineering team can assess your existing architecture and recommend compatible drive and controller configurations.

Q2: What installation and commissioning considerations apply when deploying this motor in a multi-axis servo system?
When installing the 1326AB-B720E-S2L in a multi-axis 1394 GMC system, ensure that the shared DC bus is sized to accommodate the combined peak power demand of all connected axes, including regenerative energy contributions. Encoder cable routing should be separated from power wiring by a minimum of 150mm to prevent signal interference. During commissioning, use RSLogix 5000 or Studio 5000 Logix Designer to configure axis properties, tune velocity and position loops, and verify feedback device resolution. ZYPLC provides pre-shipment functional verification and can supply matched drive-motor parameter files to accelerate on-site commissioning.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance of legacy servo components?
ZYPLC’s 12-Month Warranty covers the 1326AB-B720E-S2L against manufacturing defects, winding failures, encoder malfunctions, and bearing failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides rapid replacement or repair to minimize production downtime. For long-term maintenance, ZYPLC maintains inventory of 1326AB series motors and compatible drive components, enabling fast response to unplanned failures. We also offer contextual integration services — including system audits, spare parts planning, and cross-reference support — to help customers maintain aging Rockwell Automation architectures without costly platform migrations.
