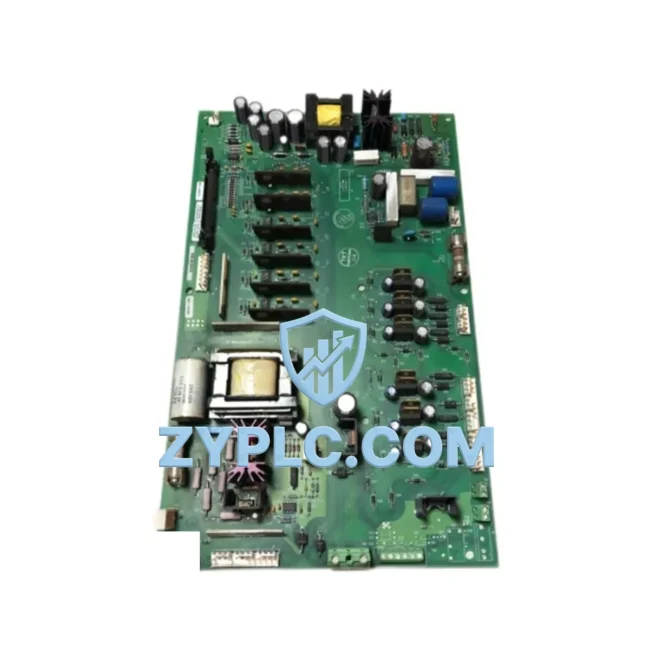

Allen-Bradley 1336-BDB-SP38A System-Ready Gate Driver for 1336 PLUS Architecture

Allen-Bradley 1336-BDB-SP38A System-Ready Gate Driver for 1336 PLUS Architecture

The Allen-Bradley 1336-BDB-SP38A is a precision-engineered gate driver board designed as a core spare component within the 1336 PLUS AC drive platform. In modern industrial automation, the reliability of a variable frequency drive system depends not only on the drive itself but on the integrity of every internal control and power switching layer. The 1336-BDB-SP38A occupies a critical position in this architecture — it governs the IGBT gate switching signals that translate control commands from the drive’s main control board into precise motor output waveforms. When this component performs correctly, the entire drive system maintains stable torque control, smooth acceleration profiles, and consistent motor protection across demanding production environments.

Understanding the 1336-BDB-SP38A requires placing it within the full control system hierarchy of a 1336 PLUS drive installation. At the top of the architecture sits the PLC controller — typically an Allen-Bradley ControlLogix 1756-L75 or CompactLogix 1769-L33ER — issuing speed and torque references via DeviceNet or EtherNet/IP to the drive. The 1336 PLUS drive receives these commands through its communication adapter, such as the 1336-GM1 DeviceNet adapter or the 1336-GM6 EtherNet/IP module, and passes them to the main control board. The main control board then generates PWM switching signals, which are routed directly to the 1336-BDB-SP38A gate driver board. This board amplifies and isolates those signals before delivering them to the IGBT power modules, ensuring that the high-voltage switching events in the power stage are precisely timed and electrically isolated from the low-voltage control circuitry.

The gate driver board’s role in system architecture extends beyond simple signal amplification. It provides the electrical isolation barrier between the control domain and the power domain — a boundary that protects the entire control system from voltage transients, ground loops, and switching noise generated during motor commutation. In installations where the 1336 PLUS drives are mounted in shared control cabinets alongside Allen-Bradley PowerFlex 700 drives or legacy 1336 IMPACT units, maintaining this isolation integrity is essential for system-wide EMC compliance and long-term reliability.

Architecture Specification Table

Coordinated Control System Design

The 1336-BDB-SP38A does not operate in isolation — it is one layer in a carefully coordinated drive and control architecture. In a typical manufacturing line deployment, the system begins with an Allen-Bradley ControlLogix 1756-L75 CPU housed in a 1756-A10 chassis, supported by a 1756-PA75 power supply providing stable 24VDC and 5VDC rails to the backplane. The ControlLogix communicates with the 1336 PLUS drive via a 1756-DNB DeviceNet scanner module, sending speed references and reading back fault status in real time.

Inside the drive enclosure, the 1336 PLUS main control board interprets these commands and generates the PWM pattern delivered to the 1336-BDB-SP38A. The gate driver board then switches the IGBT power modules — typically arranged in a three-phase bridge configuration — to produce the variable-frequency output that controls motor speed and torque. On the motor side, a 1321-3R line reactor is often installed upstream of the drive to reduce harmonic distortion and protect the gate driver circuitry from line-side voltage spikes.

For operator visibility, a PanelView Plus 7 HMI connects to the ControlLogix via EtherNet/IP, displaying drive status, motor current, fault codes, and speed feedback. When a gate driver fault occurs — such as an IGBT desaturation event or an overcurrent trip — the fault code is immediately surfaced on the HMI and logged in the SCADA historian, enabling maintenance teams to identify whether the fault originates in the 1336-BDB-SP38A, the IGBT modules, or the upstream control board. This layered diagnostic capability significantly reduces mean time to repair in high-availability production environments.

In redundant drive architectures, a standby 1336 PLUS drive with a pre-installed 1336-BDB-SP38A is maintained in the control cabinet, ready for hot-swap replacement. The 1336-MOD-C3 bypass module can be configured to transfer motor control to the standby drive within seconds of a primary drive fault, ensuring continuous production without manual intervention. Keeping a verified spare 1336-BDB-SP38A in inventory is therefore a standard practice in facilities operating continuous process lines, where unplanned downtime carries significant financial consequences.

Application in Layered Automation Systems

The 1336-BDB-SP38A finds application across a wide range of industrial sectors where the 1336 PLUS drive platform has been deployed. In petrochemical processing plants, 1336 PLUS drives control compressor motors, pump stations, and agitator drives operating under variable load conditions. The gate driver board’s reliable IGBT switching ensures that motor output remains stable even as process conditions fluctuate, preventing torque ripple that could damage mechanical seals or cause process upsets.

In water and wastewater treatment facilities, 1336 PLUS drives manage large centrifugal pump motors that must ramp smoothly to avoid water hammer in long pipeline systems. The 1336-BDB-SP38A’s precise gate timing ensures that the PWM output remains clean and consistent across the full speed range, from low-speed priming operations to full-flow production. Facilities in this sector typically maintain a spare gate driver board on-site given the critical nature of pump availability.

In mining and mineral processing operations, 1336 PLUS drives are used on conveyor systems, crushers, and mill drives operating in harsh environments with high ambient temperatures and significant electrical noise. The gate driver board’s isolation design provides robust protection against the ground potential differences common in large mining installations. Metallurgical plants operating electric arc furnaces or rolling mills similarly rely on the 1336 PLUS platform for precise motor control, where gate driver integrity directly affects product quality and energy efficiency.

Packaging and material handling lines in food and beverage manufacturing use 1336 PLUS drives on conveyor indexing systems, filling machines, and palletizers. In these applications, the drive must respond quickly to speed change commands from the ControlLogix PLC, and the 1336-BDB-SP38A’s fast gate switching capability supports the dynamic response required for precise product positioning and throughput control.

Architecture Engineering FAQ

Q1: Is the 1336-BDB-SP38A compatible with all 1336 PLUS drive frame sizes?
The 1336-BDB-SP38A is designed for specific frame sizes within the 1336 PLUS series. Compatibility depends on the drive’s horsepower rating and chassis configuration. Always verify the drive’s existing gate driver board part number before ordering a replacement to ensure electrical and mechanical compatibility with the installed IGBT power modules and main control board.

Q2: How does replacing the gate driver board affect system communication and configuration?
The 1336-BDB-SP38A is a hardware-level component that does not store drive parameters or communication settings. Drive configuration data resides on the main control board and the communication adapter (such as the 1336-GM1 or 1336-GM6). Replacing the gate driver board does not require re-programming the drive, but a full functional test — including IGBT firing verification and motor run test — should be performed after installation to confirm correct operation before returning the drive to production service.

Q3: What warranty and support is provided with the 1336-BDB-SP38A?
Every 1336-BDB-SP38A supplied by ZYPLC is covered by a 12-Month Warranty against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional testing to verify gate signal integrity and isolation performance. In-stock units are available for immediate dispatch via DHL or FedEx with full tracking. For technical support, system integration guidance, or volume procurement inquiries, contact our engineering team at [email protected] or +86 19859288691.

—
