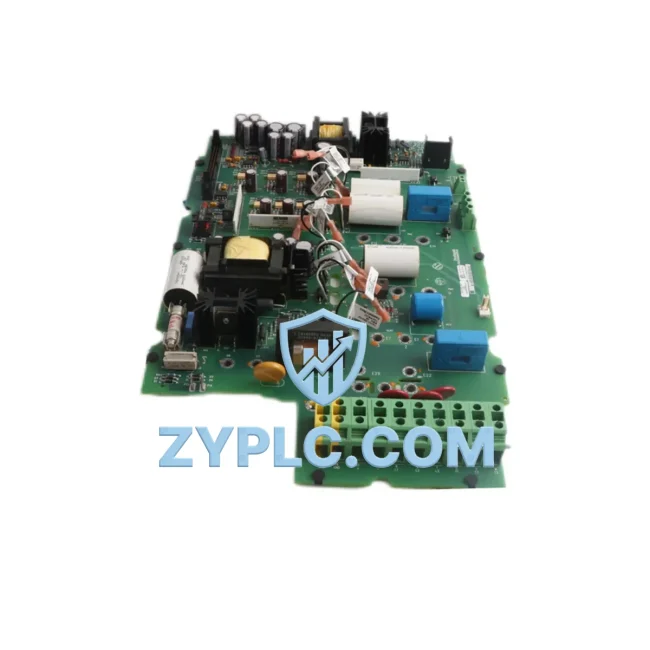

Allen-Bradley 1336-BDB-SP5D System-Ready Base Driver Board for 1336 PLUS Architecture
The Allen-Bradley 1336-BDB-SP5D is a precision-engineered base driver board designed specifically for the 1336 PLUS series of AC variable frequency drives. Within a layered industrial control architecture, this component occupies a critical position at the power conversion and gate drive layer — serving as the interface between the drive’s control intelligence and its IGBT power switching stage. Its role is not merely functional in isolation; rather, it defines the signal integrity, switching accuracy, and fault response behavior of the entire drive system. When integrated into a well-structured automation architecture, the 1336-BDB-SP5D contributes directly to system consistency, long-term reliability, and reduced mean time to repair across multi-drive installations.
Understanding the 1336-BDB-SP5D requires viewing it within the full control hierarchy. At the control layer, a programmable logic controller such as the Allen-Bradley ControlLogix L7x or CompactLogix L3x issues speed and torque references via DeviceNet or hardwired analog signals. These commands are received and processed by the 1336 PLUS main control board, which then generates PWM switching signals passed down to the 1336-BDB-SP5D. The base driver board amplifies and isolates these gate signals before delivering them to the IGBT bridge, ensuring precise, noise-immune switching transitions that protect both the power semiconductors and the connected motor load. This signal chain — from PLC output to motor shaft — depends on the integrity of every layer, and the base driver board is where digital control meets high-voltage power conversion.
Architecture Specification Table
| System Role |
Gate Drive Interface Board — 1336 PLUS AC Drive Power Stage |
| Compatible Platform |
Allen-Bradley 1336 PLUS / 1336 PLUS II AC Drive Series |
| Board Type |
Base Driver / Gate Driver PC Board |
| Key Function |
IGBT gate signal amplification, isolation, and fault feedback |
| Electrical Interface |
Low-voltage PWM input from main control board; high-voltage gate output to IGBT module |
| Isolation |
Optical isolation between control and power circuits |
| Fault Detection |
Overcurrent, desaturation, and short-circuit protection signaling |
| Communication Capability |
Interfaces with 1336 PLUS control board; compatible with DeviceNet-connected drive architectures |
| Installation Environment |
Internal drive mounting; suitable for NEMA 1 / IP20 enclosures and above |
| Operating Temperature |
0°C to 50°C (drive ambient rating) |
| Warranty |
12-Month Warranty — tested, verified, and ready for system integration |
| Contextual Integration |
Supports Contextual Integration within existing 1336 PLUS drive architectures without full drive replacement |
Coordinated Control System Design
The 1336-BDB-SP5D does not operate as a standalone component — it functions as part of a coordinated drive system that spans multiple hardware layers. In a typical motor control center or variable speed drive panel, the 1336 PLUS drive housing contains the main control board (such as the 1336-MOD-C2 or 1336-MOD-D2), the base driver board (1336-BDB-SP5D), the IGBT power module, and the precharge and snubber circuits. These elements work in concert to deliver smooth, controlled motor acceleration, deceleration, and speed regulation.
At the network layer, the drive communicates with the plant-wide control system through a 1203-GU6 DeviceNet communication adapter or a 1203-SSS SCANport adapter, enabling the ControlLogix or SLC 500 PLC to issue real-time speed references and read drive status. The 1336-BDB-SP5D ensures that these high-level commands are faithfully translated into precise gate pulses, maintaining synchronization between the control layer and the power stage. In multi-drive systems — such as those found in conveyor lines, pump stations, or compressor banks — consistent base driver board performance across all drives is essential for coordinated motion and load sharing.
At the I/O layer, analog input modules such as the 1756-IF16 or 1769-IF4 provide process feedback signals (flow, pressure, speed) to the PLC, which adjusts drive speed references accordingly. The 1336-BDB-SP5D must respond to these dynamic reference changes with minimal latency and without introducing switching noise that could corrupt analog signal integrity. Proper grounding, shielded cabling, and correct installation of the base driver board within the drive chassis are therefore critical engineering considerations. At the human-machine interface layer, a PanelView Plus 7 or PanelView 800 terminal displays drive status, fault codes, and operational parameters — data that originates from the drive’s control board and is only reliable when the base driver board is functioning correctly and reporting accurate fault states.
For redundancy-critical applications, some installations pair the 1336 PLUS drive with a bypass contactor assembly and a 1336-BRF series braking resistor module, ensuring that motor loads can be safely decelerated even during drive fault conditions. The 1336-BDB-SP5D’s fault detection circuitry plays a direct role in triggering these protective responses, making its reliability a system-level concern rather than a component-level one. Additionally, terminal block assemblies such as the 1492-J series and DIN rail-mounted relay modules are commonly used in the same control cabinet to interface the drive’s digital I/O with the broader machine safety and interlock logic.
Application in Layered Automation Systems
The 1336-BDB-SP5D finds application across a wide range of industrial sectors where the 1336 PLUS drive platform has been deployed for variable speed motor control. In manufacturing and packaging lines, the drive controls conveyor belts, indexing tables, and filling machines where precise speed regulation and rapid fault recovery are essential for production continuity. The base driver board’s role in maintaining clean gate switching directly affects motor efficiency, heat generation, and bearing life — all critical factors in high-cycle production environments.
In water and wastewater treatment facilities, 1336 PLUS drives are widely used to control pump and blower motors. These installations often run continuously for years, making the availability of replacement components like the 1336-BDB-SP5D a key factor in maintenance planning. Facilities that maintain a spare base driver board on-site can restore drive operation within hours of a fault, avoiding costly process interruptions. The 12-Month Warranty provided with each unit ensures that replacement parts meet the same performance standards as original equipment.
In oil, gas, and petrochemical processing, drives controlling compressors, agitators, and transfer pumps must operate reliably in demanding electrical environments with significant harmonic distortion and voltage transients. The isolation and fault detection capabilities of the 1336-BDB-SP5D are particularly valuable in these settings, where a single drive fault can trigger a process shutdown with significant financial consequences. Similarly, in mining and metals processing, drives controlling crushers, mills, and hoists require robust gate drive hardware capable of handling high inertia loads and frequent starts.
In power generation and utilities, the 1336 PLUS platform is used in auxiliary motor control applications including cooling fans, feedwater pumps, and fuel handling conveyors. Contextual Integration of the 1336-BDB-SP5D into existing drive architectures — without requiring full drive replacement — makes it an economically attractive solution for utilities managing aging infrastructure with constrained capital budgets. The board’s compatibility with the full 1336 PLUS and 1336 PLUS II drive family ensures broad applicability across installed base equipment.
Architecture Engineering FAQ
Q1: Is the 1336-BDB-SP5D compatible with both the 1336 PLUS and 1336 PLUS II drive series, and how do I confirm compatibility before installation?
The 1336-BDB-SP5D is designed for use within the 1336 PLUS drive family. Compatibility with specific drive ratings and firmware revisions should be confirmed by cross-referencing the drive’s catalog number and series letter with the Allen-Bradley 1336 PLUS spare parts cross-reference guide. In most cases, the base driver board is matched to the drive’s horsepower rating and IGBT module type. Our technical team can assist with compatibility verification prior to shipment, and each unit is supplied with a 12-Month Warranty covering manufacturing defects and functional performance.
Q2: What installation and commissioning steps are required when replacing the 1336-BDB-SP5D in an operational system?
Replacement of the base driver board requires full de-energization of the drive, including discharge of the DC bus capacitors (typically a minimum 5-minute wait after power removal, verified with a voltmeter). The board is mounted within the drive chassis and connects to the main control board and IGBT gate terminals via dedicated connectors. After installation, the drive should be powered up in a controlled environment with the motor disconnected, and a functional test performed to verify gate firing symmetry and fault response before reconnecting the load. Contextual Integration with the existing control system requires no software changes — the replacement board restores original drive behavior transparently.
Q3: How does sourcing the 1336-BDB-SP5D from ZYPLC support long-term maintenance planning for multi-drive installations?
ZYPLC maintains inventory of 1336 PLUS series spare parts specifically to support facilities with large installed bases of Allen-Bradley drives. Each 1336-BDB-SP5D unit is tested prior to shipment and covered by a 12-Month Warranty, providing confidence for both immediate replacement needs and strategic spare parts stocking programs. For facilities managing 10 or more 1336 PLUS drives, we recommend maintaining at least one spare base driver board per drive rating tier to minimize mean time to repair. Our team can assist with inventory planning, technical documentation, and post-installation support to ensure seamless Contextual Integration into your existing maintenance workflow.
