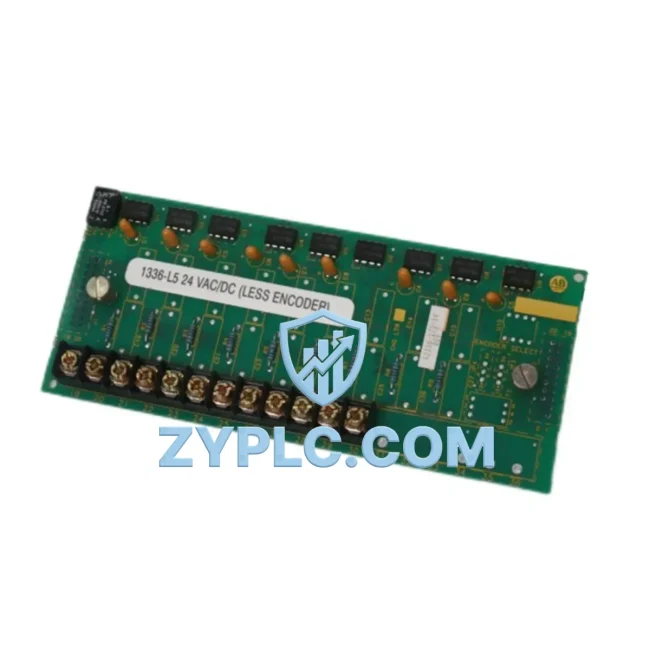

Allen-Bradley 1336-L5 42336-173-54 System-Ready Control Interface for 1336 PLUS Architecture

Allen-Bradley 1336-L5 42336-173-54 System-Ready Control Interface for 1336 PLUS Architecture

The Allen-Bradley 1336-L5 42336-173-54 is a dedicated control interface module engineered for seamless integration within the 1336 PLUS AC drive platform. Rather than functioning as a standalone component, this module is designed to operate as a critical node within a layered industrial control architecture — bridging the control layer, I/O layer, communication network, and drive execution layer into a unified, high-performance automation system. Its role in maintaining signal integrity, enabling coordinated drive response, and supporting long-term system maintainability makes it an essential element for engineers designing scalable and redundant control environments.

In modern industrial automation, the reliability of a control system depends not on any single component but on the coherent interaction of every layer — from the PLC processor down to the field device. The 1336-L5 42336-173-54 occupies a pivotal position in this hierarchy, serving as the communication and control bridge between the host controller and the 1336 PLUS drive’s internal logic. When integrated correctly, it enables deterministic command execution, real-time feedback loops, and fault-tolerant operation across the entire drive system.

Architecture Specification Table

Coordinated Control System Design

The 1336-L5 42336-173-54 achieves its full potential when deployed within a coordinated Allen-Bradley control architecture. At the control layer, a 1756-L73 ControlLogix processor or 1769-L33ER CompactLogix controller issues motion and speed commands through the backplane or network, which are then relayed via the 1336-L5 interface to the 1336 PLUS drive. This tight coupling between the PLC and the drive ensures that command latency is minimized and that the drive responds predictably to process demands.

Power distribution to the drive system is typically managed through a 1336 PLUS internal power supply assembly or an external 1606-XLP power supply for auxiliary control circuits. Stable, conditioned power at the control interface level is essential for preventing spurious faults and ensuring consistent module operation across temperature and load variations.

On the I/O layer, the 1336-L5 works in conjunction with 1756-IB16 digital input modules and 1756-OB16E digital output modules to receive process feedback signals — such as motor speed confirmation, fault status, and run/stop acknowledgment — and to issue discrete control commands. Analog feedback from the motor, including current and frequency data, may be routed through 1756-IF8 analog input modules for closed-loop process control.

Network connectivity is maintained through 1756-EN2T EtherNet/IP communication modules or 1747-SDN DeviceNet Scanner modules, depending on the plant’s communication infrastructure. The 1336-L5 interface supports SCANport-based communication, enabling the host controller to poll drive parameters, monitor fault codes, and issue parameter updates without interrupting drive operation. This capability is particularly valuable in continuous process environments where drive downtime carries significant production cost.

For human-machine interface integration, a 2711P-T10C21D8S PanelView Plus 7 terminal connected via EtherNet/IP provides operators with real-time visibility into drive status, speed setpoints, and fault history. The HMI communicates with the ControlLogix processor, which in turn manages the 1336-L5 interface — creating a seamless information flow from the operator interface down to the drive execution layer.

In redundant architecture designs, a secondary 1756-L73 ControlLogix processor in a redundant chassis pair can take over control of the 1336-L5 interface within milliseconds of a primary controller fault, ensuring uninterrupted drive operation. Terminal block assemblies such as the 1492-CABLE series and 1492-IFM interface modules provide reliable field wiring termination points that simplify maintenance and reduce the risk of wiring errors during commissioning or module replacement.

Application in Layered Automation Systems

The 1336-L5 42336-173-54 is deployed across a wide range of industrial sectors where AC drive control precision and system integration are paramount.

In manufacturing and assembly lines, the module enables coordinated multi-axis speed control for conveyor systems, where multiple 1336 PLUS drives must operate in synchronized speed ratios. The control interface ensures that speed reference signals from the PLC are translated accurately into drive output, maintaining product flow consistency and reducing mechanical stress on conveyor components.

In power generation and electrical utilities, the 1336-L5 is used to control large pump and fan drives in cooling water systems and auxiliary power circuits. The module’s ability to support remote parameter monitoring via SCANport allows maintenance engineers to diagnose drive conditions without physical access to the drive cabinet — a critical capability in high-voltage environments.

In petrochemical and refinery applications, the module supports continuous process control for compressor and agitator drives, where precise speed regulation directly impacts product quality and process safety. Integration with the plant’s DCS or PLC system via EtherNet/IP ensures that the drive responds to process variable changes in real time.

In water and wastewater treatment facilities, the 1336-L5 interface enables variable-speed control of pump drives, allowing the control system to match pump output to demand — reducing energy consumption and extending pump service life. The module’s fault reporting capability supports predictive maintenance programs by providing early warning of drive anomalies.

In mining and mineral processing, the module is used in conveyor drive systems and crusher motor controls, where robust performance under high-load and high-vibration conditions is essential. The 1336 PLUS platform’s proven reliability in harsh environments, combined with the 1336-L5 interface’s stable communication performance, makes this combination a preferred choice for mining automation engineers.

Architecture Engineering FAQ

Q1: Is the 1336-L5 42336-173-54 compatible with both 1336 PLUS and 1336 PLUS II drive platforms?
The 1336-L5 42336-173-54 is designed primarily for the 1336 PLUS drive series. Compatibility with the 1336 PLUS II platform depends on the specific firmware revision and option slot configuration of the target drive. Engineers should verify the drive’s option board slot type and firmware version against the 1336-L5 installation documentation before integration. In mixed-platform architectures, it is recommended to standardize on a single drive series to simplify spare parts management and reduce commissioning complexity.

Q2: Can the 1336-L5 interface be replaced in the field without full drive reconfiguration?
Yes. The 1336-L5 42336-173-54 is designed as a field-replaceable option module. Replacement requires powering down the drive, removing the existing interface card from the option slot, installing the replacement module, and restoring drive parameters from a previously saved configuration file. Drive parameters should be backed up using a 1336-MOD-L5 parameter storage device or via the connected PLC program prior to any maintenance activity. The 12-Month Warranty covers manufacturing defects identified during this process, provided the module has been handled and installed according to Allen-Bradley specifications.

Q3: What communication protocols does the 1336-L5 support, and how does this affect network architecture planning?
The 1336-L5 42336-173-54 supports SCANport communication, which is Allen-Bradley’s proprietary drive peripheral interface protocol used across the 1336 PLUS platform. For integration into modern EtherNet/IP or DeviceNet networks, a protocol gateway such as the 1203-USB SCANport-to-USB adapter or a 1203-GU6 DeviceNet communication module may be required to bridge the SCANport interface to the plant network. Network architects should account for this gateway requirement when designing the communication topology, particularly in facilities transitioning from legacy SCANport infrastructure to modern industrial Ethernet environments. Contextual Integration of the 1336-L5 within a broader network architecture ensures that drive data is accessible at the SCADA and MES levels without compromising drive control determinism.
