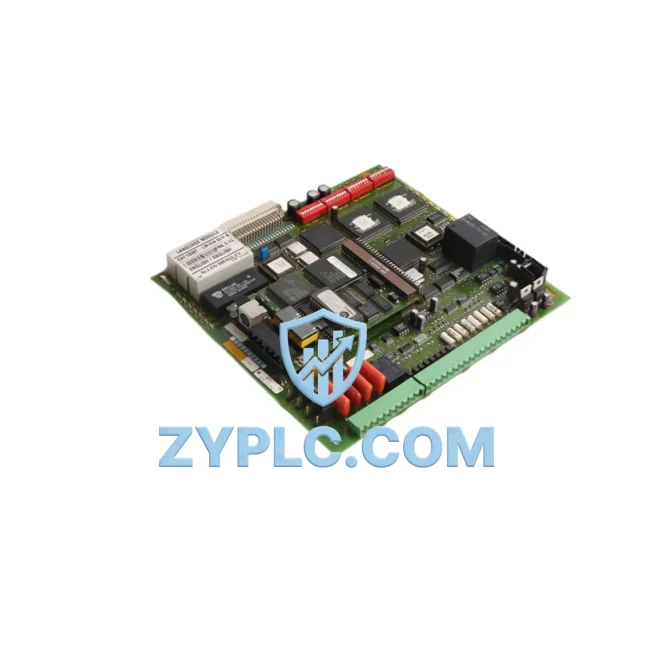

Allen-Bradley 1336T-GT1-SP34B System-Ready AC Drive for 1336T Plus II

Allen-Bradley 1336T-GT1-SP34B System-Ready AC Drive for 1336T Plus II Architecture

In modern industrial automation, a drive module is never an isolated component — it is a critical node within a layered control architecture that spans from the controller level down through the power and execution layers. The Allen-Bradley 1336T-GT1-SP34B is a factory-tested AC drive module engineered specifically for integration within the 1336T Plus II drive system platform. Its role extends beyond simple motor speed regulation: it serves as the execution-layer interface between the programmable logic controller, the communication network, and the mechanical load, ensuring that every command issued from the control layer is translated into precise, stable, and repeatable motion.

Within a complete control system hierarchy, the 1336T-GT1-SP34B operates in close coordination with upstream and downstream components. At the control layer, a Rockwell Automation ControlLogix or CompactLogix processor — such as the 1756-L73 or 1769-L33ER — issues velocity and torque references via the backplane or over an EtherNet/IP network. These commands pass through a 1336T-LM1EN communication adapter, which serves as the network interface module for the 1336T Plus II platform, translating EtherNet/IP or DeviceNet protocol frames into drive-native command structures. The 1336T-GT1-SP34B receives these structured commands and executes them with high-fidelity PWM output to the connected motor load.

Power integrity is foundational to drive system reliability. The 1336T-GT1-SP34B is designed to operate within a controlled power environment supported by Allen-Bradley 1336T series power structures and line filter assemblies, including components referenced under part numbers 74101-954-52C and 74103-015-52A. These power-layer components ensure that the DC bus voltage presented to the drive module remains within specification across varying load conditions, protecting both the module and the connected motor from transient overvoltage events. In facilities where power quality is a concern, upstream line reactors and EMC filters are recommended as part of the system architecture.

At the I/O layer, the 1336T-GT1-SP34B interfaces with discrete and analog signal sources through the drive’s onboard terminal block and optional I/O expansion modules. Digital inputs for run/stop, fault reset, and speed reference selection are wired directly to the drive’s control terminals, while analog inputs — typically 0–10 VDC or 4–20 mA — provide continuous speed reference signals from process controllers or operator stations. For applications requiring closed-loop speed or position control, encoder feedback modules compatible with the 1336T Plus II platform can be integrated to provide real-time velocity feedback to the drive’s internal regulator.

System redundancy and fault tolerance are engineering priorities in critical process environments. The 1336T-GT1-SP34B supports fault logging and diagnostic data reporting through its communication adapter, enabling the ControlLogix or CompactLogix controller to monitor drive health in real time. In redundant drive architectures — common in water treatment, petrochemical, and power generation facilities — a standby drive module can be configured to assume control within seconds of a primary drive fault, minimizing process downtime. The drive’s parameter set can be stored in the 1336T-LM1EN adapter or in the controller program, enabling rapid module replacement without manual parameter re-entry.

Human-machine interface integration is supported through Allen-Bradley PanelView Plus terminals connected via EtherNet/IP or DH+ networks. Operators can monitor drive status, fault codes, output frequency, and motor current directly from the HMI screen, with alarm management configured in the FactoryTalk View application. This HMI-to-drive data path provides maintenance engineers with the visibility needed to diagnose issues before they escalate to unplanned shutdowns.

Architecture Specification Table

Coordinated Control System Design

The 1336T-GT1-SP34B achieves its highest value when deployed as part of a coordinated, multi-layer control architecture rather than as a standalone drive. A typical system configuration begins at the controller layer with a 1756-L73 ControlLogix processor housed in a 1756 chassis, supported by a 1756-EN2T EtherNet/IP communication module that provides high-speed network connectivity to field devices. The controller executes the motion and process logic, issuing drive commands at scan-cycle intervals that are well within the response time requirements of most industrial processes.

The drive command data travels over the EtherNet/IP network to the 1336T-LM1EN network adapter, which is mounted directly to the 1336T Plus II drive chassis and serves as the protocol bridge between the Ethernet network and the drive’s internal communication bus. This adapter also stores drive parameters, enabling hot-swap replacement of the 1336T-GT1-SP34B module without requiring a laptop or handheld programmer to restore the drive configuration.

Power for the drive system is supplied through a 1336T Plus II power structure that includes an input rectifier section, DC bus capacitor bank, and IGBT inverter stage. Upstream of the power structure, a line reactor or isolation transformer conditions the incoming AC supply, reducing harmonic distortion and protecting the drive from line-side transients. A 1336-MOD-HA2 dynamic braking module can be added to the system to dissipate regenerative energy during deceleration, which is particularly important in applications with high-inertia loads such as centrifuges, fans, and conveyors.

At the field level, motor feedback is provided by an encoder or resolver mounted to the motor shaft, with the feedback signal routed to an encoder interface module compatible with the 1336T Plus II platform. This closed-loop feedback enables the drive to maintain precise speed regulation even under varying load conditions. Terminal block assemblies and 1492-series wiring accessories from Allen-Bradley are used to organize and protect the control wiring within the panel, ensuring that the installation meets industrial wiring standards and simplifies future maintenance activities.

For operator interaction, a PanelView Plus 7 terminal running FactoryTalk View ME provides a graphical interface for drive monitoring and control. Maintenance personnel can view real-time drive parameters, acknowledge faults, and initiate controlled starts and stops directly from the HMI panel, reducing the need for direct interaction with the drive hardware during normal operations.

Application in Layered Automation Systems

The 1336T-GT1-SP34B is well-suited for deployment across a broad range of industrial sectors where reliable, network-integrated variable frequency drive control is required. In manufacturing and assembly environments, the module controls conveyor drives, rotary indexers, and material handling systems where precise speed control and rapid fault recovery are essential to maintaining production throughput. The drive’s EtherNet/IP connectivity allows it to participate in coordinated motion sequences managed by the ControlLogix controller, enabling synchronized multi-axis operation without the need for dedicated motion controllers.

In power generation and electrical utilities, the 1336T-GT1-SP34B is used to control auxiliary drives such as cooling fans, lubrication pumps, and fuel feed systems. These applications demand high reliability and the ability to operate continuously for extended periods without maintenance intervention. The drive’s robust fault diagnostics and parameter backup capabilities support the predictive maintenance programs that are standard practice in power plant operations.

The petrochemical and oil and gas sectors rely on variable frequency drives to control pump and compressor motors in hazardous area installations. While the 1336T-GT1-SP34B itself is designed for standard industrial environments, it is commonly installed in pressurized control rooms or purged enclosures that provide the required area classification protection. The drive’s ability to interface with process control systems via EtherNet/IP or DeviceNet makes it compatible with the distributed control architectures used in refinery and pipeline operations.

In water and wastewater treatment facilities, the module controls submersible pump drives, aeration blowers, and sludge handling equipment. The ability to implement soft-start and energy-saving speed reduction profiles through the drive’s parameter set reduces mechanical wear and energy consumption, extending the service life of both the drive and the connected pump or blower. The 12-Month Warranty provides plant operators with the assurance needed to justify the use of surplus or replacement modules in critical infrastructure applications.

Mining, metallurgy, and mineral processing operations use the 1336T-GT1-SP34B in conveyor drives, crusher feed systems, and mill drives where the load profile is highly variable and the operating environment is harsh. The drive’s thermal management system and robust power electronics are designed to handle the high cyclic loads and ambient temperature variations common in these applications.

Architecture Engineering FAQ

Q1: Is the 1336T-GT1-SP34B compatible with existing 1336T Plus II chassis and power structures already installed in the field?
Yes. The 1336T-GT1-SP34B is designed as a direct replacement module for the 1336T Plus II platform. It is mechanically and electrically compatible with existing 1336T Plus II power structures and chassis assemblies. Before installation, verify that the power structure’s voltage and current ratings match the application requirements, and confirm that the firmware version of the 1336T-LM1EN communication adapter is compatible with the replacement module. Parameter files stored in the adapter will be automatically loaded into the replacement module upon power-up, minimizing commissioning time.

Q2: How does the 12-Month Warranty apply to this module, and what does it cover?
The 12-Month Warranty covers manufacturing defects and functional failures that occur under normal operating conditions within twelve months of the shipment date. It does not cover damage resulting from improper installation, operation outside of specified electrical or environmental limits, or physical damage caused by external factors. To initiate a warranty claim, contact ZYPLC at [email protected] or +86 19859288691 with the module’s serial number, purchase date, and a description of the fault condition. Replacement or repair will be arranged based on the nature of the defect.

Q3: What commissioning steps are required when integrating the 1336T-GT1-SP34B into an existing EtherNet/IP control network?
Commissioning begins with verifying the physical installation — confirm that the module is correctly seated in the 1336T Plus II chassis and that all power and control wiring connections are secure and correctly terminated. Next, assign an IP address to the 1336T-LM1EN adapter using RSLinx Classic or Studio 5000 Logix Designer, and add the drive to the I/O tree of the ControlLogix or CompactLogix controller project. Download the controller program and verify that the drive’s input and output data tags are updating correctly in the controller. Perform a no-load test run to verify speed reference tracking and fault response before connecting the motor load. Document all parameter settings and store a backup copy in the controller program for future reference.
