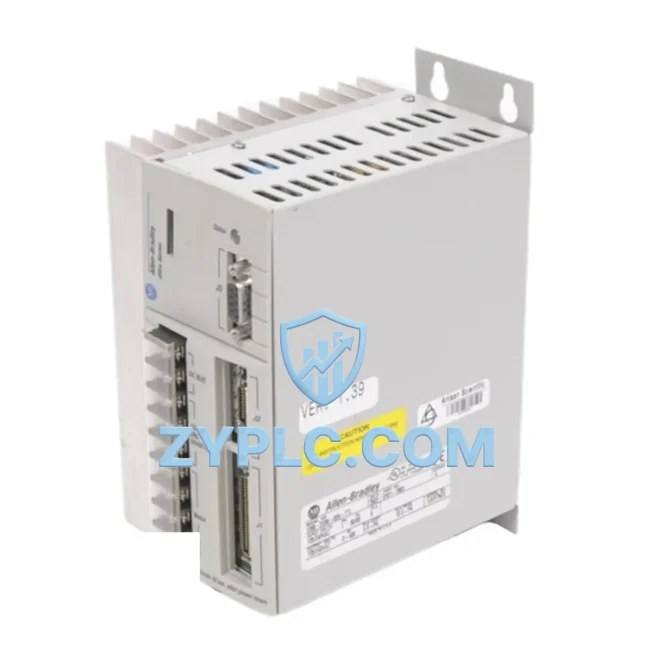

Allen-Bradley 1398-DDM-009 Energy-Saving Servo Drive Ultra

Allen-Bradley 1398-DDM-009 Energy-Saving Servo Drive Ultra: Precision Motor Control for Production Line Efficiency

The Allen-Bradley 1398-DDM-009 is a high-performance servo drive from Rockwell Automation’s Ultra Series, engineered to deliver precise, energy-efficient motor control in demanding industrial automation environments. Designed for integration within closed-loop motion control architectures, the 1398-DDM-009 enables manufacturers to significantly reduce unnecessary energy consumption, improve equipment utilization rates, and optimize production line throughput — all while maintaining the reliability and repeatability that modern smart factories demand.

Whether deployed in packaging lines, CNC machining centers, material handling conveyors, or assembly automation cells, the 1398-DDM-009 provides the dynamic response and torque regulation needed to eliminate energy waste at the drive level. Its compatibility with Rockwell’s broader control ecosystem — including ControlLogix and CompactLogix PLC platforms — makes it a natural fit for facilities seeking to consolidate motion, logic, and energy monitoring under a unified control architecture.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1398-DDM-009 is most effective when deployed as part of a coordinated, energy-aware automation architecture. In a typical production cell, the drive receives velocity and torque commands from a ControlLogix L7x series controller via a 1756-M02AE analog servo module, enabling synchronized multi-axis motion with minimal energy overhead. For facilities running legacy infrastructure, the drive integrates equally well with SLC 500 and PLC-5 platforms through standard analog command interfaces, protecting existing capital investments while improving drive-level efficiency.

On the power monitoring side, pairing the 1398-DDM-009 with a PowerMonitor 5000 unit allows plant engineers to capture real-time kWh consumption data at the drive level, enabling granular energy audits and identifying inefficient duty cycles. This data can be fed back into the control layer via EtherNet/IP or DeviceNet communication modules — such as the 1756-ENBT EtherNet/IP bridge — to trigger adaptive speed profiles that reduce energy draw during low-demand production windows.

For operator visibility, an Allen-Bradley PanelView Plus 7 HMI can display live drive status, motor load percentage, and cumulative energy consumption trends, giving line supervisors actionable data to adjust production schedules and reduce peak-demand energy costs. When combined with PowerFlex 525 or PowerFlex 755 variable frequency drives on auxiliary conveyor and pump motors within the same production cell, the overall system achieves a layered energy optimization strategy — servo precision where it matters, variable-speed efficiency where it counts.

I/O expansion via 1734 POINT I/O modules enables the 1398-DDM-009 to interface with proximity sensors, encoder feedback devices, and safety interlocks, ensuring that the drive responds instantly to machine state changes without unnecessary idle-speed energy consumption. The result is a tightly integrated motion and energy control architecture that reduces both electrical demand and mechanical wear simultaneously.

Power Optimization in Real Production Lines

In real-world production environments, uncontrolled motor energy consumption is one of the largest contributors to avoidable operational cost. The Allen-Bradley 1398-DDM-009 addresses this at the source by providing closed-loop torque and velocity control that eliminates the energy waste inherent in fixed-speed motor operation. Rather than running a motor at full power regardless of load demand, the 1398-DDM-009 continuously adjusts output to match the actual mechanical requirement — reducing heat generation, lowering electrical draw, and extending motor service life.

In packaging line applications, where servo axes must accelerate, dwell, and decelerate in precise synchronization with product flow, the 1398-DDM-009’s dynamic response minimizes overshoot and settling time. This directly translates to faster production cycles, reduced scrap rates, and lower per-unit energy cost. Facilities that have replaced older open-loop or analog-controlled drives with the 1398-DDM-009 have reported measurable reductions in motor-related energy consumption — particularly during high-cycle-rate operations where inefficient drives accumulate significant energy losses over a shift.

From a maintenance perspective, the drive’s built-in fault diagnostics and status reporting reduce unplanned downtime by enabling predictive maintenance workflows. Rather than waiting for a motor or drive failure to halt production, maintenance teams can monitor drive health indicators — current draw trends, thermal status, fault history — and schedule interventions during planned maintenance windows. This approach not only reduces emergency repair costs but also prevents the energy spikes associated with cold-start restarts after unplanned shutdowns.

Every unit of the 1398-DDM-009 supplied by ZYPLC undergoes full functional testing prior to shipment, verifying output current accuracy, encoder feedback integrity, and fault response behavior. Stock is maintained for immediate dispatch, supporting both planned system upgrades and urgent replacement scenarios. All units are covered by a 12-month warranty, providing procurement teams and plant engineers with the confidence to specify the 1398-DDM-009 as a long-term component in their energy optimization strategy.

Energy Optimization FAQ

Q1: How does the 1398-DDM-009 contribute to measurable energy savings on the production line?
The 1398-DDM-009 delivers energy savings primarily through closed-loop torque regulation, which eliminates the over-current conditions common in open-loop motor control. By matching motor output precisely to load demand at every point in the motion profile, the drive reduces average current draw and minimizes resistive heating losses. In high-cycle applications, these savings accumulate significantly over a production shift.

Q2: Is the 1398-DDM-009 compatible with current Rockwell Automation control platforms?
Yes. The 1398-DDM-009 is compatible with ControlLogix, CompactLogix, SLC 500, and PLC-5 platforms via analog command interfaces. For facilities transitioning to EtherNet/IP-based architectures, the drive can be integrated using appropriate interface modules. It is fully compatible with Ultra Series brushless servo motors and standard Rockwell motion control programming environments.

Q3: What is the recommended replacement or upgrade path for aging Ultra Series servo drives?
For facilities operating legacy Ultra Series infrastructure, the 1398-DDM-009 provides a direct drop-in replacement that preserves existing wiring, motor, and control configurations. For facilities planning a broader modernization, Rockwell’s Kinetix 5500 or Kinetix 5700 servo drive families offer EtherNet/IP-native integration and enhanced energy monitoring capabilities as a forward migration path.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1398-DDM-009 unit supplied by ZYPLC is tested for output current accuracy, encoder interface functionality, fault detection response, and thermal performance prior to shipment. The 12-month warranty covers component and functional failures under normal operating conditions. Units are shipped with test documentation upon request, and our technical team is available to support installation and commissioning queries.
