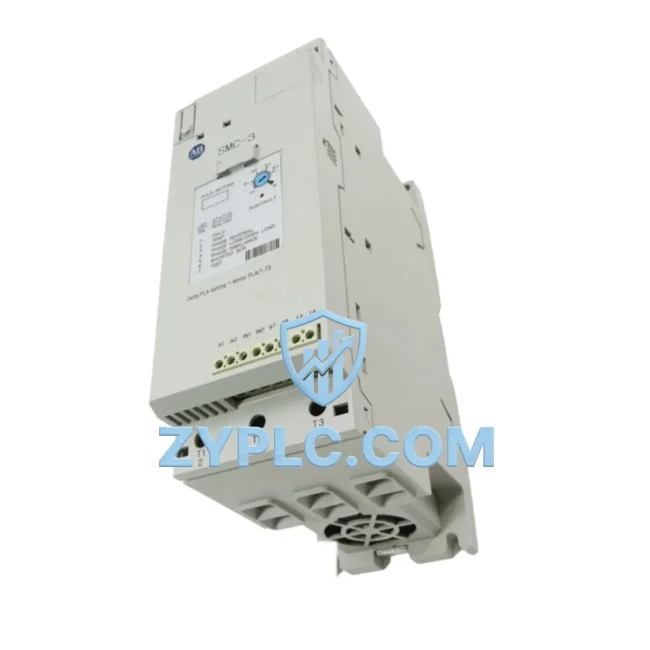

Allen-Bradley 150-C43NBD Energy-Saving Motor Controller SMC-3

Allen-Bradley 150-C43NBD Energy-Saving Motor Controller SMC-3: Precision Drive Control for Optimized SMC-3 Automation

The Allen-Bradley 150-C43NBD is a high-performance Smart Motor Controller (SMC-3) engineered for industrial facilities that demand measurable reductions in energy consumption without sacrificing production throughput. Rated for 43A full-load current, this soft starter eliminates the destructive inrush currents that plague across-the-line motor starts, directly reducing peak demand charges and extending motor winding life. In environments where every kilowatt-hour counts—from compressor rooms and pump stations to conveyor drives and HVAC systems—the 150-C43NBD delivers the granular motor control needed to align energy draw with actual process demand.

Sourced directly from authorized Rockwell Automation distribution channels, each 150-C43NBD unit undergoes outgoing functional testing covering voltage ramp profiles, current limiting thresholds, and fault relay outputs before shipment. Stock is maintained on-hand for immediate dispatch, and every unit is backed by a 12-month warranty covering manufacturing defects and component failure under normal operating conditions.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 150-C43NBD does not operate in isolation—it is most effective when integrated into a layered automation architecture where energy data flows continuously from the field level to the control level. In a typical Rockwell Automation deployment, a CompactLogix L33ER or ControlLogix L73 PLC serves as the supervisory controller, issuing start/stop commands and monitoring fault status from the SMC-3 via hardwired discrete I/O or a 1769-SDN DeviceNet Scanner module. This integration allows the PLC to log motor run-hours, start counts, and fault events—data that feeds directly into predictive maintenance schedules and reduces unplanned downtime.

On the drive side, facilities running mixed motor loads often pair the 150-C43NBD with PowerFlex 525 or PowerFlex 755 AC drives on variable-torque loads such as centrifugal pumps and supply fans, where variable-speed operation yields the greatest energy savings. The SMC-3 handles fixed-speed loads where a full VFD is cost-prohibitive, providing controlled acceleration and deceleration that still eliminates mechanical shock and reduces energy spikes at start. Together, these two drive technologies—soft starters and variable frequency drives—form a complementary energy management strategy across the motor control center.

For power quality monitoring, the PowerMonitor 5000 or PowerMonitor 1000 energy meters can be installed upstream of the MCC to capture real-time kWh consumption, power factor, and harmonic distortion data. When the 150-C43NBD reduces inrush current during motor starts, the improvement in power factor is measurable at the meter level, directly reducing reactive power charges on utility bills. This data can be trended in FactoryTalk View SE HMI software, giving plant engineers a dashboard view of energy consumption per production zone.

At the I/O level, 1734 POINT I/O modules distributed across the production line collect temperature, pressure, and flow signals that the PLC uses to determine optimal motor start timing—avoiding simultaneous starts that would otherwise create compounding demand spikes. The SMC-3’s built-in current-limit start mode works in concert with this logic, ensuring that even when multiple motors must start in sequence, each one ramps up within a controlled current envelope. Operator interaction is handled through a PanelView Plus 7 HMI terminal, where maintenance staff can view motor status, accumulated starts, and fault history without accessing the MCC cabinet directly.

Power Optimization in Real Production Lines

In a food and beverage facility running a 22 kW conveyor drive motor, replacing a direct-on-line starter with the Allen-Bradley 150-C43NBD typically reduces motor starting current from 600–700% of full-load current down to a controlled 300–350%, cutting the mechanical stress on couplings, gearboxes, and belt drives. Over a production year with 40–60 motor starts per shift, this reduction in mechanical shock translates to extended bearing life, fewer unscheduled maintenance interventions, and lower spare parts consumption—all of which reduce the total cost of ownership beyond the energy bill alone.

In water treatment and pumping applications, the soft-stop function of the 150-C43NBD is equally valuable. By ramping the motor down gradually rather than cutting power abruptly, water hammer in long pipe runs is eliminated. This protects pipe joints, check valves, and pressure sensors from repetitive hydraulic shock, reducing infrastructure maintenance costs and extending the service life of the entire pumping system. The energy saved during each controlled deceleration cycle is modest per event, but across hundreds of daily pump cycles the cumulative reduction in reactive energy demand is significant.

For HVAC systems in large manufacturing facilities, the 150-C43NBD enables supply fan and exhaust fan motors to start smoothly during shift changeovers, preventing the voltage sag events that can disrupt sensitive CNC equipment and vision systems on the same electrical bus. Plant electricians report that after installing SMC-3 soft starters on fan motors, nuisance trips on nearby variable frequency drives decrease noticeably—an indirect energy and productivity benefit that is difficult to quantify but consistently observed in practice.

From a predictive maintenance perspective, the 150-C43NBD’s built-in overload and jam detection functions provide early warning of mechanical problems before they escalate to catastrophic failure. A motor that begins drawing elevated current due to a failing bearing or increased process load will trigger a fault before the winding temperature reaches a damaging level. This early intervention capability, combined with the run-hour data logged by the supervisory PLC, supports a condition-based maintenance program that replaces time-based scheduled maintenance—reducing both over-maintenance costs and the risk of unexpected failures during peak production periods.

Every 150-C43NBD unit shipped by ZYPLC has been functionally tested for correct voltage ramp operation, fault relay continuity, and control circuit integrity. Units are packaged in anti-static protective packaging with original documentation and are dispatched from bonded warehouse stock. The 12-month warranty covers all manufacturing defects and component failures arising under normal operating conditions, with direct technical support available for installation and commissioning queries.

Energy Optimization FAQ

Q1: How much energy can the Allen-Bradley 150-C43NBD actually save compared to a direct-on-line starter?
The primary energy saving is indirect: by eliminating inrush current spikes of 600–700% FLA, the 150-C43NBD reduces peak demand charges on utility bills, which in many industrial tariff structures represent 30–50% of the total electricity cost. Additionally, smoother starts reduce motor heating losses, extending winding insulation life and reducing the frequency of motor rewinding—a significant maintenance cost. For variable-torque loads paired with a downstream VFD, the combination of soft starting and speed control can yield 20–40% reduction in annual motor energy consumption.

Q2: Is the 150-C43NBD compatible with existing Rockwell Automation control systems and MCC panels?
Yes. The SMC-3 series is designed for direct integration into Rockwell Automation Motor Control Centers and is compatible with ControlLogix and CompactLogix PLC platforms via hardwired discrete I/O. Optional DeviceNet communication modules enable network-level integration for facilities using a DeviceNet-based control architecture. The unit’s standard 3-wire control interface is compatible with existing pilot device wiring in most MCC configurations, minimizing retrofit engineering effort.

Q3: Can the 150-C43NBD replace an existing soft starter or direct-on-line starter without rewiring the MCC?
In most cases, yes. The 150-C43NBD is dimensioned for standard MCC bucket mounting and uses industry-standard terminal layouts. When replacing an older SMC-2 or third-party soft starter of equivalent current rating, the control wiring connections are typically compatible with minor label verification. ZYPLC recommends confirming the existing bypass contactor configuration and control voltage before installation. Our technical team can assist with cross-reference verification prior to purchase.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, operation outside rated parameters, or physical damage in transit. To initiate a warranty claim, contact ZYPLC with the order reference, unit serial number, and a description of the fault. Units are assessed and either repaired, replaced, or credited at ZYPLC’s discretion within a reasonable timeframe. Warranty support is available via the contact details below.
