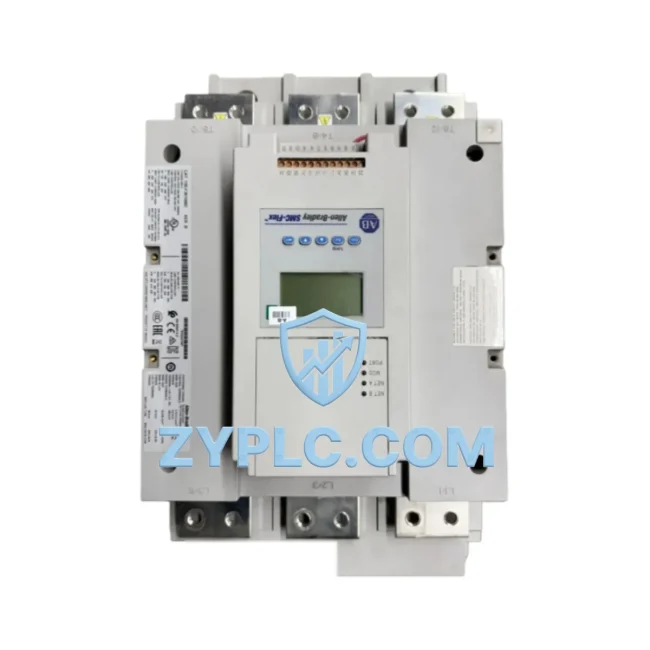

Allen-Bradley 150-F361NBDD Energy-Saving SMC-Flex Controller

Allen-Bradley 150-F361NBDD Energy-Saving SMC-Flex Controller: Precision Motor Control for Optimized Production Lines

The Allen-Bradley 150-F361NBDD is a high-performance SMC-Flex Smart Motor Controller rated at 361A, engineered to deliver measurable energy savings and superior motor control in demanding industrial automation environments. By replacing traditional across-the-line starters with intelligent soft-start and soft-stop technology, the 150-F361NBDD directly reduces inrush current, mechanical stress, and unnecessary energy consumption — translating into lower utility costs, extended motor life, and improved production line throughput.

Sourced from authorized supply channels, fully tested prior to shipment, and backed by a 12-month warranty, the 150-F361NBDD is available for immediate dispatch to support your maintenance, retrofit, and new installation requirements.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a modern industrial facility, energy efficiency is not achieved by a single device — it is the result of a tightly integrated automation architecture. The Allen-Bradley 150-F361NBDD SMC-Flex sits at the heart of the motor control layer, working in concert with upstream controllers, downstream drives, and real-time monitoring systems to eliminate energy waste at every stage of the production cycle.

At the control level, the 150-F361NBDD interfaces seamlessly with Allen-Bradley ControlLogix L7x series PLCs via DeviceNet or hardwired I/O, enabling the controller to receive precise start/stop commands, speed ramp profiles, and fault acknowledgment signals from the central automation program. For smaller machine cells, the CompactLogix 5380 provides an equally capable control backbone, coordinating the SMC-Flex alongside servo axes and safety I/O modules without requiring a dedicated DeviceNet scanner card.

On the drive side, facilities running mixed motor topologies often pair the 150-F361NBDD with Allen-Bradley PowerFlex 755 variable frequency drives on high-cycle or variable-load applications, while reserving the SMC-Flex for fixed-speed motors where soft-start protection and energy optimization during the acceleration phase deliver the greatest return. This hybrid approach — SMC-Flex for fixed-speed, PowerFlex for variable-speed — is a proven strategy for reducing total installed drive system cost while maximizing energy efficiency across the motor fleet.

Power quality and consumption monitoring are handled upstream by Allen-Bradley PowerMonitor 5000 units, which capture real-time kWh, power factor, harmonic distortion, and demand data at the panel level. When integrated with the ControlLogix platform via EtherNet/IP, the PowerMonitor 5000 provides the data foundation for energy dashboards and demand-response strategies — allowing plant engineers to correlate motor start events from the 150-F361NBDD with measurable spikes in energy consumption and identify optimization opportunities.

At the I/O layer, Allen-Bradley 1734 POINT I/O modules distributed across the production floor relay discrete and analog signals — temperature, pressure, flow, and vibration — back to the ControlLogix system. This sensor data feeds predictive maintenance algorithms that can anticipate motor stress conditions before they result in unplanned downtime, allowing maintenance teams to schedule interventions during planned stops rather than emergency shutdowns.

Operator visibility is provided through Allen-Bradley PanelView Plus 7 HMI terminals, where production supervisors can monitor motor run hours, soft-start event logs, fault histories, and real-time current draw for each SMC-Flex unit on the line. Custom energy dashboards built in FactoryTalk View Studio give plant managers a live view of motor energy consumption trends, enabling data-driven decisions about load scheduling and equipment utilization.

For facilities operating on EtherNet/IP networks, the 150-F361NBDD with the appropriate communication module integrates directly into the plant-wide network alongside Stratix 5700 managed Ethernet switches, ensuring deterministic communication latency between the PLC, the SMC-Flex, and the SCADA layer. This network architecture supports remote diagnostics, parameter backup, and firmware management without requiring physical access to the motor control center.

Safety functions are coordinated through Allen-Bradley GuardLogix safety PLCs or dedicated SMC-50 safety expansion modules, which provide safe torque-off and safe stop functionality in compliance with IEC 62061 and ISO 13849 standards — critical for applications where personnel access to machinery during operation must be controlled without full power removal.

Power Optimization in Real Production Lines

The energy impact of the Allen-Bradley 150-F361NBDD is most visible in applications where motors start and stop frequently, or where large motors drive loads with significant inertia — pumps, fans, compressors, and conveyor systems being the most common examples.

In a typical water treatment facility running multiple 200kW pump motors, replacing direct-on-line starters with the 150-F361NBDD SMC-Flex reduces peak inrush current from 600–700% of full-load current to a controlled ramp that stays within 300–350% — directly reducing demand charges on the utility bill and eliminating the voltage sag that can disrupt sensitive instrumentation on the same electrical bus.

On conveyor and material handling lines, the soft-stop function of the 150-F361NBDD prevents the mechanical shock loads that cause premature gearbox and coupling failures. Maintenance teams report significant reductions in unplanned downtime when SMC-Flex controllers are deployed on high-cycle conveyor drives, as the controlled deceleration profile eliminates the belt slip and product spillage that occur with abrupt stops.

In HVAC and building automation applications, the 150-F361NBDD’s built-in energy saver mode reduces motor voltage during light-load conditions — a particularly valuable feature for fan and pump applications where the load varies with process demand. Combined with power factor correction at the panel level, this can reduce motor energy consumption by 10–15% during partial-load operation.

From a maintenance cost perspective, the 150-F361NBDD’s comprehensive protection suite — covering overload, phase loss, phase imbalance, stall, jam, and ground fault — acts as a first line of defense against motor damage. Each protection event is logged with a timestamp and fault code, giving maintenance engineers the diagnostic data they need to identify recurring issues, whether caused by process upsets, supply voltage problems, or mechanical wear in the driven equipment.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to functional testing prior to dispatch, and covered by a 12-month warranty. In-stock availability ensures that replacement and retrofit projects can proceed without the extended lead times associated with new factory orders — minimizing the production impact of motor control system upgrades.

Energy Optimization FAQ

Q1: How much energy can the Allen-Bradley 150-F361NBDD save compared to a direct-on-line starter?
The 150-F361NBDD reduces motor inrush current by up to 70% during starting, which directly lowers peak demand charges. In applications with frequent start-stop cycles or partial-load operation, the built-in energy saver function can reduce running energy consumption by 10–15%. Actual savings depend on motor size, duty cycle, and load profile.

Q2: Is the 150-F361NBDD compatible with Allen-Bradley ControlLogix and CompactLogix systems?
Yes. The SMC-Flex series supports DeviceNet communication, allowing direct integration with ControlLogix and CompactLogix PLCs via a 1747-SDN or 1756-DNB DeviceNet scanner. Hardwired control via discrete I/O is also supported for simpler installations. EtherNet/IP connectivity is available with the appropriate communication adapter.

Q3: Can the 150-F361NBDD replace an existing soft starter or across-the-line starter without rewiring?
In most cases, yes. The SMC-Flex series is designed for retrofit applications and shares a common footprint and wiring convention with earlier Allen-Bradley SMC-2 and SMC-3 controllers. A wiring diagram review is recommended to confirm terminal compatibility, particularly if the existing installation includes bypass contactors or communication modules.

Q4: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every 150-F361NBDD supplied by ZYPLC undergoes functional testing prior to dispatch, verifying control power operation, communication interface integrity, and protection relay response. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. For warranty claims or technical support, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
