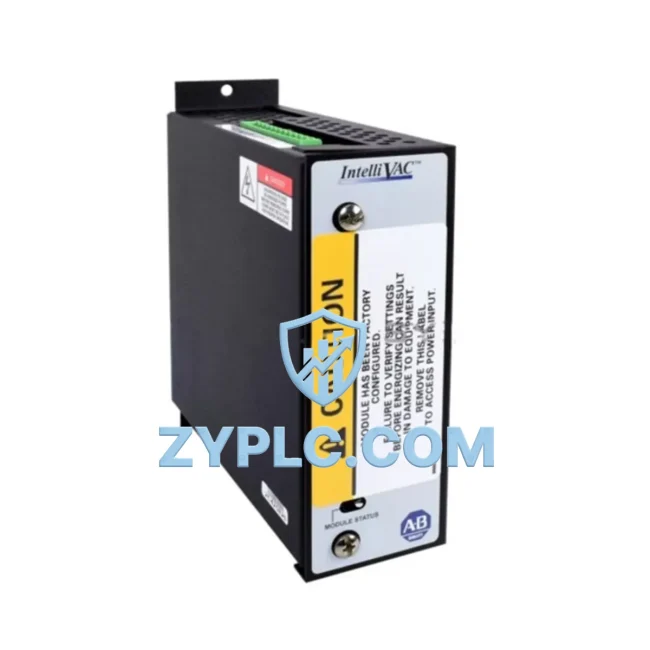

In medium-voltage drive systems, the integrity of the entire control architecture depends on the reliability and compatibility of every module within the control chain. The Allen-Bradley 1503VC-BMC5 IntelliVAC Control Module is engineered as a system-ready component for Rockwell Automation’s PowerFlex medium-voltage (MV) drive platforms, delivering precise vacuum contactor management, gate drive coordination, and protection logic that integrates seamlessly across the control layer, I/O layer, power layer, and communication layer of a complete industrial automation architecture.

Rather than functioning as a standalone device, the 1503VC-BMC5 is designed to operate within a coordinated system environment. It interfaces directly with the PowerFlex 7000 and PowerFlex 6000 medium-voltage drive families, providing the contactor sequencing and bypass logic that these platforms require for safe motor starting, running, and stopping operations. Its role in the system architecture is to bridge the gap between the high-level control commands issued by the CPU module and the physical switching events executed at the power stage — ensuring that every transition is governed by verified feedback, timing logic, and fault protection.

Architecture Specification Table

Coordinated Control System Design

The 1503VC-BMC5 does not operate in isolation — its value is realized through its position within a layered control architecture. At the CPU layer, a Rockwell Automation ControlLogix L7x or CompactLogix L3x processor issues high-level drive commands through the backplane or network. These commands are interpreted by the PowerFlex 7000 drive controller, which then coordinates with the 1503VC-BMC5 to execute contactor sequencing at the correct moment in the motor start or stop cycle.

At the I/O layer, discrete feedback signals from the vacuum contactor — including auxiliary contact status and coil energization confirmation — are routed back through the 1503VC-BMC5 to the drive’s control logic. This closed-loop feedback architecture ensures that the system can detect contactor weld faults, coil failures, or timing deviations before they escalate into drive trips or equipment damage. The module works in coordination with 1756-IB16 or 1756-OB16 digital I/O modules in the ControlLogix chassis for auxiliary monitoring functions.

At the power layer, the 1503VC-BMC5 interfaces with the 1503 drive’s internal power supply module and the MV bus isolation architecture. The 1606-XLP power supply series provides the 24 VDC control rail that energizes the module’s logic circuits, while the MV contactor itself is driven by a dedicated coil driver circuit within the BMC5 board. This separation of control power and MV power ensures that control logic remains stable even during MV bus transients or fault conditions.

At the communication layer, the 1503VC-BMC5 participates in the drive’s internal backplane communication, exchanging status and command data with the PowerFlex 7000’s main control board. In systems where ControlNet or DeviceNet is deployed for drive-to-controller communication, the 1203-CN1 ControlNet communication adapter or 1203-GD1 DeviceNet adapter can be used alongside the 1503VC-BMC5 to extend network visibility to the plant-level SCADA or DCS system.

At the HMI layer, operators interact with the drive system through a PanelView Plus 7 terminal or a PanelView 800 graphic terminal, where contactor status, fault codes, and sequencing states reported by the 1503VC-BMC5 are displayed in real time. This visibility allows maintenance personnel to diagnose contactor issues without opening the MV enclosure, significantly improving safety and reducing mean time to repair.

For redundancy-critical applications, the 1503VC-BMC5 supports bypass contactor architectures where a second vacuum contactor is held in reserve. In the event of a primary contactor fault detected by the BMC5, the system can initiate an automatic bypass sequence, transferring motor control to the bypass path while the drive is isolated for maintenance. This redundancy design is commonly implemented alongside 1503 bypass modules and 1492-J terminal block assemblies for clean signal segregation within the MV switchgear cabinet.

Application in Layered Automation Systems

Manufacturing & Packaging Lines: In high-throughput manufacturing environments, the 1503VC-BMC5 manages the vacuum contactors that control large conveyor motors, compressor drives, and pump drives. Its precise sequencing logic prevents mechanical shock during motor starting, extending the service life of both the motor and the driven equipment. Packaging lines operating 24/7 benefit from the module’s fault detection capabilities, which allow predictive maintenance scheduling without unplanned downtime.

Power Generation & Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the 1503VC-BMC5 provides the contactor control logic required for safe MV motor management. Its compatibility with the PowerFlex 7000 platform makes it a standard component in utility-grade drive systems where reliability and regulatory compliance are mandatory.

Petrochemical & Refinery Applications: Refinery process drives operating in hazardous area classifications require contactor control modules that can maintain reliable operation under high ambient temperatures, vibration, and chemical exposure. The 1503VC-BMC5’s robust design and fault-tolerant logic make it suitable for these demanding environments, where a single contactor failure can result in process shutdown and significant production loss.

Water & Wastewater Treatment: Municipal water treatment facilities rely on MV drives to control large pump motors that move millions of gallons of water daily. The 1503VC-BMC5 ensures that contactor operations are precisely timed and verified, preventing water hammer events caused by abrupt motor starts and protecting pump infrastructure from premature wear.

Mining & Minerals Processing: In mining applications — including conveyor drives, crusher drives, and mill drives — the 1503VC-BMC5 operates within rugged MV drive systems that must withstand extreme duty cycles. Its weld detection and feedback verification functions are particularly valuable in these environments, where contactor failures can result in catastrophic equipment damage and extended production outages.

Architecture Engineering FAQ

Q1: Is the 1503VC-BMC5 compatible with both PowerFlex 7000 and PowerFlex 6000 MV drive platforms?
The 1503VC-BMC5 is designed for use within the 1503 MV drive series, which underpins both the PowerFlex 7000 and PowerFlex 6000 platforms. Compatibility depends on the specific drive configuration, firmware revision, and chassis generation. We recommend verifying the drive’s bill of materials and the module’s catalog revision against Rockwell Automation’s compatibility matrix before installation. Our technical team can assist with cross-referencing your existing system architecture to confirm fit. All units supplied carry a 12-Month Warranty covering functional performance in the specified application.

Q2: How does the 1503VC-BMC5 support long-term maintenance and spare parts management in a multi-drive facility?
The 1503VC-BMC5 is a standardized module within the 1503 IntelliVAC architecture, meaning that a single spare unit can serve as a replacement across multiple drives of the same platform within a facility. This standardization reduces spare parts inventory complexity and ensures that maintenance teams can restore drive operation quickly without waiting for custom-configured replacements. Our inventory is maintained to support rapid dispatch, and each unit is tested prior to shipment. The 12-Month Warranty provides additional assurance for facilities managing long-term maintenance contracts.

Q3: What installation and commissioning considerations apply when integrating the 1503VC-BMC5 into an existing MV drive system?
Installation of the 1503VC-BMC5 requires isolation of the MV drive from both the MV bus and the control power supply before any module handling. The module must be seated correctly in the 1503 drive chassis backplane, with all connector locks engaged and cable harnesses routed according to the drive’s wiring diagram. After installation, the drive’s commissioning routine should include a contactor feedback verification test to confirm that the BMC5 is correctly reading auxiliary contact states. Firmware compatibility between the BMC5 and the drive’s main control board should be verified using Rockwell Automation’s Connected Components Workbench or Studio 5000 Logix Designer. Our team provides pre-shipment testing documentation to support your commissioning process, and the 12-Month Warranty covers any functional issues identified during initial system integration.
