Allen-Bradley 170947 System-Ready Interface for PowerFlex

Allen-Bradley 170947 System-Ready Interface for PowerFlex Control Architecture

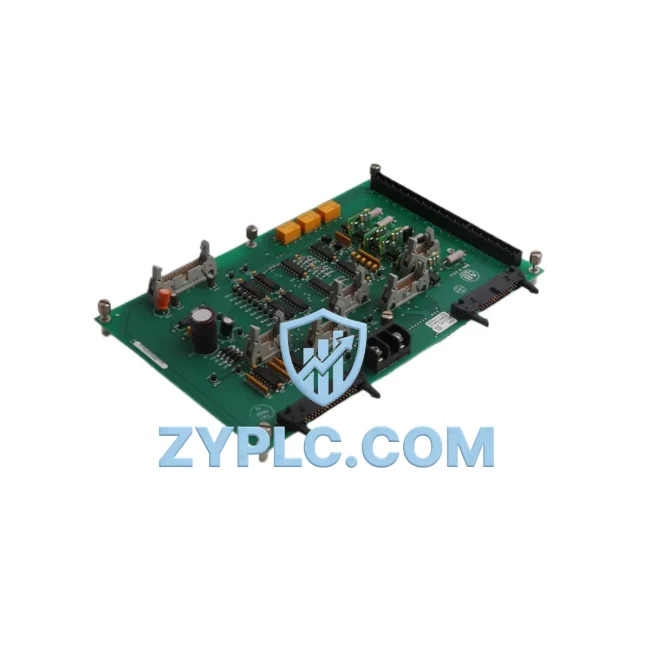

The Allen-Bradley 170947 Power Stage Interface Board occupies a critical position within the PowerFlex variable frequency drive (VFD) architecture, serving as the electrical and signal bridge between the drive’s control logic layer and its power conversion stage. In modern industrial automation environments, the reliability of this interface directly determines the stability of the entire motor control loop — from the CPU command layer down through the gate driver circuits to the output inverter stage. Rather than treating this component as a standalone spare, system engineers and maintenance teams should evaluate the 170947 within the full context of the PowerFlex drive platform and the broader control cabinet architecture it supports.

Architecture Specification Table

Coordinated Control System Design

The 170947 does not operate in isolation. Its function is inseparable from the layered architecture of the PowerFlex drive system and the broader automation platform in which it is deployed. At the control layer, the Allen-Bradley PowerFlex 755 Main Control Board generates the PWM switching commands that are routed through the 170947 interface board to the IGBT gate drivers. Any degradation in this interface path introduces switching irregularities that propagate directly into motor torque ripple and thermal stress on the power module.

At the power layer, the 170947 works in close coordination with the PowerFlex 700 Power Module and associated DC Bus Capacitor Bank Assembly, ensuring that gate timing signals arrive with the precision required for efficient energy conversion. In redundant drive architectures — common in critical process applications — a standby PowerFlex 755 Drive Frame may be configured in parallel, with the 170947 interface board serving as a matched replacement component to maintain identical switching characteristics across both active and standby units.

From a network and communication perspective, the drive system integrates with plant-level SCADA and DCS platforms via Allen-Bradley EtherNet/IP Communication Adapter (20-COMM-E), which connects the PowerFlex drive to the ControlLogix or CompactLogix PLC backplane. The 1756-L85E ControlLogix CPU issues speed and torque references that ultimately depend on the 170947’s signal integrity for accurate execution. At the I/O layer, 1756-IB16 digital input modules and 1756-OB16 digital output modules handle process interlocks and drive enable signals, while 1756-IF8 analog input modules provide process variable feedback for closed-loop speed regulation.

At the human-machine interface layer, operators interact with the drive system through Allen-Bradley PanelView Plus 7 terminals, which display real-time drive status, fault codes, and energy consumption data. When a fault condition is traced to the power stage interface, the 170947 is typically the first board-level component inspected, as its failure mode — often manifesting as asymmetric phase output or persistent overcurrent faults — is well-documented in PowerFlex field service literature. Maintaining a stocked 170947 alongside a PowerFlex 755 Precharge Board and a PowerFlex Gate Driver Board ensures that drive restoration can be completed within a single maintenance window, minimizing unplanned downtime.

Application in Layered Automation Systems

The Allen-Bradley 170947 Power Stage Interface Board finds application across a wide range of heavy industrial and process automation environments where PowerFlex VFD platforms are deployed at scale.

In manufacturing and assembly lines, PowerFlex 755 drives controlled by ControlLogix PLCs manage conveyor speeds, robotic axis positioning, and press cycle timing. The 170947 ensures that gate drive signals remain clean and synchronized across multi-axis motion sequences, preventing cross-axis interference that could compromise product quality or trigger safety shutdowns.

In power generation and electrical utilities, PowerFlex drives are used for pump and fan speed control in cooling water systems and auxiliary equipment. The 170947’s role in maintaining gate signal fidelity is critical in these environments, where drive faults can cascade into unit trips with significant grid impact.

In petrochemical and refinery applications, PowerFlex 700 and 755 drives control compressor trains, agitator drives, and pipeline booster pumps. The 170947 interface board must perform reliably in high-ambient-temperature control rooms and MCC enclosures, where thermal cycling accelerates component aging. Scheduled replacement of the 170947 as part of a preventive maintenance program — typically aligned with annual turnaround cycles — is a recognized best practice in these facilities.

In water and wastewater treatment plants, PowerFlex drives manage pump station variable-speed operation to optimize energy consumption and reduce water hammer. The 170947 supports continuous-duty operation in these 24/7 environments, where unplanned drive failures directly impact regulatory compliance and public health obligations.

In mining and mineral processing, large PowerFlex 755 frames drive ball mills, crushers, and conveyor systems under high-inertia load conditions. The power stage interface board in these applications must withstand elevated vibration and dust ingress, making enclosure integrity and board-level conformal coating critical selection criteria.

In metallurgical and steel mill applications, PowerFlex drives control rolling mill stands, ladle transfer cars, and fume extraction fans. The 170947 is a key maintenance stock item in these facilities due to the high thermal and electrical stress placed on drive power stages during heavy rolling campaigns.

Architecture Engineering FAQ

Q1: Is the Allen-Bradley 170947 compatible with both PowerFlex 700 and PowerFlex 755 drive frames?
The 170947 and its cross-reference 170948 are designed for specific PowerFlex drive frame sizes and power ratings. Compatibility should be verified against the drive’s catalog number and frame designation before installation. The reference numbers 129708-02 and M003325108 can be used to confirm the correct board revision for your specific drive configuration. When in doubt, cross-reference the existing board’s part number markings against the drive’s bill of materials.

Q2: What is the recommended installation and commissioning procedure when replacing the 170947 in a live production environment?
Replacement of the 170947 should be performed with the drive fully de-energized and DC bus voltage verified at zero using a calibrated meter. The drive should be isolated from both the incoming supply and the motor terminals. After board replacement, the drive should be powered up in a no-load test condition before reconnecting the motor, and a full parameter verification should be performed against the drive’s stored parameter file. EtherNet/IP communication with the ControlLogix PLC should be confirmed before returning the drive to automatic control mode.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects and premature component failure under normal operating conditions from the date of shipment. This warranty period aligns with typical annual maintenance cycles in process industries, allowing maintenance teams to plan board-level replacements with confidence. For facilities operating PowerFlex drives in critical applications, maintaining a bonded spare inventory of the 170947 — covered under warranty — provides a cost-effective insurance policy against unplanned downtime. Contact our technical team for warranty claim procedures and extended support options.
