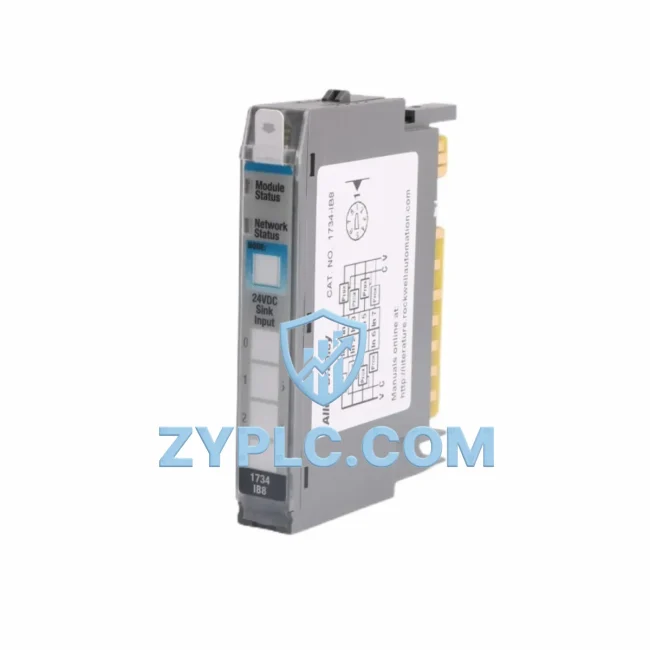

Allen-Bradley 1734-IB8 System-Ready Digital Input for POINT I/O Architecture

Allen-Bradley 1734-IB8 System-Ready Digital Input for POINT I/O Architecture

The Allen-Bradley 1734-IB8 is an 8-point, 24VDC sinking digital input module engineered for seamless integration within Rockwell Automation’s POINT I/O distributed control architecture. Rather than functioning as a standalone component, the 1734-IB8 occupies a precise role within a layered automation system — bridging field-level signal acquisition with the control layer’s decision logic. Its compact DIN-rail-mounted form factor, deterministic signal response, and native ControlNet/EtherNet/IP compatibility make it a foundational element in high-density I/O configurations across manufacturing, power distribution, petrochemical, and water treatment facilities.

In a complete POINT I/O system, the 1734-IB8 mounts directly onto a 1734-TB or 1734-TBS terminal base, which provides both mechanical support and electrical pass-through for field wiring. The module communicates upstream through a 1734-AENT or 1734-AENTR EtherNet/IP adapter — the latter supporting Device-Level Ring (DLR) topology for network-level redundancy. This adapter connects to a ControlLogix or CompactLogix controller backplane, where the 1756-L8x or 1769-L3x processor executes the control program. The 1734-IB8’s input states are mapped directly into the controller’s I/O tree, enabling real-time ladder logic, function block, or structured text processing with sub-millisecond scan cycle integration.

From a power architecture perspective, the 1734-IB8 draws its logic power from the POINT I/O bus via the 1734-EP24DC or 1734-EPAC power distribution module, which segments field power from system logic power — a critical design consideration for noise immunity and fault isolation in process-critical environments. This separation ensures that a field-side wiring fault does not propagate into the controller backplane, maintaining system uptime and simplifying fault diagnostics during commissioning and maintenance cycles.

At the network layer, the 1734-IB8 participates in EtherNet/IP implicit messaging, delivering cyclic I/O data to the controller at configurable RPI (Requested Packet Interval) rates. When deployed alongside a 1734-AENTR adapter in a DLR ring, the system achieves sub-3ms network recovery, ensuring that a single cable break does not interrupt I/O communication — a requirement in continuous process industries such as oil refining, chemical blending, and power generation. For legacy installations, the 1734-ACNR ControlNet adapter provides an alternative communication path with scheduled and unscheduled messaging support.

The human-machine interface layer interacts with the 1734-IB8’s data through PanelView Plus 7 or PanelView 5500 terminals connected via EtherNet/IP, displaying real-time input states, diagnostic alarms, and module health indicators. Operators can monitor individual channel status, identify open-wire faults, and acknowledge field device conditions without interrupting the control program — a capability that significantly reduces mean time to repair (MTTR) in high-availability production environments.

At the execution layer, the 1734-IB8 receives signals from proximity sensors, limit switches, pushbuttons, and digital transmitters, feeding discrete state data into interlocking logic that governs actuators, motor starters, and variable frequency drives. In packaging line applications, for example, the module monitors conveyor position sensors and safety gate status, enabling the controller to execute precise sequencing logic coordinated with 1734-OB8 or 1734-OB8E digital output modules driving solenoid valves and pilot relays.

For system architects designing modular, scalable control cabinets, the 1734-IB8 supports hot-swap replacement without powering down the adapter or adjacent modules — a feature that minimizes planned maintenance windows and supports continuous operation in 24/7 production facilities. Combined with RSLogix 5000 or Studio 5000 Logix Designer’s online editing capability, engineers can modify I/O mapping, adjust filter times, and update module properties while the controller remains in Run mode.

ZYPLC maintains verified stock of the 1734-IB8 with full traceability documentation, supporting procurement teams that require certified-origin components for regulated industries. Each unit is covered by a 12-Month Warranty, providing assurance for both project commissioning phases and long-term spare parts programs. Our technical team supports Contextual Integration — ensuring the 1734-IB8 is configured, documented, and validated within your specific system architecture before shipment.

Architecture Specification Table

Coordinated Control System Design

The 1734-IB8 achieves its full operational value when deployed within a coordinated POINT I/O system architecture. A typical high-availability configuration integrates the following components across control, I/O, network, and power layers:

At the controller level, a 1756-L85E ControlLogix processor or 1769-L36ERM CompactLogix controller serves as the primary execution engine, processing input data from the 1734-IB8 within its I/O scan cycle. For redundant controller architectures, a 1756-SRM ControlLogix Redundancy Module synchronizes primary and secondary chassis, ensuring bumpless transfer in the event of a controller fault. The 1734-IB8’s input data is continuously mirrored to the secondary controller, maintaining system state integrity without operator intervention.

The 1734-AENTR EtherNet/IP Adapter connects the POINT I/O bank to the plant network via DLR topology, while the 1734-EP24DC Power Distribution Module segments field and logic power within the I/O bank. Adjacent 1734-OB8 Digital Output Modules and 1734-IE4C Analog Input Modules share the same terminal base bus, enabling mixed I/O configurations within a single compact housing. For applications requiring relay-isolated outputs, the 1734-OW4 Relay Output Module complements the 1734-IB8 in motor control and valve actuation circuits.

At the HMI layer, a PanelView Plus 7 terminal connected via EtherNet/IP displays real-time channel status from the 1734-IB8, enabling operators to monitor field device states and respond to diagnostic alerts without accessing the controller programming environment. This coordinated architecture — spanning controller, adapter, I/O modules, power distribution, and HMI — delivers a fully integrated, maintainable, and scalable control system suitable for demanding industrial environments.

Application in Layered Automation Systems

The 1734-IB8 is deployed across a broad range of industrial automation sectors where distributed digital input acquisition is critical to process integrity and system reliability.

In automotive manufacturing and discrete assembly lines, the module monitors tooling position sensors, part-present detectors, and safety interlock switches, feeding real-time status data into sequencing logic that coordinates robotic welding cells, conveyor transfers, and end-of-line test stations. Its 8-channel density and compact 12mm width allow high-point-count I/O configurations within space-constrained control panels.

In power distribution and substation automation, the 1734-IB8 acquires status signals from circuit breakers, disconnect switches, and protection relay auxiliary contacts, providing the SCADA system with real-time switchgear state data. Its ATEX Zone 2 certification supports deployment in hazardous area control rooms adjacent to high-voltage switchgear.

In water and wastewater treatment facilities, the module monitors pump run/fault status, valve open/closed feedback, and level switch states across distributed pump stations connected via EtherNet/IP to a central ControlLogix system. The DLR network topology supported by the 1734-AENTR adapter ensures communication continuity even in the event of a single cable fault in the ring network.

In oil and gas processing and petrochemical plants, the 1734-IB8 integrates with safety instrumented systems (SIS) at the basic process control level, monitoring field device health and process interlocks. Its configurable input filter times allow engineers to suppress contact bounce from mechanical switches while maintaining fast response to genuine process events.

In mining and metallurgical processing, the module supports conveyor belt monitoring, crusher interlock systems, and ore handling equipment status acquisition, operating reliably across the extended temperature range required in outdoor and semi-enclosed industrial environments.

Architecture Engineering FAQ

Q1: Is the 1734-IB8 compatible with both ControlLogix and CompactLogix controller platforms, and what adapter is required?
The 1734-IB8 is fully compatible with both ControlLogix (1756 series) and CompactLogix (1769 series) controllers when used with an appropriate POINT I/O adapter. For EtherNet/IP connectivity, the 1734-AENT (standard) or 1734-AENTR (DLR-capable) adapter is required. For ControlNet connectivity, the 1734-ACNR adapter is used. The adapter is configured in Studio 5000 Logix Designer as a communication bridge, and the 1734-IB8 is added as a child module beneath it in the I/O tree. No special licensing or firmware upgrade is required for standard digital input operation.

Q2: Can the 1734-IB8 be replaced online without shutting down the entire POINT I/O bank, and how does this affect system continuity?
Yes. The 1734-IB8 supports hot-swap replacement at the module level. When a module is removed, the adapter reports a module fault to the controller, which can be programmed to handle the fault condition gracefully — for example, by holding last-known input states or triggering a safe-state output sequence. Upon reinsertion of a replacement module, the adapter automatically downloads the stored configuration to the new module, restoring normal operation without requiring a controller restart or I/O tree reconfiguration. This capability is critical for maintaining production continuity in 24/7 operations.

Q3: What does the 12-Month Warranty from ZYPLC cover, and how does it support long-term spare parts management?
ZYPLC’s 12-Month Warranty covers the 1734-IB8 against manufacturing defects and functional failures under normal operating conditions as specified in the Rockwell Automation product documentation. The warranty period begins from the date of shipment and includes technical support for installation, configuration, and commissioning questions. For long-term spare parts programs, ZYPLC maintains verified stock with full traceability documentation, enabling procurement teams to source replacement modules with confidence in component authenticity and functional integrity. Our Contextual Integration service ensures that replacement modules are pre-configured and validated against your system’s existing I/O mapping before delivery, minimizing on-site commissioning time during unplanned maintenance events.

—
