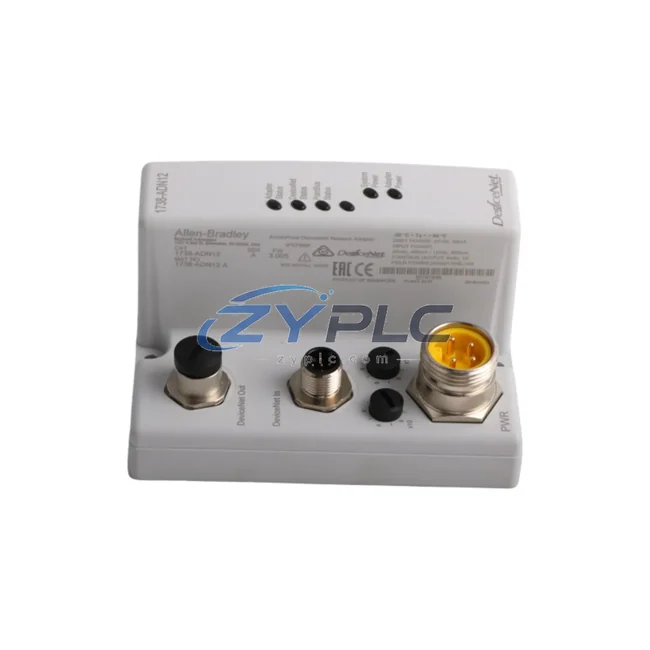

Allen-Bradley 1738-ADN12 Industrial Network Interface for ArmorBlock Systems

Allen-Bradley 1738-ADN12: Industrial Data Link for ArmorBlock DeviceNet Systems

In modern smart factory environments, seamless data flow between field devices and upper-level control systems is the foundation of operational efficiency. The Allen-Bradley 1738-ADN12 DeviceNet Communication Adapter is engineered to serve as a critical node in this industrial data chain — bridging ArmorBlock I/O modules directly into DeviceNet networks and enabling real-time signal exchange across the full automation hierarchy. From sensor-level signal acquisition to SCADA dashboard visualization, the 1738-ADN12 delivers the protocol translation, network stability, and diagnostic transparency that modern industrial sites demand.

The 1738-ADN12 is a member of the Allen-Bradley ArmorBlock 1738 series, a family of distributed I/O solutions designed for harsh industrial environments. Its IP67-rated housing makes it suitable for direct machine-mount deployment on the factory floor, eliminating the need for control panel enclosures and reducing wiring complexity. By connecting ArmorBlock I/O nodes to a DeviceNet segment, the adapter enables the ControlLogix or CompactLogix PLC controller to poll real-time digital and analog data from distributed field points — including proximity sensors, photoelectric sensors, pneumatic valve banks, and motor starter feedback — without running individual signal cables back to a central panel.

Compatibility & Integration Notes

Connected Automation Data Flow

The 1738-ADN12 sits at the intersection of field-level sensing and network-level intelligence. In a typical deployment, a 1738-IB8 ArmorBlock 8-point digital input module collects binary signals from inductive proximity sensors and limit switches mounted on conveyor lines or robotic end-effectors. These signals are passed through the 1738-ADN12 adapter onto the DeviceNet segment, where a 1756-DNB ControlLogix DeviceNet Scanner module polls the data and delivers it to the ControlLogix L7x PLC backplane in real time.

On the output side, the PLC logic drives a 1738-OB8 ArmorBlock digital output module to actuate solenoid valves, indicator lights, and relay coils — all coordinated through the same DeviceNet network segment managed by the 1738-ADN12. For analog process variables such as pressure, temperature, or flow rate, a 1738-IE4 ArmorBlock 4-channel analog input module feeds 4–20 mA signals through the adapter into the controller’s process data image, enabling closed-loop PID control without additional signal converters.

At the drive level, PowerFlex 40 and PowerFlex 525 variable frequency drives equipped with DeviceNet communication cards connect to the same network segment, allowing the PLC to issue speed references, read actual frequency feedback, and monitor drive fault status — all through the unified DeviceNet data highway managed by the 1738-ADN12 adapter. This eliminates the need for separate hardwired speed reference signals and simplifies drive commissioning.

For operator interaction, a PanelView Plus 7 HMI terminal running FactoryTalk View ME communicates with the ControlLogix controller over EtherNet/IP, displaying real-time I/O status, alarm conditions, and production counters sourced from the DeviceNet field devices connected through the 1738-ADN12. At the SCADA level, a FactoryTalk View SE server or third-party Ignition gateway aggregates this data for plant-wide visualization, historian logging, and KPI dashboards — providing full production transparency from sensor to enterprise.

Where legacy equipment integration is required, a 1788-CN2DN ControlNet-to-DeviceNet Linking Device or a ProSoft Technology MVI56-DFNT gateway can bridge the DeviceNet segment carrying 1738-ADN12 data into EtherNet/IP or Modbus TCP networks, enabling seamless coexistence of multi-protocol architectures within the same smart factory infrastructure.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and upper-level systems operate in disconnected silos, preventing real-time visibility and coordinated control. The Allen-Bradley 1738-ADN12 directly addresses this challenge by providing a standards-based DeviceNet interface that integrates distributed ArmorBlock I/O nodes into a unified network topology.

In facilities where multiple machine cells use different communication protocols — DeviceNet on the assembly line, Modbus RTU on legacy drives, and EtherNet/IP on newer controllers — the 1738-ADN12 serves as the DeviceNet anchor point, while protocol gateways handle cross-network translation. This architecture eliminates the need for point-to-point hardwiring between devices and the control panel, reducing installation costs, improving fault isolation, and enabling remote diagnostics through the DeviceNet network management tools such as RSNetWorx for DeviceNet.

For production line transparency, the 1738-ADN12 enables the PLC to continuously monitor the health of every connected I/O node — detecting communication faults, node dropouts, and power supply anomalies in real time. Alarm conditions are propagated through the DeviceNet network to the ControlLogix controller, which triggers HMI alarm banners and SCADA event logs within milliseconds, enabling rapid operator response and minimizing unplanned downtime.

System expansion is equally straightforward: additional ArmorBlock nodes can be added to the DeviceNet segment up to the network’s node limit (64 nodes), with each new node automatically recognized by RSNetWorx during network commissioning. This scalability makes the 1738-ADN12 an ideal foundation for phased factory automation upgrades, where new machine cells can be integrated into the existing DeviceNet infrastructure without redesigning the control architecture.

Every 1738-ADN12 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify DeviceNet communication integrity, node address configuration, and I/O data exchange. Units are shipped with original manufacturer documentation and are covered by a warranty terms confirmed during quotation against manufacturing defects. Stock is maintained for fast dispatch via DHL or FedEx to global destinations.

Industrial Connectivity FAQ

Q1: What is the maximum DeviceNet network length supported when using the 1738-ADN12?
A: DeviceNet network length depends on the selected baud rate. At 125 kbps, the trunk line can extend up to 500 meters; at 250 kbps, up to 250 meters; and at 500 kbps, up to 100 meters. Drop lines from the trunk to each 1738-ADN12 node should not exceed 6 meters. Proper termination resistors (121Ω) must be installed at both ends of the trunk to ensure signal integrity and minimize communication errors.

Q2: Is the 1738-ADN12 compatible with both ControlLogix and CompactLogix PLC platforms?
A: Yes. The 1738-ADN12 operates as a standard DeviceNet adapter (slave) node and is compatible with any DeviceNet scanner module, including the 1756-DNB (ControlLogix), 1769-SDN (CompactLogix MicroLogix), and 1747-SDN (SLC 500). Configuration is performed using RSNetWorx for DeviceNet software, and the EDS (Electronic Data Sheet) file for the 1738-ADN12 is available from Rockwell Automation’s product compatibility and download center.

Q3: How does the 1738-ADN12 support remote diagnostics and predictive maintenance?
A: The 1738-ADN12 exposes node-level diagnostic data through the DeviceNet network, including communication status, I/O module health, and power supply voltage. This data is accessible in real time through the ControlLogix controller’s tag database and can be surfaced on FactoryTalk View HMI screens or forwarded to a FactoryTalk AssetCentre or Ignition SCADA historian for trend analysis. Persistent communication faults or voltage anomalies can trigger predictive maintenance alerts before equipment failure occurs.

Q4: What warranty and quality assurance does ZYPLC provide for the 1738-ADN12?
A: All 1738-ADN12 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including DeviceNet node communication verification and I/O data exchange validation. Units are sourced from authorized distribution channels and shipped with original Allen-Bradley product documentation. For warranty claims or technical support, contact our team directly at plc.sales@zyplc.com or +86 19859288691.
