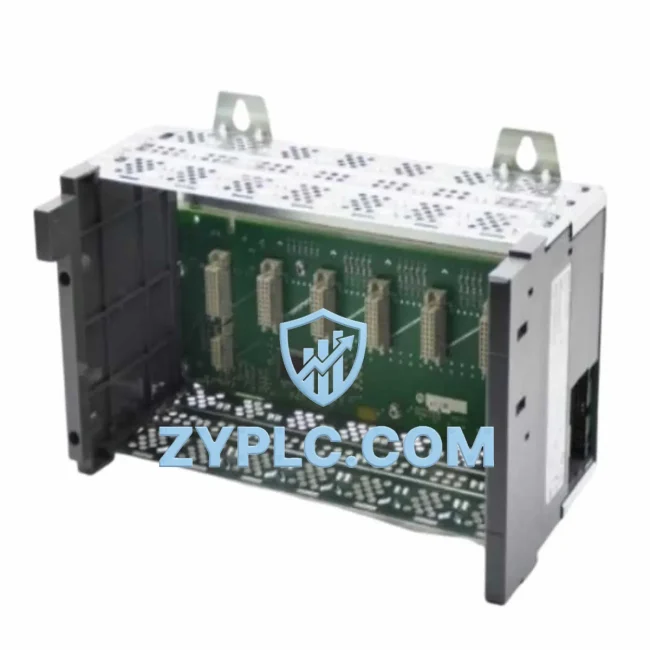

Allen-Bradley 1746-A13 System-Ready Chassis for SLC 500 Architecture

Allen-Bradley 1746-A13 System-Ready Chassis for SLC 500 Architecture: Control System Architecture and Upstream-Downstream Coordination

In modern industrial automation, the chassis is far more than a passive mounting structure — it is the physical and electrical backbone of the entire control system. The Allen-Bradley 1746-A13 13-slot chassis is engineered specifically for the SLC 500 platform, providing the structural foundation upon which a complete, scalable, and redundancy-capable control architecture is built. Understanding the 1746-A13 in isolation misses the point: its true value emerges when it is evaluated as a system-level component, coordinating signal flow, power distribution, I/O expansion, and communication across every layer of the automation hierarchy.

The SLC 500 platform has long been a cornerstone of discrete and process control in industries ranging from automotive assembly and food and beverage processing to water treatment, mining, and power distribution. The 1746-A13 chassis, with its 13 available I/O module slots, is the largest in the SLC 500 chassis family, making it the preferred choice for applications that demand high I/O density within a single rack. When paired with a compatible SLC 5/03, SLC 5/04, or SLC 5/05 processor module — such as the 1747-L531, 1747-L541, or 1747-L551 — the chassis becomes the nerve center of the control layer, managing scan cycles, executing ladder logic, and coordinating all downstream field devices.

Power integrity is a foundational requirement for any reliable control system, and the 1746-A13 is designed to work seamlessly with the SLC 500 power supply family. The 1746-P4 and 1746-P7 power supply modules mount directly into the chassis, delivering regulated DC power to the processor and all installed I/O modules. Proper power supply selection — accounting for total module current draw, inrush characteristics, and redundancy requirements — is essential during system design. In applications where power continuity is critical, engineers often specify dual power supply configurations or integrate the chassis into a broader UPS-backed power architecture.

At the I/O layer, the 1746-A13 chassis accommodates the full range of SLC 500 I/O modules, including digital input modules such as the 1746-IB16 and 1746-IA16, digital output modules such as the 1746-OB16 and 1746-OW16, and analog modules including the 1746-NI4 and 1746-NO4I. This flexibility allows engineers to configure the rack precisely to the signal types required by the application — whether handling 24VDC discrete signals from proximity sensors and pushbuttons, 120VAC signals from field devices, or 4–20mA analog signals from pressure transmitters and flow meters. The 13-slot form factor ensures that even complex, multi-signal applications can be accommodated within a single chassis, reducing wiring complexity and simplifying cabinet layout.

Communication and network integration are increasingly central to modern control system design, and the 1746-A13 supports this through compatibility with SLC 500 communication modules. The 1747-SDN DeviceNet Scanner module enables the SLC 500 processor to act as a master on a DeviceNet network, communicating with distributed I/O blocks, variable frequency drives, and smart field devices. For DH+ network connectivity — essential in legacy and hybrid architectures — the 1747-KE or 1747-AIC interface modules provide reliable peer-to-peer and host communication. In Ethernet-connected facilities, the 1747-AENTR EtherNet/IP adapter bridges the SLC 500 rack to plant-level SCADA systems, MES platforms, and Rockwell Automation FactoryTalk environments.

From a system architecture perspective, the 1746-A13 chassis also plays a role in expansion and redundancy planning. In larger systems, multiple SLC 500 racks can be linked via the 1746-BAS or remote I/O adapter modules, allowing the control architecture to scale beyond the physical limits of a single chassis without requiring a migration to a ControlLogix or CompactLogix platform. This makes the 1746-A13 particularly valuable in brownfield environments where SLC 500 infrastructure is already established and capital investment in platform migration is not yet justified.

At the human-machine interface layer, the 1746-A13-based system integrates naturally with PanelView terminals and other HMI platforms via DH+ or EtherNet/IP, providing operators with real-time visibility into process status, alarm conditions, and production metrics. The consistency of the SLC 500 data table structure simplifies HMI tag mapping and reduces commissioning time, particularly in multi-rack or multi-processor architectures.

Long-term maintainability is a critical consideration for any industrial control system, and the 1746-A13 chassis supports this through its standardized form factor, broad module compatibility, and the continued availability of SLC 500 spare parts in the global market. Facilities that standardize on the 1746-A13 chassis benefit from simplified spare parts management, reduced technician training requirements, and faster mean time to repair (MTTR) during unplanned downtime events. All units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring that your system investment is protected and that any hardware issues are resolved without additional cost during the warranty period.

Architecture Specification Table

Coordinated Control System Design

The 1746-A13 chassis reaches its full potential when integrated into a coordinated SLC 500 control system. A typical architecture begins with the processor module — commonly the 1747-L541 (SLC 5/04) or 1747-L551 (SLC 5/05) — occupying slot 0 of the chassis. The remaining 12 slots are allocated to I/O modules based on the application’s signal requirements. Digital input modules such as the 1746-IB16 handle 24VDC field signals from sensors, limit switches, and pushbuttons, while output modules such as the 1746-OB16 drive solenoids, indicator lights, and relay coils. For process control loops, analog input modules like the 1746-NI4 receive 4–20mA signals from field transmitters, and analog output modules such as the 1746-NO4I provide setpoint signals to control valves and variable frequency drives.

Communication modules installed in the chassis extend the system’s network reach. The 1747-SDN DeviceNet Scanner allows the SLC 5/04 processor to manage a DeviceNet network of distributed I/O and smart devices, while the 1747-AENTR adapter connects the rack to an EtherNet/IP network for integration with plant-level systems. In facilities using legacy DH+ infrastructure, the 1747-KE module provides reliable connectivity to programming terminals, HMI panels, and peer PLCs. This layered communication architecture ensures that the 1746-A13 chassis can serve as both a standalone control node and a fully networked component within a larger automation system.

For applications requiring expanded I/O beyond the 13-slot chassis capacity, remote I/O expansion racks — connected via the 1747-ASB Remote I/O Adapter — allow additional SLC 500 I/O modules to be distributed throughout the facility while remaining under the control of the main processor. This architecture is particularly effective in large-footprint applications such as conveyor systems, packaging lines, and water treatment facilities, where field devices are physically distributed across a wide area.

Application in Layered Automation Systems

The Allen-Bradley 1746-A13 chassis is deployed across a wide range of industrial sectors, each with distinct control requirements. In discrete manufacturing environments — such as automotive body assembly, electronics production, and metal fabrication — the chassis serves as the central control node for machine-level automation, managing tooling sequences, safety interlocks, and production counting. The high slot count of the 1746-A13 accommodates the diverse I/O mix typical of complex machine control applications.

In the power and utilities sector, the 1746-A13 is used in substation automation, pump station control, and generator management systems. Its robust operating temperature range and compatibility with industrial-grade I/O modules make it well-suited for the demanding electrical environments found in power distribution facilities. The ability to integrate with SCADA systems via EtherNet/IP or DH+ ensures that operators maintain full visibility and control over critical infrastructure.

In the oil, gas, and petrochemical industries, the 1746-A13 chassis is deployed in wellhead control panels, pipeline monitoring systems, and refinery process control applications. Its compatibility with analog I/O modules enables precise measurement and control of pressure, temperature, flow, and level variables. In water and wastewater treatment facilities, the chassis manages pump sequencing, chemical dosing, and filtration processes, often operating continuously for years with minimal maintenance intervention.

Mining and metallurgical applications benefit from the 1746-A13’s ability to handle high I/O counts within a single rack, simplifying control cabinet design in environments where space and cable management are critical constraints. Packaging and material handling lines rely on the chassis for high-speed discrete I/O processing, coordinating conveyors, labelers, fillers, and palletizers within a unified control architecture.

Architecture Engineering FAQ

Q1: Is the 1746-A13 chassis compatible with all SLC 500 processor and I/O modules?
Yes. The 1746-A13 is fully compatible with all SLC 500 processor modules (SLC 5/01 through SLC 5/05) and the complete range of 1746-series I/O modules, including digital, analog, specialty, and communication modules. When configuring the system, ensure that the total current draw of all installed modules does not exceed the rated output of the selected power supply module (e.g., 1746-P4 or 1746-P7). RSLogix 500 software provides a power budget calculation tool to assist with this verification during system design.

Q2: Can the 1746-A13 chassis be used in a redundant control architecture?
The SLC 500 platform does not natively support hot-standby processor redundancy in the same manner as the ControlLogix platform with 1756-RM redundancy modules. However, system-level redundancy can be achieved through careful architecture design, including redundant power supplies, redundant communication paths, and the use of remote I/O expansion racks to distribute control functions. For applications requiring full processor redundancy, a migration path to the ControlLogix platform should be evaluated. ZYPLC can assist with both SLC 500 system design and ControlLogix migration planning.

Q3: What does the 12-Month Warranty cover, and what support is available during the warranty period?
All Allen-Bradley 1746-A13 chassis units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and hardware failures under normal operating conditions. During the warranty period, ZYPLC provides replacement or repair of defective units at no additional cost. Our technical support team is available to assist with installation, commissioning, and troubleshooting questions. For urgent requirements, expedited replacement units can be arranged to minimize system downtime. Contact ZYPLC at +86 19859288691 or [email protected] for warranty claims and technical support.
