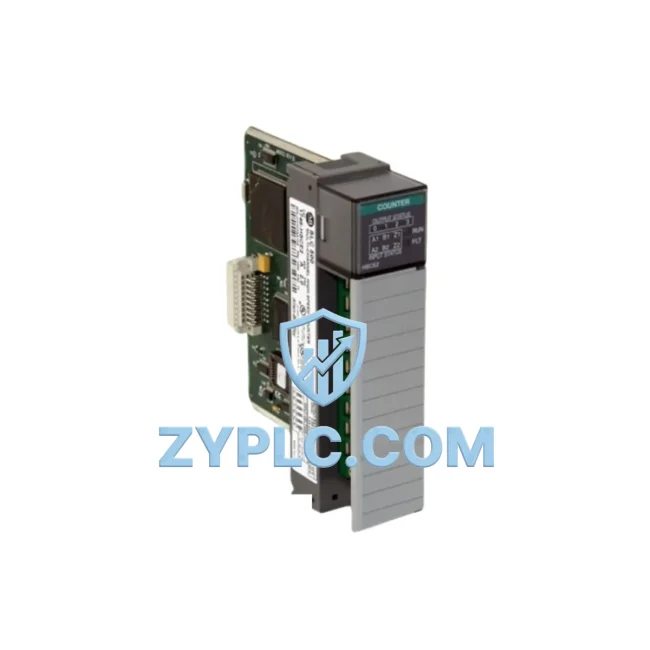

Allen-Bradley 1746-HSCE2 System-Ready High-Speed Counter for SLC 500 Architecture

Allen-Bradley 1746-HSCE2 System-Ready High-Speed Counter for SLC 500 Architecture

The Allen-Bradley 1746-HSCE2 is a dual-channel high-speed counter and encoder interface module engineered for seamless integration within the SLC 500 modular control platform. Designed to occupy a single slot in the 1746 I/O chassis, this module delivers precise pulse counting, quadrature encoder decoding, and rate measurement capabilities at speeds up to 1 MHz per channel — making it an indispensable component in demanding motion-sensitive and process-critical automation architectures.

In modern layered automation systems, the 1746-HSCE2 does not operate in isolation. Its value is realized through its contextual integration within a complete SLC 500 control hierarchy. The module interfaces directly with the SLC 5/03, SLC 5/04, or SLC 5/05 processor — such as the 1747-L531, 1747-L541, or 1747-L551 — via the 1746 backplane, enabling deterministic data exchange without consuming scan-time resources from the main ladder logic program. This architecture ensures that high-frequency encoder signals are captured and processed independently, preserving CPU bandwidth for supervisory control tasks.

The module supports both single-ended and differential encoder inputs, accommodating a wide range of field devices including incremental rotary encoders, linear scales, and proximity-based pulse generators. Its configurable gate, reset, and output functions allow engineers to tailor counting behavior to specific machine sequences — from packaging line indexing to conveyor speed regulation — without requiring external signal conditioning hardware.

From a system architecture perspective, the 1746-HSCE2 occupies the I/O layer of the control hierarchy, sitting between the field instrumentation layer and the CPU processing layer. Its data is made available to the SLC 500 processor through the standard input image table, where it can be acted upon by ladder logic rungs, compared against setpoints, or forwarded upstream to a supervisory SCADA system via the 1747-SDN DeviceNet Scanner or the 1747-KE DH-485 communication interface module. This multi-layer data flow supports both real-time closed-loop control and historical data logging for process optimization.

Power integrity is a foundational concern in any high-density I/O chassis. The 1746-HSCE2 draws its logic power from the 1746 backplane, which is supplied by a dedicated 1746-P4 or 1746-P7 power supply module. Proper power supply sizing — accounting for all installed I/O modules, the processor, and communication adapters — is essential to ensure stable operation of the counter module under full encoder load. Engineers should verify backplane current budgets during system commissioning to prevent voltage droop that could cause missed counts or erratic output behavior.

In redundant or high-availability architectures, the 1746-HSCE2 can be deployed in parallel chassis configurations where a secondary SLC 500 rack mirrors the primary system. While the SLC 500 platform does not natively support hot-standby CPU redundancy in the manner of ControlLogix with the 1756-RM2 redundancy module, system designers can implement application-level redundancy by synchronizing counter data across two processors via DH+ or DH-485 networks, ensuring continuity of position tracking during planned maintenance windows.

For human-machine interface integration, the counter values captured by the 1746-HSCE2 are readily accessible to PanelView 550 or PanelView 900 terminals connected via DH-485, providing operators with real-time visibility into encoder position, accumulated counts, and rate values. This transparency supports both operator situational awareness and maintenance diagnostics without requiring additional instrumentation.

The 1746-HSCE2 is equally at home in terminal block wiring environments. Field wiring connects through the module’s removable screw-terminal connector, which is compatible with standard 1746 I/O wiring arms. For installations requiring marshalling or signal distribution, the module integrates cleanly with 1492-IFM interface modules and terminal blocks, simplifying cabinet layout and reducing wiring errors during commissioning.

Long-term maintainability is a core design consideration for any industrial control component. The 1746-HSCE2 benefits from Allen-Bradley’s extensive SLC 500 ecosystem, where replacement modules, spare parts, and technical documentation remain widely available. ZYPLC maintains verified stock of the 1746-HSCE2 with full functional testing prior to shipment, supporting both emergency replacement scenarios and planned lifecycle refresh programs. Every unit supplied by ZYPLC is covered by a 12-Month Warranty, providing procurement teams and maintenance engineers with the confidence needed for long-term asset planning.

Architecture Specification Table

Coordinated Control System Design

The 1746-HSCE2 achieves its full potential when deployed as part of a coordinated SLC 500 control architecture. At the processor level, the SLC 5/04 (1747-L541) provides the computational backbone, executing ladder logic that reads counter accumulator values from the 1746-HSCE2 input image and compares them against programmed setpoints to trigger downstream actions. The processor communicates with the counter module via the 1746-A13 13-slot chassis backplane, which also houses discrete I/O modules such as the 1746-IB16 16-point 24 VDC input module and the 1746-OB16 16-point output module for interfacing with field actuators and sensors.

Network connectivity is provided by the 1747-SDN DeviceNet Scanner module, which enables the SLC 500 system to communicate with distributed I/O nodes, variable frequency drives, and smart field devices across the plant floor. For upstream SCADA integration, the 1747-KE DH-485 to RS-232C interface module bridges the SLC 500 network to supervisory systems, allowing counter data to be logged and visualized at the control room level. Power for the entire chassis assembly is delivered by the 1746-P4 power supply, rated at 10A at 5 VDC and 1.75A at 24 VDC, ensuring stable operation across all installed modules including the 1746-HSCE2 under maximum encoder load conditions.

For operator interaction, a PanelView 550 (2711-B5A8) terminal connected via DH-485 provides a local HMI interface where operators can monitor real-time counter values, reset accumulators, and acknowledge output states — all without requiring laptop-based programming tools during normal production operation. This complete architecture — from encoder field device through the 1746-HSCE2, across the SLC 500 backplane, up through the processor, and out to the HMI and SCADA layers — represents a fully integrated, maintainable, and scalable control solution.

Application in Layered Automation Systems

The 1746-HSCE2 finds application across a broad spectrum of industrial sectors where precise pulse counting and encoder feedback are critical to process integrity. In manufacturing and packaging lines, the module tracks product counts on conveyor systems, synchronizes labeling and filling stations with encoder-based position feedback, and enforces batch quantity limits through its configurable output functions. The ability to count at up to 1 MHz ensures that even high-speed production lines — operating at hundreds of units per minute — are accurately monitored without count loss.

In power generation and utilities, the 1746-HSCE2 is used to monitor turbine shaft rotation, track valve actuator position via encoder feedback, and measure flow rates through pulse-output flow meters. Its differential input capability makes it well-suited for electrically noisy environments typical of power plant switchgear rooms and motor control centers. In petrochemical and refinery applications, the module interfaces with positive displacement flow meters and pump stroke counters, providing accurate volumetric totalization for custody transfer and process accounting purposes.

Water and wastewater treatment facilities deploy the 1746-HSCE2 to monitor pump rotation, track chemical dosing pump strokes, and measure flow through turbine-type flow meters. In mining and minerals processing, the module tracks conveyor belt speed and material throughput via encoder-equipped drive systems, enabling load optimization and predictive maintenance scheduling. Metallurgical and rolling mill applications leverage the module’s high-speed counting capability to measure strip speed and length in continuous casting and rolling operations, where encoder accuracy directly impacts product dimensional quality. Across all these sectors, the 1746-HSCE2’s integration within the SLC 500 architecture ensures that counter data is available to the full control system — from local ladder logic to enterprise-level MES and ERP systems — supporting both real-time control and long-term production analytics.

Architecture Engineering FAQ

Q1: Is the 1746-HSCE2 compatible with all SLC 500 processor models, and are there any chassis slot restrictions?
The 1746-HSCE2 is compatible with all SLC 500 processors — including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05 — when used with block transfer programming. Direct I/O mapping is supported on SLC 5/02 and higher processors. The module occupies a single I/O slot in any 1746 chassis (4-slot through 13-slot configurations) and has no slot position restrictions. Engineers should verify that the chassis power supply — such as the 1746-P4 or 1746-P7 — has sufficient backplane current capacity after accounting for all installed modules.

Q2: How does the 1746-HSCE2 integrate with existing SLC 500 programs, and what programming changes are required when replacing a failed unit?
The 1746-HSCE2 uses block transfer read (BTR) and block transfer write (BTW) instructions in RSLogix 500 ladder logic to exchange configuration and data with the processor. When replacing a failed unit, no program changes are required provided the replacement module is installed in the same chassis slot. The module’s configuration is stored in the SLC 500 processor data file and is automatically downloaded to the replacement module upon power-up. ZYPLC recommends verifying encoder wiring polarity and output load connections after module replacement, and all units supplied carry a 12-Month Warranty to support maintenance planning.

Q3: Can the 1746-HSCE2 support long-term deployment in harsh industrial environments, and what maintenance practices extend its service life?
The 1746-HSCE2 is rated for operation from 0°C to 60°C with 5–95% relative humidity (non-condensing), making it suitable for most industrial control cabinet environments. For harsh environments with elevated dust, vibration, or chemical exposure, the module should be installed in a NEMA 12 or IP54-rated enclosure with filtered ventilation. Periodic inspection of encoder input wiring for insulation degradation, verification of output load currents against module ratings, and annual functional testing of counter accuracy are recommended maintenance practices. ZYPLC supplies fully tested 1746-HSCE2 units with a 12-Month Warranty, and maintains ongoing stock availability to support both emergency replacement and planned lifecycle refresh programs across long-term plant operations.
