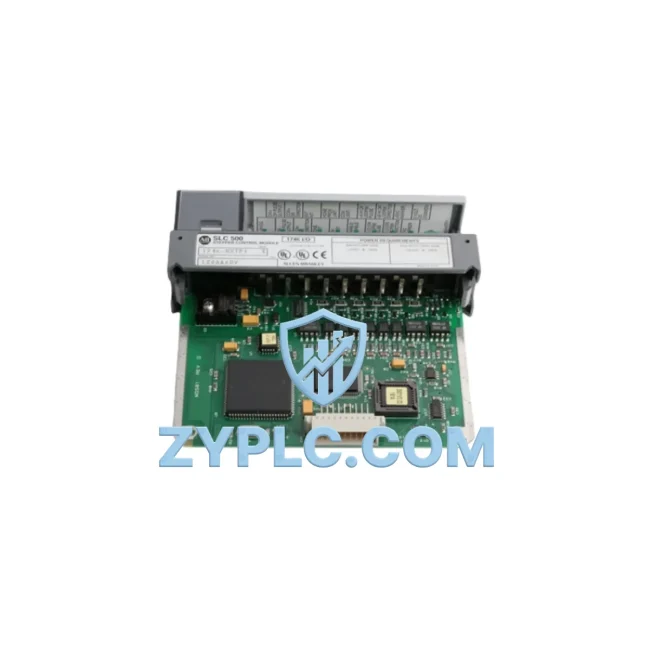

Allen-Bradley 1746-HSTP1 System-Ready Stepper Control for SLC 500

Allen-Bradley 1746-HSTP1 System-Ready Stepper Control for SLC 500 Architecture

The Allen-Bradley 1746-HSTP1 is a high-speed stepper controller module engineered for seamless integration within the SLC 500 modular control platform. Rather than functioning as a standalone motion device, the 1746-HSTP1 is designed to operate as a coordinated layer within a broader automation architecture — bridging the gap between the SLC 500 processor’s logic execution and the physical motion demands of stepper-driven axes on the production floor. Its role in a layered control system spans from command reception at the CPU level, through I/O signal routing, to precise pulse-and-direction output at the drive execution layer.

In a typical SLC 500 rack configuration, the 1746-HSTP1 occupies a standard I/O slot alongside modules such as the 1746-OB16 digital output module and the 1746-IB16 digital input module, forming a tightly coupled signal environment where motion commands and feedback signals share a common backplane. The SLC 5/04 or SLC 5/05 processor — communicating via the 1746-A13 or 1746-A7 chassis backplane — issues motion parameters directly to the 1746-HSTP1 through the rack’s internal data highway, eliminating the need for external motion controllers and reducing system wiring complexity.

At the network layer, the SLC 500 platform supports DH+ and DH-485 communication protocols, enabling the 1746-HSTP1-equipped rack to exchange data with upstream supervisory systems, SCADA platforms, or HMI terminals such as the PanelView 600 or PanelView Plus 700. This connectivity ensures that motion parameters — including step rate, direction, and position targets — can be updated dynamically from the operator interface without interrupting the control loop, supporting both recipe-driven production and manual override scenarios.

Power integrity is a foundational requirement for reliable stepper control. The 1746-HSTP1 draws its logic power from the SLC 500 rack’s 1746-P4 or 1746-P7 power supply, which provides regulated 5 VDC and 24 VDC rails to all installed modules. Stable power delivery is critical for maintaining pulse fidelity at high step rates, and the 1746-P4’s built-in overcurrent protection ensures that a fault in one module does not cascade across the rack. For applications requiring redundant power, an external 24 VDC backup supply can be integrated at the field wiring terminal level.

The 1746-HSTP1 outputs pulse-and-direction signals compatible with a wide range of stepper drives, including those accepting 5 V differential or 24 V single-ended step/direction inputs. In packaging lines, the module controls indexing conveyors and label applicators where precise step counts determine product positioning. In semiconductor handling and precision assembly, it drives lead-screw actuators requiring sub-millimeter repeatability. In textile and wire processing machinery, it manages traverse motion profiles that must synchronize with line speed signals fed back through the 1746-IB16 input module.

From a maintenance and lifecycle perspective, the 1746-HSTP1 benefits from the SLC 500 platform’s well-established spare parts ecosystem. Engineers familiar with RSLogix 500 programming can configure motion parameters — including acceleration ramp, deceleration ramp, maximum step rate, and home search behavior — directly within the ladder logic environment, without requiring a separate motion configuration tool. This reduces commissioning time and simplifies long-term maintenance handover between engineering teams.

For facilities managing multi-axis motion requirements, the 1746-HSTP1 can be deployed in multiple slots within the same chassis, with each instance independently controlled by the SLC processor. Combined with the 1746-NI4 analog input module for encoder or analog feedback integration, the system can implement closed-loop position verification at the PLC level, adding a layer of process assurance without requiring a dedicated motion controller.

Every 1746-HSTP1 unit supplied by ZYPLC is sourced from verified inventory channels, subjected to functional bench testing prior to shipment, and covered by a 12-Month Warranty. Stock availability is maintained to support both urgent replacement orders and planned system expansions. Fast global shipping ensures minimal downtime for facilities operating SLC 500-based control architectures across manufacturing, utilities, and process industries.

Architecture Specification Table

Coordinated Control System Design

The 1746-HSTP1 achieves its full potential when deployed within a coherent SLC 500 system architecture. A representative installation begins with the SLC 5/04 processor executing ladder logic that calculates motion profiles and writes command words to the 1746-HSTP1’s output image table. The processor resides in a 1746-A13 chassis, sharing the backplane with the stepper module, a 1746-OB16 digital output module for auxiliary relay control, and a 1746-IB16 digital input module for limit switch and home sensor feedback.

System power is supplied by the 1746-P4 power supply, which delivers clean, regulated voltage to all rack modules. For operator interaction, a PanelView 600 HMI connected via DH-485 provides the operator with real-time position status, step rate adjustment, and fault acknowledgment capability. Where remote I/O expansion is required, a 1747-SN Scanner Module extends the control reach to remote racks without adding processor overhead.

At the field wiring level, a 1492-IFM terminal block interface module simplifies the connection between the 1746-HSTP1’s I/O connector and the stepper drive’s step/direction inputs, reducing wiring errors during commissioning. For applications requiring analog feedback integration, the 1746-NI4 analog input module in the same rack can accept encoder-derived analog signals or process feedback for supervisory position verification.

Application in Layered Automation Systems

In packaging lines, the 1746-HSTP1 controls indexing conveyors and rotary table drives, where precise step counts ensure consistent product spacing and label registration. The SLC 5/04 processor synchronizes the stepper axis with upstream photoelectric sensors and downstream reject mechanisms, creating a tightly timed production sequence.

In water treatment facilities, the module drives valve actuators and dosing pump mechanisms where repeatable positioning is required for chemical injection accuracy. The DH-485 network connection allows the SLC 500 rack to report actuator position data to a plant-wide SCADA system, supporting regulatory compliance logging.

In mining and mineral processing environments, the 1746-HSTP1 manages conveyor diverter gates and sampling mechanism drives. Its industrial-grade design tolerates the vibration, dust, and temperature variation typical of these environments, while the SLC 500 platform’s proven reliability reduces unplanned downtime in remote or difficult-to-service locations.

In metal fabrication and press operations, the module controls feed stock advancement mechanisms, ensuring consistent material positioning between press cycles. Integration with the 1746-IB16 input module allows press cycle completion signals to trigger the next stepper advance, creating a synchronized feed-and-press sequence without requiring a dedicated motion controller.

Architecture Engineering FAQ

Q1: Is the 1746-HSTP1 compatible with all SLC 500 processor variants, and are there any slot restrictions within the chassis?
The 1746-HSTP1 is compatible with SLC 5/01 through SLC 5/05 processors and can be installed in any standard I/O slot within a 1746-series chassis (1746-A4, 1746-A7, 1746-A10, 1746-A13). It occupies a single slot and communicates via the SLC 500 backplane. No special slot restrictions apply, though it is recommended to position the module away from high-heat sources such as the power supply module for optimal thermal performance.

Q2: What stepper drives are compatible with the 1746-HSTP1’s pulse-and-direction output, and what signal levels does it support?
The 1746-HSTP1 outputs 5 V differential step and direction signals, compatible with the majority of industrial stepper drives that accept standard step/direction input. For drives requiring 24 V single-ended signals, a signal-level converter or optocoupler interface board is recommended at the field wiring level. The 1492-IFM interface module simplifies this wiring transition and reduces commissioning time.

Q3: What does the 12-Month Warranty cover, and what is the testing process before shipment?
Every 1746-HSTP1 unit supplied by ZYPLC undergoes functional bench testing that verifies backplane communication, pulse output integrity, and configuration register operation prior to shipment. The 12-Month Warranty covers hardware defects and functional failures under normal operating conditions. Units are shipped with documentation confirming test completion. For urgent replacement requirements, expedited shipping options are available to minimize production downtime.
