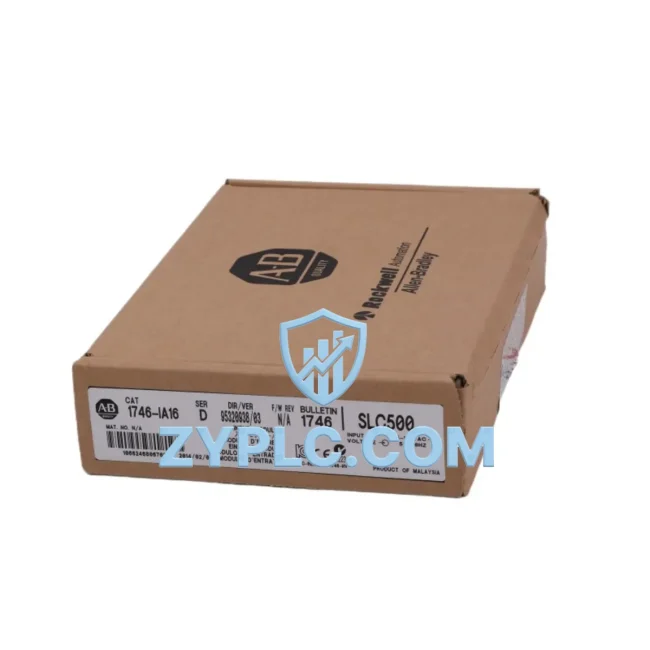

Allen-Bradley 1746-IA16 Energy-Saving AC Input Module SLC 500

Allen-Bradley 1746-IA16 Energy-Saving AC Input Module SLC 500: Precision Input Control for Optimized Automation Efficiency

The Allen-Bradley 1746-IA16 is a 16-point AC input module engineered for the SLC 500 programmable controller platform, delivering reliable signal acquisition and energy-conscious field device integration across demanding industrial environments. As a core component of the SLC 500 modular I/O architecture, the 1746-IA16 enables precise, low-latency input scanning that directly supports reduced cycle times, improved equipment utilization, and measurable reductions in unnecessary energy draw across production lines.

In modern manufacturing facilities where energy costs and equipment uptime are primary operational KPIs, the quality of input signal processing determines how accurately a control system responds to real-world conditions. The 1746-IA16 provides 120V AC field-side compatibility with optical isolation, ensuring clean signal transmission from sensors, limit switches, and field devices — eliminating false triggers that cause unplanned stops, wasted motion, and energy-inefficient restart cycles.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1746-IA16 operates within a tightly integrated SLC 500 control architecture where every component contributes to system-wide energy efficiency. In a typical deployment, the module slots into a 1746-A7 or 1746-A13 chassis alongside the SLC 5/04 processor (1747-L541), which manages the scan cycle and I/O update rate. Faster, cleaner input reads from the 1746-IA16 allow the processor to execute logic with fewer redundant scan passes — directly reducing CPU active time and associated backplane power consumption.

On the output side, the 1746-IA16 pairs naturally with the 1746-OA16 AC output module, forming a matched discrete I/O pair that maintains signal symmetry across the control loop. When the system drives motor starters or contactors, the accuracy of input feedback from the 1746-IA16 ensures that the PowerFlex 40 (22B) variable frequency drive receives correctly timed run/stop commands — preventing unnecessary motor acceleration cycles that waste energy and accelerate mechanical wear.

For applications involving servo-driven axes, the 1746-IA16 feeds position and limit signals into the SLC 500 processor, which coordinates motion commands to Kinetix 300 or Kinetix 6000 servo drives. Accurate limit switch inputs prevent overtravel events that force emergency stops and full-speed restarts — one of the most energy-intensive and mechanically damaging events in automated production.

Energy monitoring integration is achieved by pairing the SLC 500 system with a PowerMonitor 1000 or PowerMonitor 5000 unit connected via the 1747-SDN DeviceNet Scanner module. Real-time power consumption data flows back into the SLC 500 logic, enabling demand-based control strategies that throttle non-critical outputs during low-production windows. The 1746-IA16’s reliable input scanning ensures that energy management triggers — such as peak-demand shutoff signals — are processed without delay or misread.

Communication to supervisory systems is handled through the 1747-KE DH-485 to RS-232 interface or the 1761-NET-ENI Ethernet adapter, allowing the SLC 500 platform to report I/O status and energy metrics to SCADA or MES layers. This closed-loop data flow — from field input through the 1746-IA16, processed by the SLC 5/04, and reported via Ethernet — forms the backbone of a responsive, energy-aware automation architecture.

Power Optimization in Real Production Lines

In discrete manufacturing environments — including automotive assembly, food and beverage packaging, and electronics production — the 1746-IA16 contributes to energy optimization through three primary mechanisms.

Reduced unplanned downtime: Optically isolated, noise-immune AC inputs prevent spurious signals from field wiring, eliminating nuisance trips that force production stops. Every unplanned stop on a line running servo motors, conveyors, and pneumatic actuators represents a significant energy spike during restart — motors draw 5–7× rated current at startup. By maintaining clean input integrity, the 1746-IA16 directly reduces the frequency of these high-energy restart events.

Optimized scan-cycle efficiency: The 1746-IA16’s fast input response time allows the SLC 500 processor to operate at tighter scan intervals without sacrificing signal accuracy. Tighter scan cycles mean faster response to process changes — reducing the time equipment runs in idle or transitional states between operations. On a packaging line, for example, this translates to fewer conveyor dwell periods and more consistent throughput per shift.

Predictive maintenance enablement: When integrated with condition monitoring sensors — vibration, temperature, or current transducers wired through the 1746-IA16 — the SLC 500 system can detect early signs of motor or mechanical degradation. Addressing issues before failure avoids the energy waste of running degraded equipment at reduced efficiency, and eliminates the energy cost of emergency repair cycles and production recovery.

All units supplied by ZYPLC are sourced from verified inventory channels, subjected to pre-shipment functional testing, and covered by a 12-month warranty. Stock availability is maintained to support both planned maintenance schedules and urgent replacement requirements, with fast global shipping to minimize production downtime.

Energy Optimization FAQ

Q: How does the 1746-IA16 contribute to energy savings compared to a standard AC input module?
A: The 1746-IA16’s optical isolation and noise filtering reduce false-trigger events that cause unplanned stops and high-current motor restarts. By maintaining clean, accurate input signals, the module helps the SLC 500 system execute control logic more efficiently — reducing unnecessary actuator cycling, idle conveyor time, and energy-intensive restart sequences.

Q: Is the 1746-IA16 compatible with all SLC 500 chassis and processor variants?
A: Yes. The 1746-IA16 is compatible with all standard 1746-series chassis (A4, A7, A10, A13) and all SLC 500 processor variants including the SLC 5/01 through SLC 5/05. It can be mixed freely with other 1746-series I/O modules including output, analog, and specialty modules.

Q: Can the 1746-IA16 be used as a direct replacement for a failed module without reprogramming?
A: In most cases, yes. The 1746-IA16 is a standard catalog replacement that maintains the same slot addressing and I/O mapping as the original module. No processor reprogramming is required when replacing a like-for-like module in the same chassis slot. Verify the existing program’s I/O configuration map before installation to confirm slot assignment.

Q: What is the warranty coverage and how is pre-shipment testing conducted?
A: Every 1746-IA16 unit shipped by ZYPLC carries a 12-month warranty covering functional defects under normal operating conditions. Prior to shipment, each module undergoes functional verification testing to confirm input channel integrity, optical isolation performance, and backplane communication. Test records are available upon request for quality-controlled procurement processes.
