Allen-Bradley 1746-IN16 System-Ready Digital Input for SLC 500 Architecture

Allen-Bradley 1746-IN16 System-Ready Digital Input for SLC 500 Architecture

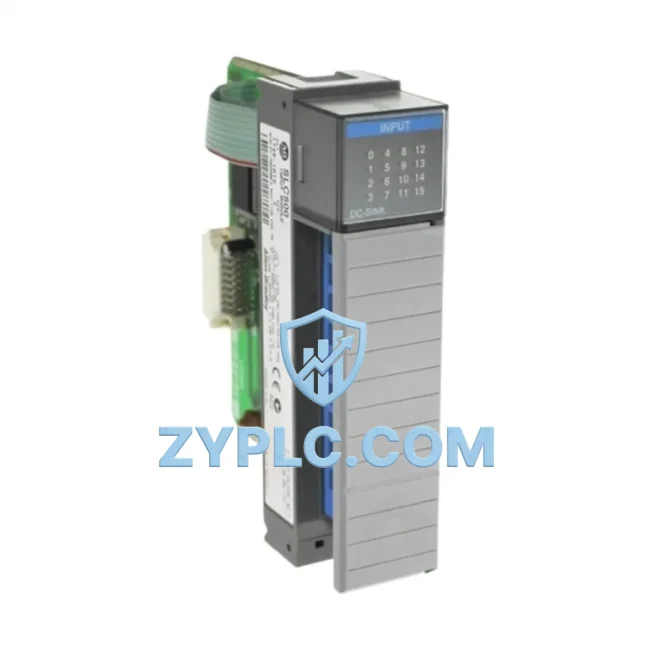

The Allen-Bradley 1746-IN16 is a 16-point digital input module engineered for seamless integration within the SLC 500 modular control platform. Rather than functioning as a standalone component, the 1746-IN16 occupies a defined role within a layered automation architecture — bridging field-level signal acquisition with the SLC 500 processor’s scan cycle to deliver deterministic, reliable I/O performance across demanding industrial environments. Whether deployed in discrete manufacturing, power distribution, water treatment, or process control applications, this module contributes to system-wide consistency, scalability, and long-term maintainability.

Architecture Specification Table

Coordinated Control System Design

The 1746-IN16 achieves its full value when considered within the complete SLC 500 control architecture. At the processor layer, the Allen-Bradley 1747-L543 SLC 5/04 CPU or 1747-L553 SLC 5/05 CPU manages the I/O scan, reading the 16 digital input states from the 1746-IN16 on every program cycle. The processor communicates with upstream SCADA or DCS systems via the 1747-KE DH-485 to RS-232 communication module or through Ethernet/IP using the 1747-AENTR EtherNet/IP adapter, enabling Contextual Integration with plant-wide data historians and MES platforms.

Within the same 1746 chassis, the 1746-IN16 typically operates alongside output modules such as the 1746-OB16 DC output module or 1746-OW16 relay output module, forming a balanced I/O complement for machine control logic. Power to the chassis backplane is supplied by the 1746-P4 power supply, which provides regulated 5V DC and 24V DC rails to all installed modules, including the 1746-IN16. For applications requiring redundant power architectures, a secondary 1746-P2 power supply can be configured in parallel chassis arrangements.

At the network layer, the 1747-SDN DeviceNet Scanner module extends the SLC 500 system’s reach to distributed field devices — sensors, actuators, and smart drives — while the 1746-IN16 handles hardwired discrete signals from limit switches, proximity sensors, pushbuttons, and safety interlocks. This dual-layer signal acquisition strategy ensures that both networked and hardwired field signals are captured within a single unified control platform.

For human-machine interface integration, the SLC 500 system commonly pairs with Allen-Bradley PanelView 600 or PanelView Plus 700 HMI terminals, which read input status data from the processor’s data table — including the real-time states of all 16 points on the 1746-IN16 — to display process status, alarm conditions, and operator prompts. This Contextual Integration between the I/O layer and the HMI layer eliminates the need for separate signal conditioning or intermediate relay logic, reducing panel complexity and wiring costs.

In redundancy-critical applications, the SLC 500 architecture supports hot-standby configurations using dual processors and mirrored I/O chassis, where the 1746-IN16 modules in both primary and standby chassis receive identical field signals simultaneously. This design ensures bumpless transfer during processor failover, maintaining continuous process control without signal interruption.

Application in Layered Automation Systems

In discrete manufacturing environments — such as automotive assembly lines, packaging machinery, and material handling conveyors — the 1746-IN16 captures high-frequency digital signals from photoelectric sensors, inductive proximity switches, and mechanical limit switches. Its 16-point density allows a single module slot to monitor an entire machine section, reducing chassis slot consumption and simplifying maintenance access.

In power distribution and electrical substation applications, the 1746-IN16 monitors breaker status, relay contact states, and interlock conditions, feeding real-time electrical system status to the SLC 500 processor for automated switching logic and fault annunciation. The module’s optical isolation ensures that high-voltage transients on the field wiring do not propagate to the backplane or processor.

In water and wastewater treatment facilities, the 1746-IN16 monitors pump run/stop feedback, valve open/closed confirmation, and level switch states across multiple process stages. Its wide operating temperature range and Class I Division 2 certification make it suitable for installation in control panels located in classified hazardous areas adjacent to chemical dosing or aeration systems.

In oil, gas, and petrochemical process plants, the module integrates with SLC 500-based emergency shutdown (ESD) systems, capturing field device status signals and feeding them to the processor’s safety logic routines. Combined with the 1746-OW16 relay output module for actuator control, the 1746-IN16 forms the sensing backbone of process interlock and shutdown architectures.

In mining and metallurgical operations, the 1746-IN16 monitors conveyor belt alignment switches, crusher overload contacts, and hopper level indicators, providing the SLC 500 processor with the real-time field data needed to execute protective shutdown sequences and production optimization logic.

Architecture Engineering FAQ

Q1: Is the 1746-IN16 compatible with all SLC 500 chassis sizes, and can it be mixed with other 1746 series I/O modules in the same chassis?
Yes. The 1746-IN16 is fully compatible with all standard 1746 series chassis configurations — 4-slot (1746-A4), 7-slot (1746-A7), 10-slot (1746-A10), and 13-slot (1746-A13). It can be installed in any I/O slot and mixed freely with other 1746 series analog, digital output, and specialty modules. The SLC 500 processor automatically recognizes the module type and maps its 16 input bits into the processor’s input data file (I-file) during the I/O configuration scan. No special addressing or jumper configuration is required beyond standard chassis slot assignment in RSLogix 500.

Q2: How does the 1746-IN16 support Contextual Integration with SCADA and MES systems, and what communication paths are available?
The 1746-IN16 itself communicates exclusively via the SLC 500 backplane bus, but its input data is immediately accessible to the SLC 500 processor, which can relay this data upstream through multiple communication pathways. Using the 1747-AENTR EtherNet/IP adapter or the 1747-KE DH-485 module, the processor exposes all I/O data — including the 16 input states from the 1746-IN16 — to SCADA platforms such as Rockwell FactoryTalk View, Wonderware InTouch, or Ignition SCADA via standard OPC-DA or OPC-UA protocols. This Contextual Integration enables real-time process visualization, historical data logging, and remote diagnostics without any additional signal conditioning hardware.

Q3: What does the 12-Month Warranty cover, and what is the recommended maintenance and replacement strategy for long-term SLC 500 system operation?
Every 1746-IN16 supplied by ZYPLC is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment, including input point verification, optical isolation integrity checks, and backplane communication validation. For long-term SLC 500 system maintenance, we recommend maintaining at least one spare 1746-IN16 per installed chassis to minimize unplanned downtime. Given that the SLC 500 platform is a mature architecture with a large installed base, ZYPLC maintains ongoing inventory of 1746 series I/O modules to support both emergency replacement and planned lifecycle extension programs. Our technical team provides pre-shipment configuration verification and post-installation support to ensure seamless module swap-in without processor program modification.
