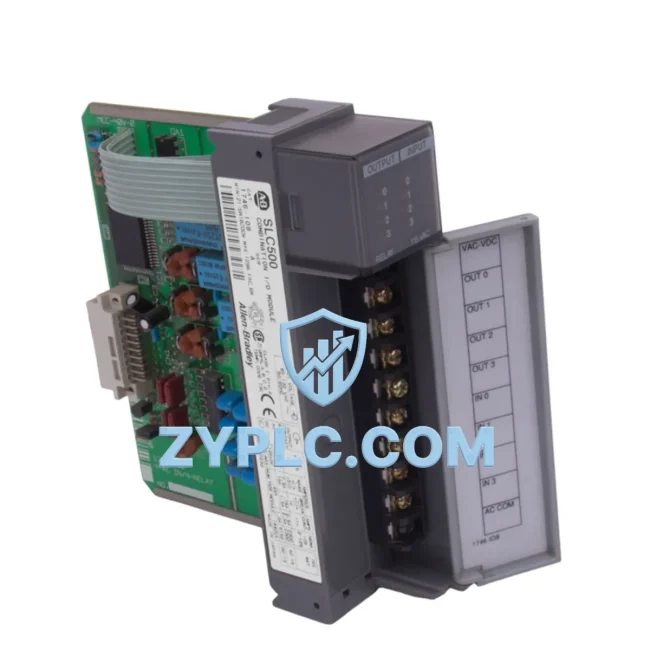

Allen-Bradley 1746-IO8 System-Ready Combo I/O for SLC 500 Architecture

Allen-Bradley 1746-IO8 System-Ready Combo I/O for SLC 500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Allen-Bradley 1746-IO8 is a combination I/O module engineered for seamless integration within the SLC 500 modular control platform. Rather than functioning as a standalone component, the 1746-IO8 occupies a defined role within a layered automation architecture — bridging the field signal layer and the CPU processing layer to deliver reliable, deterministic I/O performance across demanding industrial environments. Understanding its position within the full control system hierarchy is essential for engineers designing scalable, maintainable, and redundancy-capable automation solutions.

In a typical SLC 500 rack-based system, the 1746-IO8 is installed alongside the 1746-P2 or 1746-P4 power supply module, which provides regulated 24 VDC backplane power to all installed modules. The SLC 5/04 or SLC 5/05 processor — such as the 1747-L541 or 1747-L553 — serves as the central processing unit, executing ladder logic and managing I/O data table updates on every scan cycle. The 1746-IO8 contributes both discrete input and discrete output channels within a single module slot, reducing rack space consumption and simplifying wiring in control cabinets where density is a priority.

At the I/O layer, the 1746-IO8 interfaces directly with field devices including proximity sensors, pushbuttons, solenoid valves, and relay coils. Its combination architecture eliminates the need for separate 1746-IB16 input modules and 1746-OB16 output modules in low-channel-count applications, streamlining both the bill of materials and the physical panel layout. For applications requiring higher channel density or analog signal handling, the 1746-IO8 can coexist in the same chassis with 1746-NI4 analog input modules or 1746-NO4I analog output modules, allowing engineers to build mixed I/O configurations within a single 1746-A7 or 1746-A13 chassis.

From a network and communications perspective, the SLC 500 platform supports integration with higher-level supervisory systems via the 1747-SDN DeviceNet Scanner or the 1747-KE DH-485 to RS-232 interface module. When the SLC 5/05 processor is used, native Ethernet/IP connectivity enables direct communication with FactoryTalk View SE SCADA systems or Rockwell Automation’s Studio 5000 environment for remote monitoring and diagnostics. The 1746-IO8 participates in this data flow by populating the I/O data table that the processor exposes to the network layer, ensuring that field-level signal states are accurately reflected at the supervisory level in real time.

For system redundancy and long-term maintainability, the modular architecture of the SLC 500 platform allows the 1746-IO8 to be replaced without disturbing adjacent modules or rewiring the terminal block. The use of 1492-IFM interface modules and pre-wired cable assemblies further accelerates field replacement, reducing mean time to repair (MTTR) in production environments where downtime carries significant cost. Spare module inventory management is simplified by the 1746-IO8’s broad compatibility across all SLC 500 chassis sizes and power supply variants.

In terms of engineering commissioning, the 1746-IO8 is configured through RSLogix 500 software, where I/O addressing, forcing, and diagnostic monitoring are performed. Engineers can verify input signal states and output energization directly from the online monitoring view, enabling rapid fault isolation during startup and periodic maintenance cycles. The module’s LED status indicators provide local visual confirmation of channel states, complementing software-based diagnostics for field technicians working without laptop access.

Architecture Specification Table

Coordinated Control System Design

The 1746-IO8 achieves its full value when evaluated within the context of a coordinated SLC 500 control system. A complete architecture typically includes the 1747-L541 SLC 5/04 processor as the primary CPU, supported by the 1746-P4 power supply providing 10A of backplane current capacity. Discrete I/O expansion is handled through additional 1746-IB16 input modules and 1746-OB16 output modules installed in adjacent slots, while analog process variables are captured via the 1746-NI4 analog input module. Communication to field devices on the DeviceNet network is managed by the 1747-SDN scanner module, and operator interaction is facilitated through a PanelView 600 (2711-K6C5) HMI terminal connected via DH-485. Terminal wiring is organized using 1492-IFM40F interface modules, which provide a structured, pre-wired connection point between the SLC 500 I/O modules and field cable assemblies. For applications requiring remote I/O expansion beyond the local rack, the 1747-ASB remote I/O adapter extends the system’s reach to satellite control panels. Together, these components form a cohesive, validated control architecture in which the 1746-IO8 serves as a compact, dual-function I/O node — reducing slot consumption while maintaining full compatibility with the SLC 500 data table structure and RSLogix 500 programming environment.

Application in Layered Automation Systems

The 1746-IO8 is deployed across a wide range of industrial sectors where the SLC 500 platform remains the established control standard. In discrete manufacturing environments, the module handles machine-level interlocking, conveyor control, and end-of-line inspection signal routing. In power distribution and electrical substation applications, it monitors breaker status inputs and drives indication outputs within motor control centers. Petrochemical and refinery installations use the 1746-IO8 within SLC 500 systems managing pump station control, valve sequencing, and emergency shutdown (ESD) signal monitoring. Water and wastewater treatment facilities rely on the module for level switch inputs and pump run/stop output control within SCADA-integrated SLC 500 architectures. In mining and mineral processing, the module’s robust operating temperature range and backplane-isolated design support reliable operation in dusty, vibration-prone environments. Metals and metallurgy applications leverage the 1746-IO8 for furnace control interlocking and cooling system sequencing. Packaging and material handling lines use the module to coordinate sensor inputs and actuator outputs across multi-station assembly systems. In all these contexts, the 1746-IO8’s combination I/O architecture reduces panel complexity, lowers spare parts inventory requirements, and supports rapid module swap-out under the 12-Month Warranty coverage provided by ZYPLC.

Architecture Engineering FAQ

Q1: Is the 1746-IO8 compatible with all SLC 500 chassis and processor variants?
The 1746-IO8 is compatible with all standard SLC 500 chassis, including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13, and operates with all SLC 500 processor families from the SLC 5/01 through the SLC 5/05. No special configuration is required — the module is automatically recognized by RSLogix 500 upon chassis power-up, and I/O addressing is assigned based on slot position within the rack.

Q2: Can the 1746-IO8 be used in a system with mixed analog and digital I/O requirements?
Yes. The SLC 500 platform supports mixed I/O configurations within the same chassis. The 1746-IO8 can be installed alongside analog modules such as the 1746-NI4 or 1746-NO4I without conflict. Each module occupies its own slot and I/O address space within the SLC 500 data table, and RSLogix 500 manages addressing automatically based on module type and slot assignment.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance?
ZYPLC’s 12-Month Warranty covers the 1746-IO8 against manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides direct replacement support to minimize system downtime. For long-term maintenance planning, ZYPLC maintains stock of the 1746-IO8 and compatible SLC 500 components, enabling rapid fulfillment for both emergency replacements and planned spare parts replenishment programs.
