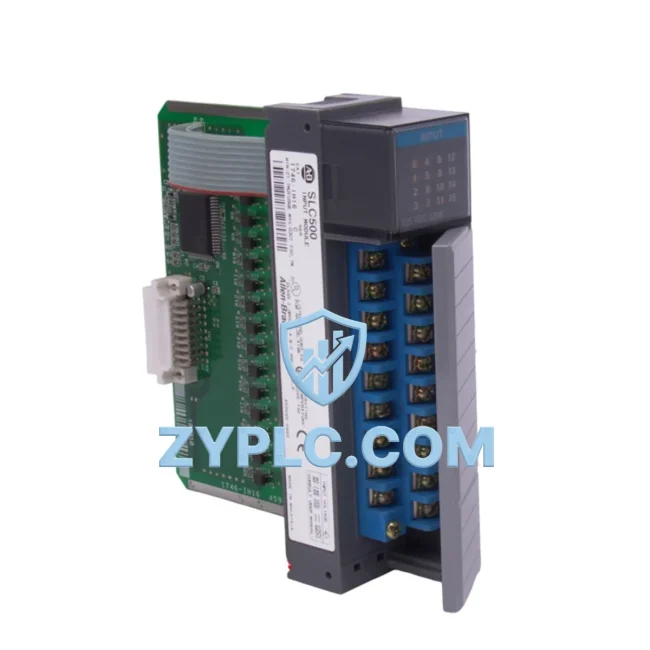

Allen-Bradley 1746-ITV16 Energy-Saving DC Input Module SLC 500

Allen-Bradley 1746-ITV16 Energy-Saving DC Input Module SLC 500: Precision Input Control for Optimized Production Line Efficiency

The Allen-Bradley 1746-ITV16 is a 16-point DC input module engineered for the SLC 500 programmable controller platform, delivering high-density signal acquisition with minimal power draw per channel. In modern industrial environments where energy accountability is no longer optional, the 1746-ITV16 plays a foundational role in reducing parasitic consumption at the field device level — capturing discrete signals from sensors, limit switches, proximity detectors, and push-button stations with consistent electrical integrity across the full operating temperature range. By consolidating 16 input channels into a single SLC 500 I/O slot, this module reduces rack footprint, lowers wiring complexity, and contributes directly to measurable reductions in panel heat load and auxiliary power demand.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1746-ITV16 does not operate in isolation — its true efficiency value emerges when integrated into a well-structured SLC 500 automation architecture. At the controller level, the SLC 5/05 processor (1747-L553) manages scan cycle timing and ladder logic execution, directly influencing how quickly input state changes are acted upon. Faster, more deterministic scan cycles mean motor starters and drive enable signals respond with less latency, reducing the energy wasted during transition states between stopped and running equipment.

On the output side, the 1746-OBP16 DC output module works in tandem with the 1746-ITV16 to form a complete discrete I/O pair — inputs from field sensors feed logic that drives output coils controlling motor contactors, solenoid valves, and conveyor drive enable relays. When paired with a PowerFlex 40 variable frequency drive (VFD), the system gains the ability to modulate motor speed in direct response to process demand signals captured through the 1746-ITV16 input channels, eliminating the energy penalty of running motors at fixed full speed regardless of load.

For energy monitoring at the panel level, the PowerMonitor 500 (1408-EM3A-ENT) integrates seamlessly into the same SLC 500 network, providing real-time kWh, power factor, and demand data that can be fed back into the SLC 5/05 processor via the 1747-SDN DeviceNet Scanner. This closed-loop architecture — where the 1746-ITV16 captures field states, the processor evaluates energy logic, and the PowerMonitor 500 validates consumption — creates a measurable feedback system for continuous energy reduction without requiring a full DCS migration.

Communication across the production floor is handled through the 1747-KFC15 ControlNet interface or the 1747-SDN DeviceNet scanner, both of which allow the SLC 500 rack to exchange I/O data and energy metrics with upstream SCADA systems or MES platforms. The 1746-BAS BASIC module can additionally be used for custom energy logging routines directly within the SLC 500 chassis, storing interval data for shift-level energy reporting without external hardware. For HMI visualization, the PanelView 800 (2711R-T7T) provides operators with real-time feedback on input states, drive status, and energy consumption trends — enabling informed decisions at the machine level rather than relying solely on centralized energy management systems.

Power Optimization in Real Production Lines

In a typical discrete manufacturing environment — automotive assembly, food and beverage packaging, or material handling — the 1746-ITV16 contributes to energy optimization through several interconnected mechanisms. First, by providing reliable, noise-immune DC input acquisition, it eliminates false triggering events that cause unnecessary motor starts and stops. Each unplanned start cycle on a 15kW conveyor motor draws 6–8× rated current for 200–400 milliseconds; reducing false starts by even 10 events per shift translates into measurable demand charge reductions on monthly utility bills.

Second, the module’s compatibility with transistor-output (PNP/NPN) proximity sensors and photoelectric detectors allows production lines to implement zone-based energy control — where conveyors, indexing tables, and transfer mechanisms are enabled only when upstream sensors confirm product presence. This sensor-driven enable logic, executed through the SLC 5/05 processor reading 1746-ITV16 input states, can reduce idle running time on individual drive circuits by 15–30% in typical batch production scenarios.

Third, predictive maintenance integration becomes practical when the 1746-ITV16 is used to monitor auxiliary contacts on motor starters and circuit breakers. By tracking contact state transitions over time — logging open/close cycles against production counts — maintenance teams can identify contactors approaching end-of-life before failure occurs. Unplanned downtime on a single production line typically costs 3–5× more than scheduled maintenance, and the energy wasted during restart sequences, quality purges, and re-synchronization further compounds the operational loss. The 1746-ITV16, as the signal acquisition front-end of this predictive strategy, is the component that makes this data visible to the control system.

All units supplied by ZYPLC are fully tested prior to shipment, with functional verification of all 16 input channels under rated DC voltage conditions. In-stock availability ensures rapid deployment for both planned upgrades and emergency replacement scenarios, minimizing production downtime. Every 1746-ITV16 is backed by a 12-month warranty, covering functional defects and providing assurance for procurement teams managing long-term maintenance budgets.

Energy Optimization FAQ

Q1: How does the 1746-ITV16 contribute to measurable energy savings on a production line?
The 1746-ITV16 enables sensor-driven control logic that prevents motors, conveyors, and actuators from running unnecessarily. By feeding accurate field states into the SLC 500 processor, it supports zone-based enable/disable strategies and eliminates false-trigger motor starts — both of which directly reduce kWh consumption and peak demand charges.

Q2: Is the 1746-ITV16 compatible with both PNP and NPN sensor outputs?
The 1746-ITV16 is designed for true DC transistor-compatible inputs within the 10–30V DC range, making it compatible with the majority of PNP-output proximity sensors and photoelectric detectors commonly used in industrial automation. Verify sensor output type and voltage against the module’s input specifications before installation.

Q3: Can this module be used as a direct replacement for other 1746 series DC input modules?
The 1746-ITV16 is slot-compatible with the SLC 500 1746 chassis family. When replacing an existing DC input module, confirm the input voltage range, point count, and backplane current draw match your chassis power budget. ZYPLC’s technical team can assist with cross-reference verification prior to order confirmation.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 1746-ITV16 unit undergoes functional testing of all 16 input channels under rated DC voltage conditions before shipment. The 12-month warranty covers functional defects arising from normal industrial use. Units are shipped with test documentation available upon request, supporting quality assurance requirements for regulated manufacturing environments.
