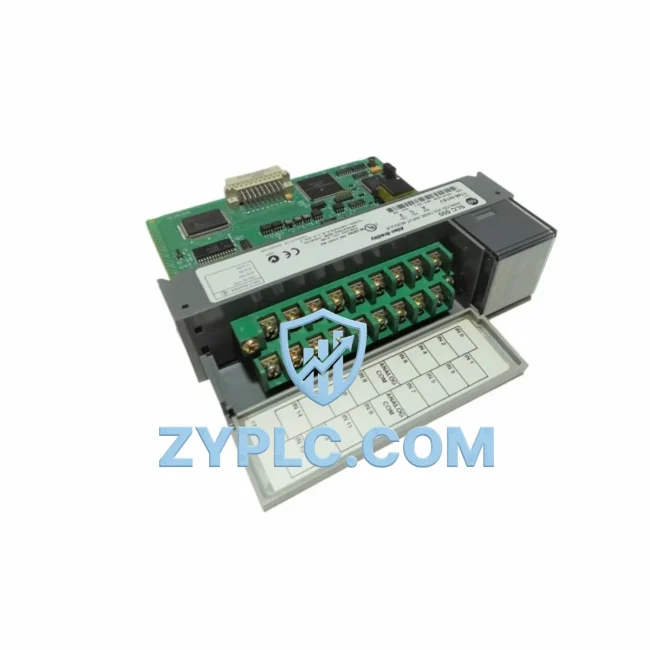

Allen-Bradley 1746-NI16V Industrial Network Interface for SLC 500 Systems

Allen-Bradley 1746-NI16V Industrial Network Interface for SLC 500 Systems

The Allen-Bradley 1746-NI16V is a 16-channel high-resolution voltage analog input module engineered for the SLC 500 programmable controller platform. Designed to serve as a critical industrial data link between field-level sensors, process instrumentation, and upper-level control systems, the 1746-NI16V enables seamless signal acquisition, real-time data transmission, and intelligent process visibility across the entire automation architecture. Whether deployed in discrete manufacturing, process control, or hybrid smart factory environments, this module delivers the analog connectivity backbone that modern industrial networks demand.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the 1746-NI16V sits at the heart of the analog data acquisition layer. Field-level sensors — including pressure transmitters, temperature probes, flow meters, and level transducers — feed 0–10V or ±10V signals directly into the module’s 16 input channels. These signals are digitized at high resolution and passed across the SLC 500 backplane to the host processor, such as the Allen-Bradley 1747-L553 or 1747-L543 SLC 5/05 CPU, which executes the control logic and makes real-time process decisions.

From the SLC 500 processor, data travels upstream via the 1747-AENTR EtherNet/IP Adapter, bridging the legacy SLC 500 backplane to a modern Ethernet/IP network. This gateway connection allows the 1746-NI16V’s analog data to be consumed by SCADA platforms such as Rockwell’s FactoryTalk View SE or third-party systems via OPC-DA/UA servers. HMI terminals — including the Allen-Bradley PanelView Plus 700 — can display live analog trends, alarm states, and process values sourced directly from the 1746-NI16V channels.

For distributed control architectures, the SLC 500 system communicates over DH-485 or DH+ networks using the 1747-AIC Advanced Interface Converter or 1747-KE DH-485/RS-232C Interface Module, enabling multi-node communication between SLC 500 racks, remote I/O drops, and supervisory workstations. Remote I/O expansion is supported through the 1747-SN Scanner Module, which extends the analog data reach to remote rack locations on the plant floor without additional wiring infrastructure.

Variable frequency drives (VFDs) such as the Allen-Bradley PowerFlex 40 or PowerFlex 70 receive analog speed reference signals derived from the 1746-NI16V’s processed data, closing the loop between sensor feedback and drive control. This integration enables precise motor speed regulation based on real-time process variables — a fundamental requirement in pump control, conveyor systems, and HVAC automation. Edge gateways and IoT concentrators can further aggregate this data for cloud-based analytics, predictive maintenance dashboards, and enterprise MES/ERP integration.

Solving Data Isolation in Industrial Sites

Legacy analog systems are among the most persistent sources of data isolation in industrial environments. The 1746-NI16V directly addresses this challenge by providing a structured, high-resolution analog input path that integrates natively with the SLC 500 control platform — one of the most widely deployed PLC families in North American manufacturing.

In facilities where multiple protocols coexist — DeviceNet for device-level communication, DH+ for controller-to-controller links, and EtherNet/IP for plant-wide connectivity — the 1746-NI16V serves as the analog front-end that feeds consistent, calibrated data into the unified control layer. Protocol fragmentation is resolved through gateway modules such as the 1761-NET-ENI Serial-to-EtherNet/IP Interface, which allows SLC 500 systems to participate in modern IP-based network topologies without requiring a full controller migration.

Remote monitoring and diagnostics are enabled through FactoryTalk Diagnostics and RSLogix 500 online monitoring, allowing maintenance engineers to view real-time channel data, fault codes, and module health from any networked workstation. This eliminates the need for on-site manual inspection of analog signal integrity, reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

Production line transparency is achieved by mapping 1746-NI16V channel data to SCADA historian tags, enabling trend analysis, SPC charting, and alarm management across the full production timeline. System expansion is straightforward — additional 1746-NI16V modules can be added to available SLC 500 rack slots, and the modular architecture supports mixed I/O configurations alongside digital input/output modules such as the 1746-IB16 and 1746-OB16, allowing engineers to scale analog capacity without redesigning the control architecture.

Every 1746-NI16V unit supplied by ZYPLC undergoes pre-shipment functional testing, including channel-by-channel analog signal verification, backplane communication checks, and firmware version confirmation. All units are covered by a 12-month warranty and are available from verified inventory for immediate dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the 1746-NI16V support for SCADA and HMI integration?
The 1746-NI16V communicates natively over the SLC 500 backplane I/O bus. For SCADA and HMI integration, the SLC 500 processor connects to EtherNet/IP networks via adapter modules such as the 1747-AENTR, enabling OPC-UA/DA data exchange with FactoryTalk View, Wonderware, Ignition, and other SCADA platforms. DH+ and DH-485 protocols are also supported for legacy network topologies.

Q2: How does the 1746-NI16V ensure network stability and signal accuracy in noisy industrial environments?
The module features high-resolution A/D conversion with built-in noise filtering and channel isolation designed for industrial EMI environments. Proper grounding, shielded cabling, and rack placement away from high-voltage components are recommended. The SLC 500 backplane provides deterministic scan-cycle communication, ensuring consistent data latency and reliable analog updates to the processor.

Q3: Can the 1746-NI16V be integrated into a system that is being expanded or migrated to a newer platform?
Yes. The 1746-NI16V is fully compatible with existing SLC 500 racks and can coexist with other 1746-series I/O modules. For migration paths toward ControlLogix or CompactLogix platforms, Rockwell’s migration tools and 1747-AENTR adapters allow the SLC 500 system to operate as a remote I/O subsystem within a larger Logix-based architecture, preserving the analog investment while enabling platform modernization.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All 1746-NI16V units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures. Pre-shipment testing includes analog channel signal verification across the full input range, backplane communication integrity checks, and visual inspection for physical damage. Units are shipped with documentation confirming test completion and firmware version, ensuring plug-and-play readiness upon arrival.
