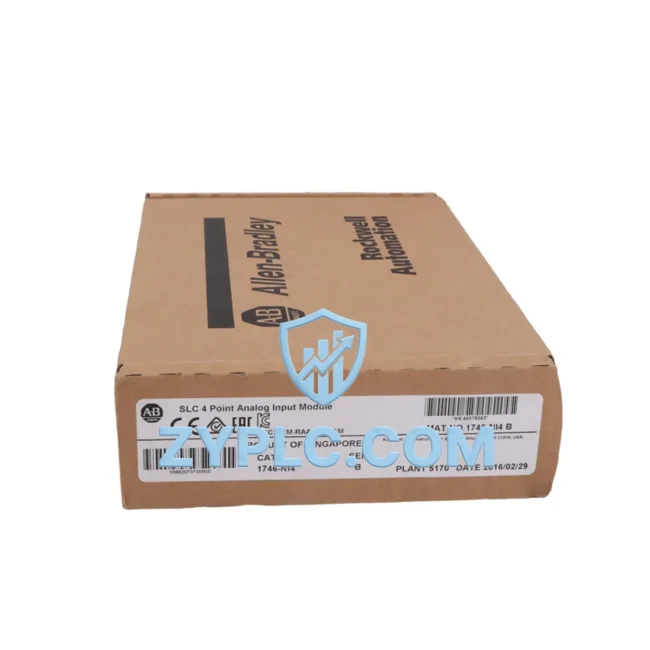

Allen-Bradley 1746-NI4 Energy-Saving Analog Input Module

Allen-Bradley 1746-NI4 Energy-Saving Analog Input Module: Precision Energy Control for SLC 500 Automation

The Allen-Bradley 1746-NI4 is a 4-channel analog input module engineered for the SLC 500 programmable controller platform, delivering high-resolution signal acquisition that forms the backbone of energy-aware industrial automation. In modern manufacturing environments where every watt of consumed power translates directly into operational cost, the 1746-NI4 provides the precise measurement infrastructure needed to monitor, analyze, and act on real-time energy data across the production line.

By capturing analog signals from field devices such as current transducers, pressure transmitters, and temperature sensors with 12-bit resolution, the 1746-NI4 enables control engineers to build closed-loop feedback systems that dynamically adjust drive output, reduce idle-state energy consumption, and prevent over-driving motors beyond their optimal operating range. This level of signal fidelity is essential when integrating with variable frequency drives (VFDs) and servo systems where precise input data directly governs drive efficiency.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1746-NI4 does not operate in isolation — its true value emerges when deployed as part of a coordinated automation architecture designed around energy efficiency. In a typical SLC 500-based control cabinet, the 1746-NI4 sits alongside digital I/O modules such as the 1746-IB16 (16-channel DC input) and 1746-OB16 (16-channel DC output), forming a complete signal acquisition and actuation layer. The analog data collected by the 1746-NI4 feeds directly into the SLC 5/04 or SLC 5/05 processor, where RSLogix 500 ladder logic programs translate sensor readings into precise control commands.

On the drive side, the 1746-NI4’s 4–20mA output reference signals are commonly used to command PowerFlex 40 and PowerFlex 400 variable frequency drives, enabling speed regulation of AC induction motors based on actual process demand rather than fixed setpoints. This demand-driven approach can reduce motor energy consumption by 20–50% in variable-torque applications such as pumps, fans, and compressors — a significant efficiency gain in facilities running multiple motor-driven systems simultaneously.

For servo-driven axes requiring higher positioning accuracy, the analog reference from the 1746-NI4 can interface with Kinetix 300 servo drives through analog command inputs, providing a cost-effective bridge between legacy SLC 500 infrastructure and modern servo motion control without requiring a full system migration. The 1747-SCNR ControlNet scanner module further extends the SLC 500’s network reach, enabling the 1746-NI4’s data to be shared across plant-wide energy management systems via ControlNet or EtherNet/IP gateways.

Power quality monitoring is enhanced when the 1746-NI4 is paired with dedicated energy metering devices. Current transformers (CTs) wired into the 1746-NI4’s current input channels allow the SLC 500 to calculate real-time kW consumption per machine zone, feeding data to an operator interface such as the PanelView 600 HMI for live energy dashboards. This visibility allows production supervisors to identify energy spikes, correlate them with specific machine cycles, and implement corrective actions — all without deploying a separate power monitoring system.

Communication transparency is maintained through the 1747-KFC15 EtherNet/IP interface or the 1761-NET-ENI serial-to-Ethernet adapter, which allows the SLC 500 system — including all analog data from the 1746-NI4 — to be accessed by SCADA platforms, MES systems, and cloud-based energy analytics tools. This connectivity ensures that energy data captured at the field level is available for enterprise-level reporting and continuous improvement initiatives.

Power Optimization in Real Production Lines

In real-world production environments, the 1746-NI4 contributes to energy optimization across multiple dimensions of the manufacturing process. Consider a bottling line where conveyor speed, filling pressure, and capping torque must all be precisely controlled to match production rate targets. Without accurate analog feedback, drives tend to run at fixed speeds regardless of actual demand, wasting energy during low-throughput periods and causing mechanical stress during peak loads.

With the 1746-NI4 installed, pressure transmitters on the filling manifold and load cells on the conveyor feed real-time analog signals into the SLC 500 processor. The control program uses this data to modulate PowerFlex VFD output in real time, slowing conveyors during accumulation zones and reducing pump pressure during low-demand intervals. The result is a measurable reduction in energy consumption — typically 15–30% on motor-driven subsystems — without any reduction in throughput or product quality.

Predictive maintenance also benefits significantly from the 1746-NI4’s continuous monitoring capability. By trending analog signals such as motor current draw, vibration sensor output, and bearing temperature over time, maintenance teams can detect gradual degradation patterns before they result in unplanned downtime. A motor drawing progressively higher current at the same load is a clear indicator of bearing wear or winding insulation breakdown — conditions that, if left unaddressed, lead to catastrophic failure and costly production stoppages. The 1746-NI4 provides the raw data infrastructure that makes this kind of condition-based maintenance possible within the existing SLC 500 framework.

Line cycle time optimization is another area where the 1746-NI4 delivers measurable value. By providing accurate position and force feedback to the SLC 500, the module enables tighter control of pneumatic and hydraulic actuators, reducing cycle time variability and improving overall equipment effectiveness (OEE). Higher OEE means more output per unit of energy consumed — a direct improvement in the facility’s energy intensity metric.

Every unit shipped by ZYPLC undergoes full functional testing prior to dispatch, verifying analog input accuracy across all four channels, backplane communication integrity, and signal isolation performance. This pre-shipment testing protocol ensures that the 1746-NI4 arrives ready for immediate installation, minimizing commissioning time and reducing the risk of early-life failures that could disrupt production schedules.

Energy Optimization FAQ

Q1: How does the 1746-NI4 contribute to measurable energy savings on the production floor?
The 1746-NI4 enables closed-loop energy control by providing the SLC 500 processor with accurate real-time analog data from field sensors. This data allows the control program to modulate drive speeds, adjust actuator pressures, and optimize machine cycle timing based on actual process conditions rather than fixed parameters. In motor-driven applications, this demand-responsive control typically reduces energy consumption by 15–50% depending on the load profile and application type.

Q2: Is the 1746-NI4 compatible with my existing SLC 500 system and RSLogix 500 programming environment?
Yes. The 1746-NI4 is fully compatible with all SLC 500 fixed and modular chassis configurations, including systems running SLC 5/01 through SLC 5/05 processors. It is configured and programmed using RSLogix 500 software, and no additional hardware adapters are required for standard installations. The module supports both voltage and current input modes, configurable per channel via software.

Q3: Can the 1746-NI4 replace a faulty or end-of-life analog input module from another manufacturer?
The 1746-NI4 is designed specifically for the SLC 500 backplane and is not a direct drop-in replacement for modules from other PLC platforms. However, if you are replacing an older or damaged 1746-series analog input module within an existing SLC 500 system, the 1746-NI4 is a direct functional replacement. For cross-platform migration projects, our technical team can advise on appropriate interface solutions or system upgrade paths.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 1746-NI4 modules supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes a comprehensive functional test that verifies analog input accuracy on all four channels, backplane communication, signal isolation, and power consumption within specification. Test records are maintained for traceability. In the event of a warranty claim, ZYPLC provides replacement or repair with minimal lead time to protect your production continuity.

—
