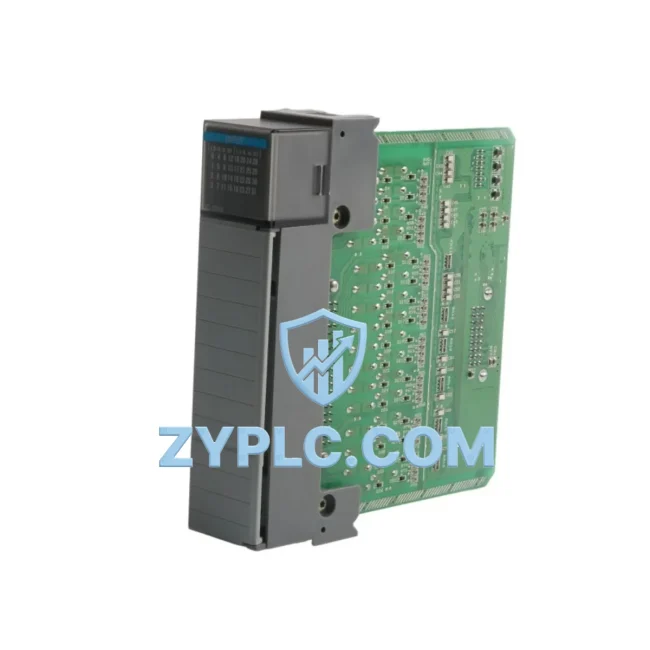

Allen-Bradley 1746-NIO4V System-Ready Analog I/O for SLC 500 Architecture

Allen-Bradley 1746-NIO4V System-Ready Analog I/O for SLC 500 Architecture: Control System Coordination and Upstream-Downstream Synergy

The Allen-Bradley 1746-NIO4V is a combination analog input/output module engineered for seamless integration within the SLC 500 modular control platform. Designed to occupy a standard 1746 backplane slot, this module delivers four configurable voltage analog channels — supporting both signal acquisition and process command output — within a single, compact form factor. In modern layered automation architectures, the 1746-NIO4V serves as a critical bridge between the control layer and the field device layer, enabling the SLC 5/04 or SLC 5/05 processor to receive real-time process variables and issue precise analog control signals without requiring separate dedicated input and output modules.

System architects specifying the 1746-NIO4V benefit from its ability to reduce backplane slot consumption while maintaining full signal fidelity across voltage ranges. This is particularly valuable in compact control cabinets where rack space is constrained, and where the 1746-A4, 1746-A7, or 1746-A13 chassis must accommodate a full complement of digital I/O, specialty, and communication modules alongside analog signal handling. The module’s dual-function design supports tighter integration between the process measurement loop and the control output loop, reducing scan-time latency and improving closed-loop response in applications such as flow control, pressure regulation, and temperature management.

Architecture Specification Table

Coordinated Control System Design

The 1746-NIO4V achieves its full value when considered within the broader SLC 500 system architecture rather than as a standalone component. At the control layer, the SLC 5/04 processor (1747-L541 or 1747-L543) manages the data table files that map directly to the NIO4V’s channel configuration, executing ladder logic routines that read analog input values and write scaled output commands within a single program scan. This tight processor-to-module coupling ensures deterministic analog control without the communication overhead associated with distributed I/O architectures.

At the power layer, the 1746-P4 or 1746-P7 power supply provides regulated 5V DC backplane power and 24V DC field power, both of which the 1746-NIO4V draws upon for its internal logic and field-side signal conditioning circuits. Proper power supply sizing — accounting for the combined current draw of all installed modules — is essential to maintaining signal accuracy and preventing voltage droop that could introduce analog offset errors.

For applications requiring expanded I/O capacity beyond what a single chassis can accommodate, the 1746-NIO4V coexists with 1746-IB16 digital input modules, 1746-OB16 digital output modules, and 1746-NI4 dedicated analog input modules within the same backplane. This mixed-module configuration allows a single SLC 500 rack to handle both discrete and analog signals across multiple process loops simultaneously. Where additional remote I/O is required, the 1747-SN Remote I/O Scanner or 1747-ASB Adapter enables the SLC 5/04 to communicate with remote 1746 chassis over the Remote I/O network, extending the analog I/O footprint without requiring a second processor.

At the network and communication layer, the 1747-KE or 1761-NET-ENI Ethernet interface modules provide connectivity between the SLC 500 platform and supervisory SCADA systems or historian servers, allowing analog values captured by the 1746-NIO4V to be logged, trended, and alarmed at the enterprise level. For facilities standardizing on EtherNet/IP, the 1747-AENTR EtherNet/IP adapter bridges the SLC 500 backplane to the plant network, enabling seamless data exchange with FactoryTalk View SE HMI stations or third-party OPC-UA clients.

At the human-machine interface layer, PanelView 800 or PanelView Plus 7 terminals connected via DF1 serial or EtherNet/IP provide operators with real-time visualization of analog process variables managed by the 1746-NIO4V, including setpoint entry, trend displays, and alarm acknowledgment. This HMI integration closes the operator feedback loop and supports rapid response to process deviations without requiring engineering workstation access.

Application in Layered Automation Systems

In manufacturing and assembly line automation, the 1746-NIO4V is commonly deployed to manage tension control, speed reference signals to variable frequency drives (VFDs), and position feedback from analog sensors. A typical configuration pairs the module with a PowerFlex 40 or PowerFlex 70 VFD receiving a 0–10V speed reference from the NIO4V output channel, while an analog position transducer feeds back to an input channel — creating a closed-loop motion profile managed entirely within the SLC 5/04 processor.

In power generation and electrical substation applications, the 1746-NIO4V handles analog measurement of current transformers, voltage transducers, and power factor correction signals. Its optical isolation between field and backplane is critical in these environments, where high-voltage transients on the field wiring must be prevented from propagating into the control backplane and corrupting processor operation.

In petrochemical and refinery process control, the module integrates with pressure transmitters, flow meters, and temperature sensors operating on voltage output signals. The SLC 500 platform’s proven reliability in hazardous area control panels — combined with the 1746-NIO4V’s stable analog performance — makes it a preferred choice for legacy system maintenance and brownfield expansion projects where replacing the entire control platform is not economically justified.

In water and wastewater treatment facilities, the 1746-NIO4V manages pump speed references, valve position feedback, and level sensor inputs across multiple treatment stages. Its ability to configure each channel independently as input or output provides the flexibility needed to adapt to varying process instrumentation layouts without requiring additional modules.

In mining and mineral processing operations, the module supports conveyor speed control, crusher load monitoring, and flotation cell level management — applications where analog signal integrity under electrically noisy conditions is paramount. The module’s robust isolation and shielded wiring compatibility ensure reliable operation in environments with significant electromagnetic interference from large motor drives and high-current switching equipment.

Architecture Engineering FAQ

Q1: Is the 1746-NIO4V compatible with all SLC 500 processors, and are there any firmware or chassis restrictions?
The 1746-NIO4V is compatible with all SLC 500 processors from the SLC 5/01 through SLC 5/05, and installs in any slot of the 1746-A4, 1746-A7, 1746-A10, or 1746-A13 chassis. There are no firmware revision restrictions for basic analog I/O operation; however, advanced channel configuration features may require RSLogix 500 software version 7.0 or later. The module does not require a dedicated slot position and can be mixed freely with digital, specialty, and communication modules within the same chassis.

Q2: How does the 1746-NIO4V support system redundancy and long-term maintainability in critical process applications?
While the SLC 500 platform does not natively support hot-standby processor redundancy in the manner of the ControlLogix 1756 platform, system maintainability is achieved through modular hot-swap capability — the 1746-NIO4V can be replaced in a powered chassis without removing adjacent modules, minimizing process downtime during maintenance. For critical applications, maintaining a spare 1746-NIO4V in inventory is strongly recommended. Our 12-Month Warranty covers the module against manufacturing defects and operational failures, and all units are tested prior to shipment to verify channel accuracy and backplane communication integrity.

Q3: What wiring and grounding practices are required for accurate analog signal performance with the 1746-NIO4V?
For optimal signal accuracy, all analog field wiring should use shielded twisted-pair cable with the shield grounded at a single point — preferably at the control panel ground bus rather than at the field device. Each channel’s signal common should be connected to the module’s analog common terminal, and the field-side 24V DC supply should be sourced from a dedicated, regulated supply separate from the digital I/O field power to prevent noise coupling. In environments with significant VFD or motor drive interference, additional ferrite cores on the analog wiring and physical separation of analog and digital cable runs in the control cabinet are recommended to maintain signal integrity across all four channels.
