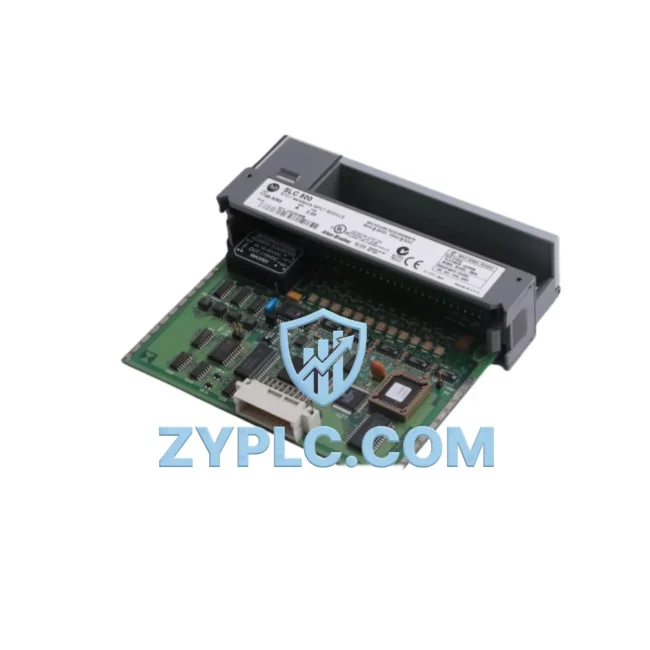

Allen-Bradley 1746-NR8 Energy-Saving Analog Input Module SLC 500

Allen-Bradley 1746-NR8 Energy-Saving Analog Input Module for Optimized SLC 500 Automation

The Allen-Bradley 1746-NR8 is an 8-channel analog input module engineered for the SLC 500 programmable controller platform, delivering precision signal acquisition from RTD and thermocouple sensors across demanding industrial environments. In energy-intensive manufacturing operations — from injection molding and metal processing to food production and chemical handling — accurate thermal measurement is the foundation of effective energy management. The 1746-NR8 enables control systems to respond dynamically to real process conditions, reducing unnecessary heating cycles, preventing over-temperature events, and eliminating the energy waste associated with uncontrolled thermal drift.

By feeding high-resolution analog data directly into the SLC 500 processor — such as the 1747-L553 or 1747-L543 CPU modules — the 1746-NR8 supports closed-loop control strategies that keep equipment operating within optimal efficiency bands. When paired with an Allen-Bradley 1746-NI8 voltage/current analog input module on the same SLC 500 backplane, facilities gain a comprehensive multi-signal acquisition layer capable of monitoring both thermal and electrical process variables simultaneously, forming the data backbone of a plant-wide energy optimization strategy.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully integrated SLC 500 energy management architecture, the 1746-NR8 sits at the data acquisition layer, collecting thermal signals that drive intelligent control decisions upstream and downstream. The SLC 500 processor — typically a 1747-L553 — processes the 8-channel RTD/thermocouple data and executes ladder logic routines that modulate output devices based on real-time energy consumption patterns.

On the output side, the 1746-OB16 digital output module or 1746-NO4I analog output module translates processor commands into actuator signals, controlling heating elements, cooling valves, or variable-speed drives. When motor-driven loads are part of the thermal process — such as cooling fans, pump systems, or conveyor drives — the 1746-NR8 data feeds directly into speed reference calculations for Allen-Bradley PowerFlex 40 or PowerFlex 70 variable frequency drives, enabling temperature-responsive motor speed adjustment that eliminates constant-speed energy waste.

For facilities running distributed I/O architectures, the 1746-NR8 integrates seamlessly with 1747-SDN DeviceNet scanner modules, allowing thermal data to be shared across plant-wide control networks. This enables energy monitoring dashboards on PanelView Plus 600 or PanelView Plus 1000 HMI terminals to display live temperature trends, energy consumption rates, and alarm states — giving operators the visibility needed to make real-time efficiency decisions without leaving the production floor.

Power quality monitoring can be further enhanced by pairing the SLC 500 system with Allen-Bradley PowerMonitor 500 or PowerMonitor 1000 units, which capture voltage, current, power factor, and harmonic data at the panel level. When this electrical data is correlated with the thermal measurements from the 1746-NR8, maintenance teams gain a complete picture of energy flow — identifying inefficient heating cycles, detecting insulation degradation through abnormal thermal signatures, and scheduling predictive maintenance before failures cause unplanned downtime.

Power Optimization in Real Production Lines

In a typical discrete manufacturing environment, uncontrolled thermal processes account for a disproportionate share of energy waste. Ovens that cycle at fixed intervals regardless of actual product temperature, cooling systems that run at full capacity independent of ambient conditions, and heating elements that operate without feedback all represent opportunities for measurable energy reduction. The 1746-NR8 addresses these inefficiencies by providing the SLC 500 controller with the precise, high-resolution thermal data needed to implement proportional control strategies.

Consider a plastic injection molding line where barrel temperatures must be maintained within ±2 °C of setpoint. Without accurate analog input, the controller defaults to conservative fixed-cycle heating, resulting in frequent over-temperature events and wasted electrical energy. With the 1746-NR8 monitoring all barrel zones simultaneously, the 1747-L553 processor can implement PID control loops that reduce heating element on-time by 15–25%, directly lowering energy consumption without compromising product quality or cycle time.

In food processing applications, the 1746-NR8 monitors pasteurization temperatures, CIP (clean-in-place) fluid temperatures, and refrigeration return temperatures — enabling the SLC 500 system to coordinate heating and cooling loads intelligently. By avoiding simultaneous peak demand from multiple thermal systems, facilities reduce demand charges on their utility bills while maintaining process compliance. The module’s 16-bit resolution ensures that even small temperature deviations — which may indicate fouled heat exchangers or failing heating elements — are detected early, allowing maintenance intervention before efficiency losses compound.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including channel-by-channel signal verification across the full RTD and thermocouple input range. Each 1746-NR8 is backed by a 12-month warranty, with stock maintained for immediate dispatch to minimize production line downtime. Our inventory is sourced from verified supply channels, and each unit is inspected and tested to confirm it meets original Allen-Bradley performance specifications before leaving our facility.

Energy Optimization FAQ

Q1: How does the 1746-NR8 contribute to measurable energy savings on a production line?
The 1746-NR8 provides the SLC 500 controller with accurate, real-time thermal data from up to 8 RTD or thermocouple sensors. This enables closed-loop PID control of heating and cooling systems, replacing fixed-cycle operation with demand-driven control. In practice, this reduces heating element on-time, eliminates over-temperature waste, and allows cooling systems to modulate based on actual load — delivering measurable reductions in electrical energy consumption.

Q2: Is the 1746-NR8 compatible with existing SLC 500 systems and programming software?
Yes. The 1746-NR8 is fully compatible with all SLC 500 modular chassis configurations and is programmed using RSLogix 500 software. It occupies one slot in any 1746-series chassis and communicates via the standard SLC 500 backplane. No additional hardware or protocol converters are required for integration into existing SLC 500 control systems.

Q3: Can the 1746-NR8 replace a failed module in a running production system?
Yes. The 1746-NR8 is a direct replacement for any existing 1746-NR8 module in an SLC 500 system. Because the module configuration is stored in the SLC 500 processor, replacement requires only physical installation and a processor download — no channel recalibration is needed. ZYPLC recommends keeping a spare unit in inventory to minimize replacement lead time and production downtime risk.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 1746-NR8 supplied by ZYPLC undergoes outgoing functional testing, including verification of all 8 input channels across the full RTD and thermocouple signal range, backplane communication integrity checks, and visual inspection for physical damage. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Warranty claims are supported by our technical team, with replacement units dispatched from stock to minimize customer downtime.
