Allen-Bradley 1746-NT8 System-Ready Thermocouple Input for SLC 500

Allen-Bradley 1746-NT8 System-Ready Thermocouple Input for SLC 500 Architecture

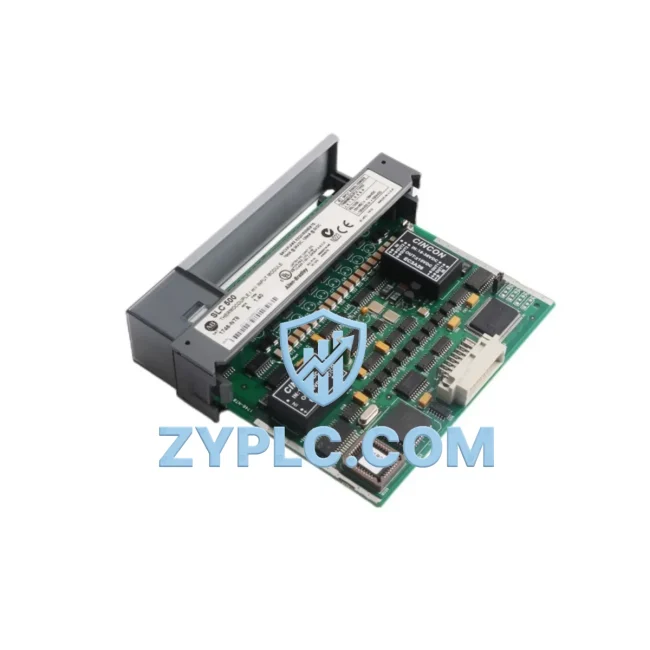

The Allen-Bradley 1746-NT8 is an 8-channel thermocouple and millivolt input module engineered for seamless integration within the SLC 500 modular control platform. Designed to occupy any standard 1746 I/O chassis slot, this module delivers precision analog signal acquisition at the field level, feeding real-time temperature data directly into the SLC 5/03, SLC 5/04, or SLC 5/05 processor for closed-loop process control. Its role within a layered automation architecture extends well beyond simple signal conversion — the 1746-NT8 serves as a critical data acquisition node that bridges the physical process environment with the control and supervisory layers above it.

In a complete SLC 500 control system, the 1746-NT8 operates alongside the 1746-P4 or 1746-P7 power supply module, which provides regulated 24 VDC backplane power to all I/O modules within the chassis. The processor — typically a 1747-L553 (SLC 5/05) with built-in Ethernet/IP capability — reads thermocouple data from the 1746-NT8 via the backplane at each scan cycle, enabling real-time PID loop execution for temperature-critical processes. For applications requiring expanded I/O capacity, the 1746-A13 or 1746-A10 chassis accommodates additional analog and digital modules such as the 1746-NI8 analog input module and the 1746-OB16 digital output module, allowing engineers to scale the system without architectural redesign.

At the network layer, the SLC 5/05 processor communicates upstream to SCADA or DCS platforms via Ethernet/IP, while legacy installations may use the 1747-SDN DeviceNet Scanner or the 1747-KE RS-232/DH-485 interface module to bridge field devices and supervisory systems. The 1746-NT8 temperature data is made available across these communication layers, enabling plant-wide visibility of thermal process variables from a centralized HMI — such as a PanelView 800 or PanelView Plus 7 terminal — without additional signal conditioning hardware.

For redundancy-critical installations in power generation, petrochemical, or water treatment facilities, the 1746-NT8 can be deployed in a hot-standby architecture using the 1747-BSN backup communication module, ensuring that thermocouple data remains continuously available to the control system even during processor switchover events. This design approach is particularly valuable in continuous process industries where temperature excursions during control interruptions can result in product loss or equipment damage.

From an engineering and commissioning perspective, the 1746-NT8 supports J, K, E, T, R, S, B, and N thermocouple types as well as millivolt input ranges, configurable via RSLogix 500 software. Each channel is individually configurable, allowing a single module to serve multiple process zones with different sensor types — a significant advantage in mixed-process installations. Open-circuit detection on each channel provides immediate fault notification to the processor, enabling alarm logic and safe-state outputs to be triggered without operator intervention.

Long-term maintenance efficiency is further supported by the module’s compatibility with the 1746 chassis hot-swap architecture (where supported by the processor configuration), minimizing planned downtime during module replacement cycles. Paired with a structured spare-parts strategy — maintaining one 1746-NT8 per installed system — maintenance teams can achieve mean-time-to-repair targets well within shift boundaries. All units supplied by ZYPLC are tested, verified against factory specifications, and covered by a 12-Month Warranty, ensuring supply chain confidence for both new installations and legacy system maintenance programs.

Architecture Specification Table

Coordinated Control System Design

A production-ready SLC 500 system built around the 1746-NT8 typically integrates the following components across its control, power, I/O, communication, and HMI layers:

The 1747-L553 SLC 5/05 processor serves as the central execution engine, running ladder logic programs that process thermocouple data from the 1746-NT8 and execute PID control algorithms. The 1746-P4 power supply provides stable backplane power, while the 1746-A10 chassis offers ten slots for mixed I/O expansion. Discrete outputs are handled by the 1746-OB16 output module, driving contactors, solenoids, and control relays based on temperature thresholds computed from 1746-NT8 data. Analog outputs for valve positioners or variable-speed drives are provided by the 1746-NO4I current output module. For additional analog inputs beyond thermocouple signals, the 1746-NI8 analog input module handles 4–20 mA and 0–10 VDC process signals in the same chassis. Network connectivity is achieved through the 1747-AENTR EtherNet/IP adapter for remote I/O chassis, or directly via the SLC 5/05 Ethernet port. Operator interface is provided by a PanelView Plus 7 (2711P series) HMI terminal communicating over Ethernet/IP, displaying real-time temperature trends and alarm states sourced from the 1746-NT8 channels. For legacy DH+ network integration, the 1747-KE interface module bridges the SLC 500 system to upstream DCS or historian platforms.

Application in Layered Automation Systems

The 1746-NT8 finds application across a broad range of process industries where precise temperature measurement is fundamental to product quality and operational safety. In petrochemical and refinery operations, the module monitors reactor and heat exchanger temperatures, feeding data to PID loops that regulate fuel flow and cooling water valves. In power generation facilities, it tracks turbine bearing temperatures and steam header conditions, with alarm outputs triggering protective relay logic via the 1746-OB16. In water and wastewater treatment plants, the module monitors UV disinfection lamp temperatures and digester process temperatures, ensuring regulatory compliance through continuous data logging to SCADA systems. In metallurgical and foundry applications, the 1746-NT8 manages furnace zone temperatures across multiple thermocouple types simultaneously, supporting both Type K and Type S sensors within a single module for different temperature ranges. In food and beverage processing, the module supports CIP (Clean-in-Place) temperature validation, providing the audit-trail data required for HACCP compliance. Across all these applications, the 1746-NT8’s role within the SLC 500 architecture ensures that temperature data is available at every layer of the automation hierarchy — from field-level control to enterprise-level reporting — without the need for external signal conditioning or protocol conversion hardware.

Architecture Engineering FAQ

Q1: Is the 1746-NT8 compatible with all SLC 500 processor generations, and are there any chassis slot restrictions?
The 1746-NT8 is compatible with all SLC 500 processors (SLC 5/01 through SLC 5/05) and can be installed in any I/O slot of the 1746-A4, A7, A10, or A13 chassis. There are no slot restrictions specific to this module; however, total backplane current draw must be calculated to ensure the installed power supply (1746-P4 or 1746-P7) can support all modules in the chassis simultaneously.

Q2: How is the 1746-NT8 configured for different thermocouple types, and can channel types be mixed within a single module?
Configuration is performed entirely within RSLogix 500 software via the module’s configuration file (M0/M1 data files). Each of the eight channels is independently configurable for thermocouple type (J, K, E, T, R, S, B, or N) or millivolt input range. Mixed-type configurations are fully supported, allowing a single 1746-NT8 to serve multiple process zones with different sensor specifications — a common requirement in multi-zone furnace and reactor control applications.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims or long-term spare-parts support?
All 1746-NT8 modules supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through ZYPLC’s technical support team. For long-term maintenance programs, ZYPLC maintains ongoing inventory of 1746-series modules to support legacy SLC 500 installations, providing a reliable supply chain for both planned maintenance and emergency replacement scenarios. Contact our team at plc.sales@zyplc.com or +86 19859288691 for availability and lead-time confirmation.
