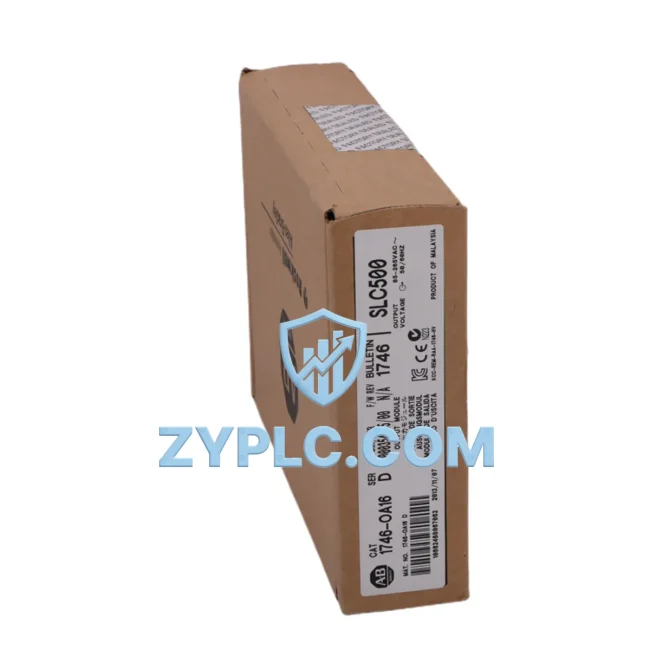

Allen-Bradley 1746-OA16 System-Ready AC Output for SLC 500 Architecture

Allen-Bradley 1746-OA16 System-Ready AC Output for SLC 500 Architecture

The Allen-Bradley 1746-OA16 is a 16-point AC discrete output module engineered for seamless integration within the SLC 500 modular control platform. Designed to operate within Rockwell Automation’s proven fixed and modular chassis ecosystem, this module serves as a critical output-layer component in layered industrial automation architectures. Whether deployed in a standalone SLC 5/03 or SLC 5/05 processor-based system or as part of a distributed I/O network, the 1746-OA16 delivers reliable, high-density AC switching capability that supports consistent system performance across demanding industrial environments.

In modern industrial control system design, no module operates in isolation. The 1746-OA16 occupies the output layer of the control hierarchy, receiving discrete commands from the SLC 500 processor and translating them into field-level AC switching actions. Its role is tightly coupled with upstream logic execution, I/O scanning, and downstream actuator response — making it a foundational element in any SLC 500-based control architecture. When paired with complementary modules and infrastructure components, the 1746-OA16 contributes to a cohesive, maintainable, and scalable control system.

Architecture Specification Table

Coordinated Control System Design

The 1746-OA16 achieves its full potential when integrated within a complete SLC 500 control system architecture. At the processor level, the SLC 5/04 or SLC 5/05 CPU module manages ladder logic execution and I/O image table updates, issuing output commands that the 1746-OA16 executes at the field level. The processor resides in the same 1746-A10 or 1746-A13 modular chassis, sharing the backplane with the output module for deterministic, low-latency signal delivery.

On the input side, the 1746-IA16 16-point AC input module provides the complementary discrete input capability, capturing field sensor states and feeding them into the processor’s input image table. Together, the 1746-OA16 and 1746-IA16 form a balanced I/O pair that supports symmetric control loop design — a key principle in efficient SLC 500 system architecture.

Power integrity is maintained through the 1746-P4 or 1746-P7 power supply modules, which provide regulated backplane power to all chassis-resident modules including the 1746-OA16. Stable power delivery is essential for consistent output switching behavior, particularly in high-cycle applications such as packaging lines or conveyor systems where output modules are energized and de-energized thousands of times per shift.

For applications requiring remote I/O expansion, the 1747-SN SLC 500 remote I/O scanner enables the 1746-OA16 to be deployed in remote chassis configurations, extending the control system’s physical reach without sacrificing scan time performance. This is particularly valuable in large-footprint facilities such as water treatment plants or mining operations where control panels are distributed across the site.

Communication transparency is achieved through the 1747-KE DH-485 to RS-232 interface module or the 1761-NET-ENI EtherNet/IP adapter, which allows the SLC 500 system — including the 1746-OA16’s output status — to be monitored and diagnosed remotely via RSLogix 500 or FactoryTalk View. This Contextual Integration capability ensures that the output module’s operational state is always visible within the broader SCADA or MES architecture.

At the human-machine interface layer, PanelView 550 or PanelView Plus 600 terminals connect to the SLC 500 processor via DH-485 or EtherNet/IP, providing operators with real-time output status visualization and manual override capability. This HMI integration closes the loop between the 1746-OA16’s field-level switching actions and the operator’s situational awareness.

For wiring termination, 1492-IFM interface modules and pre-wired terminal blocks simplify field wiring to the 1746-OA16’s output terminals, reducing installation time and minimizing wiring errors during commissioning. This is especially important in retrofit projects where panel space is constrained and installation speed is critical.

Application in Layered Automation Systems

The 1746-OA16 is deployed across a wide range of industrial sectors where reliable AC discrete output control is required within an established SLC 500 architecture.

In manufacturing and assembly environments, the module controls solenoid valves, motor starters, and indicator lamps on automated assembly lines. Its 16-point density allows a single module to manage an entire workstation’s output requirements, reducing chassis slot consumption and simplifying panel layout.

In power distribution and electrical utilities, the 1746-OA16 is used to control switching equipment, alarm annunciators, and relay coils within substation automation panels. Its optical isolation ensures that high-voltage field transients do not propagate into the SLC 500 backplane, protecting the processor and other I/O modules from electrical interference.

In petrochemical and refining applications, the module manages process control outputs such as valve actuators and pump motor starters in hazardous area panels. When installed in appropriately rated enclosures, the 1746-OA16 supports continuous process operation with the reliability demanded by safety-critical environments.

In water and wastewater treatment facilities, the 1746-OA16 controls pump stations, chemical dosing systems, and aeration equipment. Its compatibility with remote I/O configurations via the 1747-SN scanner makes it well-suited for geographically distributed treatment plant architectures where multiple remote panels feed a central SLC 500 control system.

In mining and metals processing, the module is used in conveyor control systems, crusher interlocks, and ventilation fan control panels. The SLC 500 platform’s proven reliability in harsh environments — combined with the 1746-OA16’s robust output design — makes this combination a long-standing choice for mining automation engineers.

In food, beverage, and packaging production lines, the 1746-OA16 drives filling machine solenoids, labeling system actuators, and reject gate mechanisms. High-cycle output applications benefit from the module’s solid-state triac design, which eliminates the mechanical wear associated with relay-based output modules.

Architecture Engineering FAQ

Q1: Is the 1746-OA16 compatible with all SLC 500 chassis and processor combinations?
The 1746-OA16 is compatible with all standard SLC 500 modular chassis (1746-A4, A7, A10, A13) and all SLC 500 processor variants (SLC 5/01 through SLC 5/05). It occupies a single I/O slot and is recognized automatically during processor power-up and I/O configuration in RSLogix 500. No special configuration is required beyond assigning the correct I/O address in the processor’s I/O configuration table. For systems using the SLC 5/05 with EtherNet/IP connectivity, the 1746-OA16’s output status can be monitored remotely via FactoryTalk Diagnostics, supporting Contextual Integration across the enterprise network.

Q2: Can the 1746-OA16 be used in a redundant SLC 500 architecture, and what are the installation considerations?
While the SLC 500 platform does not natively support hot-standby processor redundancy in the same manner as the ControlLogix 1756 platform, system-level redundancy for the 1746-OA16 can be achieved through parallel output wiring strategies, where two output points from separate modules drive the same field device through a relay interlock. For applications requiring true hardware redundancy, engineers typically migrate to the ControlLogix platform with 1756-OA16 output modules and the 1756-RM2 redundancy module. ZYPLC can supply both SLC 500 and ControlLogix output modules with 12-Month Warranty to support phased migration projects.

Q3: What is covered under the 12-Month Warranty, and how does ZYPLC support long-term maintenance and spare parts availability?
All 1746-OA16 modules supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment to verify output switching performance, backplane communication integrity, and LED indicator operation. For long-term maintenance planning, ZYPLC maintains stock of 1746-OA16 modules and related SLC 500 components to support emergency replacement requirements. Our technical team can assist with cross-referencing obsolete modules, identifying compatible replacements, and providing documentation support for system upgrades. Contact us at plc.sales@zyplc.com or +86 19859288691 for spare parts availability and lead time confirmation.
