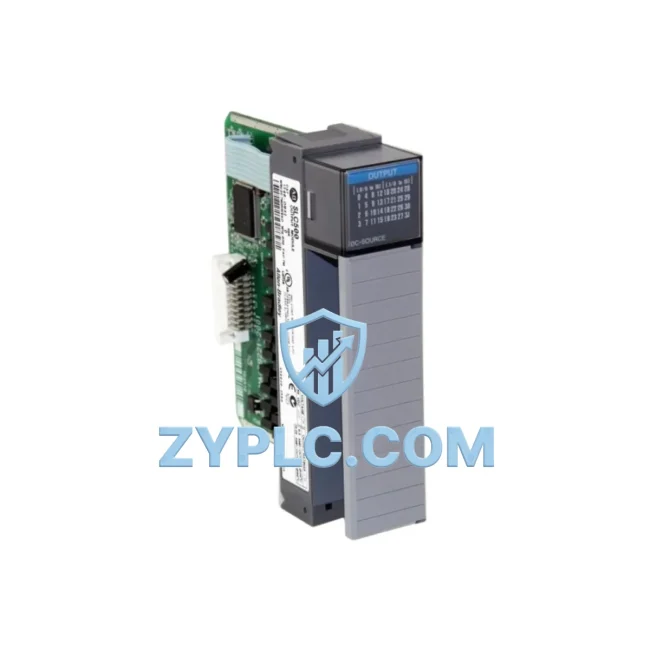

Allen-Bradley 1746-OB32/D Energy-Saving DC Output Module

Allen-Bradley 1746-OB32/D Energy-Saving DC Output Module for Optimized SLC 500 Automation

The Allen-Bradley 1746-OB32/D is a 32-point 24 VDC sourcing output module engineered for the SLC 500 modular I/O platform. In demanding production environments where every watt and every millisecond of cycle time matters, this module delivers precise, low-latency digital output switching that directly reduces unnecessary energy draw across actuator banks, solenoid arrays, and motor starter circuits. By eliminating output dwell time and minimizing leakage current at each channel, the 1746-OB32/D contributes measurably to plant-wide energy efficiency without requiring a system redesign.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1746-OB32/D operates as the digital output backbone within a broader energy-aware SLC 500 control architecture. In a typical installation, the SLC 5/04 processor (1747-L541) executes the ladder logic scan and issues output commands to the 1746-OB32/D with sub-millisecond precision, ensuring actuators are energized only for the exact duration required — eliminating the coil hold-on waste common in older relay-based panels.

On the input side, the companion 1746-IB32 32-point DC input module feeds real-time field signals back to the processor, enabling closed-loop output control that prevents redundant or overlapping actuator activation — a common hidden source of energy loss on high-density lines. For analog process variables such as pressure, flow, or temperature, the 1746-NI8 8-channel analog input module provides the data layer that allows the controller to modulate output states based on actual process demand rather than fixed timers.

Drive-level energy optimization is handled upstream by PowerFlex 40 variable frequency drives (22B series), which regulate motor speed in direct response to SLC 500 output commands. When the 1746-OB32/D signals a conveyor or pump motor starter, the PowerFlex 40 ramps the motor to the precise speed required — avoiding full-voltage starts that spike energy consumption and accelerate mechanical wear. For servo-driven axes requiring coordinated motion, the Kinetix 300 single-axis EtherNet/IP servo drive integrates into the same control network, allowing the SLC 500 to synchronize output switching with motion profiles for optimized production throughput.

System-level power visibility is achieved through the PowerMonitor 500 (1420-V2P-ENT) energy monitoring unit, which tracks real-time kWh consumption at the panel level. When paired with the 1746-OB32/D’s fast switching capability, operators can correlate output activation patterns with energy spikes and identify inefficient sequences in the PLC program. Communication between the SLC 500 rack and supervisory systems is handled via the 1747-AENTR EtherNet/IP adapter, enabling remote monitoring of I/O states and energy data through a PanelView Plus 7 HMI without interrupting production.

For installations requiring distributed I/O expansion, the 1746-A13 13-slot SLC 500 chassis accommodates additional 1746-OB32 modules alongside 1746-OW16 relay output modules for mixed AC/DC load switching — allowing engineers to assign the 1746-OB32/D exclusively to high-cycle, energy-sensitive outputs while relay modules handle low-frequency, high-inrush loads. This architectural separation reduces unnecessary solid-state switching losses across the entire output tier.

Power Optimization in Real Production Lines

In automotive body assembly lines, the 1746-OB32/D controls pneumatic valve manifolds that position welding fixtures. Its ≤0.1 ms ON response time allows the SLC 500 program to sequence valve activation in tight synchronization with robot arm positions, eliminating the 50–200 ms buffer delays that older modules required — buffer time during which solenoids remained energized and consuming power unnecessarily. Plants running three-shift operations have reported measurable reductions in compressed air system runtime after optimizing valve dwell times through precise output control.

In food and beverage filling lines, the module drives conveyor indexing solenoids and reject gate actuators. Because the 1746-OB32/D’s 32 output points can be individually addressed within a single scan cycle, the SLC 5/03 or 5/04 processor can implement output interlock logic that prevents simultaneous activation of conflicting actuators — a common cause of both energy spikes and mechanical jams that lead to unplanned downtime. Reduced downtime directly improves Overall Equipment Effectiveness (OEE) and lowers the energy cost per unit produced.

For predictive maintenance integration, output state change frequency logged via the 1747-AENTR EtherNet/IP adapter to a SCADA or MES system provides a reliable indicator of actuator cycle counts. When a solenoid valve approaches its rated cycle life, maintenance can be scheduled during planned downtime rather than responding to failures — avoiding the energy-intensive restart sequences that follow unplanned stops. Every unit shipped from ZYPLC undergoes full functional output testing under load before dispatch, and is covered by a 12-month warranty to protect your production continuity investment.

Energy Optimization FAQ

Q1: How does the 1746-OB32/D contribute to energy savings compared to relay output modules?
Solid-state DC outputs switch in under 0.1 ms with no mechanical wear and near-zero coil inrush current, compared to relay modules that draw 15–50 mA per coil continuously when energized. On a 32-point module running at high duty cycles, this difference accumulates to significant energy savings over a production year.

Q2: Is the 1746-OB32/D compatible with my existing SLC 500 chassis and processor?
Yes. The 1746-OB32/D is compatible with all SLC 500 modular chassis (1746-A4, A7, A10, A13) and all SLC 5/01 through 5/05 processors. No firmware update is required — the module is recognized automatically during chassis power-up and I/O configuration.

Q3: What is the recommended replacement or upgrade path if I need higher output current?
If your application requires output currents above 0.5 A per point, the 1746-OB16E (electronically protected, 1 A per point) or the 1746-OV32 (sinking output variant) are the recommended within-platform alternatives. For applications migrating to ControlLogix, the 1756-OB32 provides a direct functional equivalent with enhanced diagnostics.

Q4: What does the 12-month warranty cover and what is the testing process?
Every 1746-OB32/D unit supplied by ZYPLC is tested under operational load conditions — all 32 output channels are verified for switching response, leakage current, and backplane communication integrity before shipment. The 12-month warranty covers functional failure under normal operating conditions. Expedited replacement is available to minimize production impact in the event of a warranty claim.
